Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 10, 2020

Product Diagram (MONSTADQI)

Component Function

Stand Top with

Integrated Qi Charger

• 23.6 x 9.8 inches (600 x 250 mm) surface area

• Holds a , a Monitor Mobile Device with

Wireless Charging Capabilities, and a

Notebook/Paper Documents

2Legs

• Adjustable height:

• Legs folded down - 3.3 inches (83.5 mm)

• Legs folded up - 4.5 inches (115.5 mm)

3Qi Charger

• 15W Charging for a Mobile Device with

Wireless Charging Capabilities

4Power Cable

• Connect the (included) to Power Adapter

provide power to the Qi Charger

Requirements

For the latest requirements and full manual, please visit:

www.startech.com/MONSTADQI.

• Mobile Device with Wireless Charging Capabilities x 1

• Clean, Flat, and Stable Surface

Installation

Assembling the Monitor Riser

1. Determine the desired height for the .Stand Top

Monitor Riser with Integrated Qi Charging Pad

2. (Optional -- Increase the height of the ) Rotate the Monitor Riser Legs Height

Adjustment Arms Legs Height found on the sides of the out and up. The

Adjustment Arms Legs Height pivot from a single point in the . Ensure all four

Adjustment Arms have been fully rotated out and up before proceeding to the next

step. (Figure 1)

3. Place the , top side down, onto a .Stand Top Clean, Flat, and Stable Surface

4. Align the two on one of the with the two in the Pegs Legs Holes Stand Top.

(Figure 2)

5. Firmly press the two on one of the into the two in the Pegs Legs Holes Stand Top.

6. Repeat steps 4-5 to install the second .Leg

7. Flip the upright and position it on a Monitor Riser Assembly Clean, Flat, and

Stable Surface for use.

8. Connect the to the and to an available . Power Adapter Power Cable Power Source

Figure 1

Figure 2

Pegs

Warning Statements

Make sure that you assemble this product according to the instructions.

Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage.

This product can support the following weight: 33 lb. (15 kg).

This product is intended for indoor use only and should not be used outdoors.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Operation

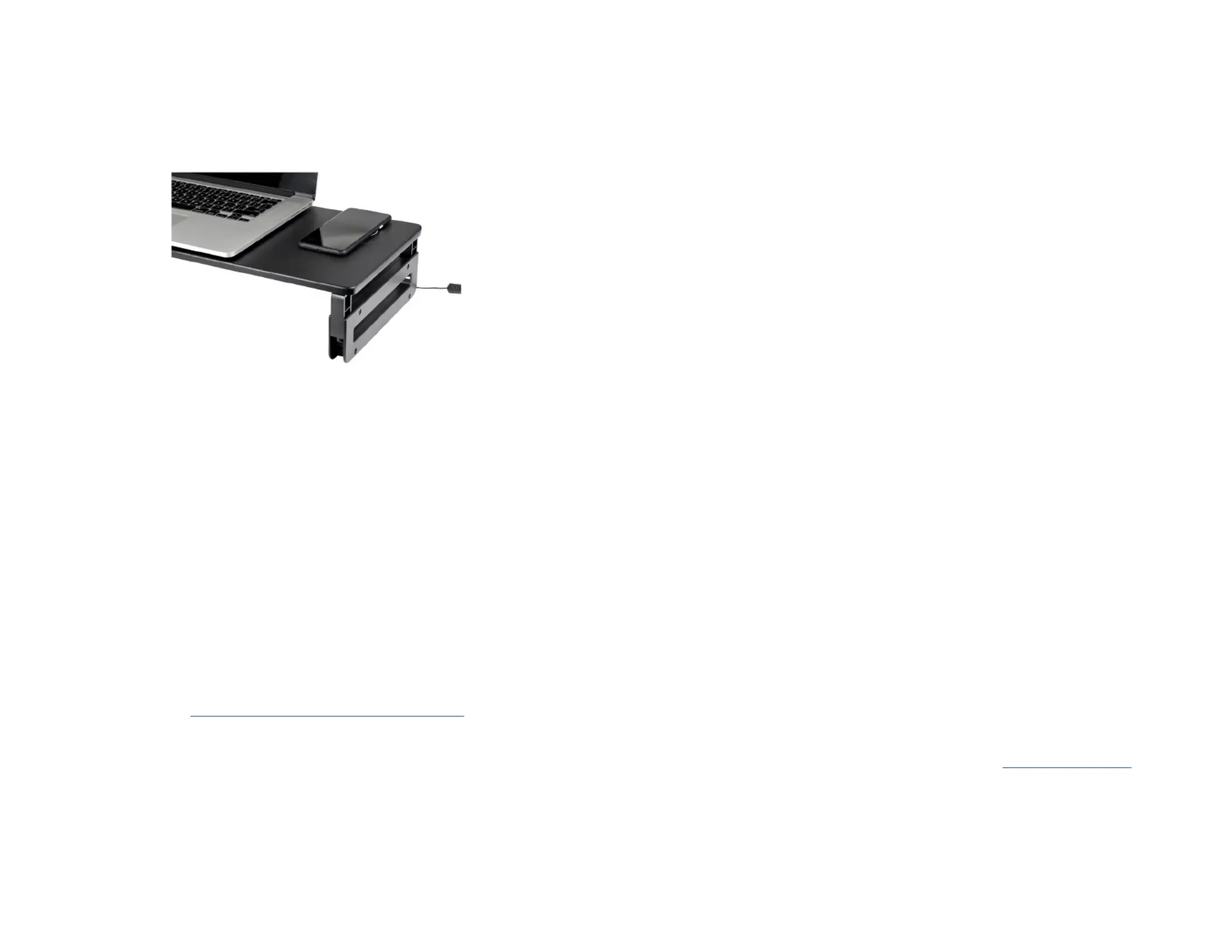

Charge a Mobile Device

Note - if your Mobile Device is housed within an external Case: Check with the

manufacturer of your to determine if the Case Mobile Device with Wireless Charging

Capabilities Case can be Qi charged with the installed.

• Place a onto the center of the Mobile Device with Wireless Charging Capabilities

Qi Charger found on the right-side of the Stand Top with Integrated Qi Charger.

(Figure 3)

Adjusting the Height of the Monitor Riser

1. Remove the Monitor Mobile Device with Wireless Charging Capabilities, , and

Notebook/Paper Documents from the Monitor Riser Assembly.

2. Disconnect the from the and the .Power Adapter Power Source Power Cable

3. Place the , top side down, onto a Monitor Riser Assembly Clean, Flat, and Stable

Surface.

4. Remove the from the . Wiggle the back and forth while pulling Legs Stand Top Legs

them up and out of the . Stand Top

Warning: Always exercise caution while removing the . The should always be Legs Legs

slowly yet rmly shifted back and forth while removing them to prevent any damage to

the or . Legs Stand Top

5. Rotate the found on the sides of the out and up to Height Adjustment Arms Legs

increase the height or out and down to decrease the height. The Height Adjustment

Arms Legs Height Adjustment Armspivot from a single point in the . Ensure all four

have been fully rotated before proceeding to the next step.

6. Follow steps 4-6 from to reinstall the . Installation - Assembling the Monitor Riser Legs

7. Flip the upright and position it on a Monitor Riser Assembly Clean, Flat, and Stable

Surface for use.

8. Connect the to the and to an available . Power Adapter Power Cable Power Source

Figure 3

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Flad panel støtte
Model:	MONSTADQI
Bredde:	600 mm
Dybde:	83 mm
Højde:	250 mm
Vægt:	1900 g
Produktfarve:	Sort
Pakkevægt:	2100 g
Pakkedybde:	352 mm
Pakkebredde:	703 mm
Pakkehøjde:	75 mm
Husmateriale:	MDF, Plastic
Certificering:	CE, FCC, RoHS
AC-adapter inkluderet:	Ja
Monteringstype:	Skrivebord
Indgangsspænding:	100 - 240 V
Hovedkassen højde (udvendigt):	723 mm
Hovedkassens længde (udvendigt):	245 mm
Hovedkassens bredde (udvendigt):	724 mm
Højdejustering:	Ja
Produkter pr. hovedkasse (udvendigt):	6 stk
Maksimal vægtkapacitet:	15 kg
Højdejusteringsområde:	83.5 - 115.5 mm
Forbedret kabelstyring:	Ja
Maksimal skærmstørrelse kompatibilitet:	- "
Antal understøttede skærme:	1
Minimal skærmstørrelse kompatibilitet:	- "
Montering interface kompatibilitet (min.):	- mm
Montering interface kompatibilitet (maks.):	- mm
Indbygget trådløs oplader:	Ja
