StarTech.com PATA2SATA2 Manual

StarTech.com Ikke kategoriseret PATA2SATA2

Læs gratis den danske manual til StarTech.com PATA2SATA2 (2 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 18 personer og har en gennemsnitlig bedømmelse på 5.0 stjerner ud af 9.5 anmeldelser. Har du et spørgsmål om StarTech.com PATA2SATA2, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

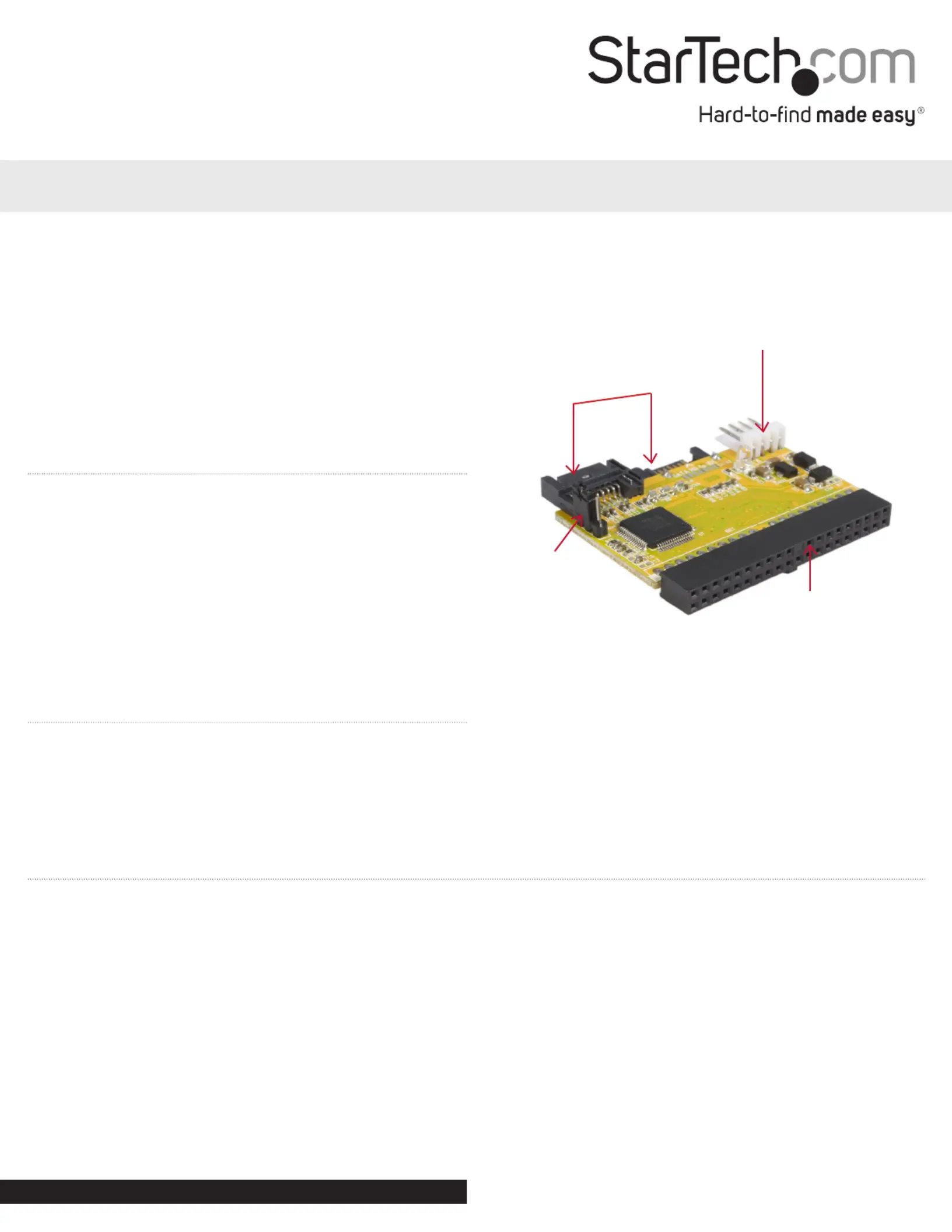

7-Pin Male SATA Data

Connectors

40-Pin Female IDE

Connector

Male SP4

Connector

Jumper

Connector

IDE to Dual SATA Converter

PATA2SATA2

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l’utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l’uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Features

• Compatible With Ultra ATA 100/133 with Data transfer rate up to

1.5 Gbps (150 MBps)

• Compliant With Serial ATA 1.0 Specication

• Converts IDE to Serial ATA

• No Drivers required

• Supports ATAPI devices (CD/DVD drives, CD/DVD burners, etc... )

• Supports up to 2 channels and 2 devices

• With no jumpers, makes it easy for conguration

Package Contents

• 1 X IDE to SATA Converter

• 1 X Power Cable

• 2 X SATA Cable

Installation

The following steps outline the procedure to install the PATA2SATA2 IDE to SATA Drive Motherboard Adapter.

1. Power down the computer, and open the computer case to provide access to the motherboard.

2. Insert the PATA2SATA2 into an available 40-pin IDE slot on the motherboard.

3. Fasten the SATA Drive(s) to the computer case, as you would in a typical hard drive installation.

4. Connect the SATA Drive(s) to the computer power supply, using available SATA power connectors.

5. Connect the LP4 power connector on the LP4 to SP4 adapter to an available LP4 power connection on the computer power supply.

6. Connect the remaining end of the LP4 to SP4 adapter to the 4 pin power port on the PATA2SATA2.

7. Connect the SATA Drive(s) to the PATA2SATA2 SATA connectors using the SATA data cable(s).

8. Replace the computer case cover(s) and power on the computer.

Installation Guide

Manual Revision: 06/06/2011

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names & Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of

third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body

of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and

other protected names and/or symbols contained in this manual and related documents are the property of their

respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions.

If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of

online tools, documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted,

following the initial date of purchase. During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant

its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees

or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise),

loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

PATA2SATA2

Chipset

Sunplus SATALink SPIF223A

Data Transfer Rate

150 MBps

Industry Standards

Serial ATA 1.0

Connector Types

1 x IDE 40 pin Female

2 x SATA Data 7 pin Male

1 x SP4 Male

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PATA2SATA2
Bredde:	45.5 mm
Dybde:	54 mm
Højde:	11 mm
Vægt:	12.7 g
Produktfarve:	Black, Yellow
Pakkevægt:	100 g
Pakkedybde:	130 mm
Pakkebredde:	40 mm
Pakkehøjde:	170 mm
Kabler inkluderet:	SATA
Certificering:	CE, FCC
Bæredygtighedscertifikater:	RoHS
Værtsgrænseflade:	IDE
Intern:	Ja
Seriel grænsefladetype:	SATA
Output-grænseflade:	SATA
Dataoverførselshastighed (maks.):	1.5 Gbit/sek.
Chipsæt:	SunplusIT - SPIF223A
Antal interne SATA-porte:	2
SATA revision:	1.0
