Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 09/15/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x PEX4S952 or PEX4S952LP card

• 1 x 4 port DB9 break-out cable

• 1 x Full Prole bracket (PEX4S952LP only)

• 1 x Low Prole bracket (PEX4S952 only)

• 1 x User Manual

• 1 x Driver CD

System Requirements

• PCI Express enabled computer system

• Windows® 2000/ XP(32/64bit)/ Server 2003(32/64bit)/

Vista(32/64bit), and Linux

Installation

WARNING! PCI Express cards, like all computer equipment, can be

severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your PCI

Express card. StarTech.com recommends that you wear an anti-

static strap when installing any computer component. If an anti-

static strap is unavailable, discharge yourself of any static electricity

build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Also be careful to handle the PCI

Express card by its edges and not the gold connectors.

Setting Power Mode

This card is specially designed to allow for power output from the

ninth pin of the DB9 connector(s) for devices that support power

over serial. This card allows users to set each port with 5V, 12V, or RI

(no power) via jumper settings on the card. Users can also choose to

draw the necessary power directly from the system power supply by

connecting the LP4 molex power connector.

Hardware Installation

1. Turn your computer o and any peripherals connected to the

computer (ie. Printers, external hard drives, etc.). Unplug the

power cable from the rear of the power supply on the back of

the computer.

2. Remove the cover from the computer case. Refer to

documentation of your computer system for details.

3. Locate an open PCI Express slot and remove the metal cover plate

on the rear of the computer case. Note that this card will work in

PCI Express slots of additional lanes (ie. x4, x8 or x16 slots)

4. Insert the card into the open PCI Express slot and fasten the

bracket to the rear of the case.

OPTIONAL: If supplying power from the computer system’s power

supply, (see “Setting Power Mode”) connect the LP4 molex plug into

the card.

5. Place the cover back onto the computer.

6. Insert the power cable into the socket on the power supply.

PEX4S952 / PEX4S952LP

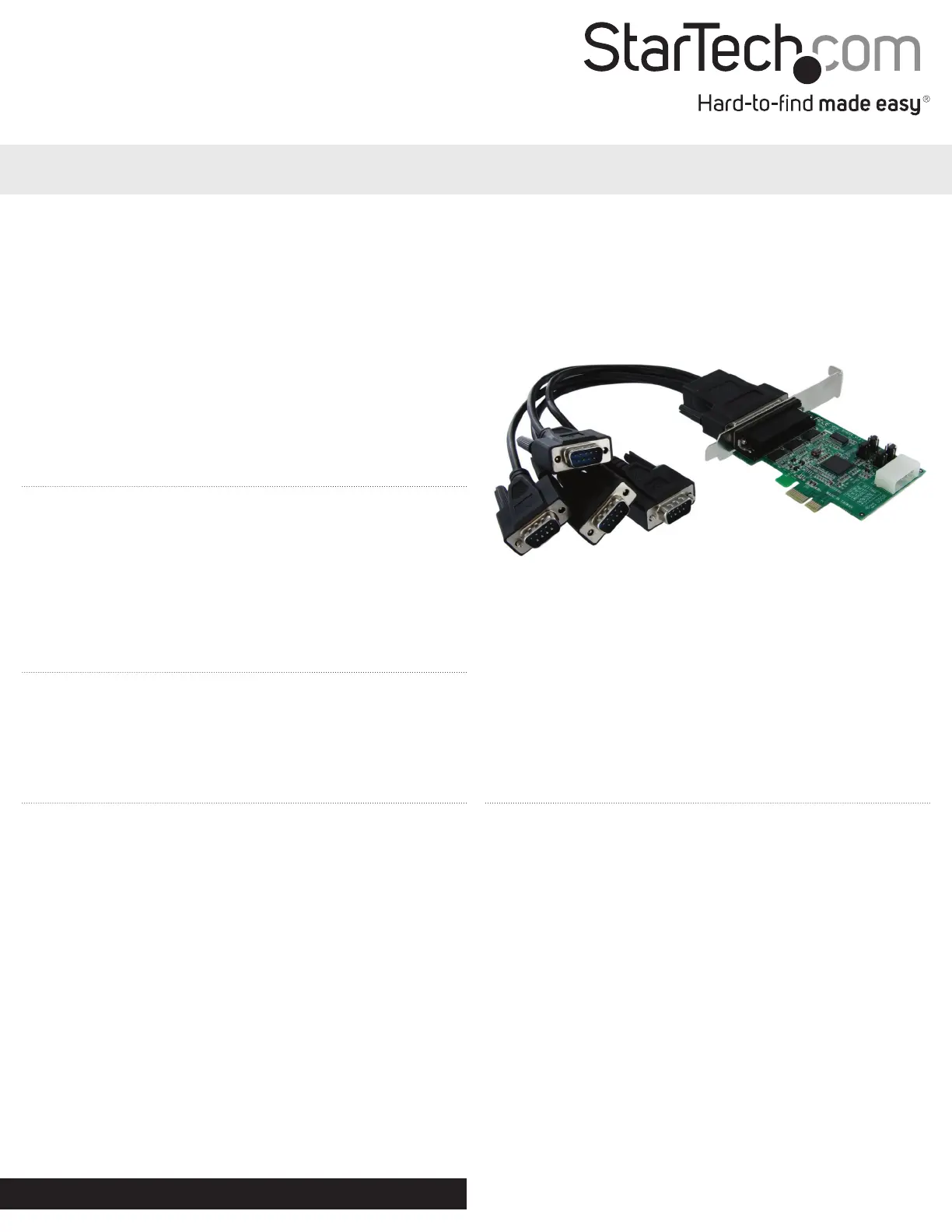

4 Port PCI Express RS232 Serial Card with 16950 UART

*actual product may vary from photos

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Driver Installation

Windows® 2000/XP/Server 2003

1. When the Found New Hardware wizard appears on the screen,

insert the Driver CD into your CD-ROM drive. If you are prompted

to connect to Windows Update, please select the “No, not this

time” option and click Next.

2. Select the option “Install Drivers Automatically (Recommended)”

and then click the Next button.

3. Windows should now start searching for the drivers. Once this

has completed, click the Finish button.

Windows® Vista

1. When the Found New Hardware window appears on the screen,

click on the “Locate and install drivers software (recommended)”

option. If prompted to search online, select the “Don’t search

online” option.

2. When prompted to insert the disc, insert the Driver CD that

came with the card, into your CD-ROM drive and Windows will

automatically proceed to search the CD.

3. If a Windows Security dialog window appears, click the “Install this

driver software anyway” option to proceed.

4. Once the driver is installed, click the Close button.

Verifying Installation

Windows® 2000/XP/Server 2003/Vista

1. From the main desktop, right-click on My Computer, then select

Manage.

2. In the new Computer Management window, select Device

Manager from the left window panel.

3. Double-click on Ports (COM & LPT) option. The appropriate

number of additional COM ports should be visible. The ports are

ready to connect to new devices.

Specications

PEX4S952 / PEX4S952LP

Bus Interface PCI Express p2-x1 (base spec 1.1)

Chipset Oxford OXPCIe954

UART 16C950

External Connectors 4 x DB-9 male

Internal Connectors 1 x LP4 molex

Maximum Data Transfer

Rate 460 Kbps

Supported Protocol RS-232

Compatible Operating

Systems

Windows® 2000/XP/Server 2003/Vista,

Linux® Kernel 2.4.x/2.6.x
