Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 20, 2021 8:27 PM

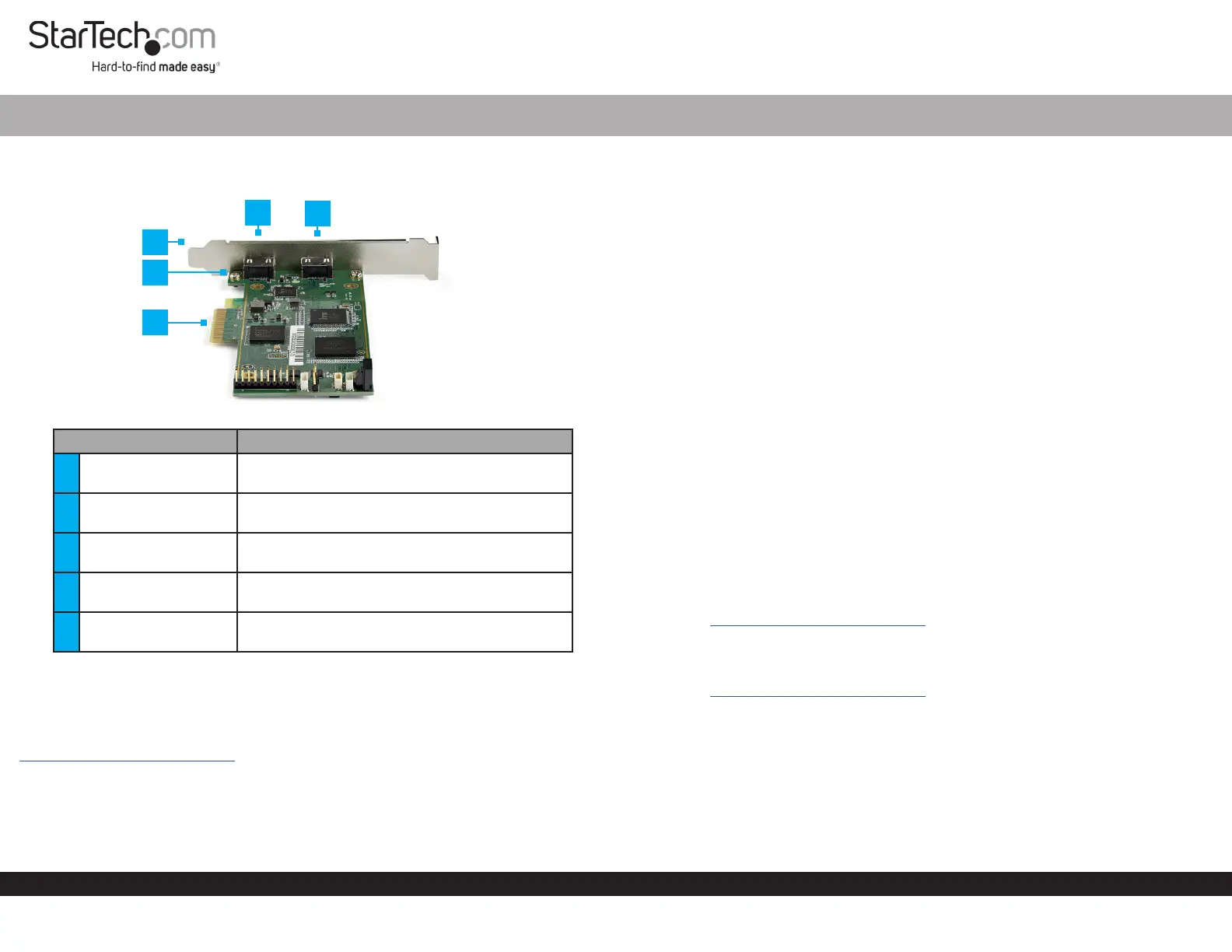

Product Diagram (PEXHDCAP4K)

Component Function

1Standard Prole

Bracket

• Used to securely attach the Video Capture

Card Host Computer to the .

2Bracket Screws • Used to secure the or Standard Low Prole

Bracket Video Capture Card to the .

3PCIe Connector • Used to connect the to a Video Capture Card

PCIe Port.

4HDMI Input Port • Used to connect an to the HDMI Device Video

Capture Card.

5HDMI Output Port • Used to connect an to HDMI Display Device

the .Video Capture Card

Product Information & Requirements

For the latest drivers, software, manuals, product information, technical specications,

and declarations of conformance, please visit:

www.startech.com/PEXHDCAP4K

• Tools:

• Phillips Head Screwdriver x 1

• Operating System:

• Windows 10, 8.1, 8, and 7

PCI Express Video Capture Card | HDMI | 4K 60Hz | 60fps

Installation

Warning! Video Capture Cards, can be severely damaged by static electricity. Be sure

that you are properly grounded before opening your computer case or touching your

card. Be careful to handle the card by its edges and not the gold connectors.

1. Turn o the and all connected (e.g. printer, Host Computer Peripheral Devices

external hard drives, etc.).

2. Unplug the from the .Power Cable Host Computer

3. Remove the cover from the .Host Computer’s Case

Note: Refer to the documentation that came with your computer for further

information on how to properly remove the computer case.

4. Locate a and remove the .PCIe Slot Metal Cover Plate

Note: Refer to the documentation that came with your computer for further

information on how to properly remove the metal cover plate.

5. Gently insert the on the into the PCIe Connector Video Capture Card PCI Express

Slot.

6. Using the screws removed from the and a Metal Cover Plate Phillips Head

Screwdriver Video Capture Card, secure the to the rear of the computer case.

7. Place the cover back over the computer case.

8. Reconnect the and to the and Power Cable Peripheral Devices Host Computer

power the On. Host Computer

Driver Installation

Navigate to and select the tab www.startech.com/PEXHDCAP4K Drivers/Downloads

to locate and download the latest .Driver

Software Installation

Navigate to and select the www.startech.com/PEXHDCAP4K Drivers/Downloads

tab to locate and download the latest and the Windows Video Capture Software

accompanying .Software User Guide

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

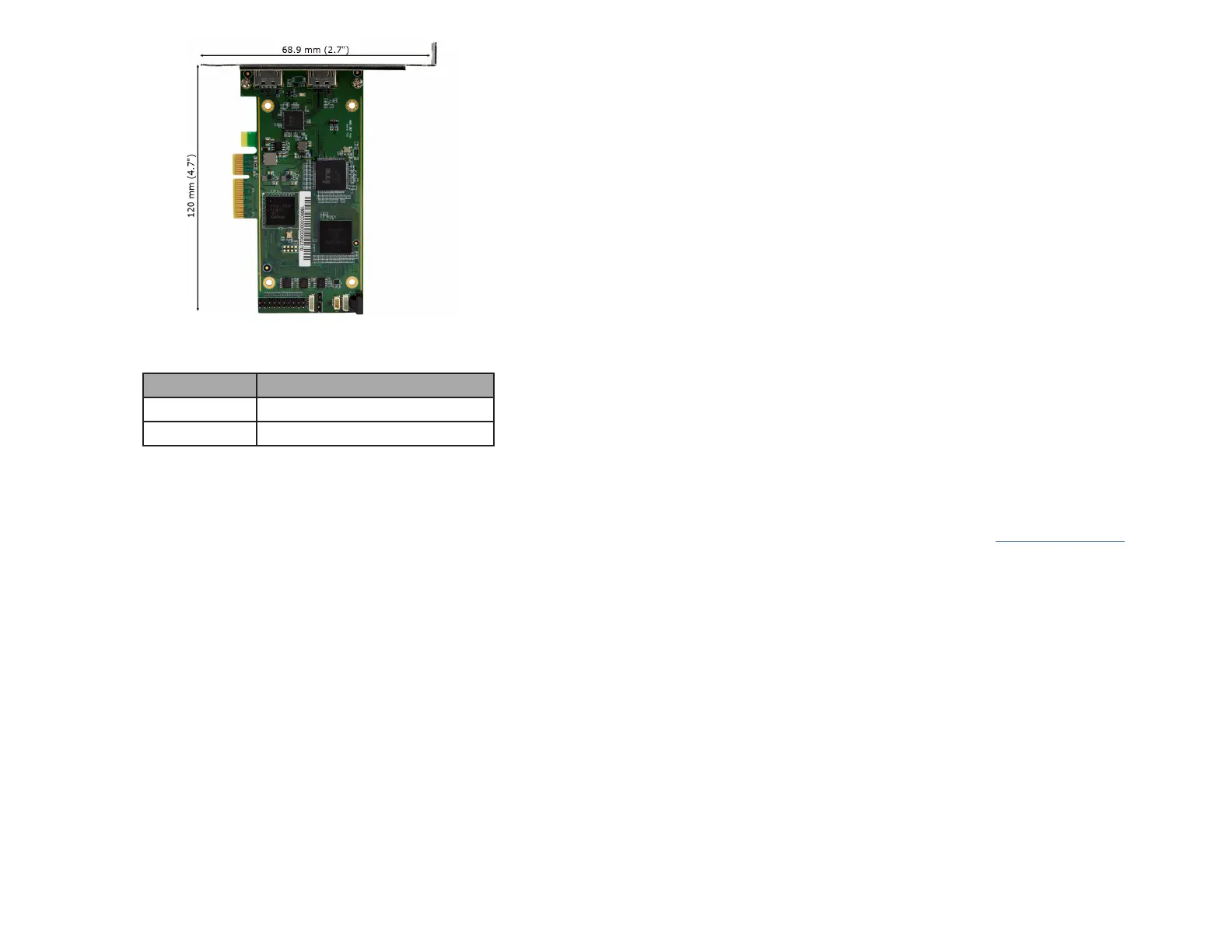

Product Dimensions

Resolution

Resolution Description

Max 4096×2160 @ 60/50/30/25/24fps

Min 720×576i @ 50fps
