Instruction manual

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

JP: - jp.startech.com取扱説明書

Manual Revision: 02/12/2018

For the latest information, technical specications, and support for

this product, please visit www.startech.com/PEXUS313AC2V.

Package contents

• 1 x controller card

• 1 x instruction manual

System requirements

• Computer with an available PCI Express slot (x4, x8, x16)

• Any of the following operating systems:

• Windows® 10 (32-bit or 64-bit)

• Windows 8 / 8.1 (32-bit or 64-bit)

• Windows 7 (32-bit or 64-bit)

• macOS 10.13

• 15-pin SATA power connector (optional)

• LP4 molex power connector (optional)

Operating system requirements are subject to change. For the latest

requirements, please visit www.startech.com/PEXUS313AC2V.

PEXUS313AC2V

4-Port PCI Express USB 3.1 (10Gbps) Controller Card - 3x USB-A - 1x USB-C

*actual product may vary from photos

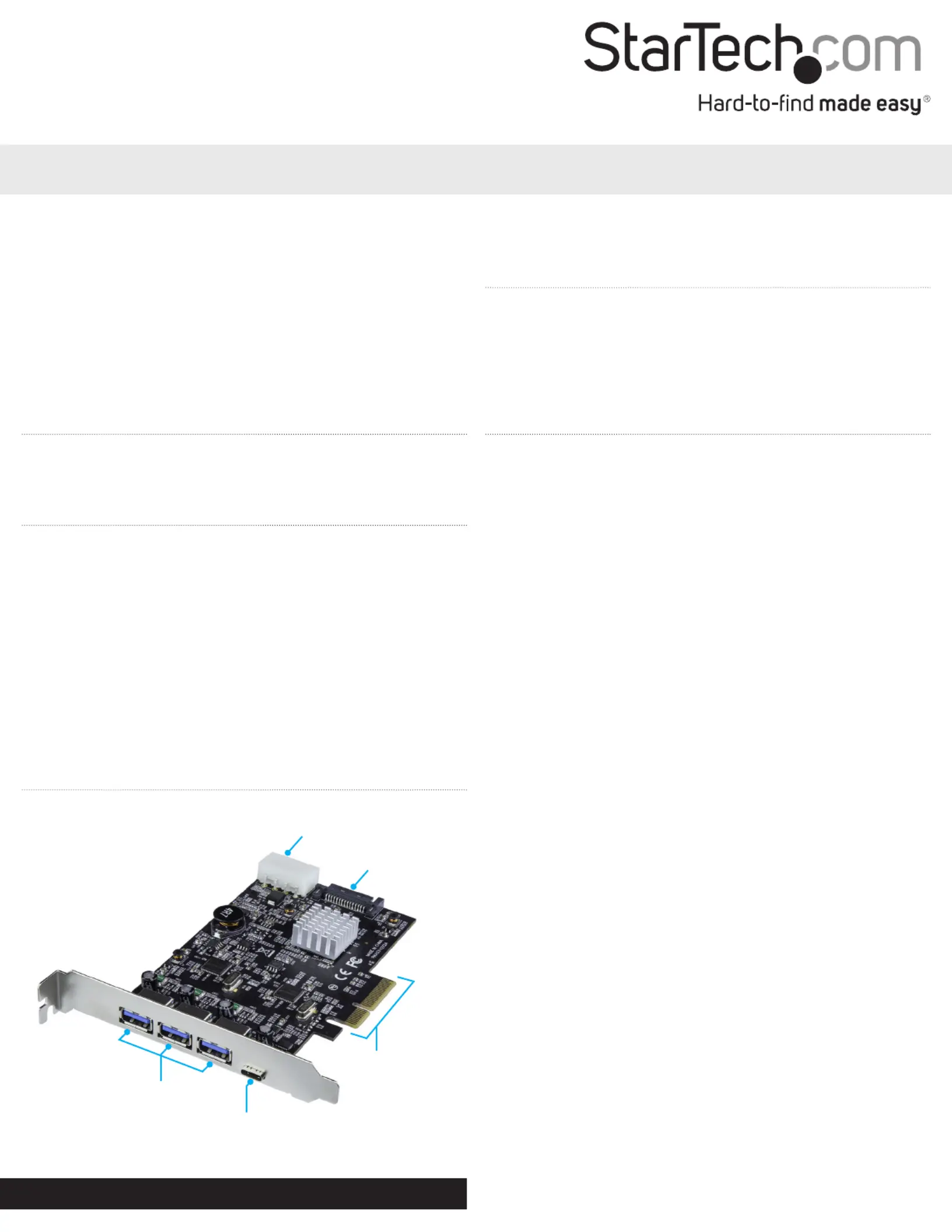

Product diagram

Installation

Install the USB 3.1 card

WARNING!

PCI Express cards can be severely damaged by static electricity. Make

sure that you’re properly grounded before you handle any and all

electronic components. You should wear an anti-static strap when you

install any computer component. If an anti-static strap isn’t available,

discharge any built-up static electricity by touching a large grounded

metal surface for several seconds. Only handle the PCI Express card by

its edges and don’t touch the gold connectors.

1. Turn o your computer and any devices or peripherals that are

connected to it (for example, printers, external hard drives, etc).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

4. Remove the cover from your computer case. Consult the

documentation that came with your computer for details about

how to do this properly.

5. Locate an open PCI Express slot (x4 or higher) and remove the

corresponding metal cover plate from the back of your computer

case. Consult the documentation that came with your computer

for details about how to do this safely.

6. Gently insert the card’s PCIe connector into the open PCI Express

slot and fasten the bracket to the back of the case.

7. (Optional): Connect either a 15-pin SATA or LP4 power connector

from your computer’s power supply to the card’s SATA or LP4

power connector.

Note: it is recommended that you connect SATA or LP4 power

to ensure sucient power is provided to the card and to each

USB 3.1 port.

8. Place the cover back onto your computer case.

9. Reconnect the power cable to the back of your computer.

10. Reconnect all of the peripheral devices that you disconnected in

step 3.

11. Turn on your computer.

About USB 3.1 Gen 2

USB 3.1 Gen 2 oers speeds up to 10Gbps. The PEXUS313AC2V is a

USB 3.1 (10Gbps) Gen 2 card.

3 x USB 3.1 port

(USB-A)

USB 3.1 port

(USB-C™)

PCIe p1-x4

connector

SATA power

connector

LP4 Molex

connector

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

macOS is a trademark of Apple Inc., registered in the U.S. and other countries.

Windows is a trademark of Microsoft Corporation, registered in the U.S. and other countries.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Install the drivers

Windows OS

Depending on your version of Windows, the driver installs

automatically when the card is installed into your computer’s PCI

Express slot. However, if it doesn’t, you will need to manually install

the driver:

1. If the Found New Hardware dialog box appears on your screen,

close the dialog box or click Cancel.

2. To download the latest drivers, use a web browser and navigate to

www.startech.com/PEXUS313AC2V.

3. Click the tab.Support

4. Download the driver.

5. Extract the contents of the compressed le that you downloaded.

6. Double-click the appropriate driver for the version of Windows

that you’re running and follow the on-screen instructions to

complete the installation.

macOS

The driver installs automatically when the card is installed.
