Quick-start guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 10/13/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PEXUSB311A1E

Package contents

• 1 x controller card

• 1 x low-prole bracket

• 1 x quick-start guide

Requirements

• Computer with an available PCI Express slot (x4, x8, x16)

• Any of the following operating systems:

• Windows® 7 (32-bit or 64-bit)

• Windows 8 (32-bit or 64-bit)

• Windows 8.1 (32-bit and 64-bit)

• Windows 10 (32-bit and 64-bit)

• Windows Server 2012

• macOS® 10.9

• macOS 10.10

• Linux® 3.5 to 4.4 (LTS versions only)

Operating system requirements are subject to change. For the latest

requirements, please visit www.StarTech.com/PEXUSB311A1E.

PEXUSB311A1E

2-Port USB 3.1 (10Gbps) + eSATA Controller Card - 1x USB-A, 1x eSATA - PCIe

*actual product may vary from photos

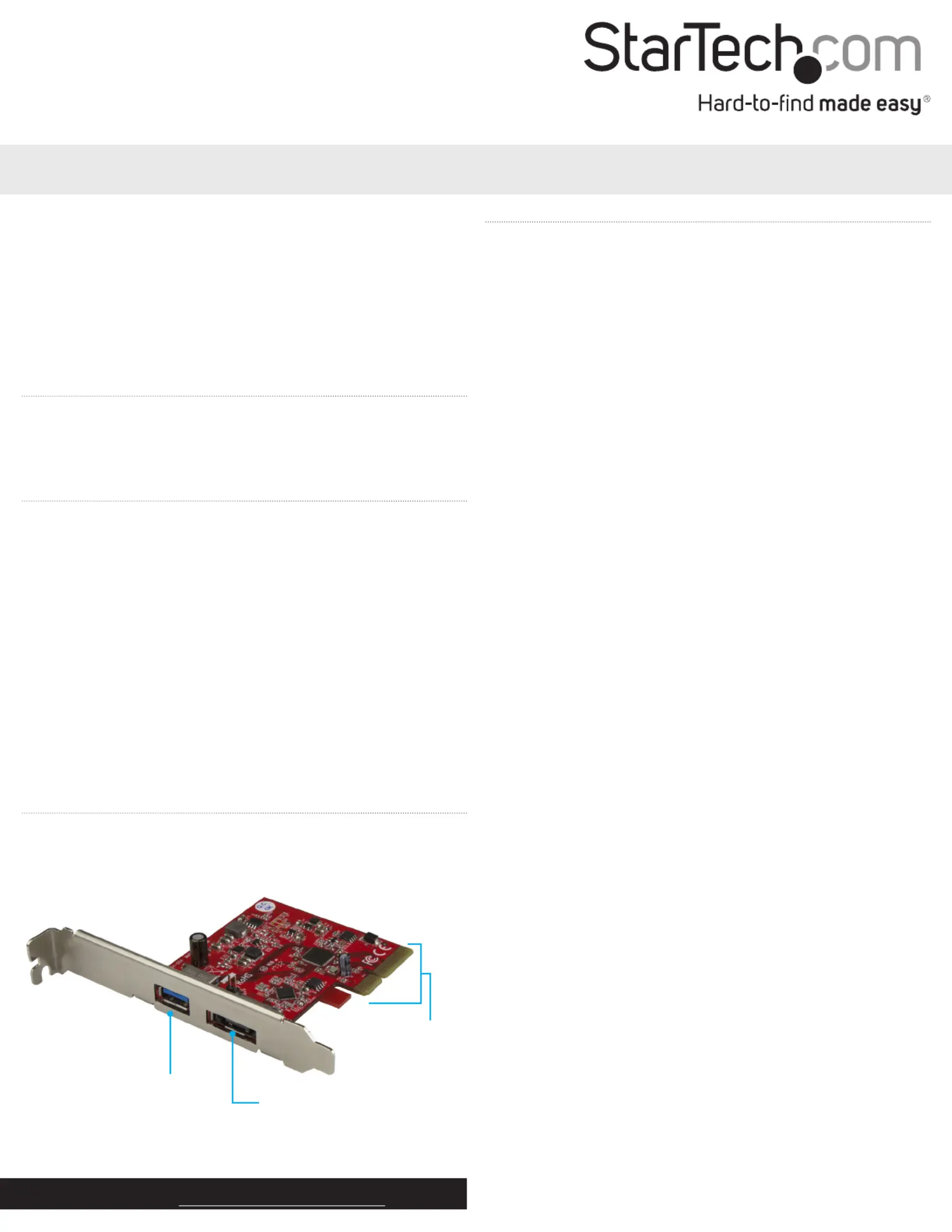

Product diagram

USB 3.1 Type-A

connector

Hardware installation

Install the controller card

WARNING!

Controller cards can be severely damaged by static electricity. Make

sure that you’re properly grounded before you open your computer

case or touch your controller card. You should wear an anti-static

strap when you install any computer component. If an anti-static

strap isn’t available, discharge any built-up static electricity by

touching a large grounded metal surface for several seconds. Only

handle the controller card by its edges and don’t touch the gold

connectors.

1. Turn o your computer and any devices or peripherals that are

connected to it (for example, printers, external hard drives, and

so on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

4. Remove the cover from your computer case. Consult the

documentation that came with your computer for details about

how to do this safely.

5. Locate an open PCI Express slot and remove the corresponding

metal cover plate from the back of your computer case. Consult

the documentation that came with your computer for details

about how to do this safely. This card works in PCI Express slots of

additional lanes (x4, x8, or x16 slots).

6. Gently insert the card into the open PCI Express slot and fasten

the bracket to the back of the case.

Note: If you install the card into a small form factor or a low-

prole desktop system, it may be necessary to replace the pre-

installed standard-prole bracket with the included low-prole

(half-height) installation bracket.

7. Place the cover back onto your computer case.

8. Reconnect the power cable to the back of your computer

9. Reconnect all of the peripheral devices that you disconnected in

step 3.

PCIe p1-x4

connector

eSATA (6Gbps)

connector

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur

these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders. Windows is a registered trademark of Microsoft

Corporation in the United States and/or other countries.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Software installation

The drivers should install automatically, however, if they don’t, you

will need to manually install the driver.

Install the driver on a computer running Windows

1. If the Found New Hardware dialog box appears on your screen,

close the dialog box or click Cancel.

2. To download the latest drivers, navigate to:

www.StarTech.com/PEXUSB311A1E

3. Click the tab. Support

4. Download the driver.

5. When the download is complete, extract the contents of the

compressed le that you downloaded.

6. Double-click the appropriate driver for the version of Windows

that you’re running and follow the on-screen instructions to

complete the installation.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PEXUSB311A1E
Bredde:	80 mm
Dybde:	93 mm
Højde:	100 mm
Vægt:	46 g
Produktfarve:	Rød
Pakkevægt:	122 g
Pakkedybde:	142 mm
Pakkebredde:	170 mm
Pakkehøjde:	30 mm
Opbevaringstemperatur (T-T):	-25 - 70 °C
Relativ luftfugtighed ved drift (H-H):	15 - 90 %
Driftstemperatur (T-T):	5 - 50 °C
Hurtig installationsvejledning:	Ja
Certificering:	CE, FCC, TAA, REACH
Harmoniseret systemkode (HS):	84733020
Bæredygtighedscertifikater:	RoHS
Understøttede Linux-operativsystemer:	Ja
Værtsgrænseflade:	PCIe
Intern:	Ja
Understøttede operativsystemer til servere:	Windows Server 2012, Windows Server 2016, Windows Server 2019
Monteringsbeslag inkluderet:	Ja
Output-grænseflade:	eSATA
Antal eSATA-porte:	1
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte:	1
Understøtter UASP:	Ja
Udvidelseskort standard:	PCIe 3.0
Dataoverførselshastighed (maks.):	10 Gbit/sek.
Chipsæt:	ASMedia - ASM2142, ASMedia - ASM1351
Port multiplikator:	Ingen
