Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 14, 2020 1:26 PM

Product Diagram (PEXUSB312A3)

Component Function

1USB-A Ports

• Used to connect a to USB Peripheral Device

the . USB Card

2Bracket Screws

• Used to the orSecure Low Prole Full Prole

Bracket USB Card.to the

3PCI Express Connector

• Used to connect the to the USB Card PCI

Express Slot Host Computer on the .

4SATA Power Connector

• (Optional) Connect a 15 Pin SATA Power

Connector USB to provide extra power to the

Type-A Ports.

Requirements

For the latest requirements, please visit www.startech.com/PEXUSB312A3

• Computer with an available PCI Express® slot (x4, x8, or x16)

• (Optional) SATA Power Source

Tools

• Small Phillips® Head Screwdriver

2-Port USB 3.1 Card | 10Gbps per port | 2x USB-A | PCIe

Hardware Installation

Installing the Low Prole Bracket

By default the is attached to the . Depending on your Full Prole Bracket USB Card

system conguration you may need to remove the and replace it Full Prole Bracket

with the (included).Low Prole Bracket

1. Using a (sold separately), remove the two Small Phillips Head Screwdriver Bracket

Screws Full Prole Bracket USB Card securing the to the .

2. Align the on the with the on the Screw Holes USB Card Screw Holes Low Prole

Bracket USB Card Screw Holes Low . Making sure the is sitting on top of the on the

Prole Bracket.

3. Insert the through the and into the on the Bracket Screws USB Card Screw Holes

Low Prole Bracket.

4. Using the , tighten the being Small Phillips Head Screwdriver Bracket Screws,

careful not to over-tighten.

Installing the USB Card

Warning: USB cards can be damaged by static electricity. Make sure that you are

properly grounded before you open the computer case or touch the . You USB Card

should wear an anti-static strap when you install any computer components. If an

anti-static strap is not available, discharge any built-up static electricity by touching

a large grounded metal surface for several seconds. Only handle the by its USB Card

edges and do not touch the gold connectors.

1. Turn o the and disconnect any that are Host Computer Peripheral Devices

connected (e.g. printer, external hard drives, etc.).

2. Unplug the from the back of the .Power Cable Host Computer

3. Remove the from the . Cover Host Computer’s Case

Note: Consult the documentation that came with the for details Host Computer

about how to remove the safely.Cover

4. Locate an open (x4, x8, or x16) and remove the corresponding PCI Express Slot

Metal Cover Plate Host Computer’s Case from the back of the .

5. Gently insert the into the open and fasten the USB Card PCI Express Slot Bracket

to the back of the .Host Computer’s Case

6. (Optional) Connect a from the to the 15 Pin SATA Power Connector Power Supply

SATA Power Connector USB Card on the .

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

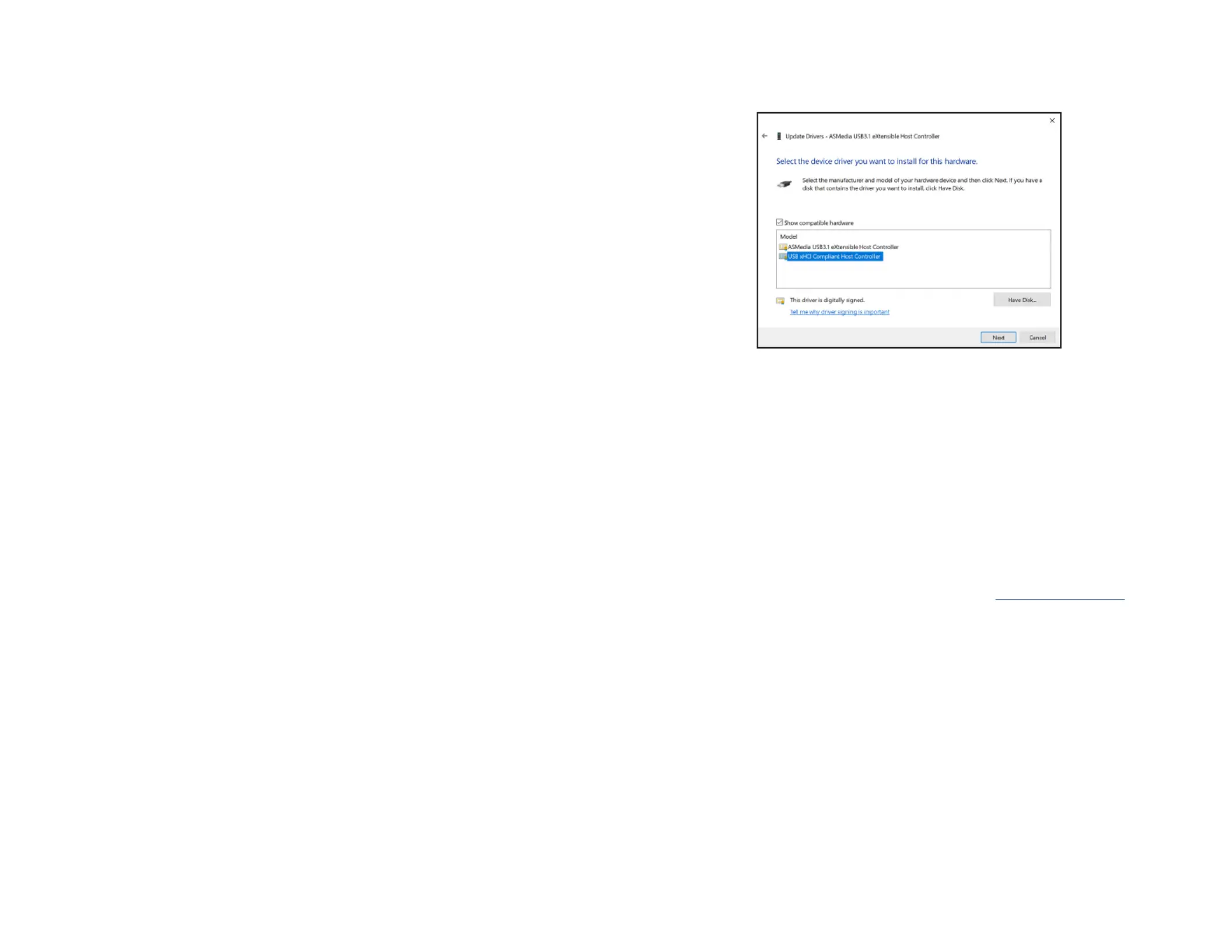

5. On the screen, select the How do you want to search for drivers Browse my

computer for driver software link.

6. Click on the link.Let me pick from a list of available drivers on my computer

7. Select, .USB xHCI Compliant Host Controller

USB xHCI Compliant Host Controller

8. Click the Button. Next

9. Click the button once the installation is complete.Close

Note: Connecting a separate to the will provide extra power Power Supply USB Card

to the for charging connected .USB-A Ports Devices

7. Place the back onto the . Cover Host Computer’s Case

8. Reconnect the to the back of the .Power Cable Host Computer

9. Reconnect all of the that were disconnected in step 1.Peripheral Devices

10. Connect to the on the .USB Peripheral Devices USB-A Ports USB Card

Software Installation

When the is installed the drivers should install automatically. If the drivers do USB Card

not automatically install, navigate to to download www.startech.com/PEXUSB312A3

the appropriate driver package.

1. Click on the tab, under , select the appropriate driver package for the Support Drivers

Operating System Host Computer running on the .

2. When you have downloaded and unzipped the driver. Click on the Installation Guide

PDF and follow the instructions.

Installing the Driver in Windows 7

1. If the dialog box appears on your screen, close the dialog box Found New Hardware

or click the button.Cancel

2. Navigate to the screen.Device Manager

3. On the list of installed devices, right-click on ASMedia USB3.1 eXtensible Host

Controller.

4. Select from the pop-up menu.Update Driver

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PEXUSB312A3
Bredde:	120 mm
Dybde:	110 mm
Højde:	19 mm
Vægt:	78 g
Produktfarve:	Sort
Pakkevægt:	142 g
Pakkedybde:	145 mm
Pakkebredde:	215 mm
Pakkehøjde:	30 mm
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Driftstemperatur (T-T):	5 - 50 °C
Hurtig installationsvejledning:	Ja
Harmoniseret systemkode (HS):	84733020
Understøttede Mac-operativsystemer:	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Understøttede Linux-operativsystemer:	Ja
Hovedkassen højde (udvendigt):	370 mm
Hovedkassens længde (udvendigt):	315 mm
Hovedkassens bredde (udvendigt):	590 mm
Værtsgrænseflade:	PCIe
Intern:	Ja
Produkter pr. hovedkasse (udvendigt):	80 stk
Understøttede operativsystemer til servere:	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Monteringsbeslag inkluderet:	Ja
Output-grænseflade:	USB 3.2 Gen 2 (3.1 Gen 2)
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte:	2
Udvidelseskort standard:	PCIe 3.0
Udvidelseskort formfaktor:	Fuld højde/ lav profil
Dataoverførselshastighed (maks.):	10 Gbit/sek.
Antal interne SATA-porte:	1
SATA strømstik type:	SATA 15-stik
