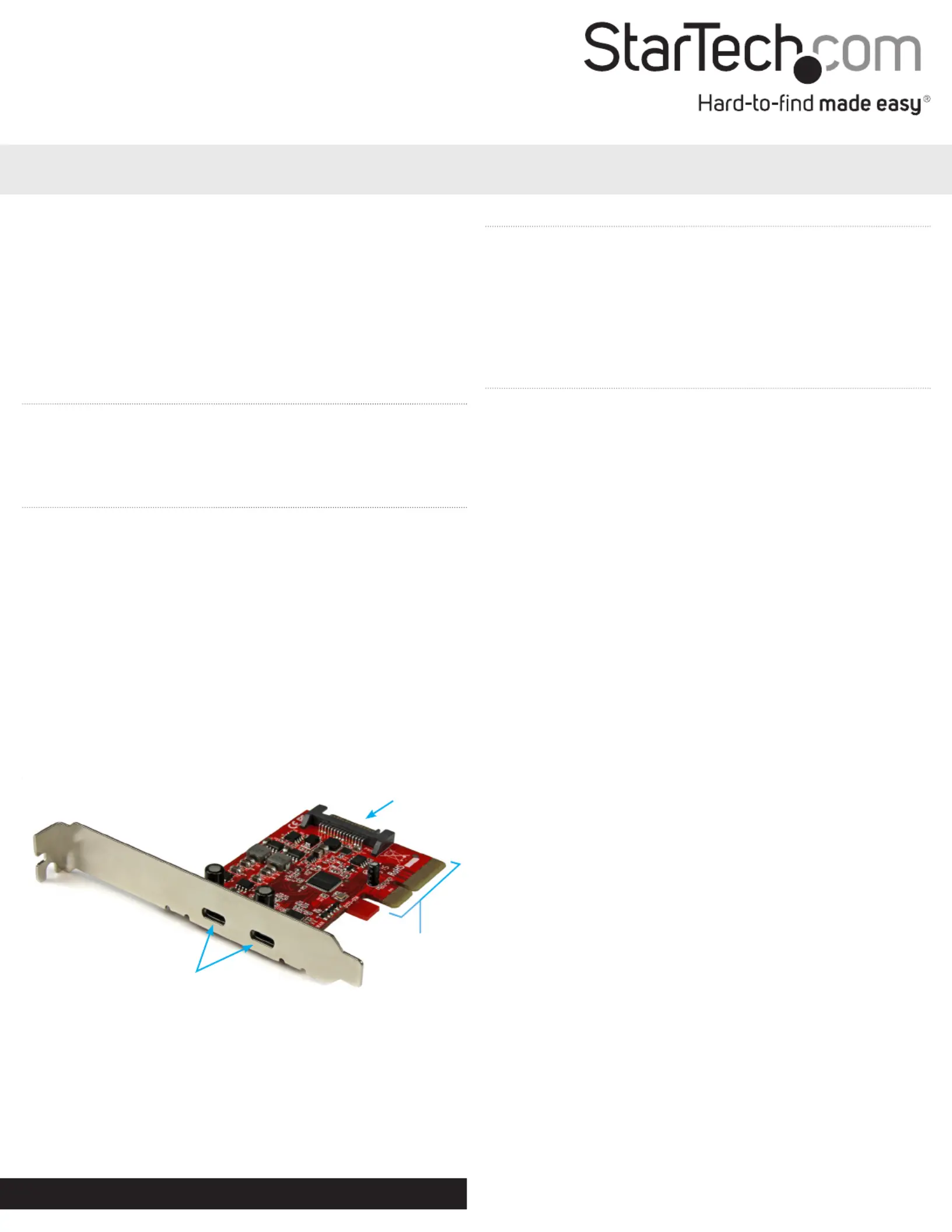

Instruction manual

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 12/17/2015

For the latest information, technical specications, and support for

this product, please visit www.startech.com/PEXUSB312C

PEXUSB312C

2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe

Packaging contents

• 1x 2-port USB 3.1 (10Gbps) card - 2x USB-C™

• 1x low-prole bracket

• 1x instruction manual

System requirements

• Computer with an available PCI Express slot (x4, x8, x16)

• 15-pin SATA power connector (optional, but recommended)

• Any of the following operating systems:

- Windows® 10 (32-bit or 64-bit)

- Windows 8 / 8.1 (32-bit or 64-bit)

- Windows 7 (32-bit or 64-bit)

- Windows Server® 2012, 2008 R2

- Mac OS® 10.9 and later (tested up to 10.10)

- Linux® 3.5

Operating system requirements are subject to change. For the latest

requirements, please visit www.startech.com/PEXUSB312C.

About USB 3.0, USB 3.1 Gen 1, and USB

3.1 Gen 2

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard

oers speeds up to 5Gbps.

USB 3.1 Gen 2 oers speeds up to 10Gbps. The PEXUSB312C is a USB

3.1 (10Gbps) Gen 2 card.

Installation

Install the USB 3.1 card

WARNING!

PCI Express cards can be severely damaged by static electricity. Make

sure that you’re properly grounded before you open your computer

case or touch your PCI Express card. You should wear an anti-static

strap when you install any computer component. If an anti-static

strap isn’t available, discharge any built-up static electricity by

touching a large grounded metal surface for several seconds. Only

handle the PCI Express card by its edges and don’t touch the gold

connectors.

1. Turn o your computer and any devices or peripherals that are

connected to it (for example, printers, external hard drives, and so

on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

4. Remove the cover from your computer case. Consult the

documentation that came with your computer for details about

how to do this safely.

5. Locate an open PCI Express p1-x4 slot (or higher) and remove the

corresponding metal cover plate from the back of your computer

case. Consult the documentation that came with your computer

for details about how to do this safely. This card works in PCI

Express x4, x8, or x16 slots.

6. Gently insert the card into the open PCI Express slot and fasten

the bracket to the back of the case.

Note: If you install the card into a small form-factor or a low-prole

desktop computer, it may be necessary to replace the pre-installed

standard-prole bracket with the included low-prole (half-height)

installation bracket.

7. (Optional): Connect a 15-pin SATA power connector from your

computer’s power supply to the card’s SATA power connector.

Note: It is recommended that you connect SATA power to ensure

sucient power is provided to the card as well as to each USB 3.1

port.

8. Place the cover back onto your computer case.

9. Reconnect the power cable to the back of your computer.

10. Reconnect all of the peripheral devices that you disconnected in

step 3.

11. Turn on your computer.

USB 3.1 ports

(USB-C)

PCIe x4

connector

SATA power

connector
