Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 25, 2022

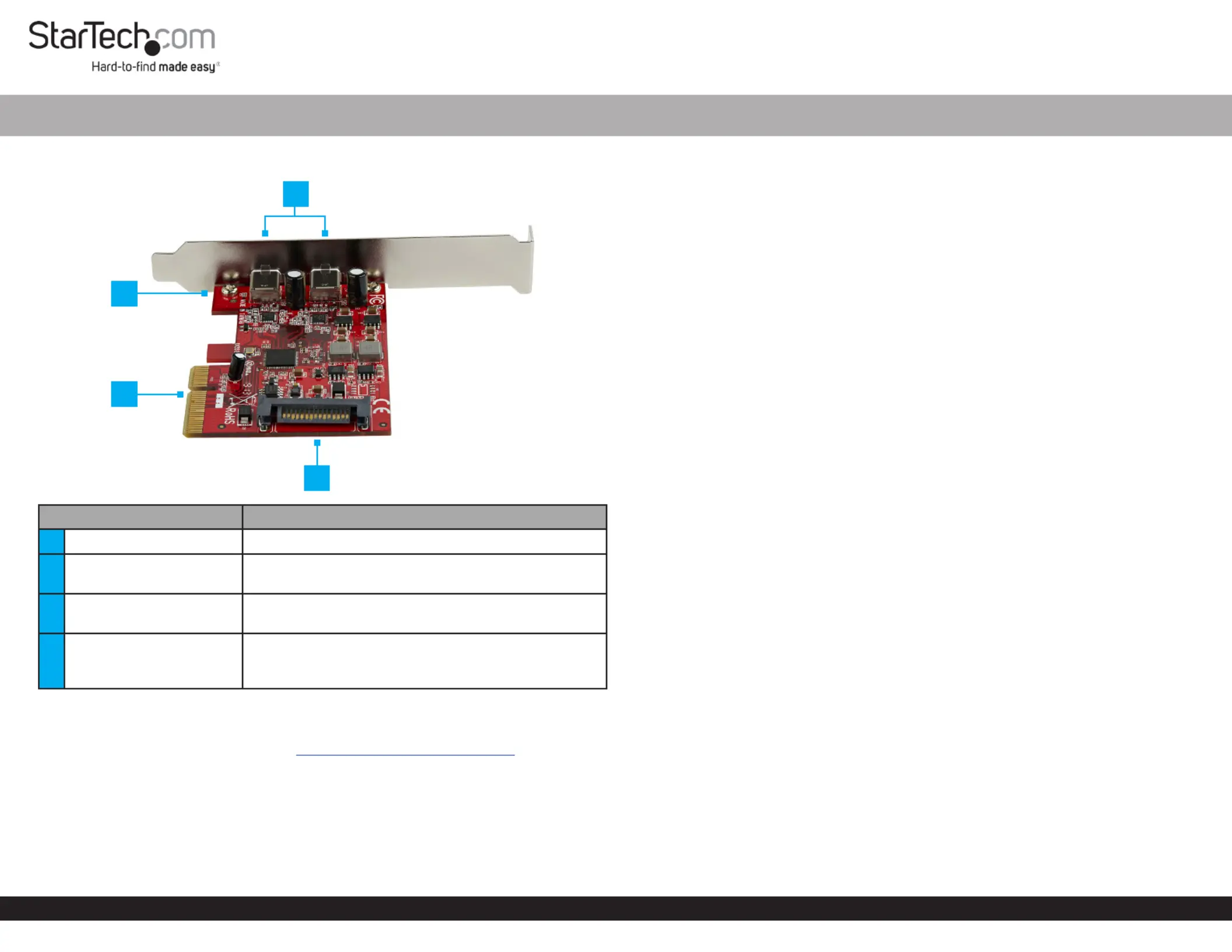

Product Diagram (PEXUSB312C3)

Port Function

1USB 3.1 Type-C Ports • Connect two USB 3.1 Gen 2 Enabled Devices

2Screws

• Secure the Low-Prole Full-Height Bracket or to

the PCIe Card (PCIe)

3PCIe x 4 Connector

• Connect the to the PCIe Card Computer

Motherboard

4SATA Power Connector

• (Optional) Connect a 15 Pin SATA Power

Connector USB 3.1 to provide extra power to the

Type-C Ports

Requirements

For the latest requirements please visit: .www.startech.com/PEXUSB312C3

• PCIe Slot

• Phillips Head Screwdriver

• (Optional) SATA Power Source

2-Port USB 3.1 Card - 10Gbps per port - 2x USB-C - PCIe

Installation

Hardware

WARNING! PCIe Cards can be severely damaged by static electricity. Make sure

that you are properly grounded before you open the or touch the Computer Case

PCIe Card Anti-Static Strap . You should wear an when you install any computer

component. If an isn’t available, discharge any built-up static Anti-Static Strap

electricity by touching a large for several seconds. Only Grounded Metal Surface

handle the by its edges and don’t touch the gold connectors.PCIe Card

1. Ensure the is .Computer Power O

2. Unplug the .Computer Power Cord

3. Remove the . Computer Cover

Note: For further information on how to remove the Computer Cover, refer to the

Manual Computer that came with the .

4. Remove the .Slot Bracket Holding Screw

5. Remove the corresponding or from an Full-Height Low-Prole Slot Bracket

available . PCIe Slot

6. Recongure the for Full-Height or Low-Prole installations. PCIe Card

a. Remove the two using a . Screws Phillips Head Screwdriver

b. Remove the . Bracket

c. Place the onto the new aligning the holes in the and the PCIe Card Bracket, Card

Bracket.

d. Insert the two through the and into . Screws PCIe Card Bracket

e. Tighten using a .Phillips Head Screwdriver

7. To install the , carefully align the with the PCIe Card Card’s PCIe x 4 Connector

selected on the Push the down rmly to ensure PCIe Slot Motherboard. PCIe Card

the is properly seated into the . PCIe Card PCIe Slot

8. (To provide extra power to the for charging) Connect USB 3.1 Type-C Ports Device

a from the to the 15 Pin SATA Power Connector Power Supply SATA Power

Connector PCIe Card on the .

9. Replace the to secure the . Slot Bracket Holding Screw PCIe Card

10. Replace the and reconnect the . Computer Cover Power Cord

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Windows 8 and up has native support for this PCIe Card. No driver installation

is needed unless the computer has Windows 7 installed.

Driver Installation Windows 7

1. Navigate to www.startech.com/PEXUSB312C3

2. Click the tab. Drivers & Downloads

3. Under , download the Driver(s) Driver for your operating system.

4. Extract the contents of the Driver Package Right-click Driver Folder by the that

was downloaded from the website and select . Follow the on-screen Extract All

instructions to nish the .Extraction

Ensure to make a note of the location where the drivers were extracted. This location

will be used on the next step.

6. Open the folder were the drivers were extracted. the le and Right-click setup.exe

click . Run as Administrator

Verify Driver Installation (Windows 7)

1. Navigate to the .Device Manager

2. Under , Universal Serial Bus controllers Right-click ASMedia USB3.1 eXtensible

Host Controller Properties and click .

3. Conrm that the driver is installed and working as expected. (Figure 1)

Verify Driver Installation (Windows 10)

1. Navigate to the Device Manager.

2. Under , Universal Serial Bus controllers Right-click ASMedia USB 3.1 eXtensible

Host Controller Properties and click .

3. Conrm that the driver is installed and working as expected. (Figure 2)

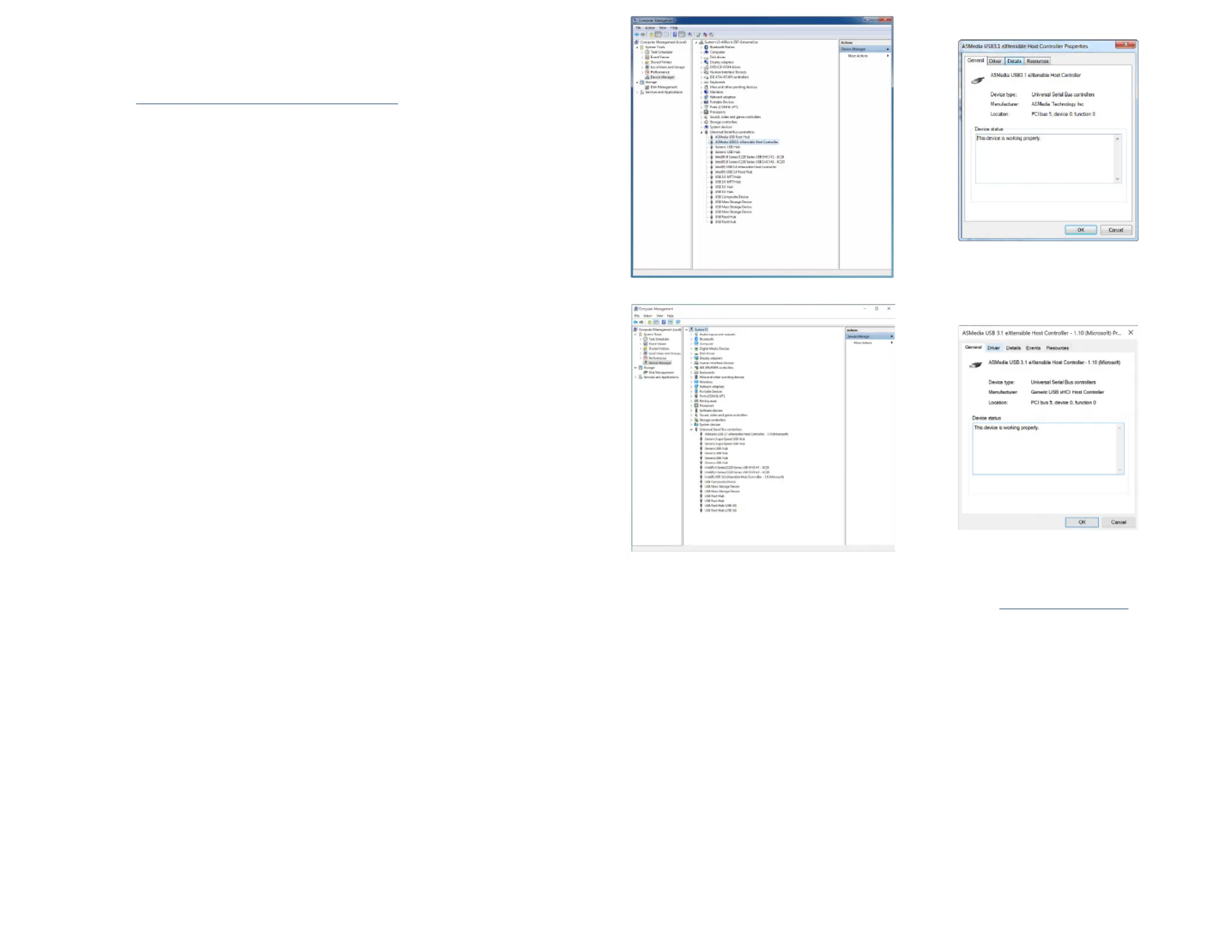

Figure 1

Figure 2
