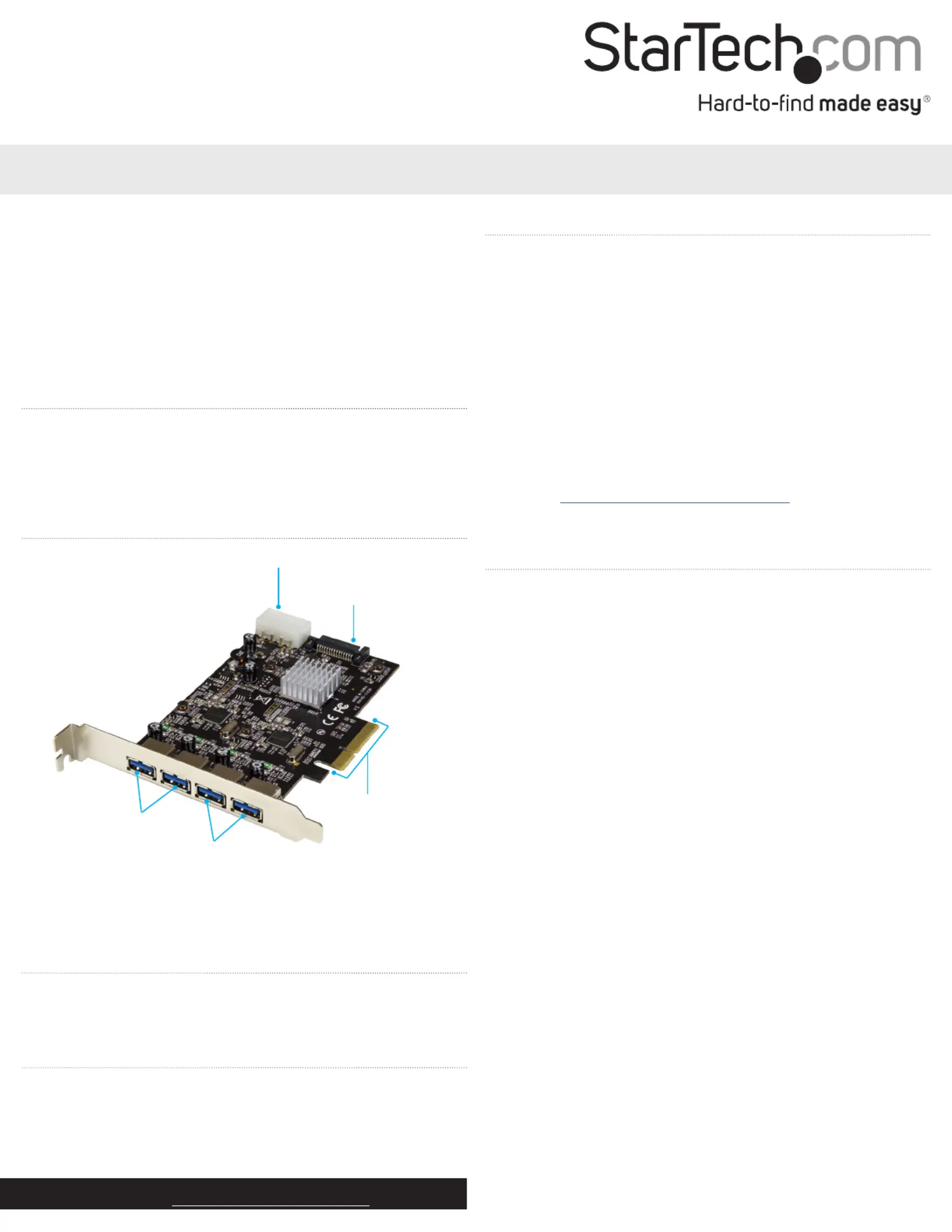

Side 1/2

Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 07/02/2019

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PEXUSB314A2V.

Package contents

• 1 x 4-port USB 3.1 card

• 1 x quick-start guide

Requirements

• Computer with a PCI Express® slot (x4, x8, or x16)

• SATA power connector (optional but recommended)

• Any of the following operating systems:

• Windows® 10 (32-bit and 64-bit)

• Windows 8.1 (32-bit and 64-bit)

• Windows 8 (32-bit and 64-bit)

• Windows 7 (32-bit and 64-bit)

• Windows Server® 2008 R2

• Windows Server 2012

• Windows® XP

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/PEXUSB314A2V.

PEXUSB314A2V

4-Port USB 3.1 (10Gbps) Card - 4x - USB-A with Two Dedicated Channels - PCIe

Introduction

You can use the PEXUSB314A2V to add four USB 3.1 Type-A ports

to your computer. The PEXUSB314A2V features two independent

10Gbps channels, and is backwards compatible with USB 3.0 and

USB 2.0 devices.

Product diagram

*actual product may vary from photos

Install the USB card in a computer

Warning! PC components can be severely damaged by static

electricity. If an anti-static strap isn’t available, discharge any built-

up static electricity by touching a large, grounded metal surface for

several seconds.

1. Turn o your computer and any devices or peripherals that are

connected to it (e.g., printers, external storage, etc.).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

4. Open your computer case. For more information about how to

properly do this, consult the documentation that came with

your computer system.

5. Locate an open PCI Express p1-x4 slot and remove the

corresponding metal cover plate from the back of your

computer case. Consult the documentation that came with your

computer for details about how to do this safely. This card works

in PCIe slots of x4, x8, or x16 lanes.

6. Gently insert the card into the open PCI Express slot and use a

computer case screw (not included) to fasten the bracket to the

back of the case.

7. Place the cover back onto your computer case.

8. Reconnect the power cable to the back of your computer.

9. Reconnect the peripheral devices.

10. Turn on your computer.

USB Type-A ports

Shared 10Gbps

(Channel 1)

PCIe p1-x4 connector

SATA power

connector

About USB 3.0 and USB 3.1 Gen 2

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard

supports speeds up to 5Gbps.

USB 3.1 Gen 2 supports speeds up to 10Gbps.

LP4

USB Type-A ports

Shared

(Channel 2)

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Install the driver

1. If the Found New Hardware dialog box appears on your screen,

close the dialog box or click Cancel.

2. Navigate to www.StarTech.com/PEXUSB314A2V.

3. Click the tab.Support

4. Download the driver.

5. When the download is complete, extract the contents of the

compressed le that you downloaded.

6. Double-click the appropriate driver for the version of the OS that

you’re running and follow the on-screen instructions to complete

the installation.

Note: You may be asked to restart your computer to complete the

installation.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PEXUSB314A2V
Bredde:	120 mm
Dybde:	125 mm
Højde:	15 mm
Vægt:	79 g
Produktfarve:	Sort
Pakkevægt:	135 g
Pakkedybde:	174 mm
Pakkebredde:	142 mm
Pakkehøjde:	30 mm
Opbevaringstemperatur (T-T):	0 - 50 °C
Relativ luftfugtighed ved drift (H-H):	5 - 85 %
Driftstemperatur (T-T):	-20 - 60 °C
Hurtig installationsvejledning:	Ja
Harmoniseret systemkode (HS):	84733020
Bæredygtighedscertifikater:	CE, RoHS
Understøttede Mac-operativsystemer:	Mac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks
Understøttede Linux-operativsystemer:	Ja
Hovedkassen højde (udvendigt):	355 mm
Hovedkassens længde (udvendigt):	590 mm
Hovedkassens bredde (udvendigt):	300 mm
Værtsgrænseflade:	PCIe
Intern:	Ja
Produkter pr. hovedkasse (udvendigt):	80 stk
Understøttede operativsystemer til servere:	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Perifere (Molex) strømstik (4-pin):	1
Output-grænseflade:	USB 3.2 Gen 1 (3.1 Gen 1)
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte:	4
Understøtter UASP:	Ja
Udvidelseskort standard:	PCIe 3.0
Dataoverførselshastighed (maks.):	10 Gbit/sek.
Chipsæt:	ASMedia - ASM1142
