Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 14, 2020 1:18 PM

Product Diagram (PEXUSB314A2V2)

Component Function

1USB-A Ports

• Connect to theUSB Peripheral Devices PCIe

Card.

2Bracket Screws

• Secure the Low Prole Full Prole Bracket or

to the PCIe Card.

3PCI Express Connector

• Connects the to the PCIe Card PCI Express

Slot Host Computer on the .

4SATA Power Connector

• (Optional) Connect a 15 Pin SATA Power

Connector USB to provide extra power to the

Type-A Ports.

Requirements

For the latest requirements, please visit www.startech.com/PEXUSB314A2V2

• Computer with an available PCI Express® slot (x4, x8, or x16)

• (Optional) SATA Power Source

Tools

• Small Phillips® Head Screwdriver

4 Port USB 3.1 PCIe Card w/ 2 Dedicated Channels

Hardware Installation

Installing the PCIe Card

Warning: PCIe Cards can be damaged by static electricity. Make sure that you are

properly grounded before you open your computer case or touch the . You PCIe Card

should wear an anti-static strap when you install any computer component. If an anti-

static strap is not available, discharge any built-up static electricity by touching a large

grounded metal surface for several seconds. Only handle the by its edges PCIe Card

and do not touch the gold connectors.

1. Turn o the and disconnect any that are connected Computer Peripheral Devices

(e.g. printers, external hard drives, etc.).

2. Unplug the from the back of the .Power Cable Computer

3. Remove the from the . Cover Computer Case

Note: Consult the documentation that came with the Computer for details on how to

remove the cover safely.

4. Locate an open (x4, x8, or x16) and remove the corresponding PCI Express Slot

Metal Cover Plate Computer Case from the back of the .

5. Gently insert the into the open and fasten the PCIe Card PCI Express Slot Bracket

to the back of the .Computer Case

6. (Optional) Connect a from the to the 15 Pin SATA Power Connector Power Supply

SATA Power Connector PCIe Card on the .

Note: Connecting a separate to the will provide extra Power Supply PCIe Card

power to the for charging connected .USB-A Ports Devices

7. Place the back onto the . Cover Computer Case

8. Reconnect the to the back of the .Power Cable Computer

9. Reconnect all of the that were disconnected in step 1.Peripheral Devices

10. Connect to the on the .USB Peripheral Devices USB-A Ports PCIe Card

Software Installation

When the is installed the drivers should install automatically. If the drivers PCIe Card

do not automatically install, navigate to to www.startech.com/PEXUSB314A2V2

download the appropriate driver package.

1. Click on the tab, under , select the appropriate driver package for Support Drivers

the running on the .Operating System Host Computer

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

USB xHCI Compliant Host Controller

7. Click the Button. Next

8. Click the button once the installation is complete.Close

2. When you have downloaded and unzipped the driver. Click on the Installation Guide

PDF and follow the instructions.

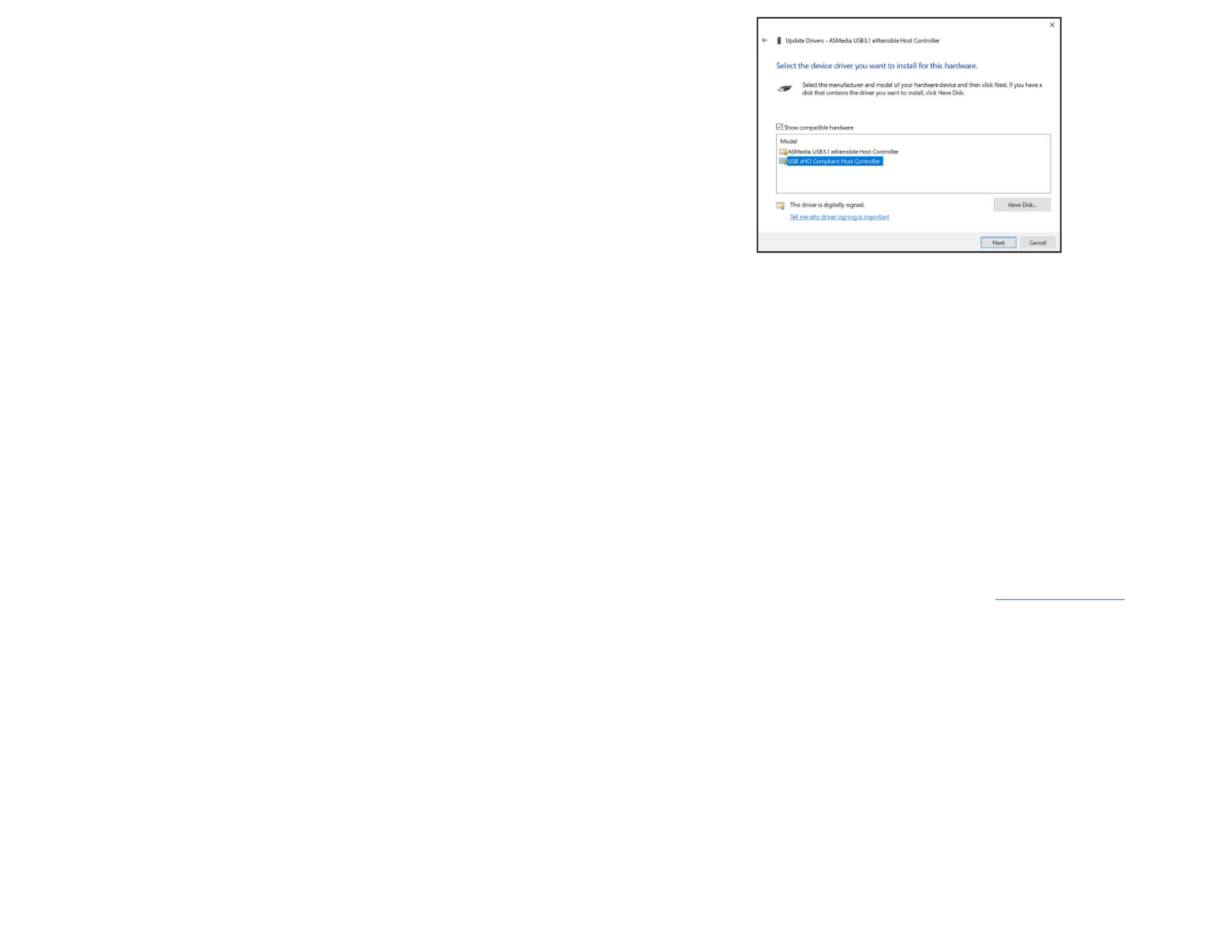

Installing the Driver in Windows 7

1. If the dialog box appears on your screen, close the dialog box Found New Hardware

or click the button.Cancel

2. Navigate to the screen.Device Manager

3. On the list of installed devices, right-click on ASMedia USB3.1 eXtensible Host

Controller.

4. Select the option from the pop-up menu.Update Driver

5. On the screen, select the How do you want to search for drivers Browse my

computer for driver software link.

6. Click on the link and Let me pick from a list of available drivers on my computer

select the .USB xHCI Compliant Host Controller

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PEXUSB314A2V2
Bredde:	150 mm
Dybde:	120 mm
Højde:	19 mm
Vægt:	125 g
Produktfarve:	Black, Metallic
Pakkevægt:	180 g
Pakkedybde:	144 mm
Pakkebredde:	207 mm
Pakkehøjde:	38 mm
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	4
Driftstemperatur (T-T):	5 - 50 °C
Hurtig installationsvejledning:	Ja
Udgangsspænding:	5 V
Harmoniseret systemkode (HS):	84733020
Bæredygtighedscertifikater:	CE, RoHS
Understøttede Mac-operativsystemer:	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Understøttede Linux-operativsystemer:	Ja
Hovedkassen højde (udvendigt):	320 mm
Hovedkassens længde (udvendigt):	420 mm
Hovedkassens bredde (udvendigt):	440 mm
Værtsgrænseflade:	PCIe
Intern:	Ja
Produkter pr. hovedkasse (udvendigt):	20 stk
Overholdelse af bæredygtighed:	Ja
Gennemsnitstid mellem fejl (MTBF):	40000 t
Understøttede operativsystemer til servere:	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Monteringsbeslag inkluderet:	Ja
Output-grænseflade:	USB 3.2 Gen 2 (3.1 Gen 2)
Understøtter UASP:	Ja
Udvidelseskort standard:	PCIe 3.0
Dataoverførselshastighed (maks.):	10 Gbit/sek.
Chipsæt:	ASMedia - ASM3142, ASMedia - ASM1812
Antal interne SATA-porte:	1
SATA strømstik type:	SATA 15-stik
