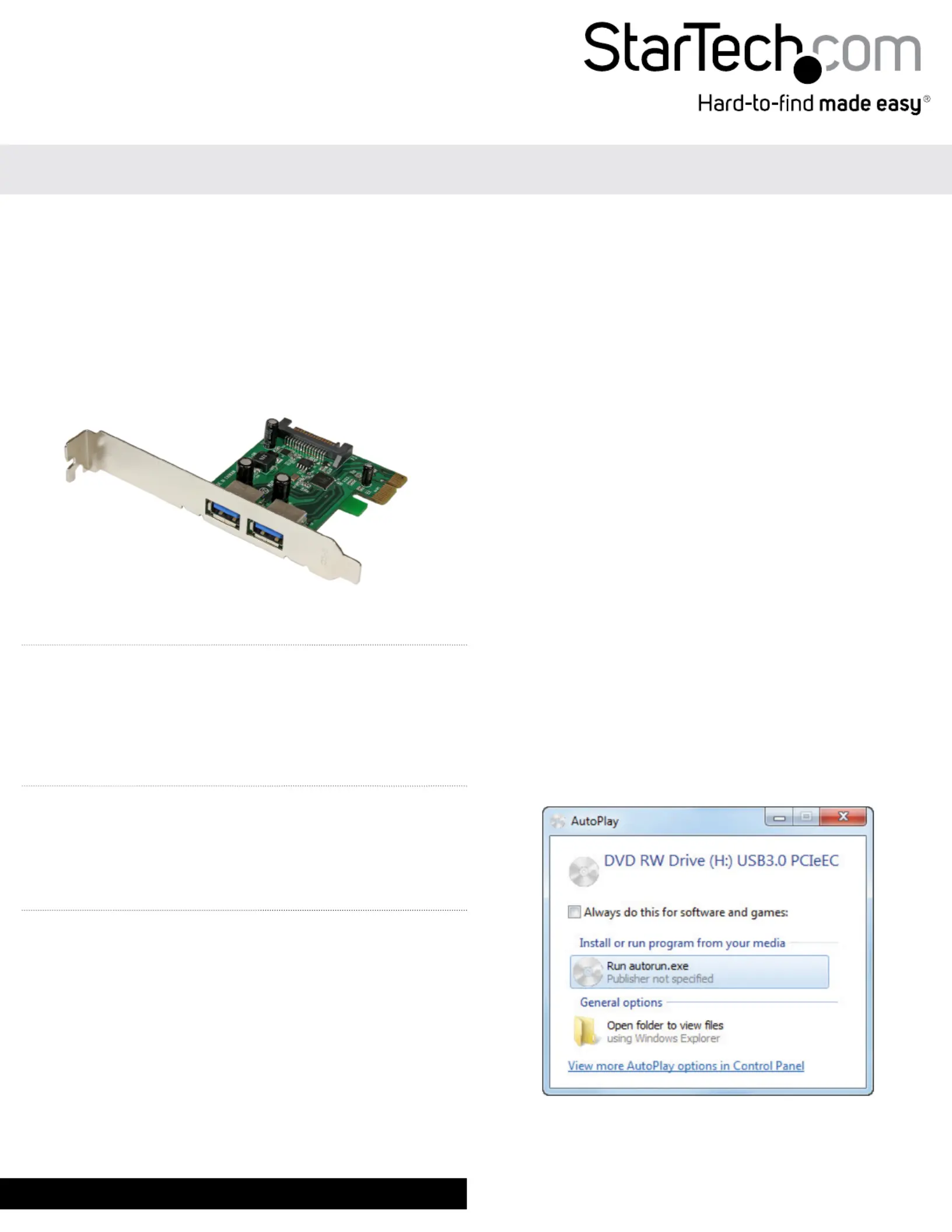

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 01/02/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x PCI Express USB 3.0 Card

• 1x Low Prole Bracket

• 1x Driver CD

• 1x User Manual

System Requirements

• Available PCI Express slot

• Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64),Windows®

Server 2012, 2008 R2, 2003(32/64), Linux 2.6.31 or later

PEXUSB3S24

2 Port PCI Express SuperSpeed USB 3.0 Card with SATA Power

*actual product may vary from photos

Installation

Hardware Installation

WARNING! PCI Express cards, like all computer equipment, can be

severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your

card. StarTech.com recommends that you wear an anti-static strap

when installing any computer component. If an anti-static strap is

unavailable, discharge yourself of any static electricity build-up by

touching a large grounded metal surface (such as the computer

case) for several seconds. Also be careful to handle the card by its

edges and not the gold connectors.

1. Turn your computer o and any peripherals connected to the

computer (i.e. Printers, external hard drives, etc.). Unplug the

power cable from the rear of the power supply on the back of the

computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. See documentation

for your computer system for details.

3. Locate an open PCI Express slot and remove the metal cover plate

on the rear of the computer case (Refer to documentation for your

computer system for details.). Note that this card will work in PCI

Express slots of additional lanes (i.e. x4, x8 or x16 slots).

4. Insert the card into the open PCI Express slot and fasten the

bracket to the rear of the case.

NOTE: If installing the card into a low prole desktop system,

replacing the preinstalled standard prole bracket with the

included low prole (half height) installation bracket may be

necessary.

5. If desired, connect the optional SATA power using an available

connector from your power supply.

6. Place the cover back onto the computer case.

7. Insert the power cable into the socket on the power supply and

reconnect all other connectors removed in Step 1.

Driver Installation

Windows

1. Upon starting Windows, if the Found New Hardware wizard

appears on the screen, cancel/close the window and insert the

included Driver CD into the computer’s CD/DVD drive.

2. Run the RENESAS-USB3-Host-Driver-30230-setup.exe application

from the Autoplay menu. If Autoplay is disabled on your system,

browse to your CD/DVD drive and run the application.

3. Follow the on-screen instructions to complete the installation.

NOTE: You may be prompted to restart once the install completes.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

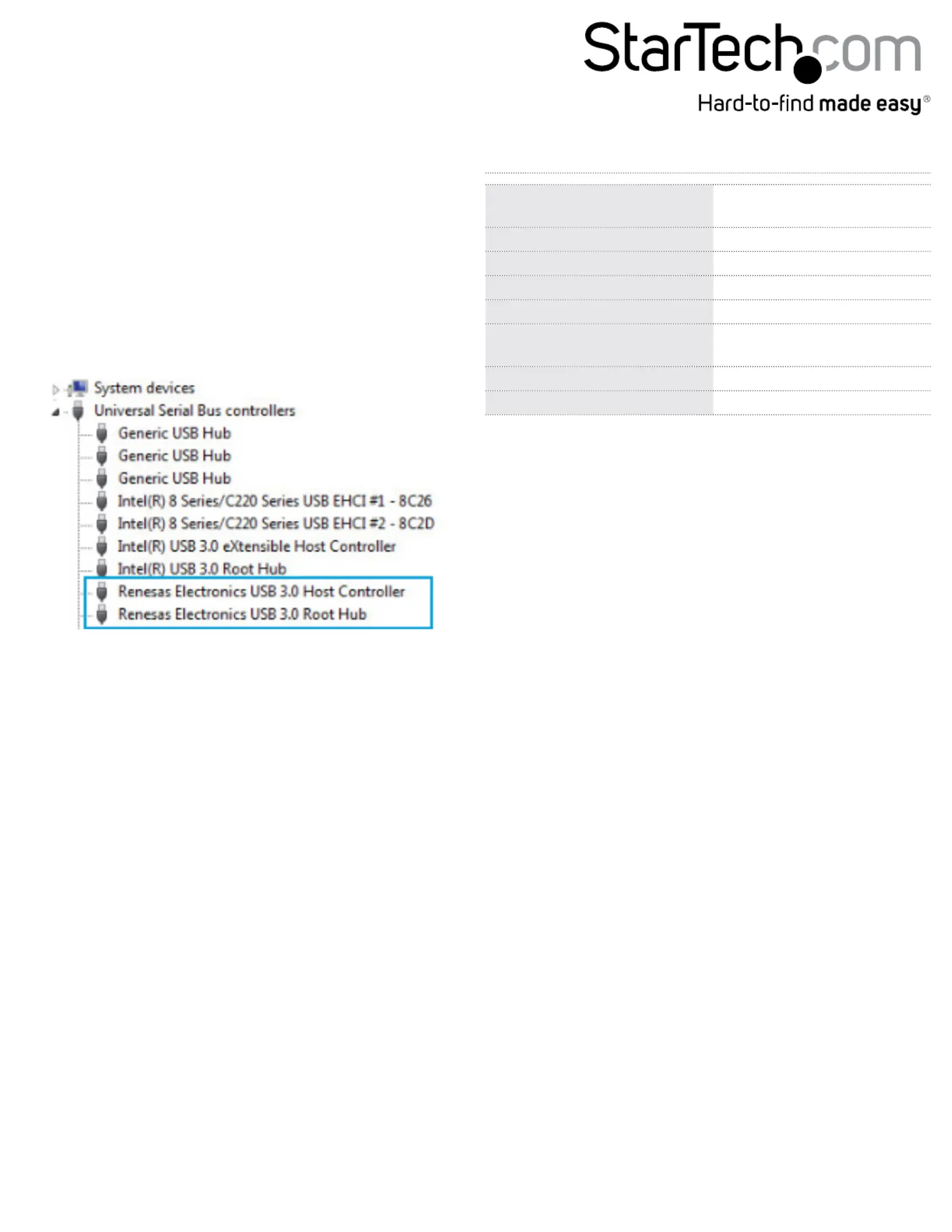

Specications

Host Interface PCI Express 2.0 (x1 slot

connector)

Chipset NEC uPD720202

Number of Ports 2

External Connectors 2x USB 3.0 type A female

Internal Connectors 1x SATA power male

Standards USB 3.0 rev. 1.0

Intel xHCI rev. 1.0

Maximum Data Transfer Rate USB 3.0: 5 Gbps

Operating Temperature 5°C ~ 50°C (41°F ~ 122°F)

Verifying Installation
