Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 01/21/2015

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x 4 Port PCI Express USB 3.0 Card - 2 Ext 2 Int

• 1x Low-Prole Bracket

• 1x Driver CD

• 1x Instruction Manual

System Requirements

• PCI Express enabled computer with an available PCI Express p1-x1 slot

or higher (x4, x8, x16)

• SATA power connector (recommended, but optional)

• Optional - 19-pin internal USB 3.0 2-port header from computer

motherboard or computer case

• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64),

Windows Server® 2012, 2008 R2, Linux 2.6.31 and up (Tested up to

3.5)

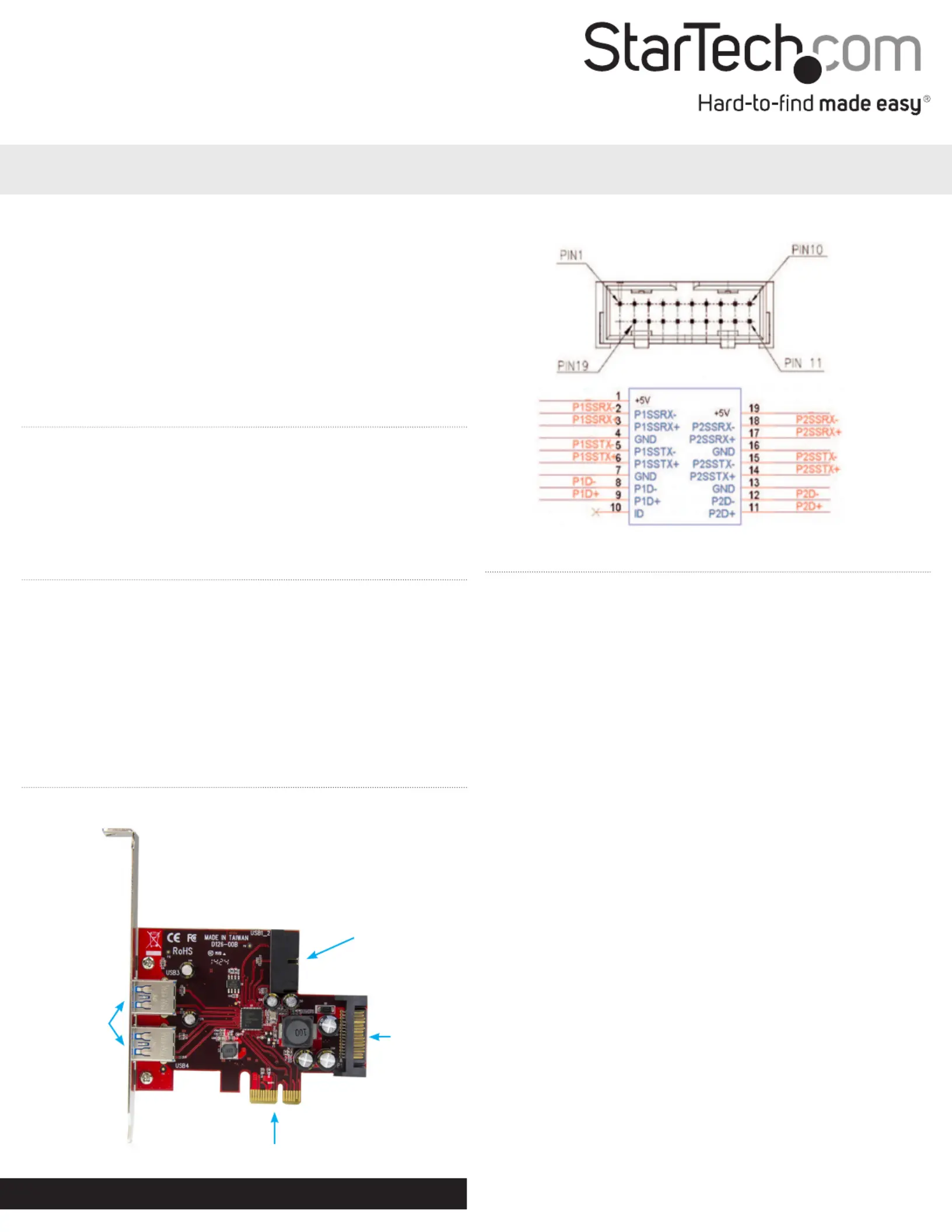

Product Overview

Top View

PEXUSB3S2EI

4 Port PCI Express SuperSpeed USB 3.0 Card with UASP - 2 Ext 2 Int w/ SATA Power

19-pin Internal

USB 3.0 2-port

Header Male

SATA Power

USB 3.0 Ports

Type “A”

Female x2

PCI Express x1

Installation

Hardware Installation

WARNING!

PCI Express cards, like all computer equipment, can be severely

damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your PCI

Express card. StarTech.com recommends that you wear an anti-

static strap when installing any computer component. If an anti-

static strap is unavailable, discharge yourself of any static electricity

build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Also be careful to handle the PCI

Express card by its edges and not the gold connectors.

1. Turn your computer o and any peripherals connected to the

computer (i.e. printers, external hard drives, etc.). Unplug the

power cable from the rear of the power supply on the back of the

computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. (See your computer

system documentation for details).

3. Locate an open PCI Express p1-x1 slot and remove the metal cover

plate on the rear of the computer case. (See your computer

system documentation for details).

Note: This card will work in PCI Express slots of additional lanes (i.e.

x4, x8, or x16 slots).

4. Gently insert the card into the open PCI Express slot and fasten

the bracket to the rear of the computer case.

Note: If installing the card into a small form-factor/low-prole

desktop system, replacing the pre-installed standard-prole bracket

with the included low-prole (half-height) installation bracket may

be necessary.

5. It is recommended you connect the optional SATA power using an

available SATA power connector from the computers power supply.

Note: It is recommended that SATA power is connected to the card

Internal USB 3.0, 2-Port Header Pinout

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Driver Installation

Windows®

Depending on your Operating System version, the card may auto-

install with native drivers. Use the auto-install drivers if available.

Connect your USB devices to the 2x external ports, and/or your

motherboard/computer case 19-pin internal USB header to the

internal 2-port header as desired.

If drivers do not auto-install, follow the below steps to complete the

driver installation process.

1. Upon starting Windows, if the Found New Hardware dialog

appears on the screen, cancel/close the window.

2. Download the latest drivers from the www.startech.com website

(recommended), applicable to the Operating System on the host

computer that you are installing the card to, or insert the provided

Driver CD into your computers DVD/CD drive.

3. Browse to the downloaded driver le location and run the

“.exe” install application. Follow any on-screen instructions to

complete the driver installation process.

4. If using the Driver CD for installation, select the Open folder to

view les option from the AutoPlay menu. If AutoPlay is disabled

on your system, browse to your CD/DVD drive.

5. Run the “.exe” install application and follow any on-screen

instructions to complete the driver installation process.

Note: You may be prompted to restart your system.

6. Connect your USB devices to the 2x external ports, and/or your

motherboard/computer case 19-pin internal USB header to the

internal 2-port header as desired.

to ensure sucient power is provided to each USB 3.0 port.

6. Place the cover back onto the computer case.

7. Insert the power cable into the socket on the power supply of the

computer, and reconnect all other connectors removed in Step 1.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PEXUSB3S2EI
Bredde:	18 mm
Dybde:	92 mm
Højde:	120 mm
Vægt:	53 g
Brugervejledning:	Ja
Produktfarve:	Metallic, Red
Pakkevægt:	143 g
Pakkedybde:	143 mm
Pakkebredde:	174 mm
Pakkehøjde:	33 mm
Opbevaringstemperatur (T-T):	-25 - 70 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Driftstemperatur (T-T):	5 - 50 °C
Harmoniseret systemkode (HS):	84733020
Bæredygtighedscertifikater:	CE, RoHS
Hovedkassen højde (udvendigt):	316 mm
Hovedkassens længde (udvendigt):	495 mm
Hovedkassens bredde (udvendigt):	383 mm
Værtsgrænseflade:	PCIe
Intern:	Ja
Drivere inkluderet:	Ja
Produkter pr. hovedkasse (udvendigt):	60 stk
Maksimal driftstilstand:	3 m
Gennemsnitstid mellem fejl (MTBF):	1920042 t
Understøttede operativsystemer til servere:	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Monteringsbeslag inkluderet:	Ja
Output-grænseflade:	SATA, USB 3.2 Gen 1 (3.1 Gen 1)
Understøtter UASP:	Ja
Maksimal kabellængde:	3 m
Udvidelseskort standard:	PCI 2.0
Udvidelseskort formfaktor:	Fuld højde/ lav profil
Dataoverførselshastighed (maks.):	5 Gbit/sek.
Chipsæt:	Renesas / NEC - µPD720201
Antal interne SATA-porte:	1
