Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 01/10/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PIB2MS1.

PIB2MS1

USB to mSATA Converter for Raspberry Pi and Development Boards

*actual product may vary from photos

Introduction

You can use the PIB2MS1 to connect an mSATA drive to a

development board to increase data storage capacity and

performance. The PIB2MS1 supports SATA I, SATA II, and SATA III

drives, mini mSATA drives, and mSATA SSDs.

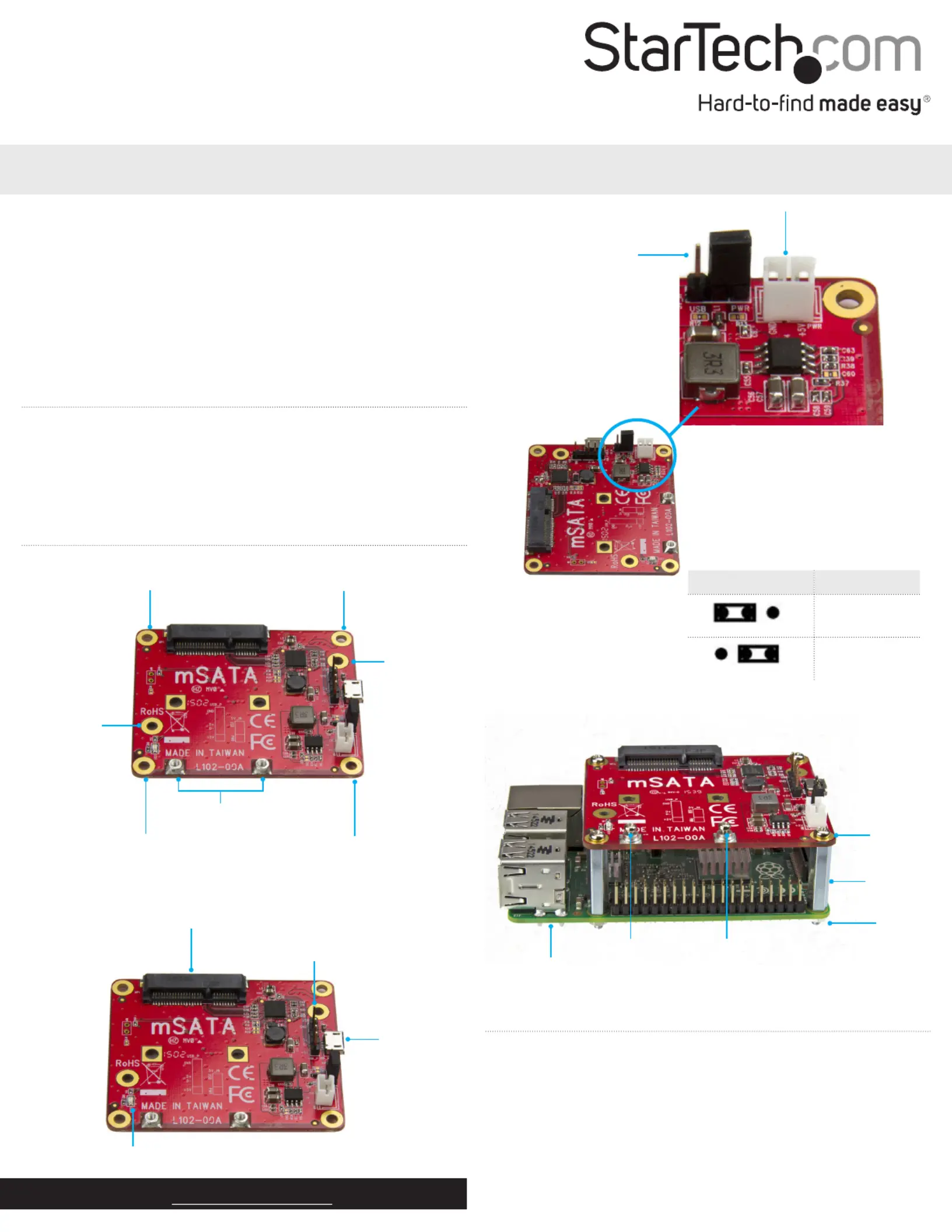

Product diagram

Primary installation hole

Secondary

installation hole

Secondary

installation hole

mSATA mounting

holes

mSATA port

USB 2.0 header

USB 2.0 port

LED

Converter installed on a development board

Nut

Stando

Screw

Development board

(not included)

mSATA mounting hardware

AUX power connector

Jumper

Use to control

which interface

power is drawn

from

Package contents

• 1 x USB to mSATA converter

• 1 x USB-A to Micro-B cable

• 4 x standos

• 4 x nuts

• 4 x screws

• 2 x mSATA mounting screws

• 1 x quick-start guide

Jumper position Mode

USB powered

AUX powered

Primary installation hole

Primary installation hole Primary installation hole

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation. Changes or

modications not expressly approved by StarTech.com could void the user’s authority to operate

the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Install the converter

Warning! Drives and converters should be handled carefully,

especially when they’re transported. If you’re not careful with your

drives, you may lose data as a result. Always handle storage devices

with caution. Make sure that you’re properly grounded by wearing

an anti-static strap when you install any computer component. If an

anti-static strap isn’t available, touch a large, grounded metal surface

for several seconds to discharge any built-up static electricity.

1. Place the provided standos into the installation holes on the

development board (not included).

2. To ax the standos in place, screw the provided nuts onto the

stando threads on the reverse side of the development board.

3. Line up the on the converter with the standos Installation holes

axed to the development board.

4. Insert the provided screws into the on the Installation holes

converter and into the standos, and tighten them in place.

5. Connect the provided USB-A to Micro-B cable to the USB 2.0 port

on the converter and to the USB port on the development board.

Install a drive in the converter

1. Use a screwdriver (not provided) to remove the two mSATA

mounting screws mSATA mounting holes from the on the

converter.

2. Gently slide the mSATA connector on your drive into the

corresponding connector on the mSATA port on the converter.

Note: The connector on your drive is keyed so that it only ts one

way.

3. Insert the mSATA mounting screws that you removed in

step 1 through the mounting holes on the drive and into the

mSATA mounting holes on the converter, and tighten the screws

in place.

To remove a drive, use a screwdriver to remove the mSATA

mounting hardware that is holding the drive in place and pull the

drive out of the converter.

Use of Trademarks, Registered Trademarks, and other Protected Names

and Symbols

Raspberry Pi is a trademark of the Raspberry Pi Foundation.

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of their

respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit www.startech.com/

support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods

noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers,

directors, employees or agents) for any damages (whether direct or indirect, special, punitive,

incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss,

arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If

such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Requirements

• mSATA drive

• Development board, for example, Raspberry Pi (not included)

• Screwdriver

This converter is OS independent and doesn’t require any additional

drivers or software.

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/PIB2MS1.

About the LED indicator

The PIB2MS1 has a green LED indicator that illuminates to indicate

activity.
