Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 08/03/2016

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PIB2S31.

Package contents

• 1 x USB to SATA converter

• 1 x USB-A to Micro-B cable

• 2 x standos

• 2 x nuts

• 2 x screws

• 1 x quick-start guide

Requirements

• SATA device with cabling and external power source

• Development board (for example, Raspberry Pi)

This converter is OS independent and doesn’t require any additional

drivers or software.

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/PIB2S31.

PIB2S31

USB to SATA Converter for Raspberry Pi and Development Boards

*actual product may vary from photos

Introduction

The PIB2S31 enables you to connect any SATA device to a

development board to increase data storage capacity and

performance. The PIB2S31 supports SATA I, SATA II, and SATA III

drives, and any type of SATA device, including DVD, SSD, CD-ROM,

and more.

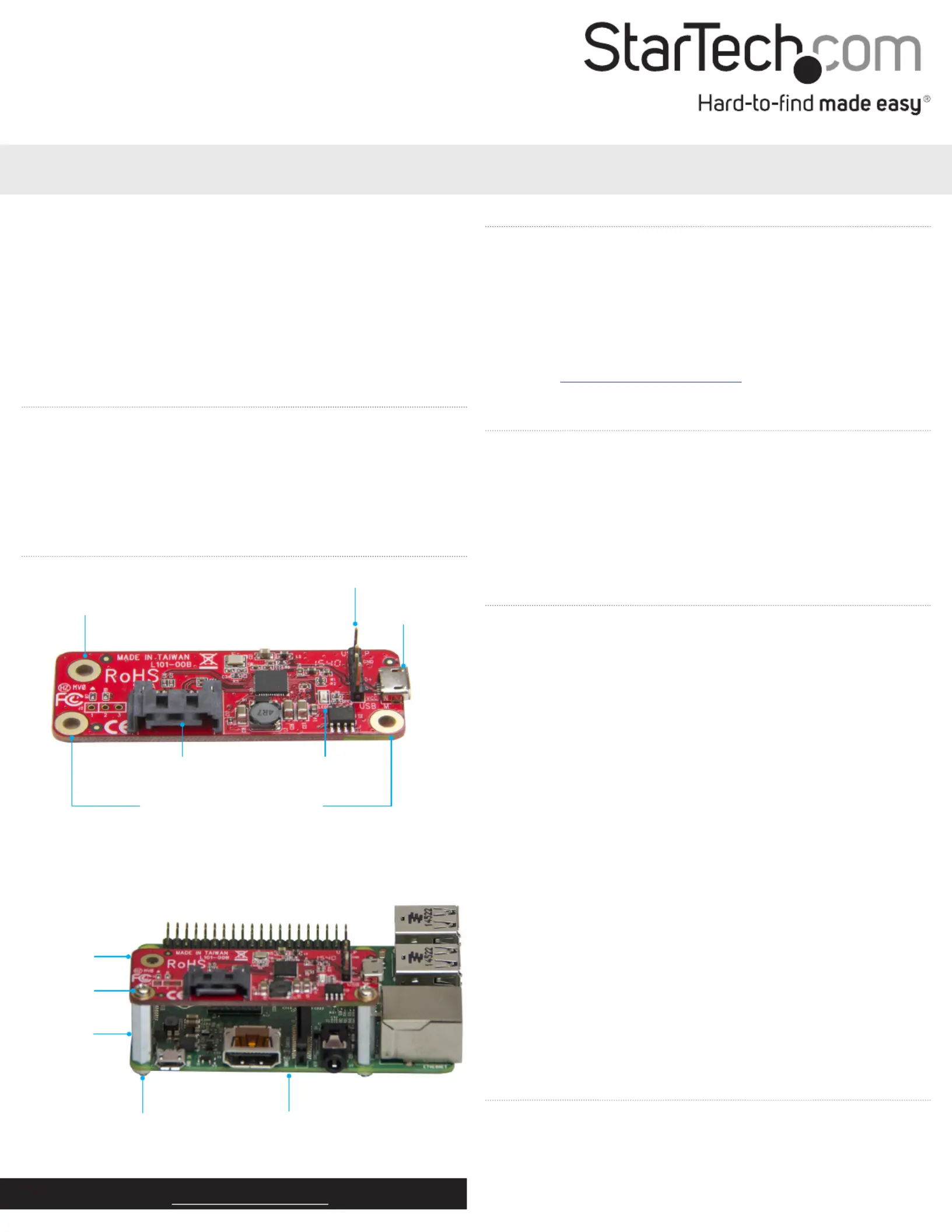

Product diagram

Secondary installation hole

(optional)

Primary installation holes

SATA port

USB 2.0 port

USB 2.0 header

Install the converter

Warning! Drives and converters should be handled carefully,

especially when they’re transported. If you’re not careful with your

drives, you may lose data as a result. Always handle storage devices

with caution. Make sure that you’re properly grounded by wearing

an anti-static strap when you install any computer component. If an

anti-static strap isn’t available, touch a large, grounded metal surface

for several seconds to discharge any built-up static electricity.

1. Place the provided standos into the installation holes on your

development board.

2. To ax the standos in place, screw the provided nuts onto the

stando threads on the reverse side of your development board.

3. Line up the on the converter with the standos Installation holes

axed to your development board.

4. Insert the provided screws into the on the Installation holes

converter and into the standos, and tighten them in place.

5. Connect the provided USB-A to Micro-B cable to the USB 2.0 port

on the converter and to the USB port on your development board.

6. Use a standard 7-pin SATA cable (sold separately) to connect your

SATA drive to the SATA port on the converter.

Note: SATA only provides a data solution, so you will have to use an

additional source (for example, a power supply or external power

adapter) to power your drive.

Converter installed on circuit board

Converter

Standos

Screw

Nut

Development board

LED

About the LED indicator

The PIB2S31 has a green LED indicator that illuminates to indicate

activity.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

Raspberry Pi is a trademark of the Raspberry Pi Foundation.

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PIB2S31
Bredde:	23 mm
Dybde:	66 mm
Højde:	11 mm
Vægt:	7.6 g
Produktfarve:	Rød
Pakkevægt:	70.4 g
Pakkedybde:	178 mm
Pakkebredde:	143 mm
Pakkehøjde:	32 mm
Opbevaringstemperatur (T-T):	-25 - 70 °C
Relativ luftfugtighed ved drift (H-H):	15 - 90 %
Driftstemperatur (T-T):	5 - 50 °C
Hurtig installationsvejledning:	Ja
Kabler inkluderet:	USB
Certificering:	CE, FCC
Harmoniseret systemkode (HS):	84733020
Bæredygtighedscertifikater:	RoHS
Værtsgrænseflade:	Micro-USB
Intern:	Ja
Oprindelsesland:	Taiwan
USB-drevet:	Ja
Kapabilitet:	Raspberry Pi
Gennemsnitstid mellem fejl (MTBF):	6481043 t
Output-grænseflade:	SATA
Dataoverførselshastighed (maks.):	6 Gbit/sek.
Chipsæt:	Renesas - µPD720231A
SATA revision:	3.0
