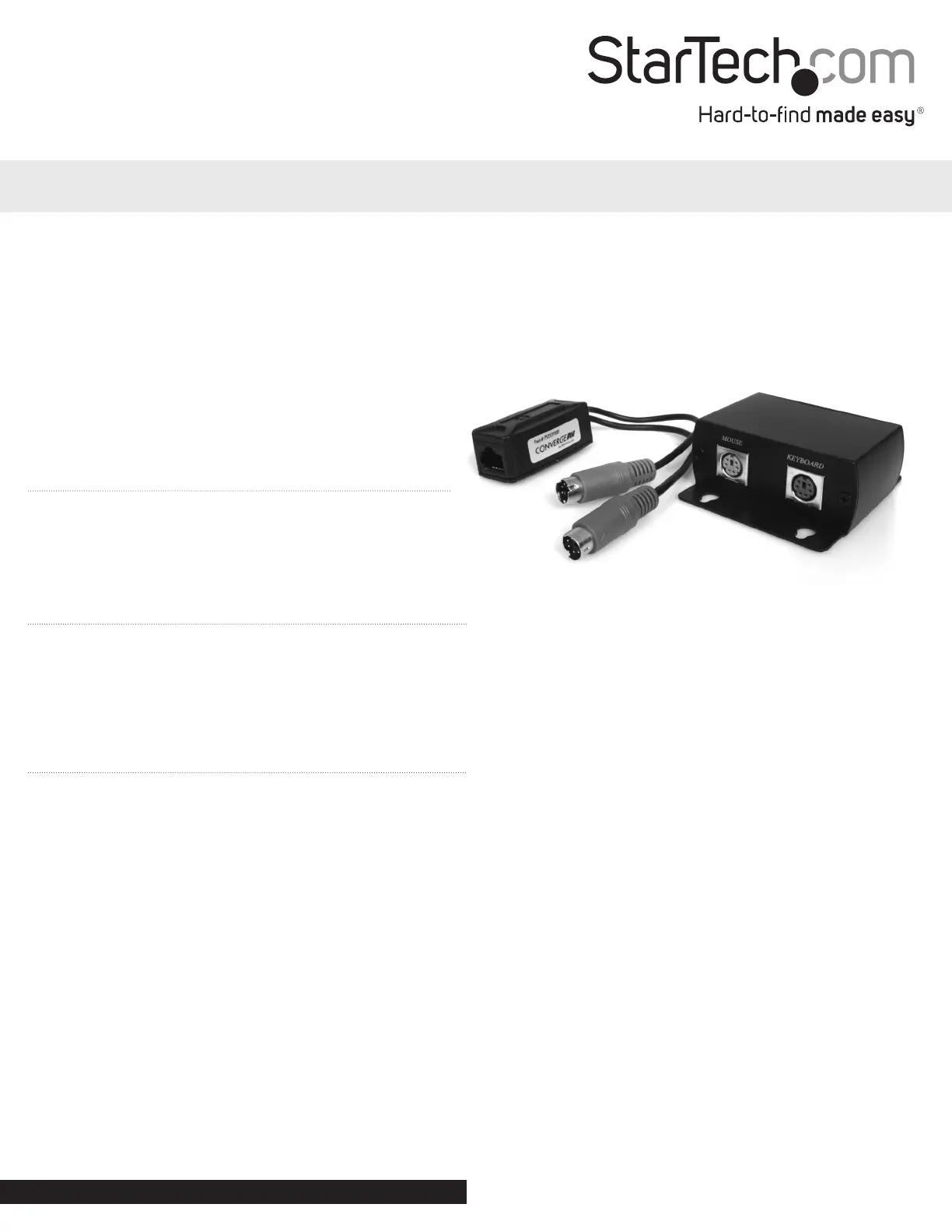

PS/2 Keyboard and Mouse Extender over Cat5

PS2UTPEXT

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l’utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l’uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Packaging Contents

• PS/2 Mouse (1)

• PS/2 Keyboard (1)

• UTP Cable (up to 100m can be used)

System Requirements

• PS2UTPEXT - Local Unit

• PS2UTPEXT - Remote Unit

Basic Setup

PS2UTPEXT is comprised of two components - the local unit, which

attaches to the PS/2 mouse and keyboard, and the remote unit,

which connects to the computer you will be using.

Connecting the PS2UTPEXT local unit

1. Position the local unit near the mouse and keyboard.

2. Unplug the mouse and keyboard from the computer.

3. Insert the male PS/2 connector from the mouse and from the

keyboard into the PS/2 slots provided by the local unit. Each port

is labelled and colorcoded for simple installation.

Connecting the local and remote units

Using standard Cat5 cable, connect the local and remote units by

inserting each end of the cable (up to 100m) into the RJ45 ports

provided.

Connecting the PS2UTPEXT remote unit

1. Using the mouse and keyboard PS/2 (male) connectors

provided, connect the remote unit to the PS/2 ports in

which the mouse and keyboard were originally installed

(see Connecting the PS2UTPEXT local unit - step 2)

Installation Guide

Remote Unit

Local Unit

Manual Revision: 03/29/2011

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names & Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of

third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body

of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and

other protected names and/or symbols contained in this manual and related documents are the property of their

respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions.

If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of

online tools, documentation, and downloads.

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted,

following the initial date of purchase. During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant

its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees

or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise),

loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Connectors

PS/2 Keyboard - Male (1)

PS/2 Keyboard - Female (1)

PS/2 Mouse - Male (1)

PS/2 Mouse - Female (1)

RJ45 - Female (2)

Maximum Bandwith

DC to 1 MHz

Operation Temperature

0 to 55C

Storage Temperature

-20 to 85C

RJ45 Pin Conguration

Keyboard: Pin 1, Pin 2

Mouse: Pin 7, Pin 8

Transmission Distance

100m (Max.)

Accessories

M45PATCH100B

100 ft Blue Molded Category 5e UTP Patch Cable

M45PATCH10BL

10 ft Blue Molded Category 5e UTP Patch Cable

M45PATCH15BL

15 ft Blue Molded Category 5e (350 MHz) UTP Patch Cable

USB2PS2

USB to PS2 Keyboard and Mouse Converter

USBPS2PC

USB to PS2 Keyboard and Mouse Adapter

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	PS2UTPEXT
Bredde:	25 mm
Dybde:	69 mm
Højde:	22 mm
Vægt:	180 g
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-20 - 85 °C
Driftstemperatur (T-T):	0 - 55 °C
Bæredygtighedscertifikater:	RoHS
Antal RJ-45-porte:	2
Antal PS/2-porte:	4
