Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: February 27, 2023 2:56 PM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Product IDs

• RK119WALLV / RK119WALLV2

• RK219WALLV

• RK319WALLV / RK319WALLV2

• RK419WALLV / RK419WALLV2

• RK519WALLV

• RK619WALLV

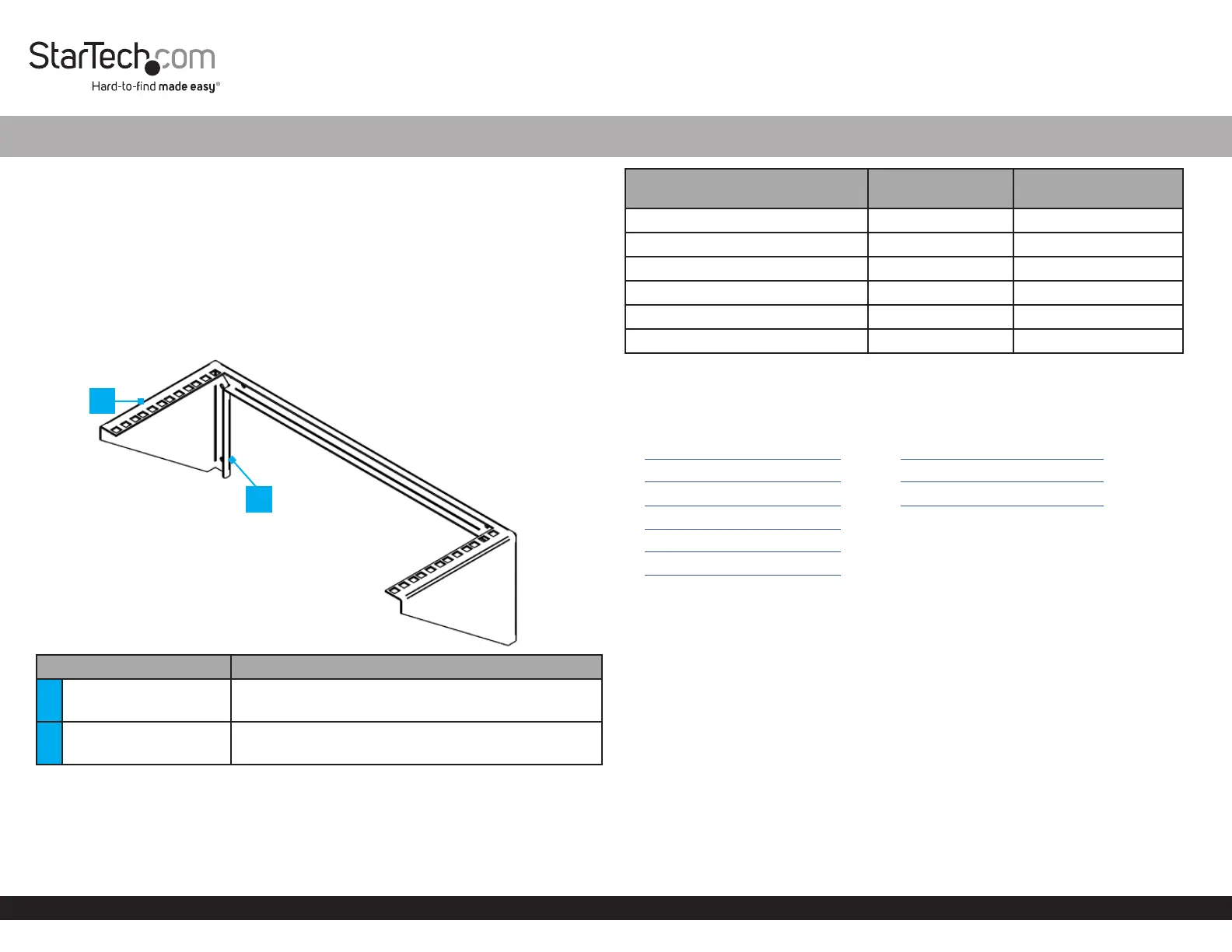

Product Diagram

Component Function

1 Mounting Rails

• Features Square Cage Nut Holes to mount the

equipment

2 Wall Bracket

• Mounting Holes along the Wall Bracket are used to

Fasten it to a Wall

Package Contents

• Wall-Mount Bracket x 1

• Wood Screws x 6

• Quick-Start Guide x 1

19in Vertical Wall Mount Rack Bracket

Requirements

For the latest manuals, product information, technical specications, and declarations

of conformance, please visit:

www.StarTech.com/RK119WALLV www.StarTech.com/RK119WALLV2

www.StarTech.com/RK219WALLV www.StarTech.com/RK319WALLV2

www.StarTech.com/RK319WALLV www.StarTech.com/RK419WALLV2

www.StarTech.com/RK419WALLV

www.StarTech.com/RK519WALLV

www.StarTech.com/RK619WALLV

• Appropriate mounting hardware for the wall or surface type

• Phillips head screwdriver

• Cage nut tool (Optional)

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and/or using this product.

Before adding equipment to this product, ensure this product has been properly

mounted.

Never operate this product if parts are missing or damaged.

The mounting hardware included with this product might not be adequate for some

wall or mounting structures. If lacking the necessary expertise to mount this product,

contact a construction professional to install the Wall Rack Bracket or to provide

specic mounting instructions for the wall structure.

*Product may vary from image

Product ID

M5 Square Cage

Nuts Quantity

M5 Screws Quantity

RK119WALLV / RK119WALLV2 x 4 x 4

RK219WALLV x 8 x 8

RK319WALLV / RK319WALLV2 x 12 x 12

RK419WALLV / RK419WALLV2 x 16 x 16

RK519WALLV x 16 x 16

RK619WALLV x 16 x 16

Ensure the weight of the equipment does not exceed the weight capacity of this product.

If the weight capacity is exceeded, personal injury or damage to the equipment are

possibilities. These products can support the following weight:

• RK119WALLV: Rev 01 to 02 - Up to 125 lbs / 56kg; Rev 03 or above - Up to 130 lbs / 59kg

• RK119WALLV2: Up to 130 lbs / 59kg

• RK219WALLV: Up to 125 lbs / 56kg

• RK319WALLV: Rev 01 to 02 - Up to 125 lbs / 56kg; Rev 03 or above - Up to 150 lbs / 68kg

• RK319WALLV2: Up to 150 lbs / 68kg

• RK419WALLV: Rev 01 to 02 - Up to 125 lbs / 56kg; Rev 03 or above - Up to 180 lbs / 81kg

• RK419WALLV2: Up to 180 lbs / 81kg

• RK519WALLV: Up to 198 lbs / 90kg

• RK619WALLV: Up to 200 lbs / 90kg

Ensure the type of wall structure and mounting hardware will properly support the

mounted equipment. Failure to do so might result in personal injury and/or equipment

damage. The wall or mounting structure should be capable of supporting at least four

times the weight of the mounted equipment.

Installation

Mount the Rack Bracket

The mounting holes are spaced 16 inches (2 inner holes) and 18.8 inches (4 outer holes)

apart. Test t the Rack Bracket on the surface to ensure proper t on the designated

location.

1. Mark the Mounting Points (x6) using the Mounting Holes (x6) on the Wall Bracket as

a Template.

2. Use the Wood Screws (x6) to fasten the Wall Bracket to the Mounting Surface.

The included screws are for wood surfaces only.

3. Install the M5 Square Cage Nuts onto the desired Square Cage Nut Holes where

the Equipment will be installed. Use a Cage Nut Tool if available or your preferred

installation method.

4. Use a Phillips Head Screwdriver to install the M5 Screws and secure the Equipment

onto the Mounting Rails.
