Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 16, 2021 4:40 PM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

1 1

Product IDs

SHELF-1U-12-FIXED-S

SHELF-1U-12-FIXED-V

SHELF-1U-20-FIXED-S

SHELF-1U-20-FIXED-V

Product Diagrams

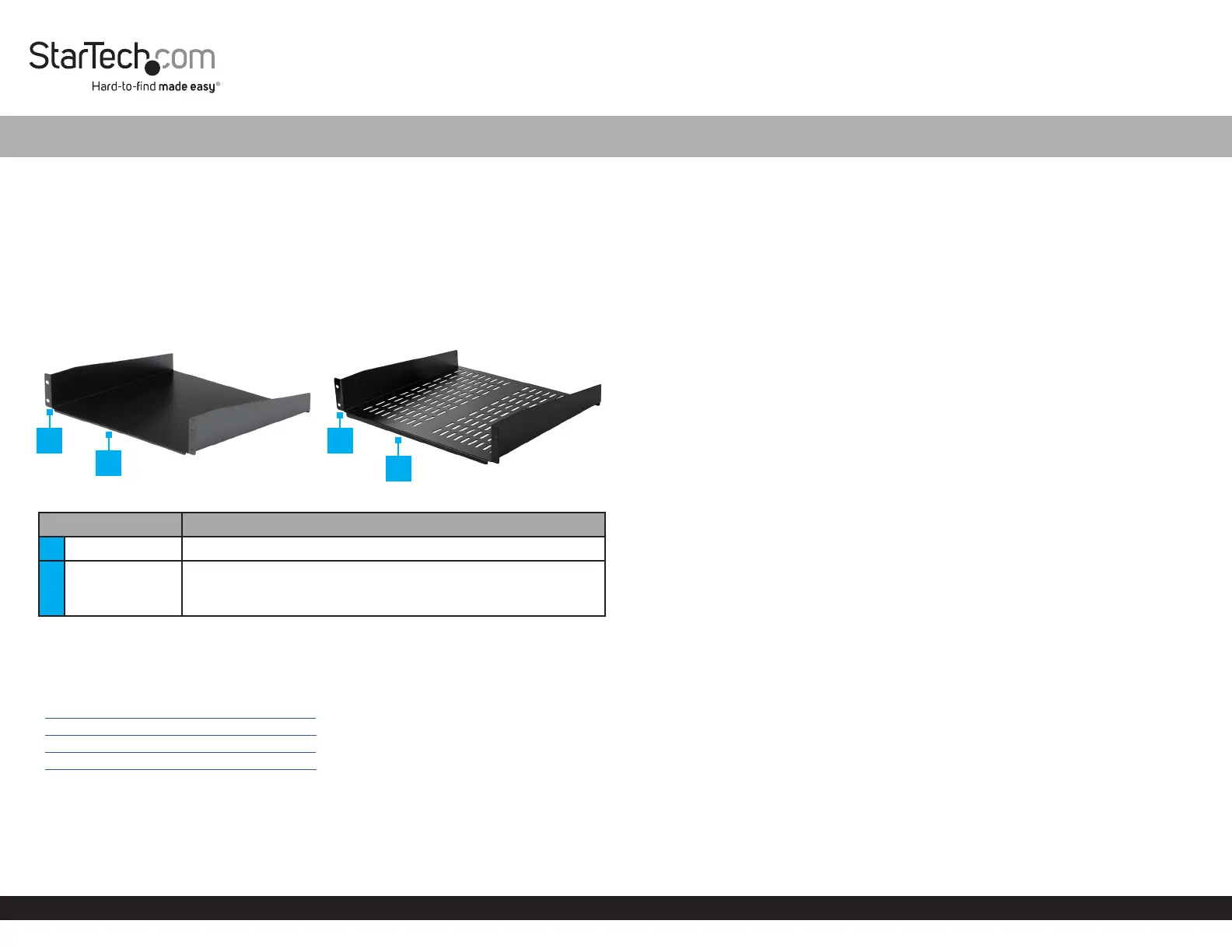

Front - Angled View

Solid Vented

Component Function

1 Mounting Holes • Mount the 1U Solid/Vented Shelf into a Rack or Cabinet.

2 Shelf Lip

• Mount the 1U Solid/Vented Shelf with the Shelf Lip

oriented downwards to prevent Equipment from catching

during storage and/or retrieval

Product Information

For the latest manuals, product information, technical specications, and declarations

of conformance, please visit:

www.StarTech.com/SHELF-1U-12-FIXED-S

www.StarTech.com/SHELF-1U-12-FIXED-V

www.StarTech.com/SHELF-1U-20-FIXED-S

www.StarTech.com/SHELF-1U-20-FIXED-V

Requirements

• 1U Available Rack Space

1U Solid/Vented Cantilever Shelf - 12/20 in. Depth

Warnings

• Read the entire manual and ensure the instructions are fully understood before

assembling and/or using this product.

• Before adding equipment to this product, ensure this product has been properly

mounted.

• Ensure the weight of the equipment does not exceed the weight capacity of this

product. If the weight capacity is exceeded, personal injury or damage to the

equipment are possibilities. This product can support the following weight: up

to 55 lb. (25 kg). This product can only support the maximum weight capacity if 4

M6 Screws / Cage Nuts / Plastic Washers are used to ax this product to a rack or

cabinet.

Package Contents

• 1U Solid/Vented Shelf x 1

• M6 Cage Nuts x 4

• M6 Screws x 4

• M6 Plastic Washers x 4

• Quick-Start Guide x 1

Installation

Mount the 1U Solid/Vented Shelf into a Rack or Cabinet

Use the included M6 Cage Nuts, M6 Screws, and M6 Plastic Washers to install the 1U

Solid/Vented Shelf.

Notes: This product can support the following weight: 55 lb. (25 kg).

The following installation instructions are for square mounting holes.

1. Locate a suitable location in a Rack or Cabinet to mount the 1U Solid/Vented

Shelf.

Note: The 1U Solid/Vented Shelf itself requires 1U of space within a Rack or

Cabinet.

2. Insert the Wing (side) of an M6 Cage Nut into the back of the a Cage Nut Hole.

3. Insert the second Wing of the M6 Cage Nut into the selected Cage Nut Hole, using

pressure by hand, or with a Cage Nut Tool.

4. Repeat steps 2 and 3 to insert a total of 4 Cage Nuts.

*Product may vary from images

5. Thread an M6 Plastic Washer over an M6 Screw. Repeat until 4 M6 Screw

Assemblies have been prepared.

6. Align the Mounting Holes in the 1U Solid/Vented Shelf with the M6 Cage Nuts

installed in steps 2-4.

7. Insert the M6 Screw Assemblies through the Mounting Holes in the 1U Solid/

Vented Shelf and into the M6 Cage Nuts and tighten, using a Phillips Head

Screwdriver.

Regulatory Compliance

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a lifetime warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.
