Side 1/2

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 27, 2022 3:01 PM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Product IDs

SHELF-2U-14-CENTER-V

SHELF-2U-20-CENTER-V

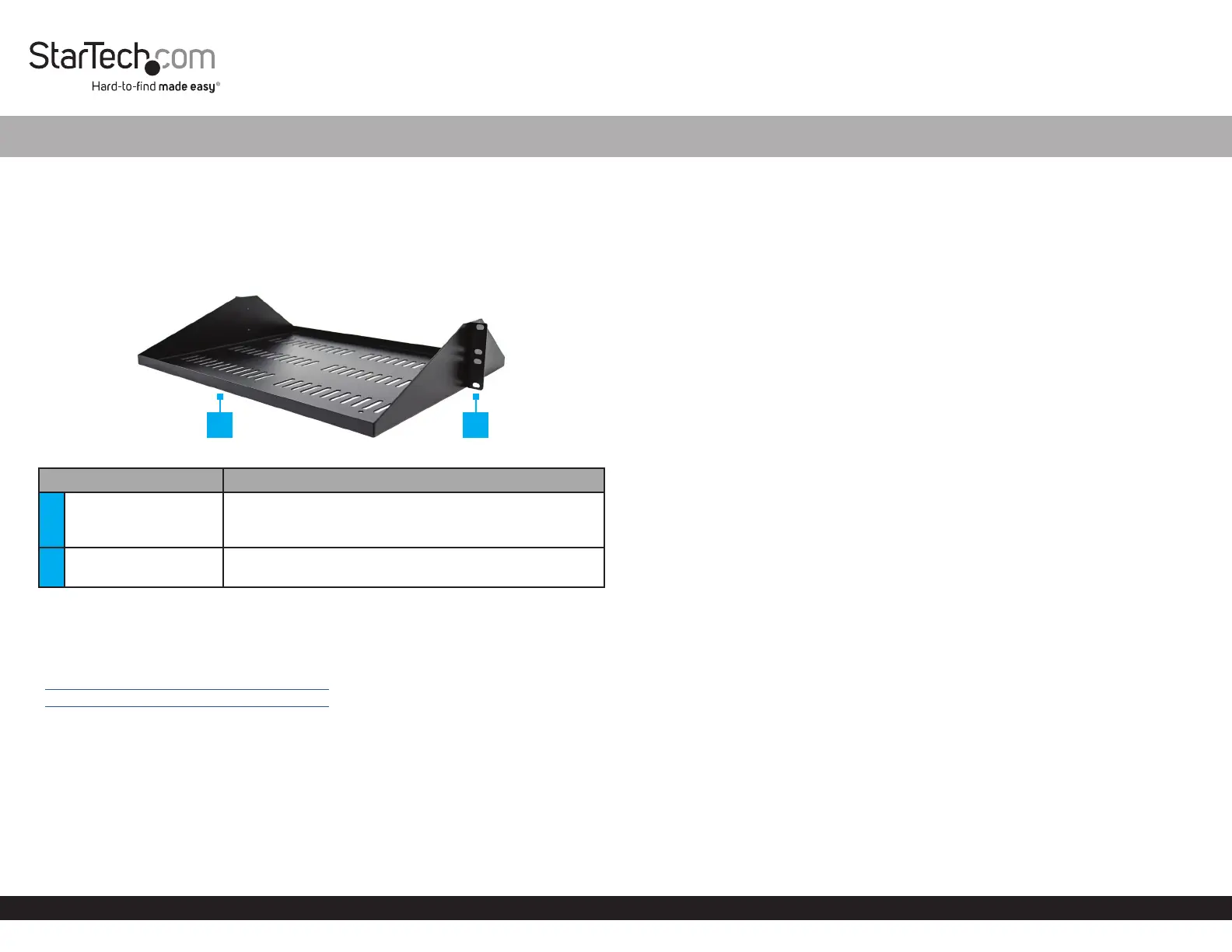

Product Diagram

Front - Angled View

Component Function

1 Shelf Lip

• Mount the 2U Vented Center-Mount Shelf with the

Shelf Lip oriented upwards to prevent Equipment

from slipping o

2 Mounting Holes (x 8)

• Mount the 2U Vented Center-Mount Shelf into a

Rack.

Product Information

For the latest manuals, product information, technical specications, and declarations

of conformance, please visit:

www.StarTech.com/SHELF-2U-14-CENTER-V

www.StarTech.com/SHELF-2U-20-CENTER-V

Requirements

• 2U Available Rack Space

• Phillips Head Screwdriver

• (Optional) Cage Nut Tool

2U Vented Center-Mount Shelf - 14/20 in. Depth

Warnings

• Read the entire manual and ensure the instructions are fully understood before

assembling and/or using this product.

• Before adding equipment to this product, ensure this product has been properly

mounted.

• Ensure the weight of the equipment does not exceed the weight capacity of this

product. If the weight capacity is exceeded, personal injury or damage to the

equipment are possibilities. This product can support the following weight: up to

200.6 lb. (91 kg). This product can only support the maximum weight capacity if 8

M6 Screws / Cage Nuts / Plastic Washers are used to ax this product to a rack.

Package Contents

• 2U Vented Center-Mount Shelf x 1

• M6 Cage Nuts x 10

• M6 Screws x 10

• M6 Plastic Washers x 10

• Quick-Start Guide x 1

Installation

Mount the 2U Vented Center-Mount Shelf into a Rack

Use the included M6 Cage Nuts, M6 Screws, and M6 Plastic Washers to install the 2U

Vented Center-Mount Shelf.

Notes: This product can support the following weight: 200.6 lb. (91 kg).

The following installation instructions are for square mounting holes.

1. Locate a suitable location in a Rack to mount the 2U Vented Center-Mount Shelf.

Note: The 2U Vented Center-Mount Shelf itself requires 2U of space within a Rack.

2. Insert the Wing (side) of an M6 Cage Nut into the back of the a Cage Nut Hole.

3. Insert the second Wing of the M6 Cage Nut into the selected Cage Nut Hole, using

pressure by hand, or with a Cage Nut Tool.

4. Repeat steps 2 and 3 to insert a total of 8 Cage Nuts.

5. Thread an M6 Plastic Washer over an M6 Screw. Repeat until 8 M6 Screw

Assemblies have been prepared.

*Product may vary from image

6. Align the Mounting Holes in the 2U Vented Center-Mount Shelf with the M6 Cage

Nuts installed in steps 2-4.

7. Insert the M6 Screw Assemblies through the Mounting Holes in the 2U Vented

Center-Mount Shelf and into the M6 Cage Nuts and tighten, using a Phillips Head

Screwdriver.

Regulatory Compliance

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a lifetime warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	SHELF-2U-20-CENTER-V
Type:	Stativhylde
Bredde:	483 mm
Dybde:	356 mm
Højde:	87 mm
Vægt:	3200 g
Produktfarve:	Sort
Pakkevægt:	4500 g
Pakkedybde:	560 mm
Pakkebredde:	550 mm
Pakkehøjde:	120 mm
Husmateriale:	SPCC
Hurtig installationsvejledning:	Ja
Harmoniseret systemkode (HS):	85389099
Hovedkassen højde (udvendigt):	565 mm
Hovedkassens længde (udvendigt):	505 mm
Hovedkassens bredde (udvendigt):	570 mm
Produkter pr. hovedkasse (udvendigt):	4 stk
Maksimal vægtkapacitet:	91 kg
Overholdelse af branchestandarder:	EIA/ECA-310-E
Skruer inkluderet:	Ja
Rackkapacitet:	2U
Skruetype:	M6
Spændeskiver inkluderet:	Ja
Burmøtrikker inkluderet:	Ja
