Side 1/2

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/13/2018

For the most up-to-date information, please visit: www.startech.com

Port

activity LEDs

Power LED

Reset Button

Packaging Contents

• 1x HDMI Audio/Video Splitter (ST122HD4K/ST124HD4K)

• 1x Power Adapter (NA/EU/UK/AUS)

• 1x Instruction Manual

System Requirements

• 1x HDMI-enabled Video Source Device w/ HDMI cable

(i.e. Blu-ray player, computer, etc.)

• 4x HDMI-enabled Display Device w/ cable (i.e. Television,

projector, etc.)

ST124HD4K / ST122HD4K

Split an HDMI audio/video source to multiple HDMI Displays simultaneously, with

support for resolutions up to 4K

*actual product may vary from photos

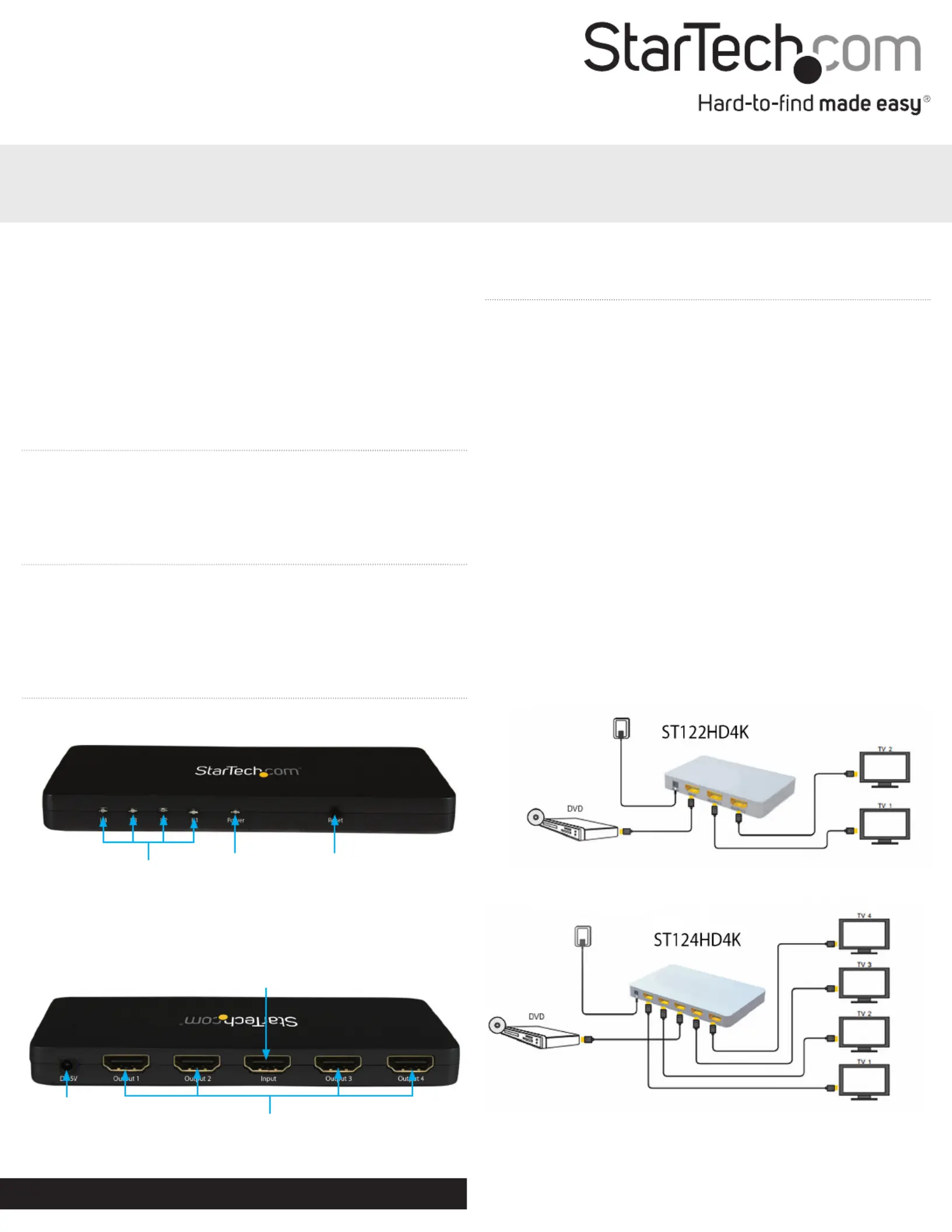

Product Overview

Front View - ST124HD4K

Rear View - ST124HD4K

Hardware Installation

Note: Ensure your HDMI-enabled video source device, and the

HDMI-enabled Display Devices are powered o before you begin

installation.

1. Connect an (not included) from the A/V output of HDMI cable

your HDMI-enabled Video Source Device A/V input Port to the

on the HDMI Audio/Video Splitter.

2. Connect an (not included) from the on HDMI cable output ports

the HDMI Video Splitter to each desired HDMI-enabled Display

Device (up to 2 on ST122HD4KS) (up to 4 on ST124HD4KS).

Note: Each port is numbered, please take note of which number

is assigned to each HDMI-enabled display device.

3. Power on each , followed by your HDMI-enabled Display Device

HDMI-enabled Video Source Device.

4. Connect the included power adapter from an available power

source to the power adapter port HDMI Audio/Video on the

Splitter.

5. Your Video source device A/V output will now appear on each

attached HDMI-enabled display device.

Power

adapter port

A/V output

ports

A/V input

port

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

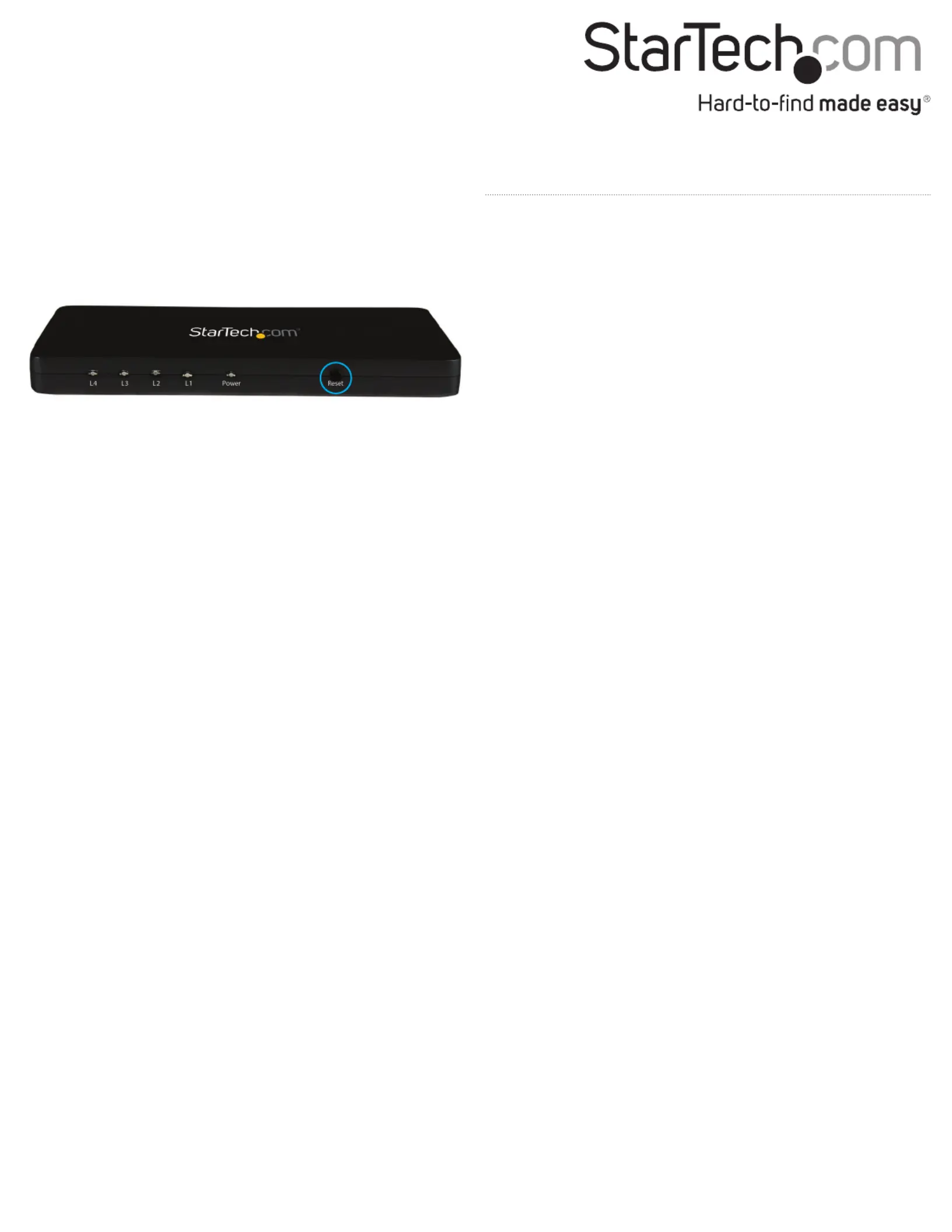

Reset Button

The HDMI Audio/Video Splitter has a built-in reset button. Press this

button if the audio/video source from your HDMI-enabled video

source device is disrupted or lost on any of the connected HDMI-

enabled video display devices.

EDID Emulation

This splitter features EDID emulation enabling you to choose the

best vide source settings available from any of your connected

displays.

The EDID video source settings are selected based on the rst port

that the switch detects the use of beginning with port 1. Once the

EDID display settings are dened all other EDID information from

additional display(s) will be ignored. Please follow the below steps to

specify your EDID selection.

1. Disconnect the power source to the splitter.

2. Determine which display has the preferred EDID settings to be

shared with your video source.

3. Plug your preferred EDID display into port 1 of your HDMI splitter

and ensure this display remains connected at all times.

4. Connect your remaining displays to the splitter, and power the

splitter back on.

The EDID settings have now been set.

Note: If the splitter is rebooted or loses power, EDID settings will

be rescanned and reselected. To avoid this scenario causing your

preferred EDID settings to be lost, it is recommended you connect

your preferred EDID display to Port 1 at all times.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	ST122HD4K
Vekselstrømsindgangsspænding:	100-240 V
Vægt:	176 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	430 g
Pakkedybde:	216 mm
Pakkebredde:	148 mm
Pakkehøjde:	53 mm
Understøttede videotilstande:	720p, 1080p, 2160p
Maksimal opløsning:	4096 x 2160 pixel
Husmateriale:	Aluminium
Dimensioner (BxDxH):	60 x 100 x 14 mm
Understøttede grafikopløsninger:	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Certificering:	CE, FCC, RoHS
DC-in-stik:	Ja
LED-indikatorer:	Activity, Power
Udgangsspænding:	5 V
Udgangsstrøm:	2 A
AC-adapter inkluderet:	Ja
Full HD:	Ja
Harmoniseret systemkode (HS):	85176990
Indgangsstrøm:	0.35 A
HDMI-version:	1.4
Video porttype:	HDMI
Antal videoporte:	2
Understøttede lydkanaler:	7.1
Understøttelse af lyd:	Ja
