Quick-start guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 04/23/2018

For the latest information, technical specications, and support for

this product, please visit www.startech.com/ST124HD20

Packaging contents

• 1 x HDMI® video splitter

• 1 x universal power adapter (NA, EU, UK, ANZ)

• 1 x quick-start guide

System requirements

• One HDMI video source device with cabling.

• Four HDMI video display devices with cabling.

ST124HD20

4-Port HDMI Video Splitter - 4K at 60Hz

*actual product may vary from photos

Hardware installation

Note: Before you begin the hardware installation steps, ensure

your HDMI source device and each of the HDMI video displays are

powered o.

1. Connect an HDMI cable (sold separately) to the on HDMI input

the video splitter and to the HDMI output on your video source

device.

2. Connect an HDMI cable (sold separately) to each of the HDMI

outputs on the video splitter and to the HDMI input ports on your

video displays.

Note: Connect the HDMI display with the lowest resolution and

refresh rate capability to output #1.

3. Connect the power adapter (included) to the DC 5V power

adapter port on the video splitter and to an AC outlet.

4. Power on your video source.

5. Power on each of your video displays.

6. Verify your video source is now displaying on each of your

displays.

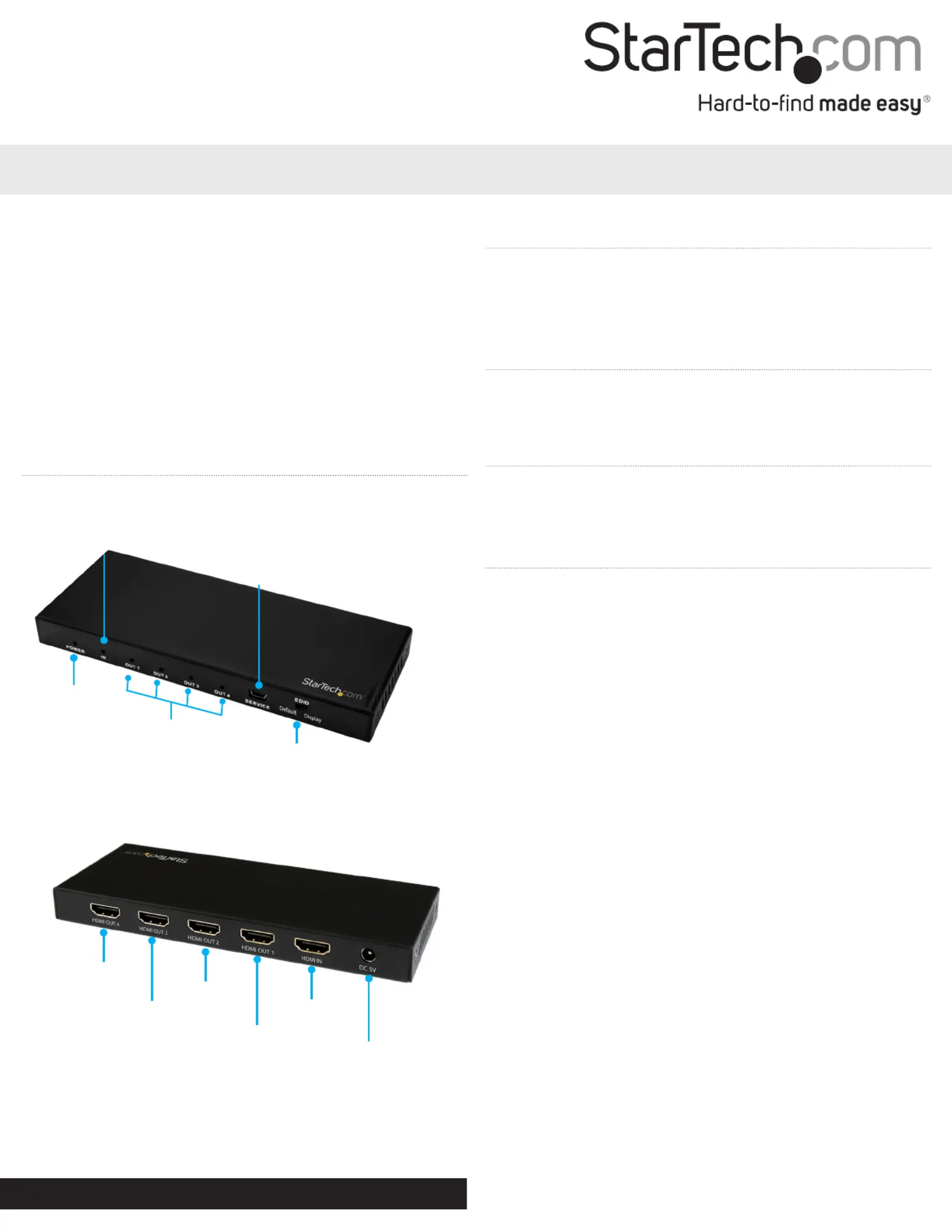

Product overview

Output

LEDs

About this product

This HDMI video splitter lets you connect an HDMI video source to

four HDMI video displays, with support for Ultra HD resolutions up to

4K at 60Hz and 7.1 surround sound audio.

Front view

Rear view

HDMI

input

DC 5V power

adapter port

Power

LED

HDMI

output 3

HDMI

output 2

Input

LED

HDMI

output 4

USB

service

port

HDMI

output 1

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

HDMI is a trademark of HDMI Licensing, LLC. This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related

in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement

of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective

holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

LED indicators

This video splitter features LED indicators that can be used

to notify you of the video status. The following table explains

what each LED represents:

LED Status

Power LED Lights when the splitter is connected to a

power source.

Input LED Lights when an active video source is

connected to the HDMI input.

Output LEDs Lights when an active video display is

connected to the designated HDMI output.

EDID switch

When connected, EDID information (such as the resolution and

refresh rate) is shared between the video source and the displays, to

determine which output settings are optimal for the display.

Because this splitter enables you to connect four displays to a single

video source, it’s possible that each display may have dierent

capabilities, which can negatively aect the performance of the

display with lower capabilities.

To ensure optimal support for both displays, this HDMI splitter

features an that gives you the option to use the EDID EDID switch

settings from the display that’s attached to , or HDMI Output 1

emulate generic EDID settings that are commonly supported by

most HDMI displays

Use the EDID settings from the display attached to

HDMI output 1

1. Set the EDID switch to Display.

2. Disconnect and reconnect the power adapter from the video

splitter.

Note: If a dierent display is connected, the power adapter must

be disconnected and reconnected again.

Use generic EDID settings that are commonly

supported by most HDMI displays

1. Set the . EDID switch to Default

2. Disconnect and reconnect the power adapter from the video

splitter.

Note: The generic EDID settings are:

Resolution: 1920 x 1080 at 60Hz

Audio: 2-channel stereo
