Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 08/07/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x PC/HD to HDMI® Converter with Audio

• 1x VGA to Component (RCA) Breakout Cable

• 1x Universal Power Adapter (US/UK/EU/AUS)

System Requirements

• VGA or Component (RGB/YPbPr) enabled video source device (i.e.

computer, Blu-ray Player)

• HDMI® enabled video display device (i.e. television, projector)

• HDMI® Destination Cable

• VGA Source Cable for VGA Video (Component to VGA adapter

included for Component Video)

• 2 Channel RCA Audio Cable (Optional)

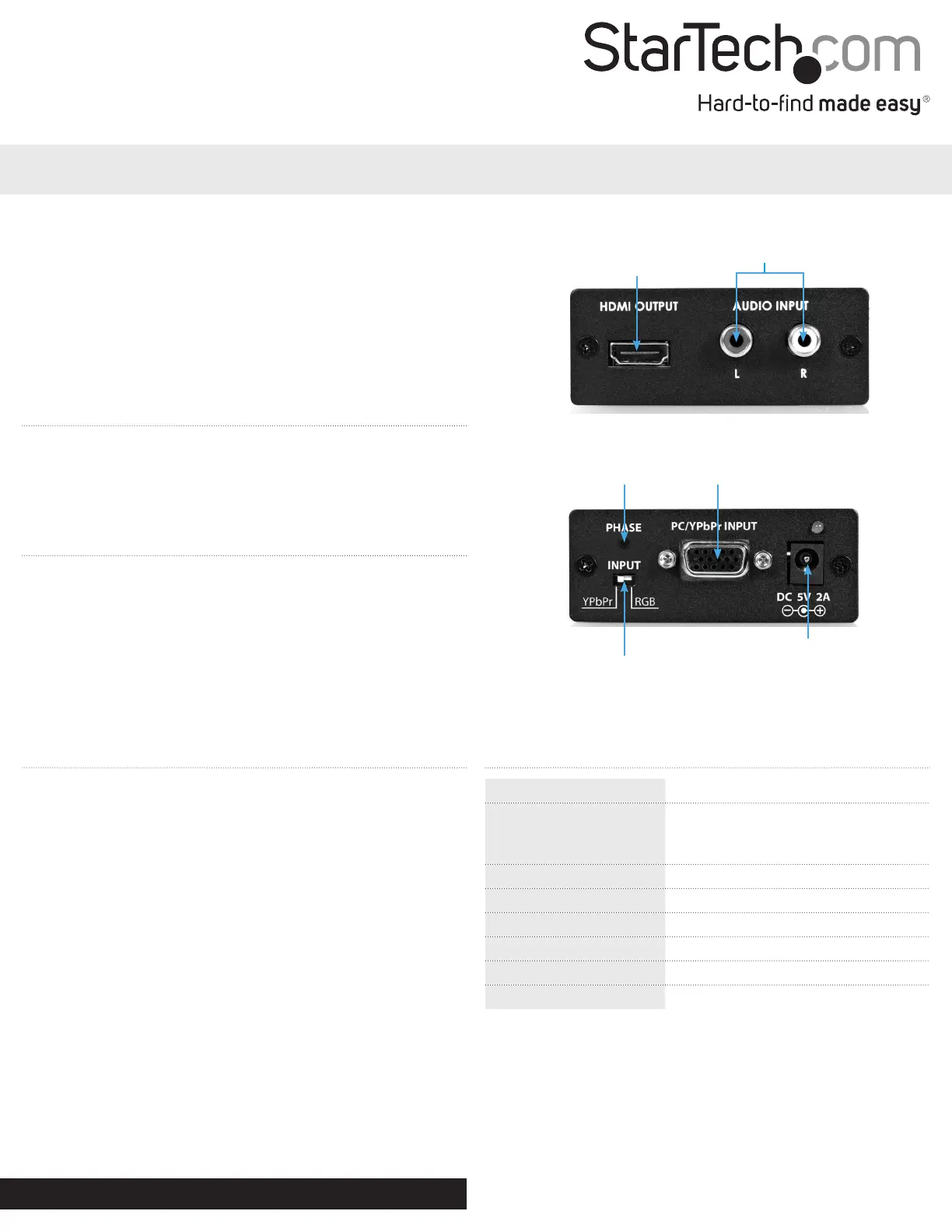

VGA2HD2

Component / VGA to HDMI® Video Converter

HDMI® Output

Port

RCA Two

Channel Audio

Input Ports

Input Select Switch

(YPbPr/RGB)

Power Adapter

Port

VGA Input

Port

Hardware Installation and Operation

1. Using a VGA cable, or the included VGA to Component (RCA)

Breakout Cable, connect the video output source from the VGA or

Component enabled video source device (i.e. computer, Blu-ray

Player) to the VGA Input Port on the VGA2HD2.

2. Using an HDMI® cable, connect the HDMI® Output port on the

VGA2HD2 to the HDMI® input port on the HDMI® enabled video

display device (i.e. television, projector).

3. (Optional) If the input signal includes an audio source, connect

the audio source device (i.e. computer, Blu-ray Player) to the RCA

two channel audio input ports on the VGA2HD2 using an RCA

audio cable.

4. Set the Input Select Switch to YPbPr or RGB, depending on which

color space the video output device supports.

NOTE: Component devices typically support YPbPr, while VGA

devices typically support RGB, check the video source device manual

to conrm which color space is supported.

5. Connect the Universal Power Adapter from an available wall

outlet to the Power Adapter Port on the VGA2HD2.

6. The VGA or Component video source image will now appear on

the HDMI® display.

Specications

Converter Type Format Converter

AV Input

Component (YPbPr)

VGA (RGB)

Audio RCA

AV Output HDMI

Interface VGA

Audio Yes

Output Signal HDMI

Max Resolution 1080p

Wide Screen Supported Yes

Phase

Control
