Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 8, 2024 3:55 PM

For additional self-service support options and community forums, please visit: www.StarTech.com/support

Product ID

UNIRAILS1U / UNIRAILS2U / UNIRAILS3U - Revision 02 or above

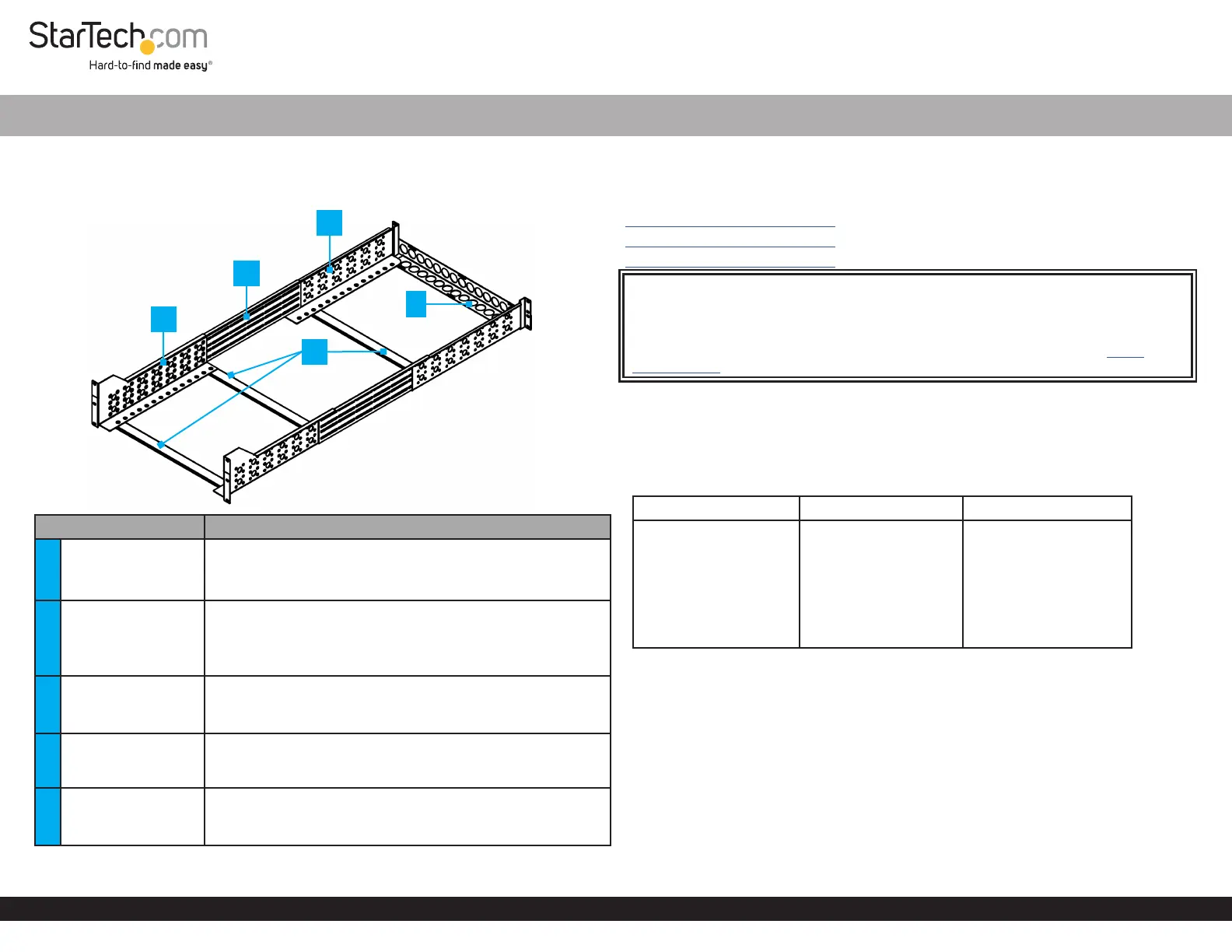

Component Function

Front Rail - Rack Rail

Assembly

• Attaches onto the Front Mounting Posts of a Rack

• Slide along the Middle Sliding Rail to adjust depth

Middle Sliding Rail -

Rack Rail Assembly

• Fully assembled with Front and Rear Rails

• Loosen Connecting Screws to adjust the depth of the

Front and Rear Rails

Rear Rail - Rack Rail

Assembly

• Attaches onto the Rear Mounting Posts of a Rack

• Slide along the Middle Sliding rail to adjust depth

4 Cross Braces

• Supports the weight of 19in Non-Rackmount Equipment

• Attaches to the Left and Right Rack Rail Assemblies

Cable Management

Plate

• End plate with Cable Management Holes

• Prevents Equipment from sliding o the rear of the Rack

Rails

1U/2U/3U Fixed 19” Adjustable Depth Universal Server Rack Rails

Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit:

www.StarTech.com/UNIRAILS1U

www.StarTech.com/UNIRAILS2U

www.StarTech.com/UNIRAILS3U

How to Identify the LOT Code Revision Number

The Revision Number (Rev #) appears as the fth and sixth digits of the LOT code,

located on the sticker axed to the product and its packaging. If the LOT code sticker

is missing, the product is Rev 01. Refer to the specic Product ID page on www.

StarTech.com to download the manual for Revision 01.

Requirements

• Phillips Head Screwdriver

• (Optional) Cage Nut Tool

Package Contents

UNIRAILS1U UNIRAILS2U UNIRAILS3U

1 - Set Universal Rack Rails

6 - Cross Brace Screws

8 - M5 Panel Screws

8 - M5 Cage Nuts

1 - M5 Wrench

1 – Quick-Start Guide

1 - Set Universal Rack Rails

6 - Cross Brace Screws

16 - M5 Panel Screws

16 - M5 Cage Nuts

1 - M5 Wrench

1 – Quick-Start Guide

1 - Set Universal Rack Rails

6 - Cross Brace Screws

14 - M5 Panel Screws

14 - M5 Cage Nuts

1 - M5 Wrench

1 – Quick-Start Guide

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and using this product. Before adding equipment to this product,

ensure this product has been properly mounted. Never operate this product if parts are

missing or damaged. Ensure the weight of the equipment does not exceed the weight

capacity of this product. If the weight capacity is exceeded, personal injury or damage

to the equipment is possible. These products can support the following weights:

UNIRAILS1U: up to 55.1 lb (25 kg)

UNIRAILS2U: up to 99.8 lb (45.2 kg)

UNIRAILS3U: up to 214.5 lb (97.3 kg)

All four mounting points must be properly secured to each of the posts on a four-post

rack. Never exceed the maximum mounting depth specication for this shelf: 41.5in

(1055mm)

*Product may vary from image

3. Fasten the ends of the Cross Braces to the Left and Right Rack Rail Assemblies

with the Cross Brace Screws. Tighten using a Phillips Head Screwdriver.

Mount the Assembly to the Server Rack

Note: Two people are required to mount the Universal Server Rack Rails to a Server

Rack.

1. Mount the Universal Server Rack Rails by inserting the M5 Screws through the

Front Rail Mounting Holes, Server Rack Front Mounting Posts, and into the M5

Cage Nuts. Tighten the M5 Screws using a Phillips Head Screwdriver.

2. Align the Rear Rail Mounting Holes to the Server Rack Rear Mounting Posts.

Position the Cable Management Plate at the back of the assembly as shown,

overlapping with the Rear Rail Mounting Holes. (Figure 3)

3. Insert the M5 Screws through the Cable Management Plate, Rear Rail

Mounting Holes, Server Rack Rear Mounting Posts, and into the M5 Cage Nuts.

Tighten the M5 Screws to secure the assembly onto the Server Rack.

4. Ensure that all M5 Mounting Screws, Cross Brace Screws, and Left and Right

Rack Rail Connecting Screws are rmly tightened once the unit is mounted onto

the Server Rack.

Installation

Preparation

1. Determine a suitable location on the Server Rack to mount the Universal Server

Rack Rails. The Universal Server Rack Rails requires 1U to 3U of Mounting Space.

2. Install the M5 Cage Nuts into the Mounting Holes on the Front and Rear

Mounting Posts of the Server Rack. If available, use a Cage Nut Tool to install the

Cage Nuts.

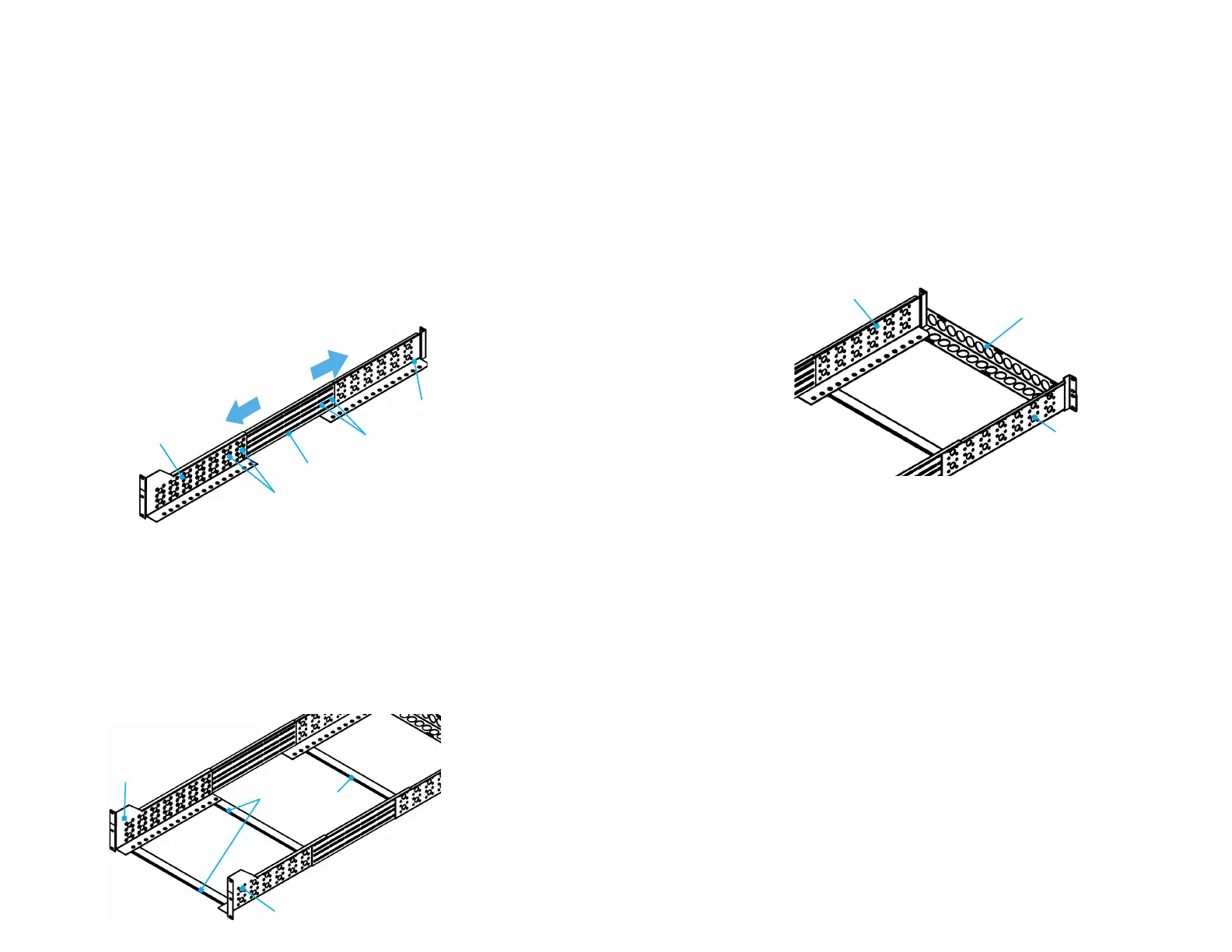

Adjust Rail Mounting Depth

1. Remove all of the Connecting Screws located on the Front and Rear Rails of the

Left Rack Rail Assembly using a Phillips Head Screwdriver. Ensure that all of the

Connecting Screws and nuts are removed.

2. Slide the Front and Rear Rails, along the Middle Sliding Rails to the required

Mounting Depth of the Server Rack. Insert and gently tighten all Connecting

Screws and nuts using a Phillips Head Screwdriver. (Figure 1)

3. Repeat Steps 1 and 2 on the Right Rack Rail Assembly. Ensure that the length of

the Left and Right Rack Rail Assemblies are identical.

Install Cross Braces

1. Arrange the Left and Right Rack Rail Assemblies in parallel position on a at

working surface.

2. Position Cross Braces between the Left and Right Rail Assemblies as shown.

Ensure that the Cross Braces are spaced evenly across the length of the Left and

Right Rack Rail Assemblies. (Figure 2)

Middle Sliding Rail

Front Rail

Figure 1

(Left Rack Rail Assembly)

Rear Rail

Left

Front Rail

Right

Front Rail

Cross Braces

Figure 2

Cable Management

Plate

Right Rear Rail

Left

Rear Rail

Figure 3

Connecting Screws

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	UNIRAILS1U
Type:	Stativskinne
Bredde:	481 mm
Dybde:	1100 mm
Højde:	42 mm
Vægt:	2600 g
Produktfarve:	Sort
Pakkevægt:	2900 g
Pakkedybde:	490 mm
Pakkebredde:	107 mm
Pakkehøjde:	75 mm
Husmateriale:	Stål
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	CE, RoHS
Hovedkassen højde (udvendigt):	75 mm
Hovedkassens længde (udvendigt):	490 mm
Hovedkassens bredde (udvendigt):	107 mm
Produkter pr. hovedkasse (udvendigt):	1 stk
Monteringssæt:	Ja
Maksimal vægtkapacitet:	25 kg
Skruer inkluderet:	Ja
Størrelse:	19 "
Rackkapacitet:	1U
Montering - dybde (maks):	1054 mm
Antal skruer:	8
Montering - dybde (min):	420 mm
Skruetype:	M5
Burmøtrikker inkluderet:	Ja
Antal burmøtrikker:	8
