Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 10/26/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x Set Universal Rack Rails

• 8/16/14 x M5 Panel Screws (1U/2U/3U)

• 8/16/14 x M5 Cage Nuts (1U/2U/3U)

• 1x M5 Wrench

System Requirements

• Standard 19in wide rack

• 1U/ 2U/ 3U of rack space

UNIRAILS1U / UNIRAILS2U / UNIRAILS3U

1U/ 2U/ 3U Fixed 19” Adjustable Depth Universal Server Rack Rails

Installation

1. Determine the mounting depth of the rack/cabinet.

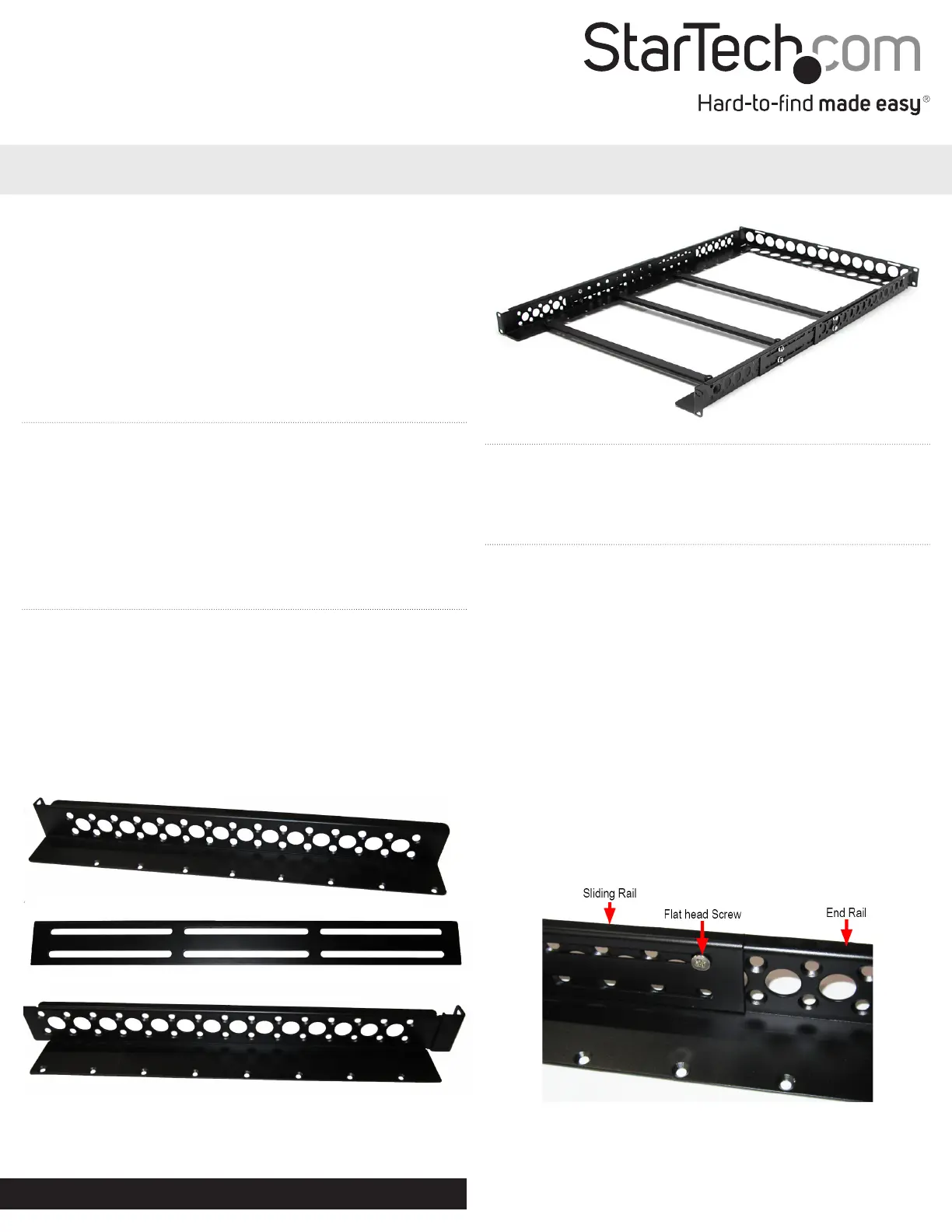

2. Gather the components of the two side rails. Each side rail is

comprised of 3 pieces: two End Rails with the rack mounting

brackets and the at middle section with the adjustable slide cut

outs.

NOTE: Look carefully at the End Rails, as there are two dierent sets.

The lip along the top edge will be taller on one set, than the other.

The side rails use one of each.

End Rail #2

Sliding Rail

End Rail #1

Tools Required

• Phillips screwdriver

3. Lay out the two End Rails end-to-end (rack mounting bracket at

opposite ends), and then place the Sliding Rail over top of the

smaller of the End Rail (see “Inside View” photo for reference).

Place the other End Rail overtop the Sliding Rail, so it is now

sandwiched between the two End Rails.

4. Adjust the length of the rails, such that the rack mounting

brackets are slightly longer than the mounting depth of the rack.

5. Fasten the middle Sliding Rail to each End Rail with 4 screws and

nuts each (2 on the top slide and 2 on bottom) with a screwdriver

and the provided wrench. The screw should go in from the inside

of the rail,with the nut on the outside (underneath the lip).

Inside View

*installation photos are for reference only

*actual product may vary from photos

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

UNIRAILS1U UNIRAILS2U UNIRAILS3U

Descriptions 1U Fixed 19” Adjustable Depth

Universal Server Rack Rails

2U Fixed 19” Adjustable Depth

Universal Server Rack Rails

3U Fixed 19” Adjustable Depth

Universal Server Rack Rails

Mounting Height 1U 2U 3U

Material SPCC

Color Black

Weight Capacity 25kg / 55lbs 45.25kg / 100.0lbs 97.28kg / 215.0lbs

Max/Min Mounting

Depth 420mm / 1054mm

Dimensions 465.0mm x 44.0mm 465.0mm x 88.0mm 465.0mm x 132.0mm

Weight 2600g 3680g 3760g

Certications RoHS, CE

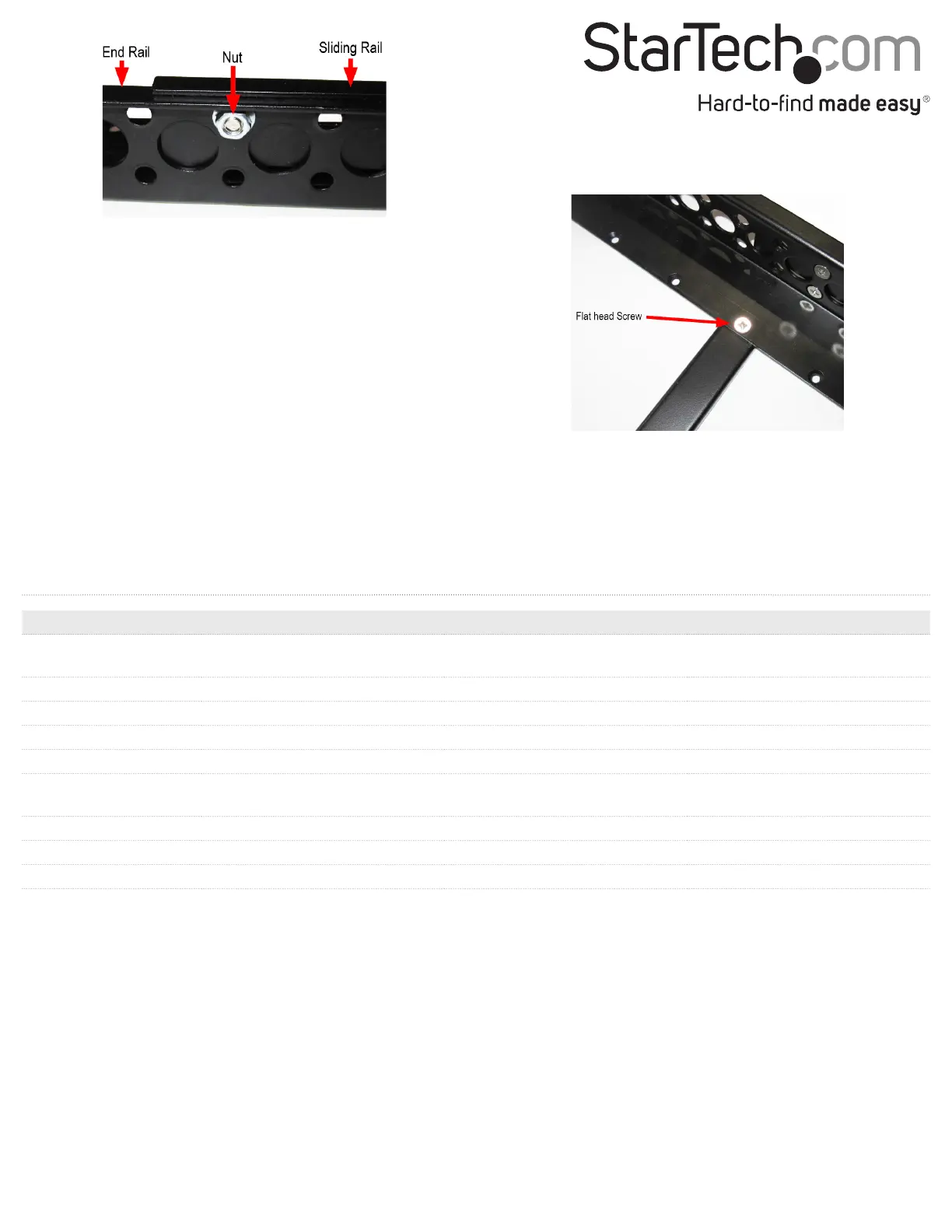

Outside View

NOTE: If possible, do not have the screws go through all 3 Rails, as

this will prevent the rails from sliding. If possible, try to only have the

screws go through the Sliding Rail and one End Rail.

6. Once one rail is complete, assemble the second rail. The length of

both rails should be identical.

7. Once both rails are complete, line them up side-by-side, with the

rack mounting brackets facing outwards. Place the cross braces

between the two rails. Ideally, the braces should be equally

spaced along the length of the rails, but can be arranged in any

conguration depending on the equipment the rails will be

holding in the rack.

8. Fasten the ends of the cross braces to the side rails with the at

head screws. The braces should go underneath the at base of

the side rails, with the screw going in from the top.

9. Once the cross braces are rmly attached, the completed unit

can be mounted into the cabinet/rack. The cable manager is

mounted at the same time and is simply placed over the rack

mounting brackets then both are fastened to the rack posts.

NOTE: Make sure to rmly tighten the screws/nuts in the side rails

once the unit is mounted into the rack, as you may have had to

loosen them to installed the rails into the rack.
