Side 1/4

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 6, 2024

For additional self-service support options and community forums, please visit: www.StarTech.com/support

Product ID

UNISLDSHF19

Product Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/UNISLDSHF19

Requirements

• Phillips Head Screwdriver

• (Optional) Cage Nut Tool

Package Contents

• Sliding Shelf x 1

• M6 Screws x 8

• M6 Cage Nuts x 8

• Quick-Start Guide x1

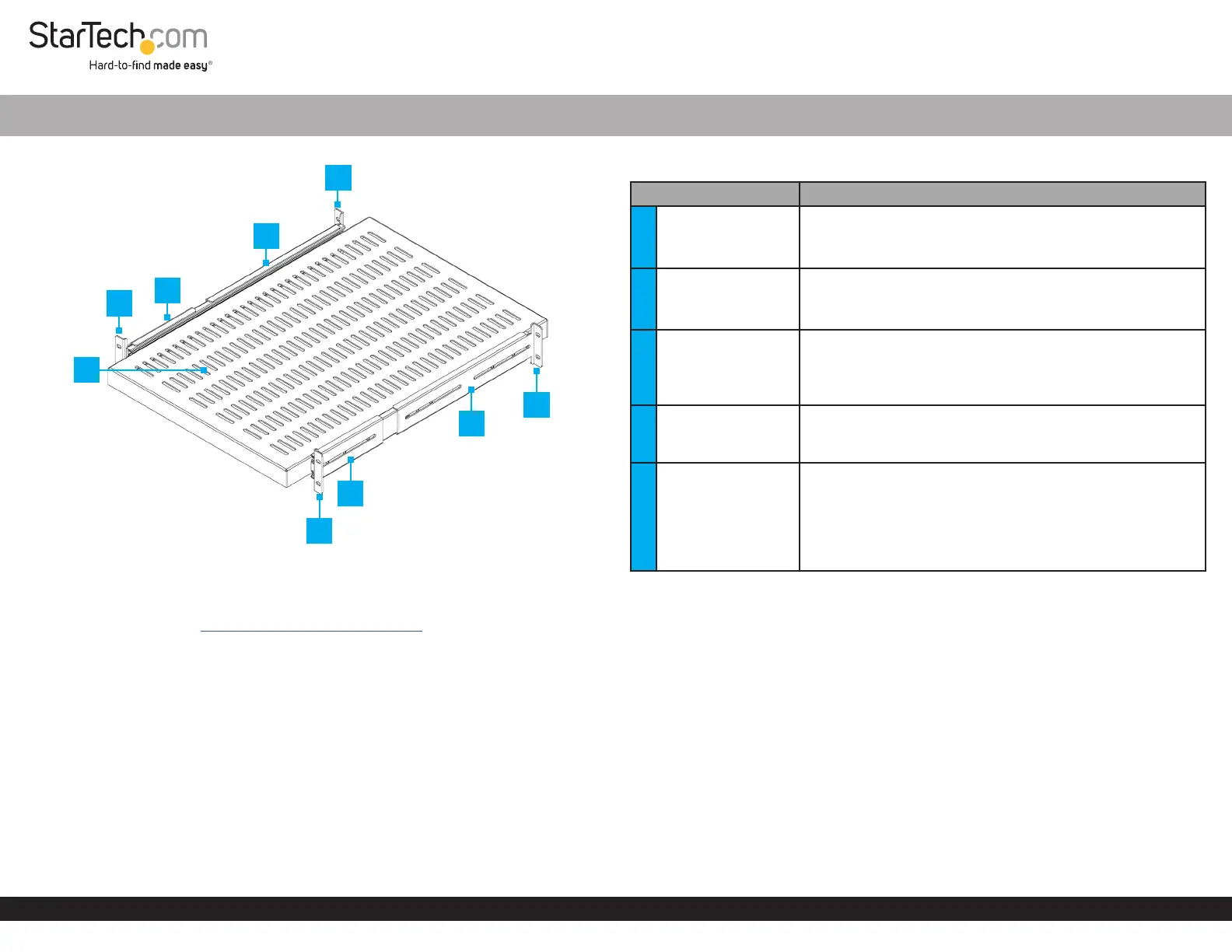

2U Universal Sliding Server Rack Shelf

Component Function

Rail Assembly

Mounting Holes

• Mount the Sliding Shelf to the 4-Post Rack

2 Rear Brackets x 2

• Used to attach the Sliding Shelf onto the Rear Mounting

Posts of a Rack

3 Front Brackets x 2

• Used to attach the Sliding Shelf onto the Front

Mounting Posts of a Rack

4 Shelf Surface • Place Rack Equipment

Release Levers x 2

(Not Shown)

• Located on both sides of the Sliding Shelf

• Allow to release the locking mechanism to retract or

remove the Sliding Shelf from the Rails

• The Release Levers operate in opposite directions. One

moves Down and the other Up

• See Figure 2 in Installation

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and using this product.

Before adding equipment to this product, ensure this product has been properly

mounted.

Do not attempt to operate or install this product if parts are missing or damaged.

Ensure the weight of the equipment does not exceed the weight capacity of this

product. If the weight capacity is exceeded, personal injury or damage to the

equipment is possible. This product can support the following weight: up to 50 lb

(22.7 kg).

All four mounting points must be properly secured to each of the posts on a four-post

rack.

Never exceed the maximum mounting depth specication for this shelf: 29.3in

(744mm).

Installation

Install the Sliding Shelf Without Removing the Rail Assemblies

Note: For these steps, ensure there is sucient space above and below the the

desired mounting location. If Rack equipment is already installed above or below the

desired mounting location, proceed to “Install the Sliding Shelf By Removing The Rail

Assemblies”

1. Determine an appropriate location on the Rack to mount the Sliding Shelf. The

Sliding Shelf requires 2U of Mounting Space.

2. Determine the Depth of the Mounting Posts on the Rack. The Adjustable

Mounting Depth of the Shelf is from 20.1in (510 mm) to 29.3in (744mm).

3. Install the M6 Cage Nuts into the Mounting Holes on the Front and Rear

Mounting Posts of the Rack. If available, use a Cage Nut Tool (not included) or

your preferred installation method to install the Cage Nuts.

4. Adjust the Mounting Depth of the Sliding Shelf to match the Mounting Depth of

the Rack:

For Small Depth Adjustments: Loosen the Screws (See Figure 1) on the side of

the Front (x 2) and Rear Brackets (x 2), using a Phillips Head Screwdriver.

Reposition the Rear Brackets (x 2) and/or Front Brackets (x 2) based on the

Mounting Depth of the Rack and the setup requirement. Tighten the Screws

on the side of the Front (x 2) and Rear Brackets (x 2), using a Phillips Head

Screwdriver. This completes the Rail Assembly (x 2).

For Large Depth Adjustments: Remove the Screws (See Figure 1) on the side

of the Front (x 2) and Rear Brackets (x 2), using a Phillips Head Screwdriver.

Reposition the Front and Rear Brackets to match the required Mounting

Depth of the Rack, and re-install the Screws on the side of the Front (x 2) and

Rear Brackets (x 2), using a Phillips Head Screwdriver. This completes the Rail

Assembly (x 2).

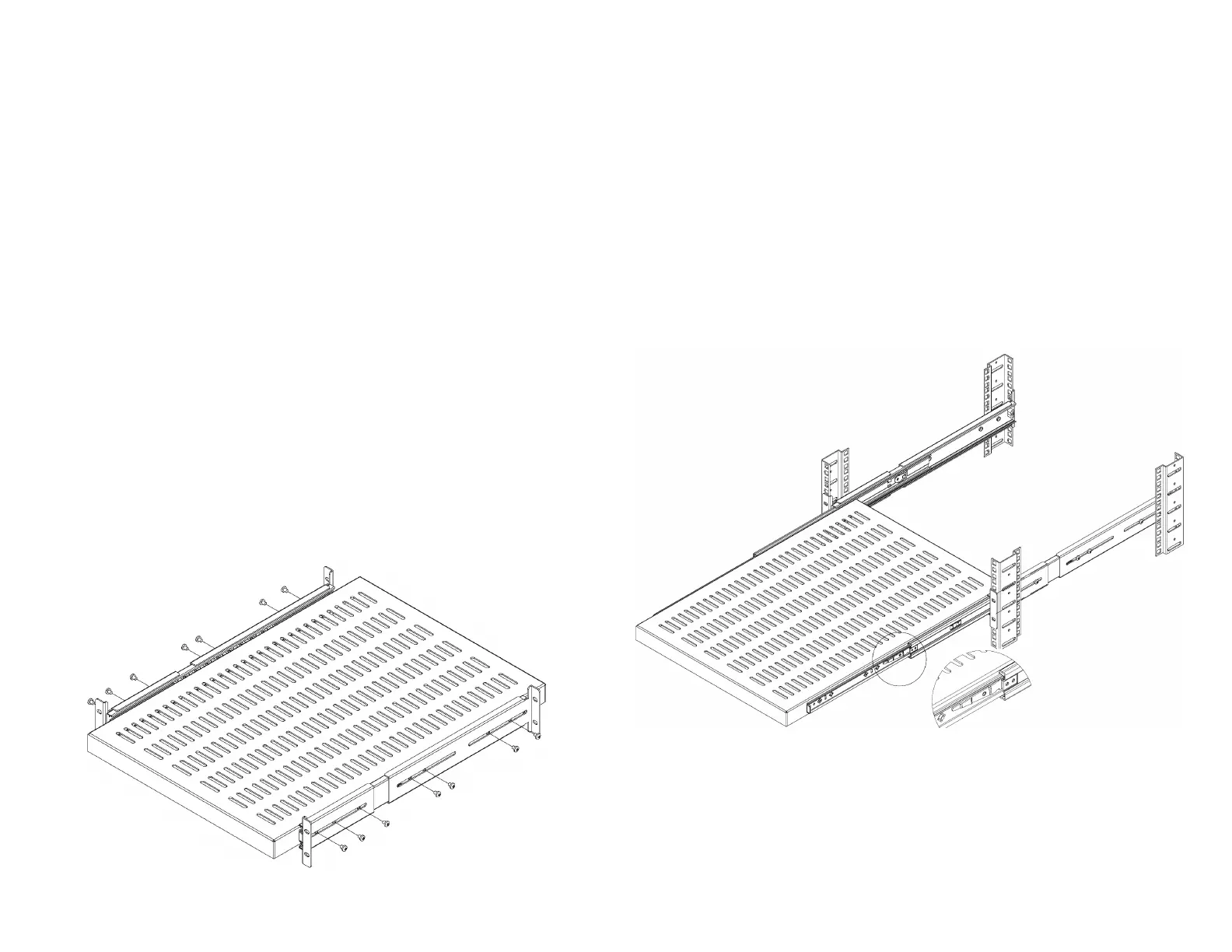

Figure 1

Note: Two people are recommended to accomplish the following steps.

5. Tilt and insert the Sliding Shelf with the Rail Assemblies (x 2) still installed into

the Rack.

6. Align the Sliding Shelf the M6 Cage Nuts installed in Step 2.

7. Insert the M6 Screws (x 8) through the Rail Assembly Mounting Holes (x 2),

and into the M6 Cage Nuts (x 8). Tighten the Screws (x 8) using a Phillips Head

Screwdriver.

8. Pull the Sliding Shelf out, ensuring that it Stops and the Locking Mechanisms

engage.

9. To put the Sliding Shelf back into position, engage both Release Levers

(See Figure 2) at the same time and gently Push the Sliding Shelf back into the

Rack.

Note: The Release Levers operate in opposite directions. One moves Down and the

other Up.

Figure 2

10. (Optional) To remove the Sliding Shelf, Fully Extend the Sliding Shelf, and

locate the Release Levers (See Figure 2) on the sides of the Sliding Shelf. Engage

both Release Levers at the same time and Pull the Sliding Shelf out of the Rail

Assemblies. Repeat Step 6 to install the Sliding Shelf.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	UNISLDSHF19
Type:	Justerbar hylde
Bredde:	452 mm
Dybde:	610 mm
Højde:	45 mm
Vægt:	6400 g
Produktfarve:	Sort
Pakkevægt:	8400 g
Pakkedybde:	680 mm
Pakkebredde:	527 mm
Pakkehøjde:	138 mm
Husmateriale:	Stål
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	CE, RoHS
Hovedkassen højde (udvendigt):	138 mm
Hovedkassens længde (udvendigt):	680 mm
Hovedkassens bredde (udvendigt):	527 mm
Produkter pr. hovedkasse (udvendigt):	1 stk
Maksimal vægtkapacitet:	22.7 kg
Overholdelse af branchestandarder:	EIA RS310-C
Skruer inkluderet:	Ja
Rackkapacitet:	2U
Montering - dybde (maks):	744 mm
Antal skruer:	8
Montering - dybde (min):	510 mm
Skruetype:	M6
Burmøtrikker inkluderet:	Ja
Antal burmøtrikker:	8
