Side 1/4

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 16, 2024

For additional self-service support options and community forums, please visit: www.StarTech.com/support

Product ID

UNISLDSHF192 - Revision 02 or Above

UNISLDSHF19M - Revision 02 or Above

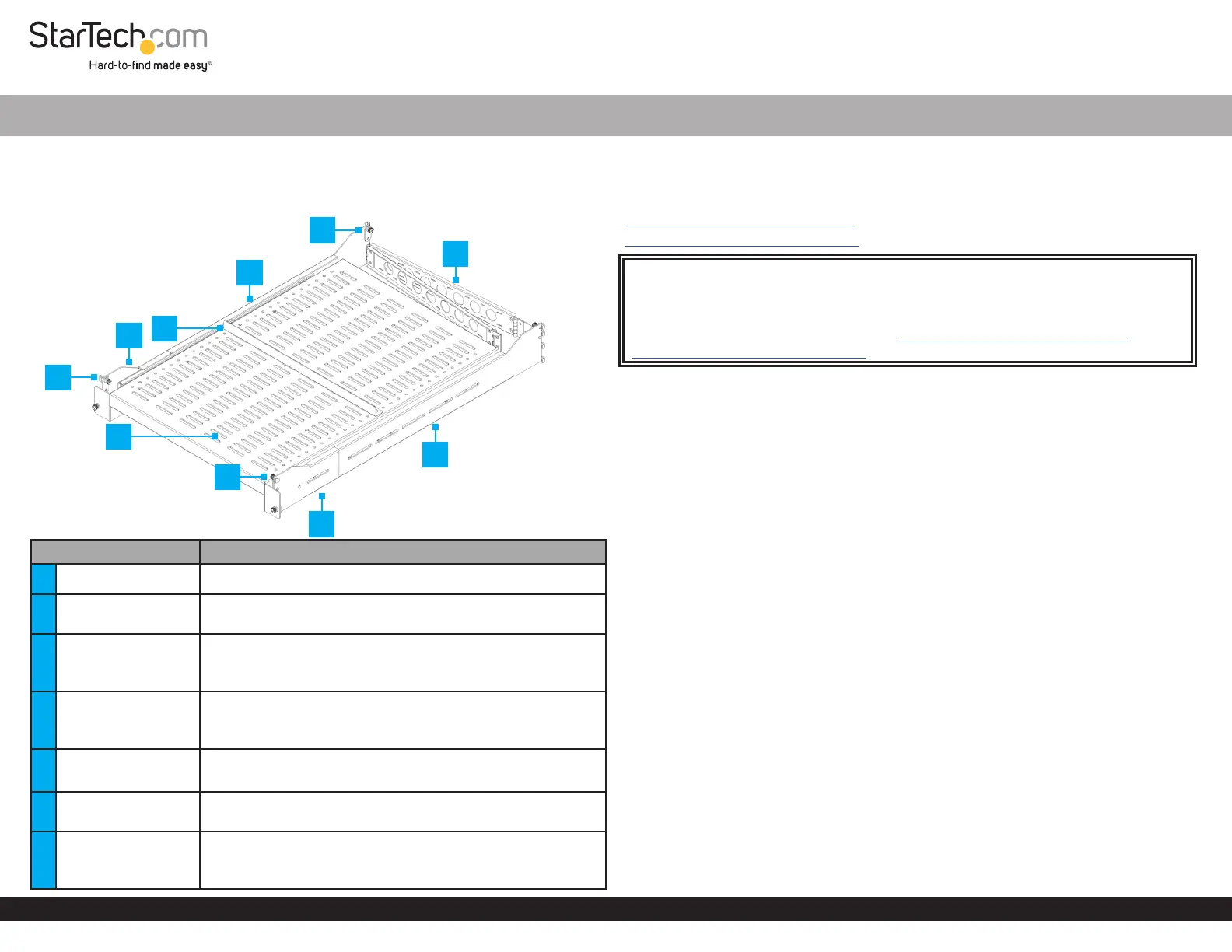

Component Function

1 Shelf Surface • Place Rack Equipment

2 Rear Stop

• Prevents Equipment installed on the Shelf Surface from

moving backward

Sliding Rail

Assembly Front

Bracket(x 2)

• Used to attach the Sliding Shelf onto the Front

Mounting Posts of a Rack

Sliding Rail

Assembly Rear

Bracket (x 2)

• Used to attach the Sliding Shelf onto the Rear Mounting

Posts of a Rack

Cable Management

Arm

• Prevents Cables from being tangled or damaged when

sliding the Shelf in or out

Locking Bracket

(x 3)

• Secures the Sliding Rail Assembly to the Rack

Release Levers x 2

(Not Shown)

• Allows the release of the locking mechanism to retract or

remove the Sliding Shelf from the Rails

• See Figure 3 in the Installation section

2U Vented Sliding Rack Shelf

Product Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit:

www.StarTech.com/UNISLDSHF192

www.StarTech.com/UNISLDSHF19M

How to Identify the LOT Code Revision Number

The Revision Number (Rev #) appears as the fth and sixth digits of the LOT code,

located on the sticker axed to the product and its packaging. If the LOT code sticker

is missing, the product is Rev 01. Refer to www.StarTech.com/UNISLDSHF192 or

www.StarTech.com/UNISLDSHF19M to download the manual for Revision 01.

Requirements

• Phillips Head Screwdriver

• (Optional) Cage Nut Tool

Package Contents

• Shelf Assembly x 1

• Sliding Rail Assembly x 2

• Locking Bracket x 3

• Rear Stop x 1

• Cable Management Assembly x 1

• Cable Management Locking Bracket x 1

• M5 x 8mm Screws x 2

• M5 Nuts x 2

• M4 x 8mm Screws x 2

• Quick-Start Guide x1

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and using this product.

Before adding equipment to this product, ensure this product has been properly

mounted.

Never operate this product if parts are missing or damaged.

Ensure the weight of the equipment does not exceed the weight capacity of the

product. If the weight capacity is exceeded, personal injury or damage to the

equipment is possible. These products can support the following weights:

UNISLDSHF192 up to 50lbs (22.7kg)

UNISLDSHF19M up to 110lbs (50kg)

All four mounting points must be properly secured to each of the posts on a four-post

rack.

Never exceed the maximum mounting depth specication for this shelf: 31.89in

(810mm).

*Product may vary from image

6. Insert the Sliding Shelf into the Sliding Rail Assemblies.

7. Pull the Sliding Shelf out carefully, ensuring that it Stops and the Locking

Mechanisms engage.

8. To put the Sliding Shelf back into position, engage both Release Levers

(See Figure 3) at the same time and gently Push the Sliding Shelf back into the

Rack.

Note: The Release Levers operate in opposite directions. One moves Down and the

other Up.

Figure 3

Install the Cable Management Assembly

Note: The Cable Management Assembly is reversible and can be installed in either

orientation.

1. (Optional) To reverse the orientation of the Cable Management Assembly,

detach the Locking Bracket (Figure 4 B) from the Sliding Rail Assembly Rear

Bracket and remove the Screws that secure the Brackets to the Assembly.

Flip over the Mounting Bracket (See Figure 4 A), and reinstall the Screws.

Replace the Locking Bracket (See Figure 4 B) with the Locking Bracket

provided.

Figure 4

Installation

Install the Sliding Shelf into the Rack

1. Determine a suitable location on the Rack to mount the Sliding Shelf. The Sliding

Shelf requires 2U of Mounting Space.

2. Loosen the Screws along each Sliding Rail Assembly to be able to adjust the Front

and/or Rear Brackets to the Mounting Depth of the Rack.

Note: Depending on Mounting Depth and/or setup requirements, it may be necessary

to completely remove the Screws to reposition the Front and/or Rear Brackets.

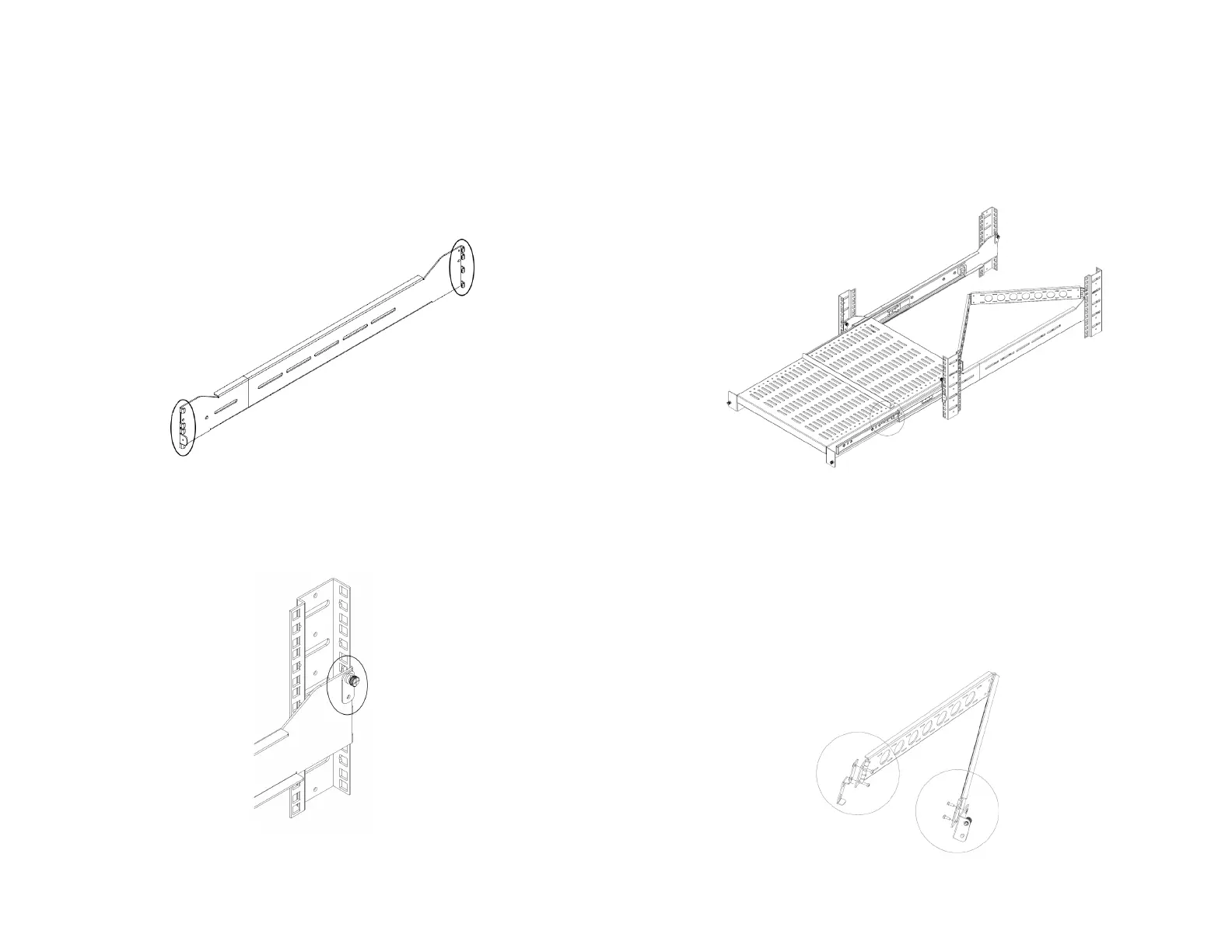

3. Align the Mounting Hooks (See Figure 1) with the desired Mounting Location and

install the Sliding Rail Assemblies into the Rack.

Figure 1

4. Tighten the Screws that were loosened in the Step 2.

5. Install the Locking Brackets (See Figure 2) on both front sides, and one on the rear,

opposite to the installation of the Cable Management Assembly Arm. To do this,

insert the pin of the Locking Bracket into the corresponding holes and tighten via

the Thumbscrews.

Figure 2 (Rear Locking Bracket Shown)

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	UNISLDSHF19M
Type:	Justerbar hylde
Bredde:	483 mm
Dybde:	610 mm
Højde:	89 mm
Vægt:	8200 g
Produktfarve:	Sort, sølv
Pakkevægt:	10100 g
Pakkedybde:	740 mm
Pakkebredde:	551 mm
Pakkehøjde:	113 mm
Husmateriale:	Stål
Hurtig installationsvejledning:	Ja
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	113 mm
Hovedkassens længde (udvendigt):	740 mm
Hovedkassens bredde (udvendigt):	551 mm
Produkter pr. hovedkasse (udvendigt):	1 stk
Monteringssæt:	Ja
Maksimal vægtkapacitet:	56.7 kg
Overholdelse af branchestandarder:	EIA RS310-D
Rackkapacitet:	2U
Montering - dybde (maks):	802 mm
Montering - dybde (min):	702 mm
