Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 27, 2020 1:52 PM

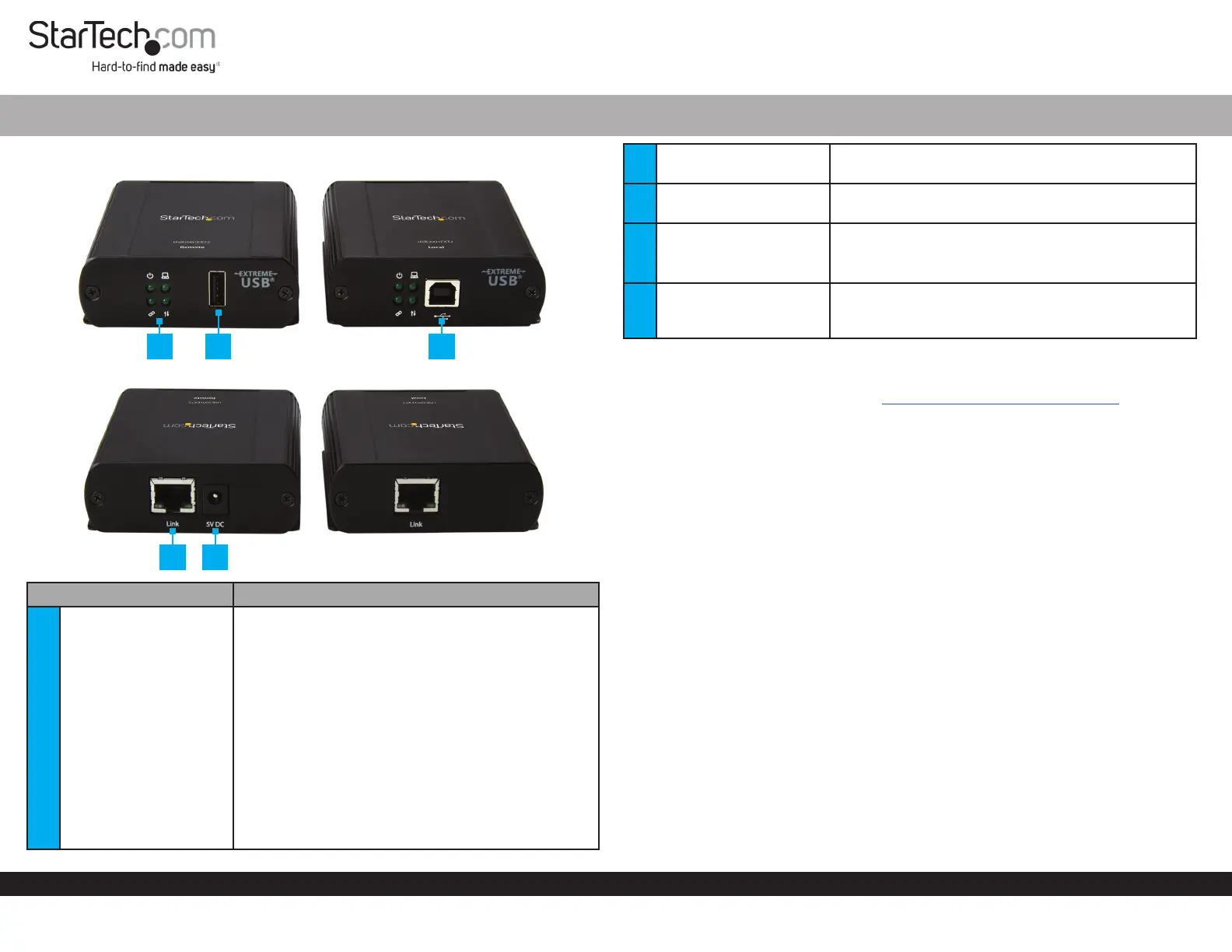

Product Diagram (USB2001EXT2NA)

Front

Rear

Component Function

1 LEDs (Local/Remote)

Power:

• Solid Blue: The Extenders are receiving power.

Link:

• Solid Green: The Extenders are linked.

• O: The Extenders are not linked.

Host:

• Solid: Extender is linked to the Host Computer.

• Flashing: Extenders are in suspend mode.

Activity:

• Flashing: Data is transmitted between Extenders.

• O: Extenders are in a suspended mode.

1 Port USB 2.0 Extender over Cat5e, Cat6, or Cat7 | Up to 330 ft. (100 m) | North America

2 USB-A Port

• Used to connect a USB Device (mouse, keyboard,

etc.) to the Remote Extender.

3 USB-B Host Port

• Used to connect the Local Extender to the Host

Computer, using the USB Cable (included).

RJ45 Port - Link(Local/

Remote)

• Used to connect the Local Extender to the Remote

Extender.

• Max. data transfer rate = 480Mbps

5 Power Port (5V DC)

• Used to connect the Remote Extender to AC

Electrical Outlet, using the Power Adapter

(included).

Requirements

For the latest requirements, please visit www.startech.com/USB2001EXT2NA

• USB Enabled Host Computer

• Solid Core Cat5e unshielded twisted pair (UTP) or greater

Installation

1. Position the Local Extender near the Host Computer.

2. Position the Remote Extender near an AC Electrical Outlet.

3. Connect a Cat5e Cable (or better) to the RJ45 Port on the Local Extender and the

other end to the RJ45 Port on the Remote Extender.

Note: The Cat5e Cabling cannot go through any networking equipment (router,

switch, etc.).

4. Connect the USB Cable (included) to the USB-B Host Port on the Local Extender

and the other end to a USB port on the Host Computer.

5. Connect the Power Adapter (included) to the Power Port on the Remote Extender

and the other end to an AC Electrical Outlet.

6. Connect a USB Device to the USB-A Port on the Remote Extender.

1 2 3

4 5
