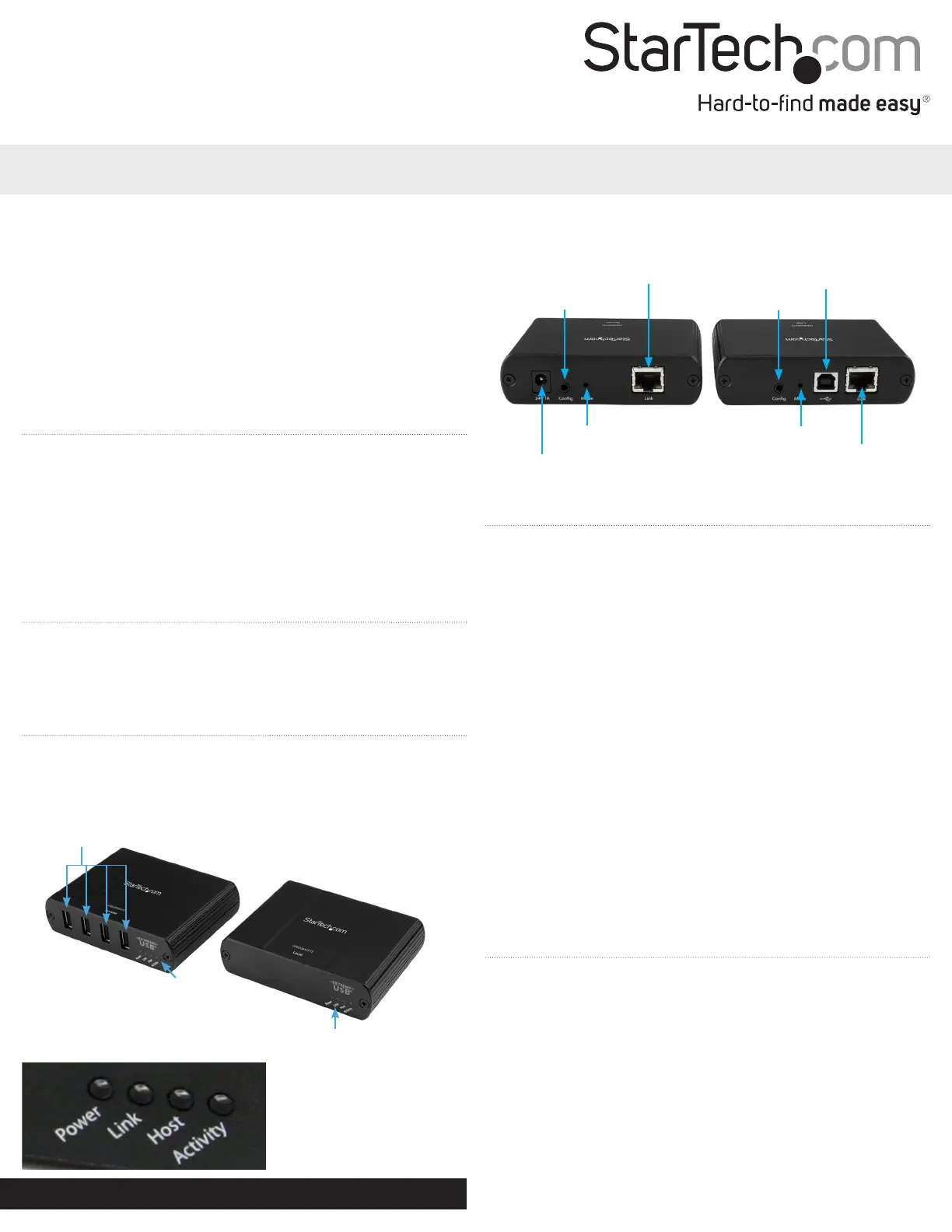

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 12/02/2016

For the most up-to-date information, please visit: www.startech.com

USB2004EXT2

4 Port USB 2.0 Extender over Cat5 or Cat6 - Up to 330 ft (100m)

Packaging Contents

• 1 x USB 2.0 extender local unit

• 1 x USB 2.0 extender remote unit

• 1 x USB 2.0 cable

• 1 x mounting kit

• 1 x universal power adapter

• 5 x power cords (NA, JP, EU, UK, ANZ)

• 1 x quick-start guide

System Requirements

• USB enabled computer system with available USB port

• Available AC power outlet

• Solid core Category 5e unshielded twisted pair (UTP) or greater cabling.

Product diagram

Installation

1. Place the Local and Remote units at the desired locations and

connect together using RJ45 terminated Cat5 or Cat6 cabling.

2. Do one of the following:

• If you are using surface cabling, make sure that you have enough

Cat5e cabling to connect the Local Unit to the Remote Unit’s

location, and that each end is terminated with a RJ45 connector.

The cabling cannot go through any networking equipment (for

example, a router or switch).

• If you are using premise cabling, make sure that the Cat5e

cabling between the Local Unit to the Remote Unit has been

properly terminated in a wall outlet in each location and there

is a patch cable long enough to connect the Remote Unit to

their respective outlets. The cabling cannot go through any

networking equipment (for example, a router or a switch).

3. Connect the power adapter to the Remote unit for the

USB2004EXT2. The Power LED should light up solid.

4. Connect the Local unit to the host computer system with a USB

cable. The computer can be either powered On or O. The operating

system should detect the extender and install it automatically.

5. USB devices can now be connected to the Remote unit.

Front

USB Type A

Connector

Local Unit

LED Status Indicators

Extender Status

LED Indicators

Remote Unit

Extender Status

LED Indicators

Back

Local UnitRemote Unit

Power connector

Cong port

Mode button

RJ45 connector

Cong port

Mode button

USB type B

connector (host)

RJ45 connector

About the Cong port and Mode button

You can use the Cong port to troubleshoot issues and update the

rmware.

You can use the Mode button to enter Boot loader mode to

complete an update to the rmware.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

LED Description

Power

Solid: Power is being supplied

Link

Solid: Link established between Local and Remote units

Host

Solid: Detected and installed by the host computer

Flashing: Local and Remote units are in suspend mode

Activity

Flashing: Data transmission between Local and Remote units

O: Local and Remote units are in suspended mode

Device

Green: Device Enumerated

Orange: Overcurrent

O: No Device, or Not Enumerated

About LEDs
