Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 07/06/2023

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x USB 2.0 Local Extender

• 1x USB 2.0 Remote Extender

• 1x Mini-USB to USB 2.0 A Cable – For Local Extender Unit

• 1x RJ45 Ethernet Cable

• 8x Rubber Feet

• 1x Universal Power Adapter (NA+JP/UK/EU/AUS) – For Remote

Extender Unit

• 1x Instruction Manual

System Requirements

• Available AC electrical outlet

• USB-enabled host computer with an available USB port

• RJ45 terminated Cat5 or higher Ethernet cabling

• Up to 4 USB peripheral devices

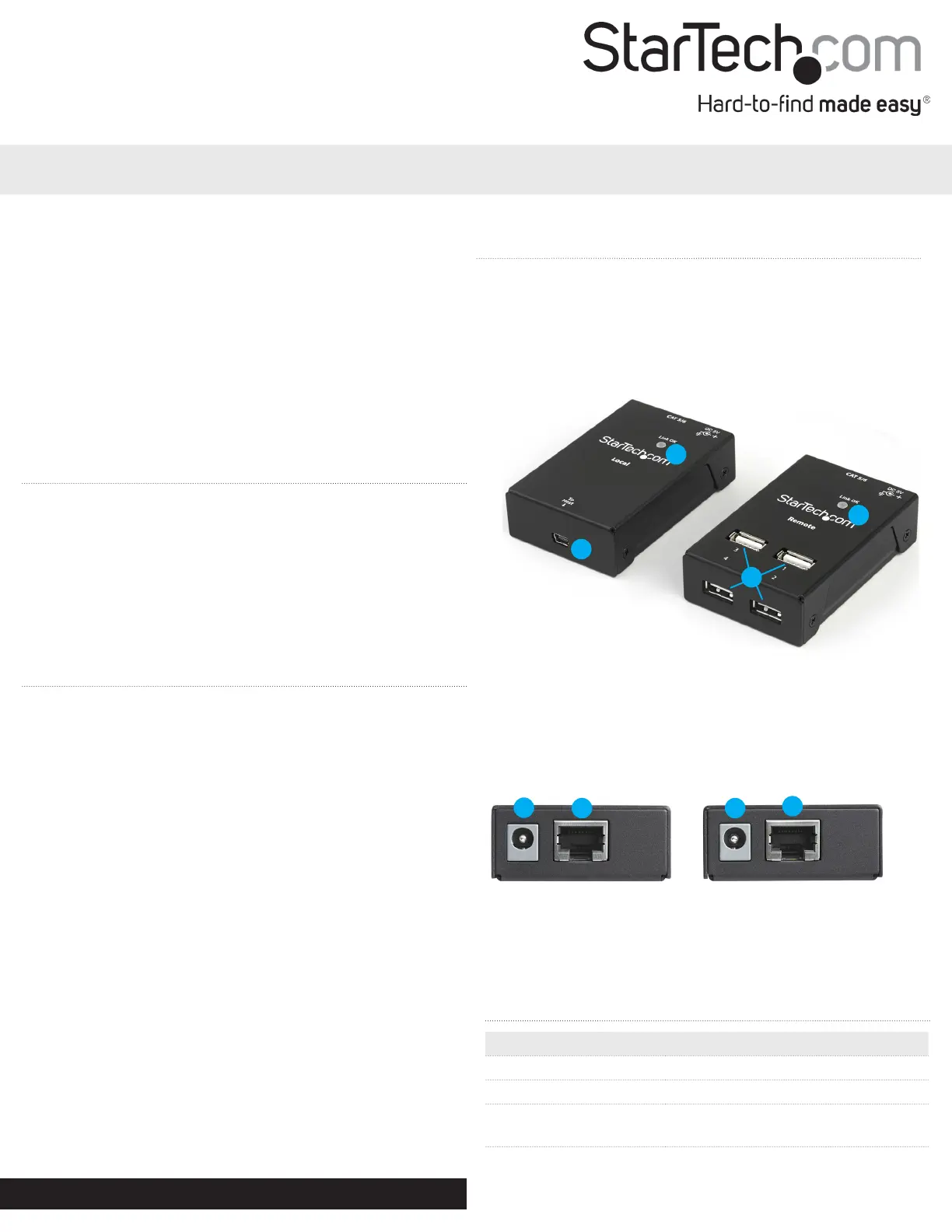

Product Overview

Front View

The Local Extender connects to your computer using the provided

Mini-USB to USB 2.0 A Cable and power is provided by your host

computer.

The Remote Extender provides four USB “A” ports for USB peripherals.

The Remote Extender is powered using the provided Universal

Power Adapter.

1. Local Extender Mini-USB 2.0 Host Port

2. Local Extender LED

3. Remote Extender USB “A” Peripheral Device Ports

4. Remote Extender LED

Rear View

USB2004EXTV

4 Port USB 2.0 Extender over Cat5 or Cat6 (40m)

*actual product may vary from photos

1. Local Extender DC Power Input (Optional)

2. Local Extender RJ45 Link Port

3. Remote Extender DC Power Input

4. Remote Extender RJ45 Link Port

LED Indicators

LED Status Indication

O Power O

Green Power On

Blue (Remote Extender

Only)

Link Established

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Installation

Prepare Your Site

1. Place your host computer where desired and set it up.

2. Ensure that the Remote Extender is within 40m (131ft) of the

Local Extender.

3. Ensure there is an Available AC electrical outlet at the Remote

Extender location.

Install RJ45 Terminated Cat5 or Higher Ethernet Cable

1. Connect an RJ45 terminated Cat5 or higher Ethernet cable to the

RJ45 port on the Local Extender.

Notes:

• If using a wall box, ensure that the Ethernet cabling

between the Host Unit and the Remote Unit has been

properly terminated in each location.

• Ensure your Ethernet cabling is long enough to connect the

Local Extender and Remote Extender respectively.

• Do not patch the Ethernet cabling through any networking

equipment (eg. router, switch).

2. Connect the other end of your RJ45 terminated Cat5 or higher

Ethernet cable to the RJ45 port on the Remote Extender.

Install Local Extender

1. Connect an available USB A port on your host computer to the

Mini-USB 2.0 host port on the Local Extender using the provided

Mini-USB to USB 2.0 A Cable.

Note: If the connected host computer enters Sleep, Standby,

Hibernate, or Power Save mode, USB extension functionality may

fail upon “Wake up”. To ensure proper operation, do not allow your

connected host computer to enter these modes. See your computers

documentation to ensure these modes are not enabled on your host

computer and for instructions to disable any enabled modes.

Install Remote Extender

1. Connect your USB peripheral device(s) (eg. printer, keyboard, etc.)

to the Remote Extender USB “A” device ports using the respective

cable for each device (not included).

2. Connect the provided Power Adapter to an available electrical

outlet, and then to the DC power input on the Remote Extender.

3. If required, power on your USB peripheral devices as desired,

followed by your host computer.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	USB2004EXTV
Type:	Konsol sender & modtager
Bredde:	52 mm
Dybde:	80 mm
Højde:	22 mm
Vægt:	319 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	700 g
Pakkedybde:	156 mm
Pakkebredde:	236 mm
Pakkehøjde:	65 mm
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 80 %
Driftstemperatur (T-T):	0 - 50 °C
Husmateriale:	Stål
Kabler inkluderet:	LAN (RJ-45), USB
Strømforbrug (maks.):	10 W
DC-in-stik:	Ja
LED-indikatorer:	Link, Power
Udgangsspænding:	5 V
Udgangsstrøm:	2 A
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	84733020
Bæredygtighedscertifikater:	CE, RoHS
Indgangsspænding:	100 - 240 V
Hovedkassen højde (udvendigt):	258 mm
Hovedkassens længde (udvendigt):	402 mm
Hovedkassens bredde (udvendigt):	324 mm
Indgangsstrøm:	0.4 A
Maksimal overførselsafstand:	50 m
Produkter pr. hovedkasse (udvendigt):	12 stk
Overholdelse af bæredygtighed:	Ja
Strømstiktype:	Type N
Antal RJ-45-porte:	2
Dataoverførselshastighed:	480 Mbit/s
Mini-USB 2.0 porte, antal:	1
Understøttede kabeltyper:	Cat5, Cat5e, Cat6, Cat6a, Cat6e, Cat7
Gummifødder:	Ja
Antal USB 2.0 type-A-porte:	4
