Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: March 20, 2020 11:29 AM

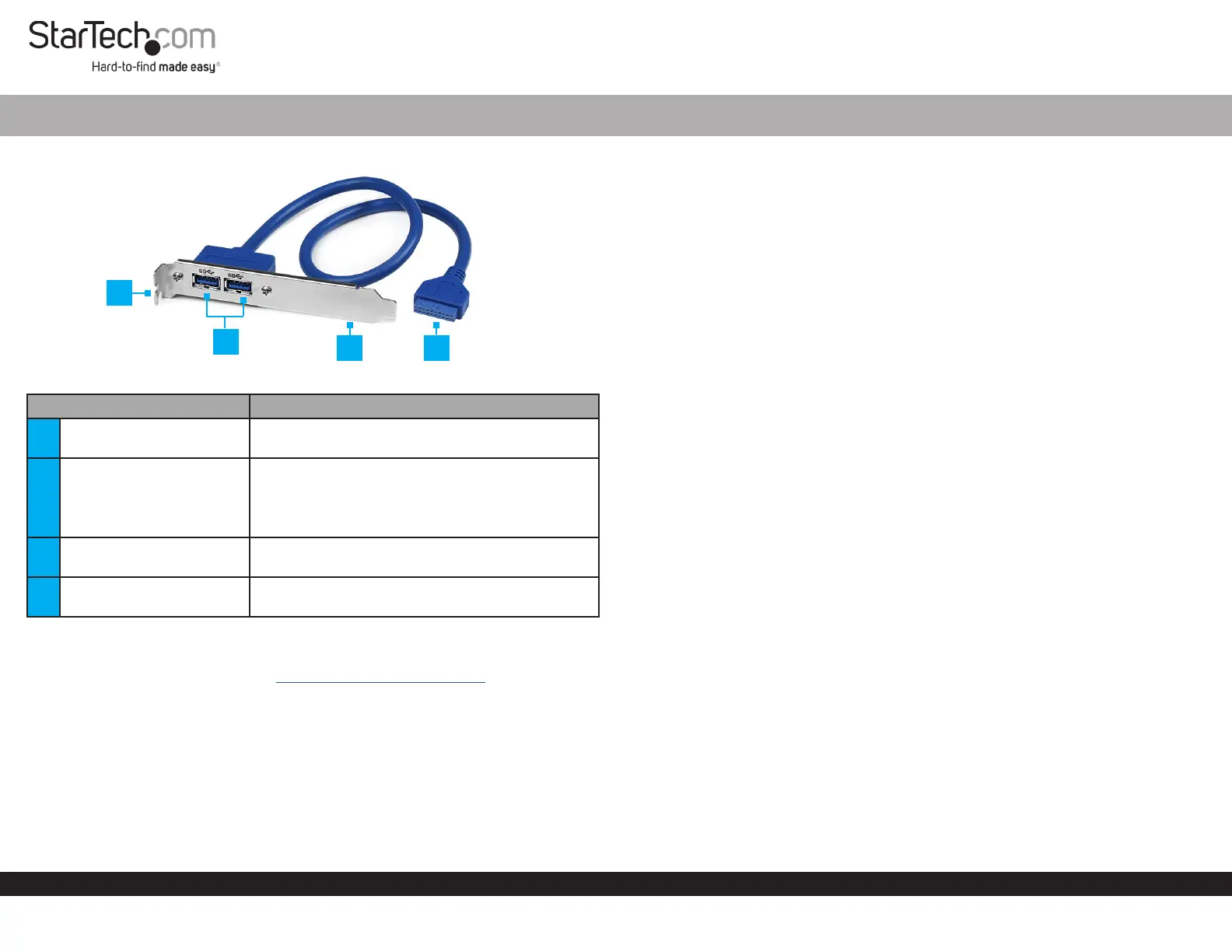

Product Diagram (USB3SPLATE)

Component Function

1 Bracket Screw Slots

• Used to secure the Slot Plate Adapter to the

Host Computer’s Rear Panel.

2 USB-A Ports

• Used to connect USB Devices to the Slot Plate

Adapter.

• USB 3.0

• Transfer rates of up to 5Gbps.

3 Bracket

• Mounts the Slot Plate Adapter to the Host

Computer’s Rear Panel.

Slot Plate Adapter

Connector

• Connects the Slot Plate Adapter to a Host

Computer’s Motherboard.

Requirements

For the latest requirements, please visit www.startech.com/USB3SPLATE

• Screw x 1

• Screwdriver x 1

2 Port USB 3.0 A Female Slot Plate Adapter

Installing the Slot Plate Adapter

Warning: Internal computer parts can be damaged by static electricity. Make sure

that you are properly grounded before you open your computer case. You should wear

an anti-static strap when you install any computer component. If an anti-static strap

is not available, discharge any built-up static electricity by touching a large grounded

metal surface for several seconds.

1. Turn o the Computer and disconnect any Peripheral Devices that are connected

(e.g. printers, external hard drives, etc.).

2. Unplug the Power Cable from the back of the Computer.

3. Remove the Cover from the Computer Case.

Note: Consult the documentation that came with the Computer for details about

how to do this safely.

4. Locate a USB 3.0 Slot on the Motherboard.

5. Gently insert the Slot Plate Adapter Connector on the Slot Plate Adapter into a

USB 3.0 Slot.

6. Align the Bracket on the Slot Plate Adapter with a Slot on the Rear Panel on the

Host Computer.

7. Insert a Screw (sold separately) through the Bracket Screw Slot and into a screw

hole on the Rear Panel.

8. Using a Screwdriver (sold separately), fasten the Bracket to the Rear Panel.

9. Place the Cover back onto the Computer Case.

10. Reconnect the Power Cable to the back of the Computer.

11. Reconnect all of the Peripheral Devices that were disconnected in step 1.

12. Connect USB Peripheral Devices to the USB-A Ports on the Slot Plate Adapter.
