ZIF2IDE35

3.5 inch IDE to 1.8 inch ZIF HDD adapter

Features

Supports Hitachi or Toshiba 1.8” ZIF hard drives•

Occupies a single 3.5” drive slot•

Installation

WARNING! Computer equipment can be severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your hard drive. StarTech.com recommends that

you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,

discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Be sure to handle your hard drive carefully and consult your hard drive

and laptop manufacturer for details on how to remove the drive.

Single Drive Installation

Locate the black stripe on the Flat Flex (ZIF) Cable.1.

Gently lift the ZIF Connector lever on the hard drive you wish to use, and insert the black striped end of 2.

the Flat Flex Cable. Once the cable is seated properly, gently press down on the lever until the cable is

locked in place.

NOTE: The included ZIF cable is specially designed to ﬁt into either a Toshiba or Hitachi ZIF connector. If

another cable is substituted, it must be a properly matched Toshiba or Hitachi cable.

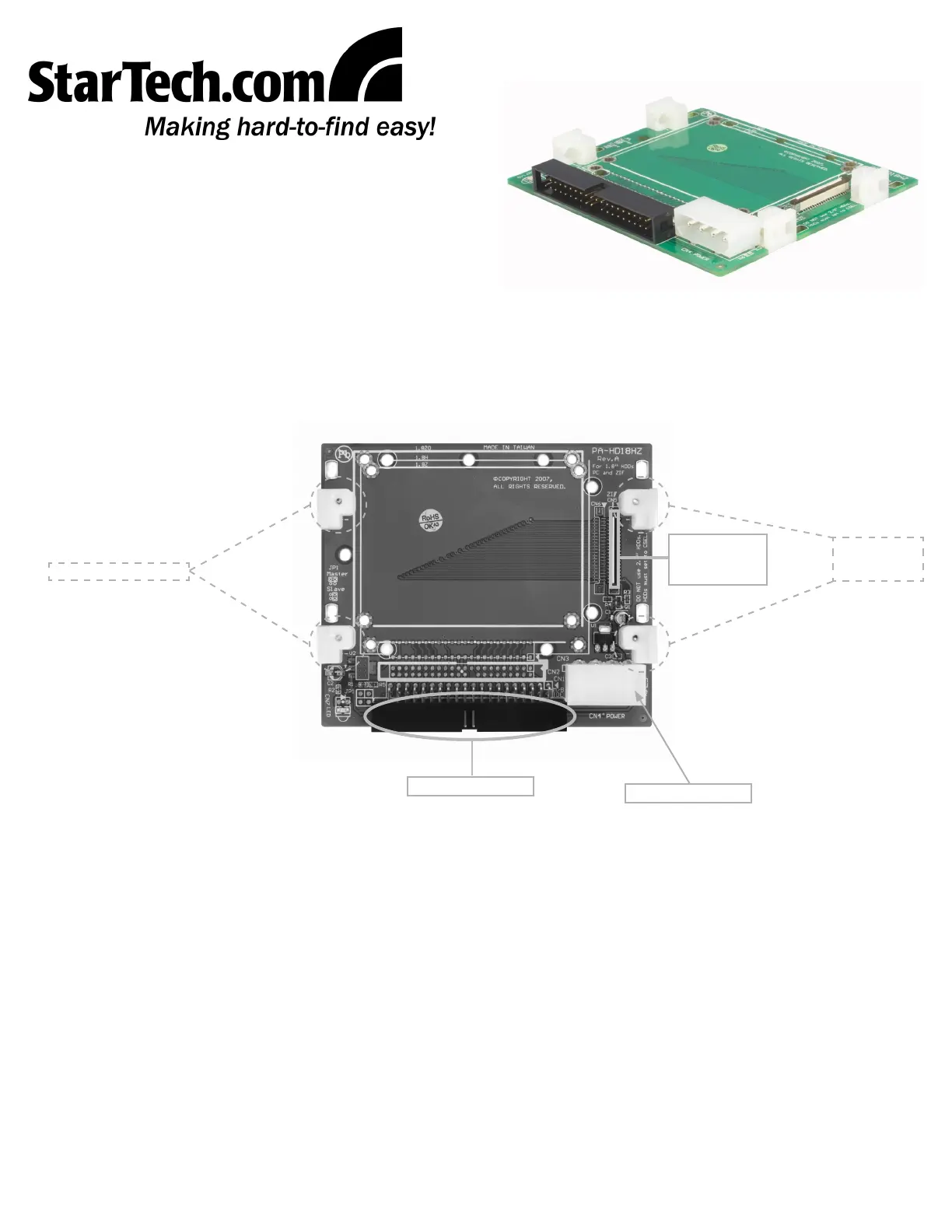

ZIF

Connector

IDE Connector

Mounting Tabs

Mounting

Tabs

LP4 Power

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever

need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documenta-

tion, and downloads.

Warranty Information

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its products against defects in materials and

workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for re-

pair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ofﬁcers, directors, employees or agents) for

any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of proﬁts, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.

Insert the remaining end of the ZIF (ﬂat ﬂex) cable into the connector provided by the ZIF2IDE35 3.

Adapter,

and secure the cable in place using the provided lever.

With the cable now connecting the drive and the ZIF2IDE35 main board, place the drive on the surface of 4.

the board.

Optional:5. you may wish to secure the drive to the board. Based on the dimensions of the hard drive that

will be used, place the retaining tabs in the holes provided (as necessary).

Attach ZIF2IDE35 (with drive installed) to a 3.5” drive slot in the computer, as you would a standard 6.

3.5”drive, by threading the drive screws into the holes on the mounting tabs (as opposed to those found

on the side of a standard 3.5” drive). Once mounted, connect the 40-pin (male) IDE connector provided

by ZIF2IDE35 to a motherboard IDE connector; similarly, connect an LP4 connection provided by the

computer power supply to the LP4 power port on ZIF2IDE35.

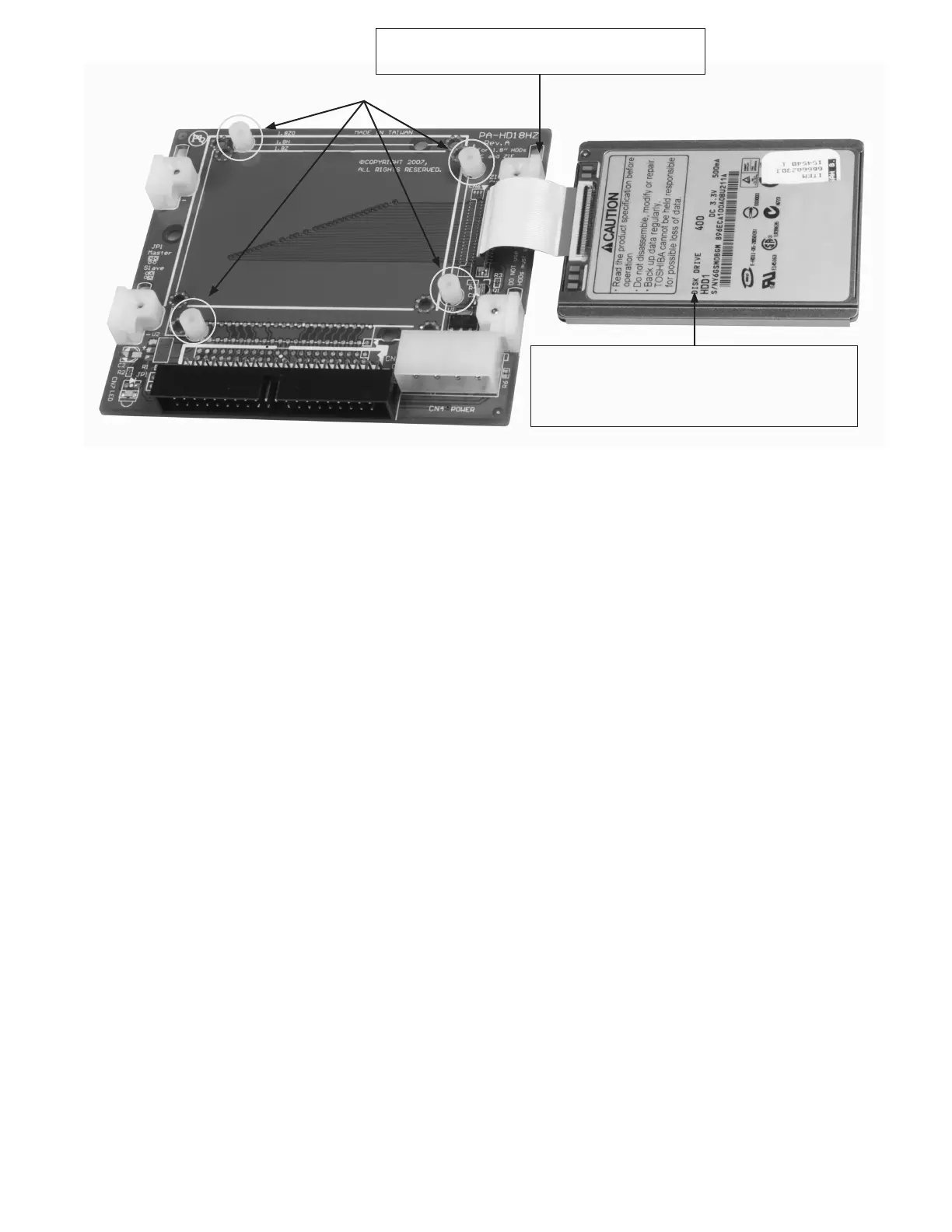

Please note the orientation of the ZIF

cable in relation to the hard drive

Once the drive is seated on the

board, the ZIF connector should be

facing downward (toward the board)

Retaining tabs

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	ZIF2IDE35
Bredde:	102 mm
Dybde:	88 mm
Højde:	12 mm
Vægt:	46 g
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Driftstemperatur (T-T):	0 - 60 °C
Værtsgrænseflade:	Seriel
Stik:	1x 40 pin ZIF, 1x 40 pin IDE, 1x LP4
Antal kasser eller hovedpapkasser:	100 stk
Kassens vægt:	100 g
