Side 1/47

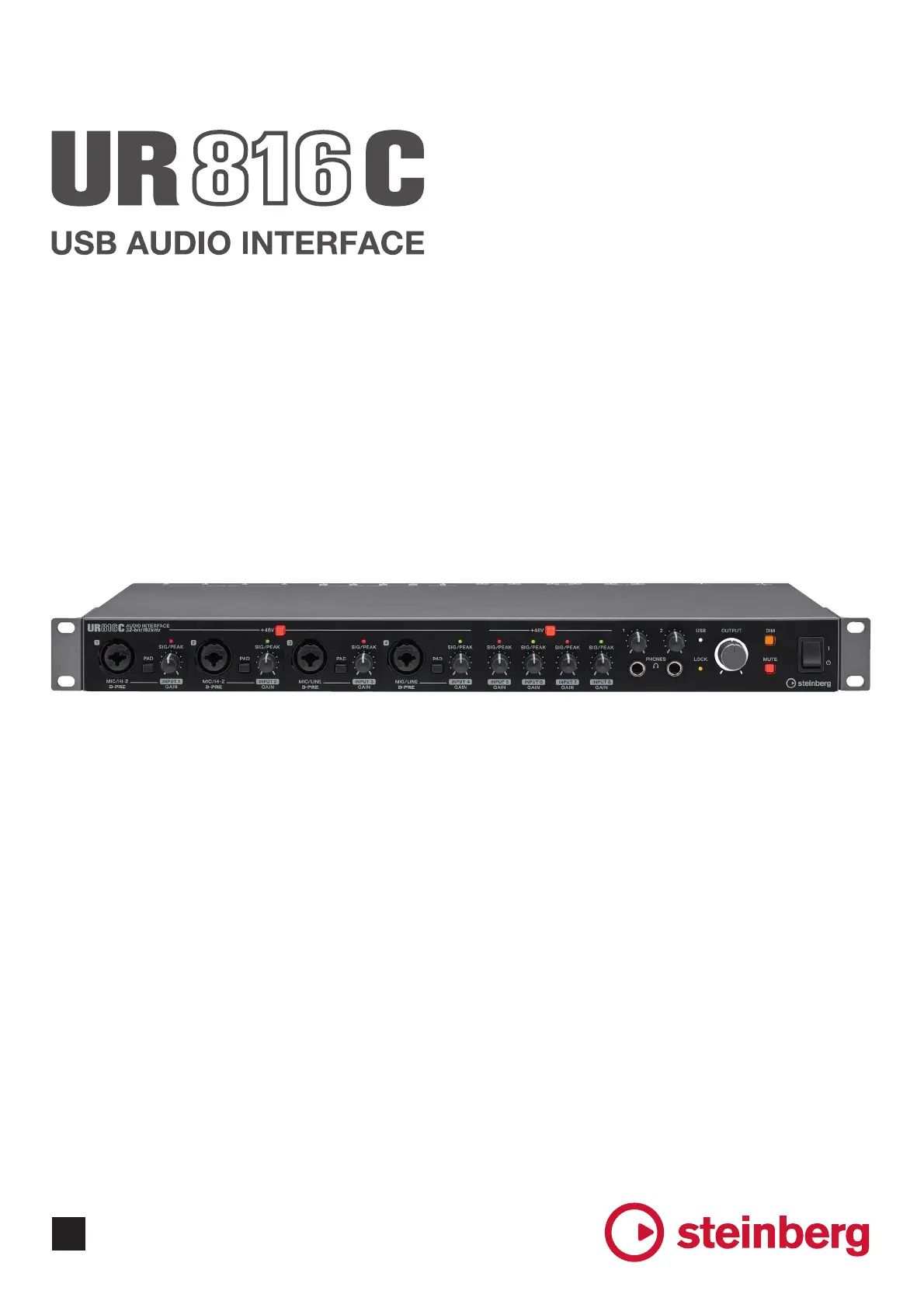

Operation Manual
EN
Main features
UR816C Operation Manual 2
Contents
Main features ............................................2
Panel Controls and Terminals ................3
Front Panel ..........................................................3
Rear Panel ...........................................................5
Software ....................................................6
Yamaha Steinberg USB Driver ............................6
dspMixFx UR-C....................................................8
Dedicated Windows for Cubase Series .............14
Sweet Spot Morphing Channel Strip ..................17
REV-X ................................................................19
Guitar Amp Classics ..........................................21
Using as a Stand-alone Device.............24
Connection Example ..........................................24
Configuring Audio Driver Settings on the DAW
Software.............................................................25
Recording/Playback ...........................................26
Expanding with Other Devices .............28
Connection Example .........................................28
Operation ...........................................................28
Using the Device without Computer ....29
Connection Example .........................................29
Operation ...........................................................29
Using the Device in HA Mode ...............30
Connection Example .........................................30
Operation ...........................................................30
How to Enable/Disable HA Mode.......................30
Yamaha Steinberg USB Driver ..........................30
Using with an iOS Device ......................31
Connection Example ..........................................31
Recording/Playback ...........................................32
Troubleshooting.....................................34
Appendix............. ........36............................
Limitations on the Use of Effects .......................36
Computer Connector Types...............................36
Signal Flows.......................................................37
Block Diagrams ..................................................39
General Specifications .......................................44
Technical Specifications ....................................45
Uninstalling TOOLS for UR-C ............................47
Main features
16 x 16 USB 3.0 Audio Interface with 8 x
D-PRE and 32-bit/192 kHz support
The UR816C is a 16-in and 16-out USB 3.0 audio
interface supporting 192 kHz and 32-bit audio
quality to capture all the subtleties and
expressiveness of any audio source.
The eight world-renowned D-PRE microphone
preamps, the eight balanced line outputs and the
one ADAT optical digital I/O provide all the
professional connectivity required in project studios
as well as in professional recording and production
facilities.
True 32-bit resolution
The UR816C and the Yamaha Steinberg USB Driver
support the 32-bit Integer format which can
represent audio data in higher resolution compared
to the Float format.
Together with a DAW like Cubase being able to fully
utilize the 32-bit Integer data, music production with
unprecedented audio resolution can be realized.
USB 3.0 & USB Type-C
The UR816C is equipped with a USB Type-C port
and features the USB 3.0 (USB 3.1 Gen 1)
SuperSpeed mode. It also provides full compatibility
with the USB 2.0 High-Speed mode and includes a
Type-C to Type-A cable.
dspMixFx
The dspMixFx technology is powered by the latest
SSP3 DSP chip and offers latency-free monitoring
with the highly acclaimed DSP effects, including
REV-X reverb, for users of any DAW software.
SSPLL™ (Super Suppression PLL)
SSPLL is currently the most advanced technology
for removing audio band jitter. It is highly robust and
extremely tolerant of wide variations in clock
frequencies. Using SSPLL makes all of the
connected equipment work reliably and virtually
jitter-free.
