Sungrow SBR224 Manual
Læs gratis den danske manual til Sungrow SBR224 (51 sider) i kategorien Accu. Denne vejledning er vurderet som hjælpsom af 22 personer og har en gennemsnitlig bedømmelse på 5.0 stjerner ud af 11.5 anmeldelser. Har du et spørgsmål om Sungrow SBR224, eller vil du spørge andre brugere om produktet?
Side 1/51
Vtfs!Nbovbm
Ijhi!Wpmubhf!MGQ!Cbuufsz
SBR096 / SBR128 / SBR160
SBR192 / SBR224 / SBR256
TCS1:7.367.VFO.Wfs23.313215XXX/TVOHSPXQPXFS/DPN
I
All Rights Reserved
AAllll RRiigghhttss RReesseerrvveedd
No part of this document can be reproduced in any form or by any means without the
prior written permission of Sungrow Power Supply Co., Ltd (hereinafter "SUNGROW").
TTrraaddeemmaarrkkss
and other Sungrow trademarks used in this manual are owned by
SUNGROW.
All other trademarks or registered trademarks mentioned in this manual are owned by
their respective owners.
SSooffttwwaarree LLiicceennsseess
•It is prohibited to use data contained in firmware or software developed by
SUNGROW, in part or in full, for commercial purposes by any means.
•It is prohibited to perform reverse engineering, cracking, or any other operations that
compromise the original program design of the software developed by SUNGROW.
III
Indicates a hazard with a high level of risk that, if not avoided, will result in death
or serious injury.
Indicates a hazard with a medium level of risk that, if not avoided, could result in
death or serious injury.
Indicates a hazard with a low level of risk that, if not avoided, could result in
minor or moderate injury.
Indicates a situation that, if not avoided, could result in equipment or property
damage.
Indicates additional information, emphasized contents or tips that may be
helpful, e.g. to help you solve problems or save time.
AAbbbbrreevviiaattiioonn
BMS: Battery Management System
BMU: Battery Management Unit
CAN: Controller Area Network
CMU: Battery Cluster Management Unit
LFP: Lithium iron phosphate
PCS: Power Conversion System
SOC: State of Charge
V
CCoonntteennttss
All Rights Reserved .....................................................................................................I
About This Manual ..................................................................................................... II
1 Safety .............................................................................................................. 1
1.1 Notices for Safe Use .................................................................................... 1
1.2 Battery Handling Information ........................................................................ 2
1.3 Emergency Situations .................................................................................. 3
1.3.1 Leaking Batteries ................................................................................ 3
1.3.2 Fire..................................................................................................... 3
1.3.3 Wet Batteries...................................................................................... 4
1.3.4 Damaged Batteries............................................................................. 4
2 Product Description .................................................................................... 6

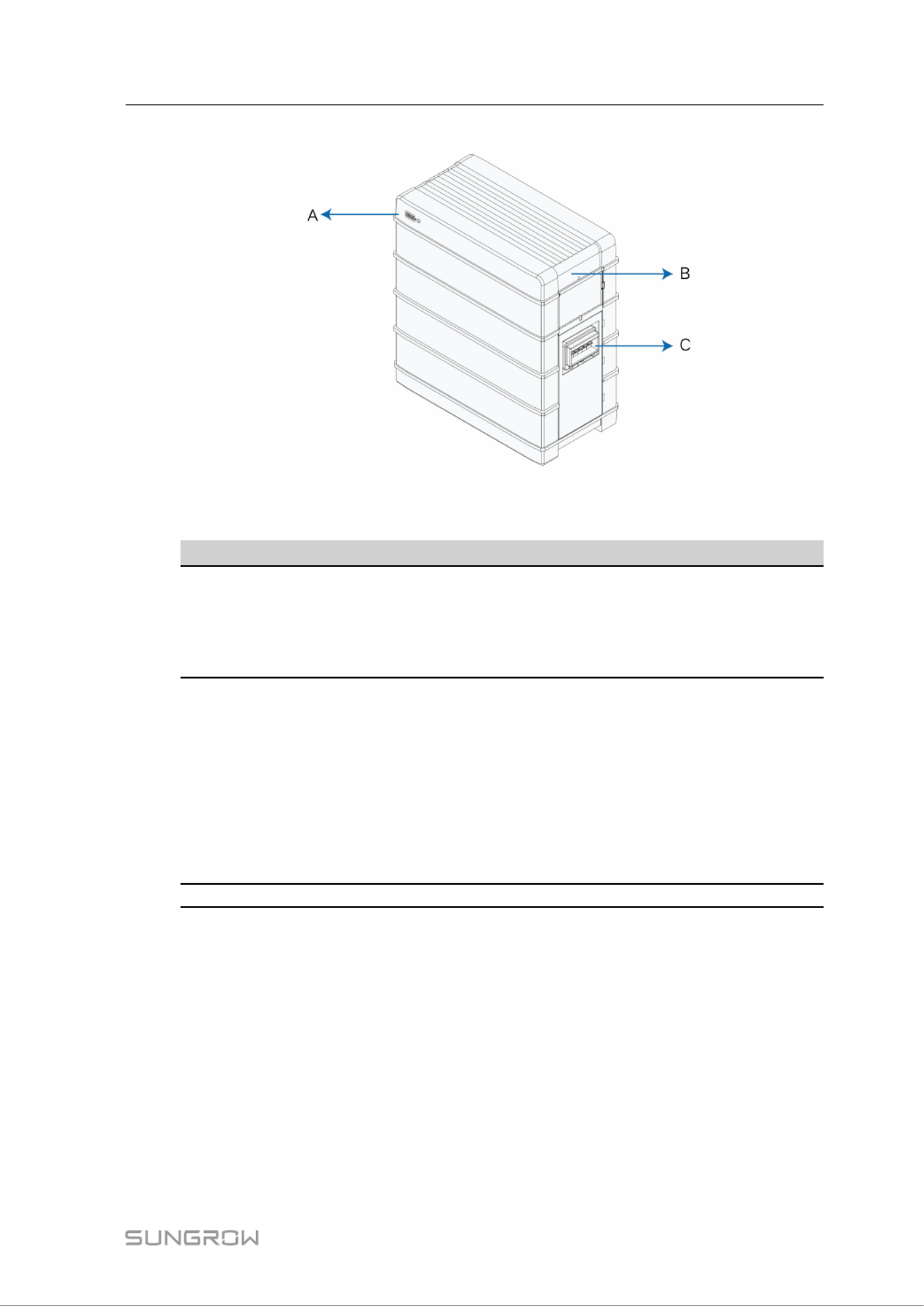

2.1 Product Introduction..................................................................................... 6

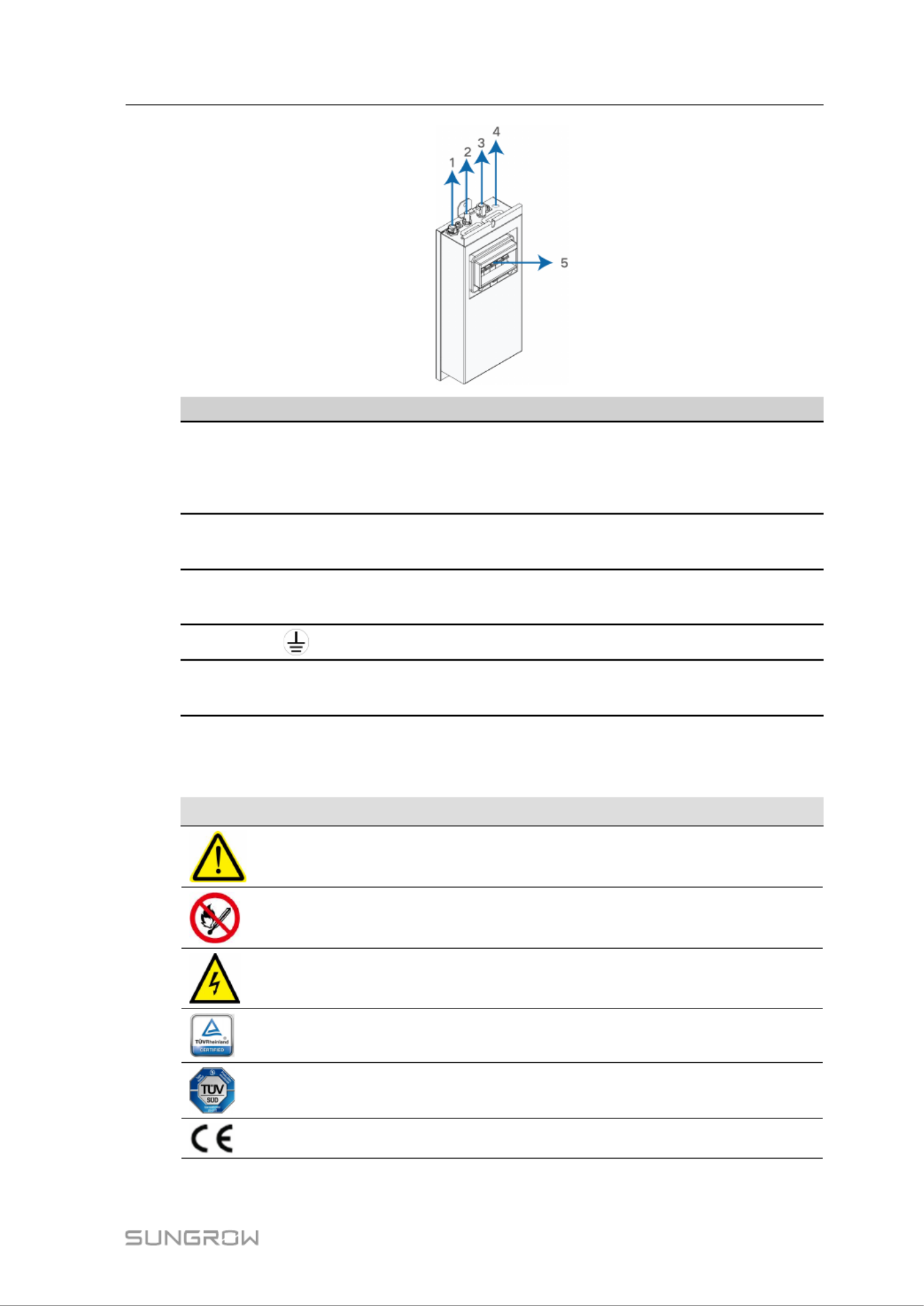

2.2 Terminal Description..................................................................................... 8

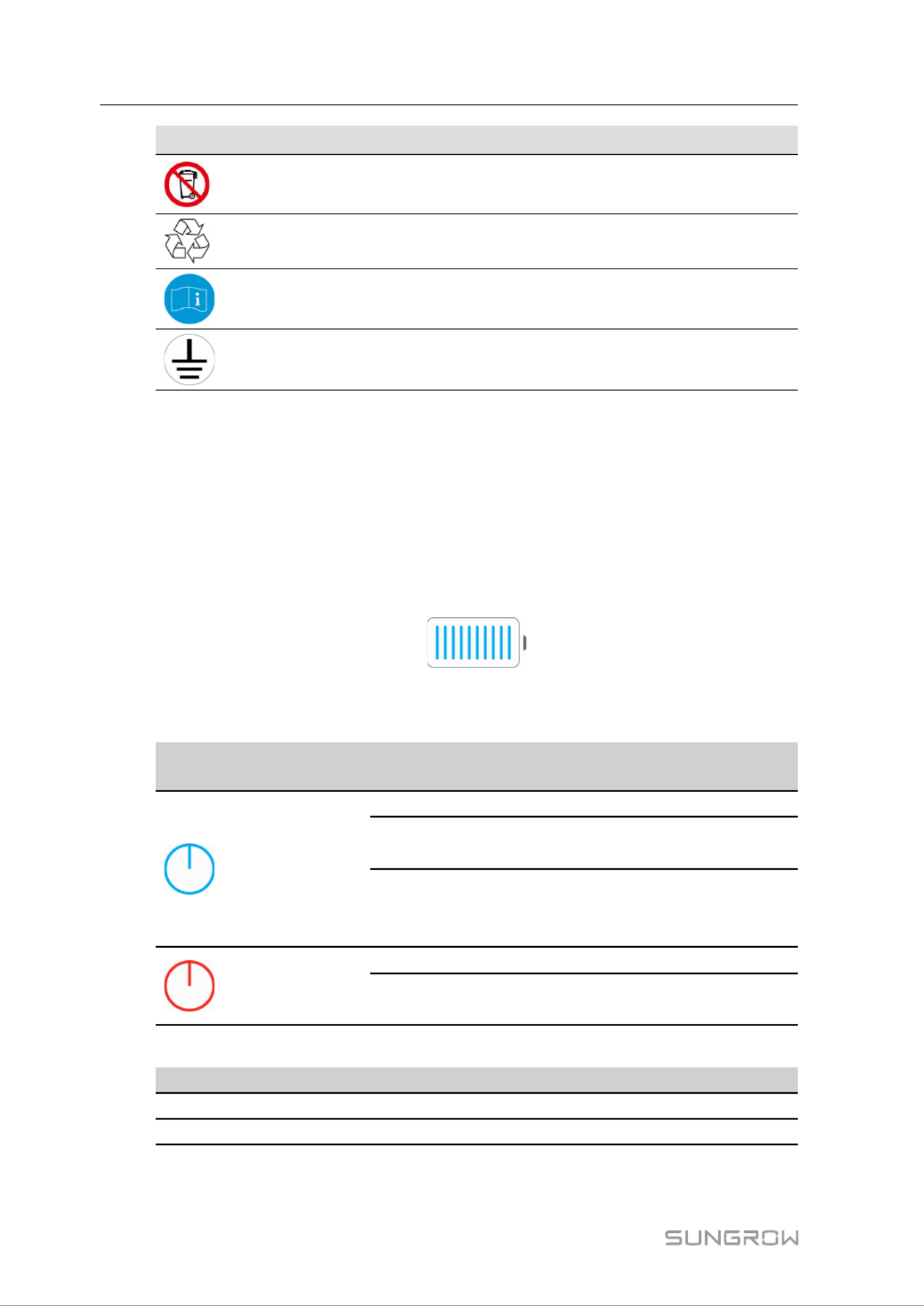

2.3 Symbols on the Product ............................................................................... 9
2.4 LED Indicator ............................................................................................. 10
3 Unpacking and Storage ........................................................................... 11
3.1 Unpacking and Inspection .......................................................................... 11

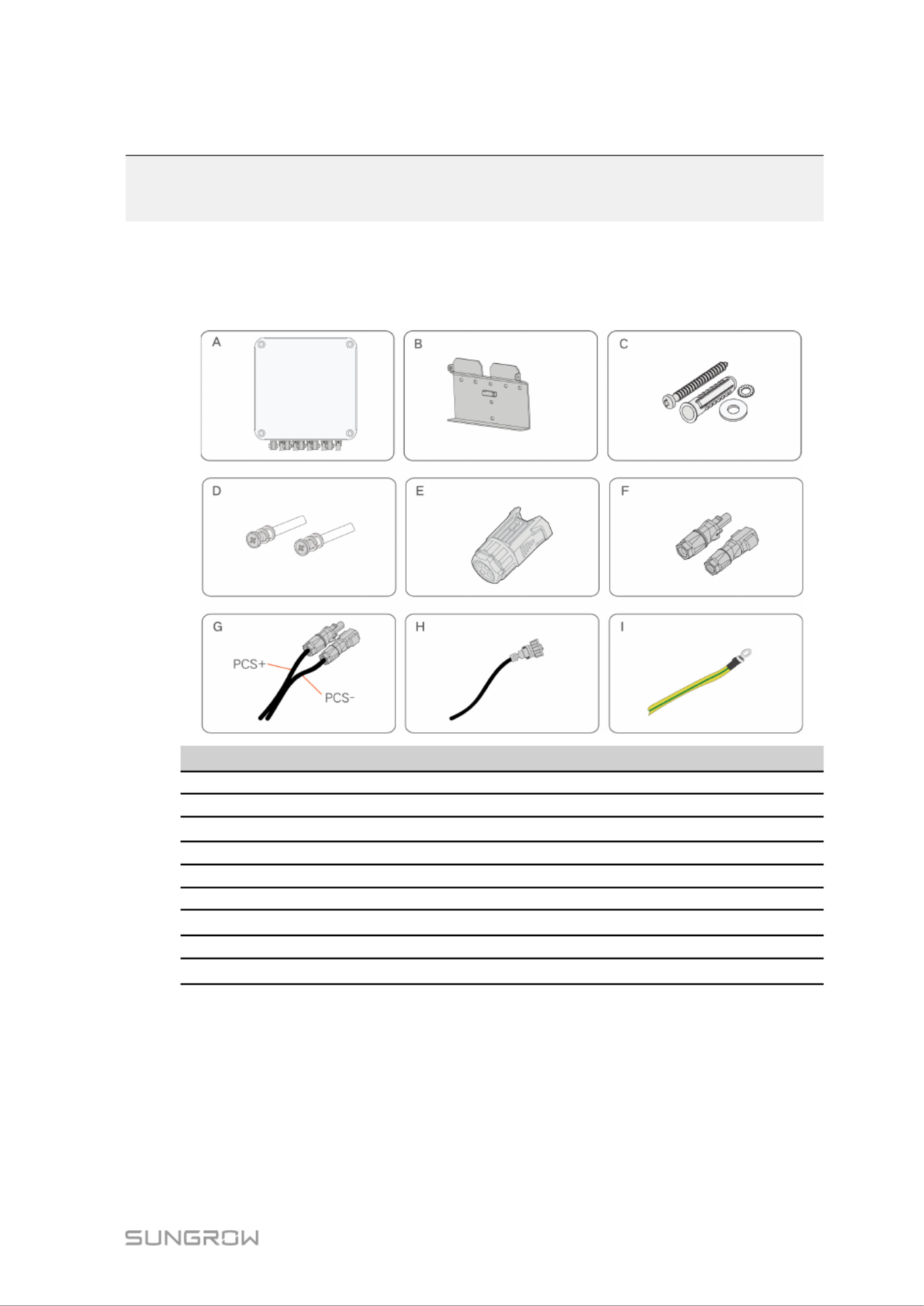

3.2 Scope of Delivery ....................................................................................... 11
3.3 Storage...................................................................................................... 12
4 Mounting ...................................................................................................... 13
4.1 Safety during Mounting .............................................................................. 13
4.2 Location Requirements .............................................................................. 13
4.3 Installation Environment Requirements ....................................................... 13

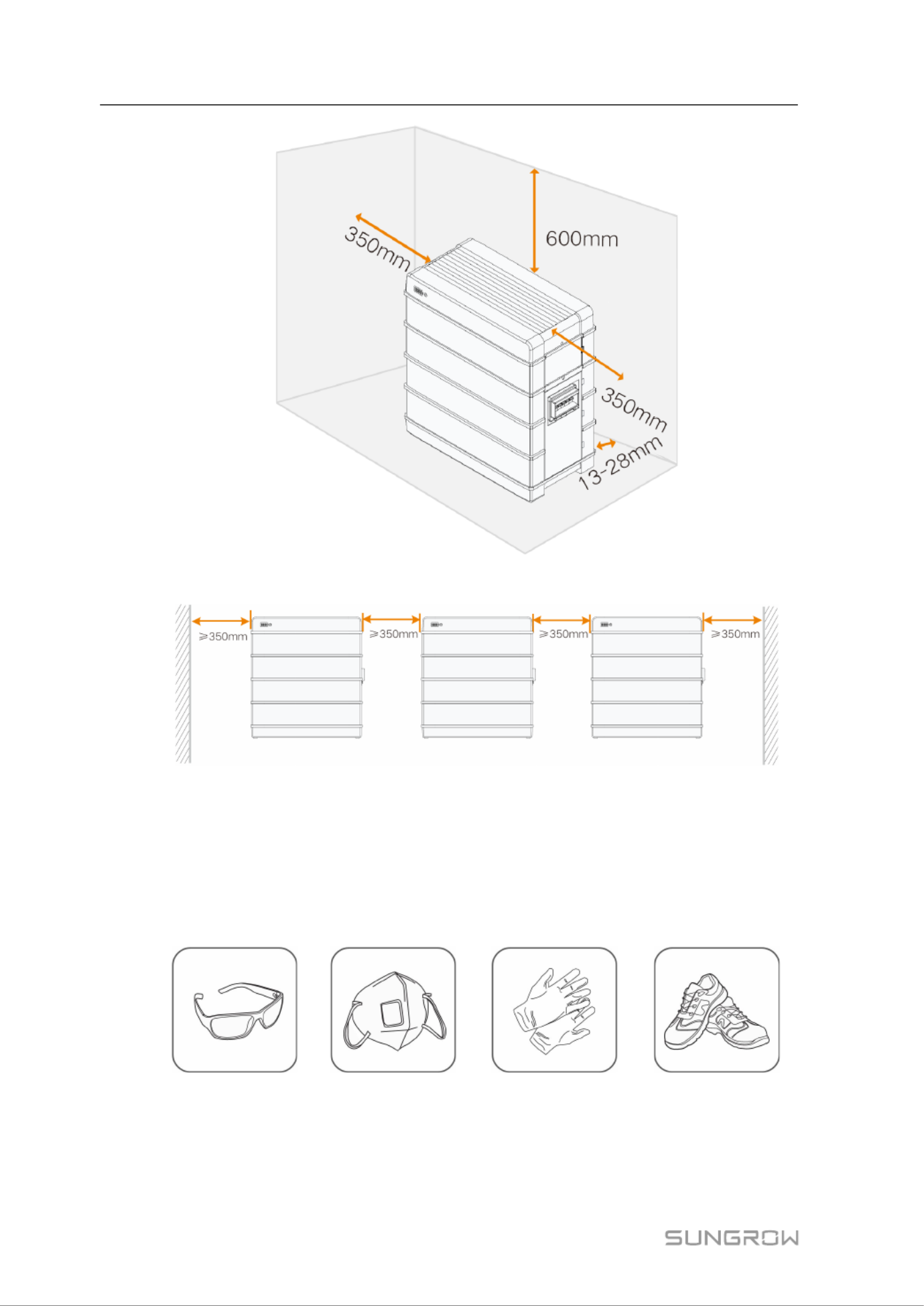

4.4 Installation Clearance Requirements........................................................... 13
4.5 Installation Tools......................................................................................... 14

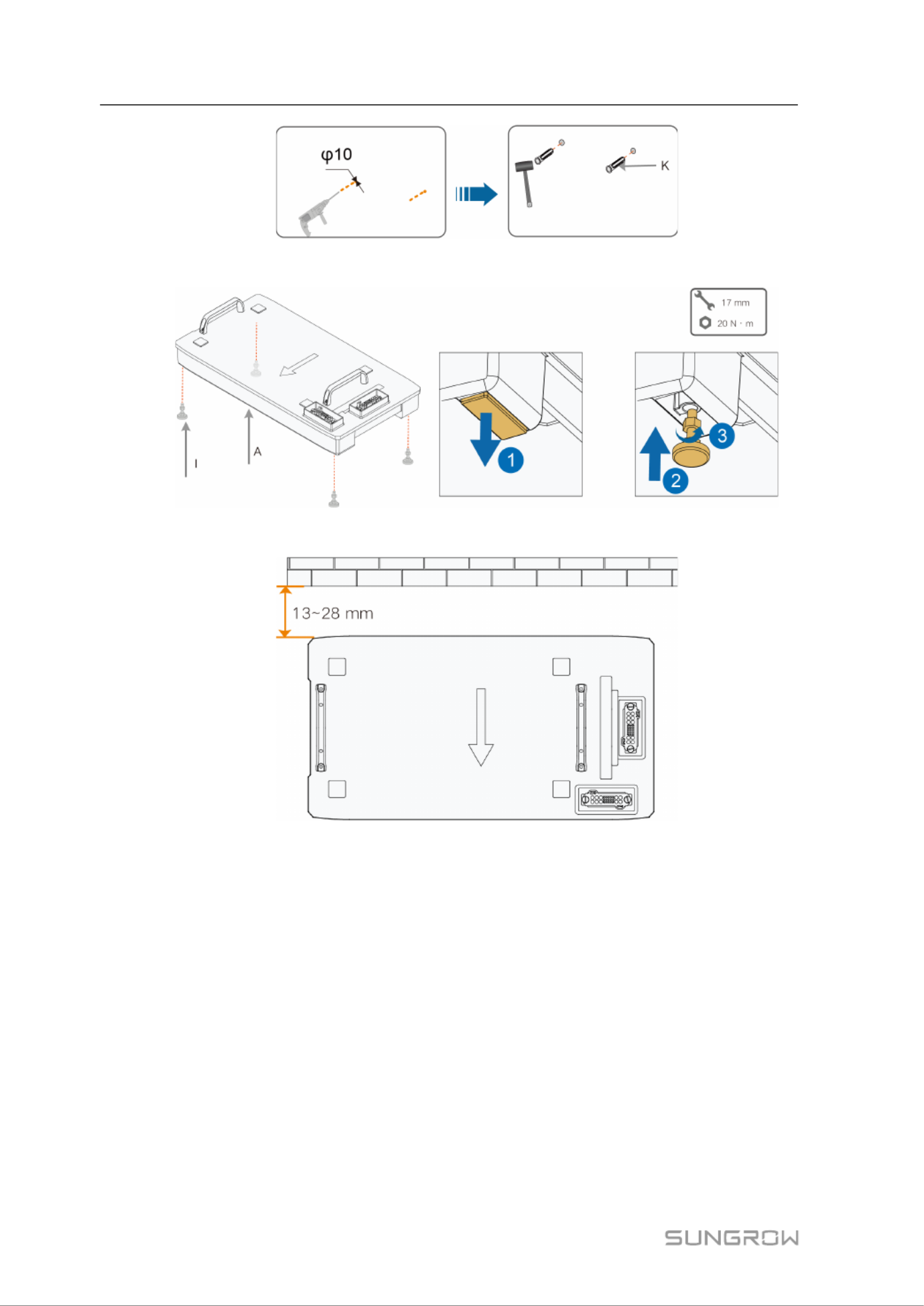

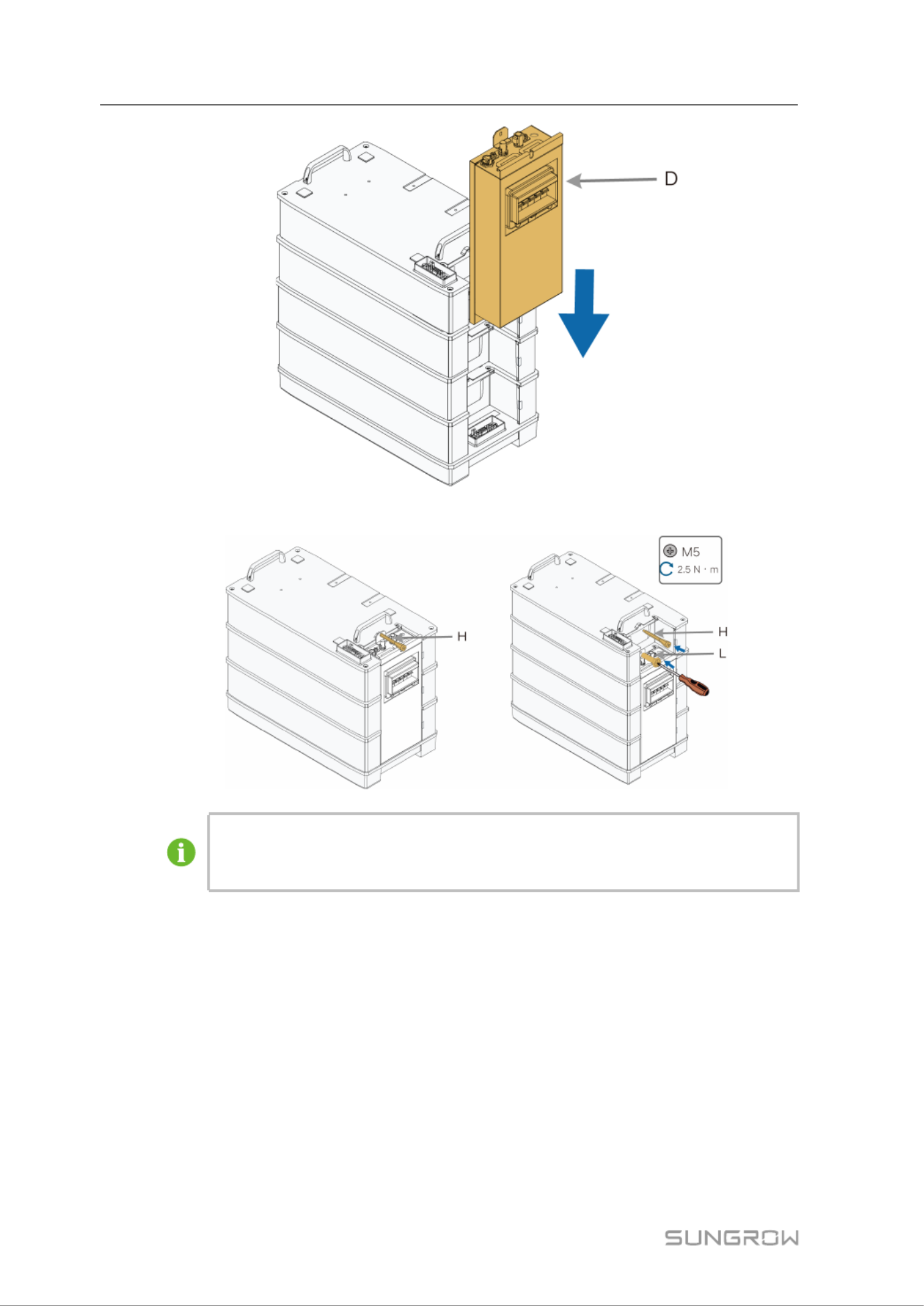

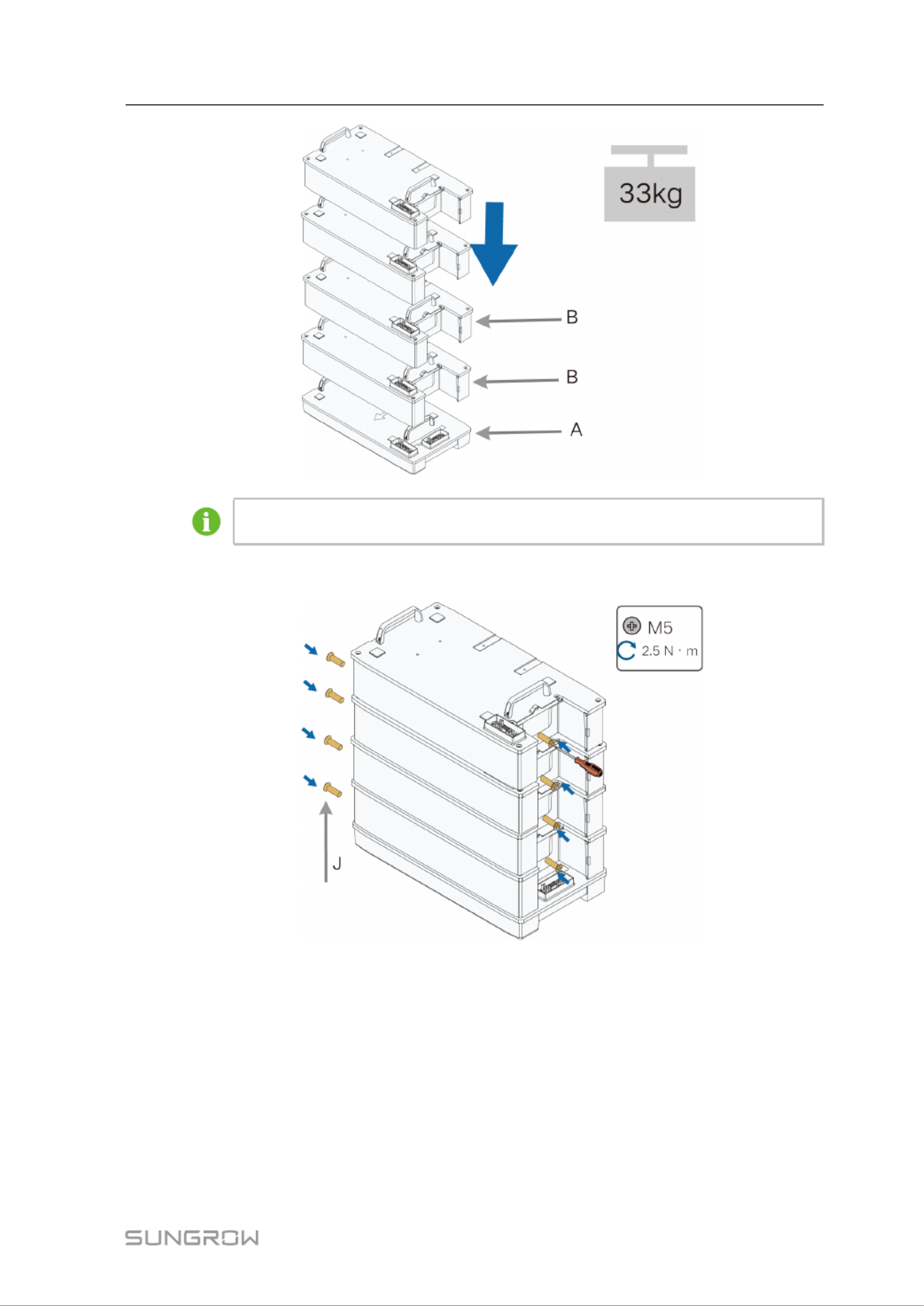

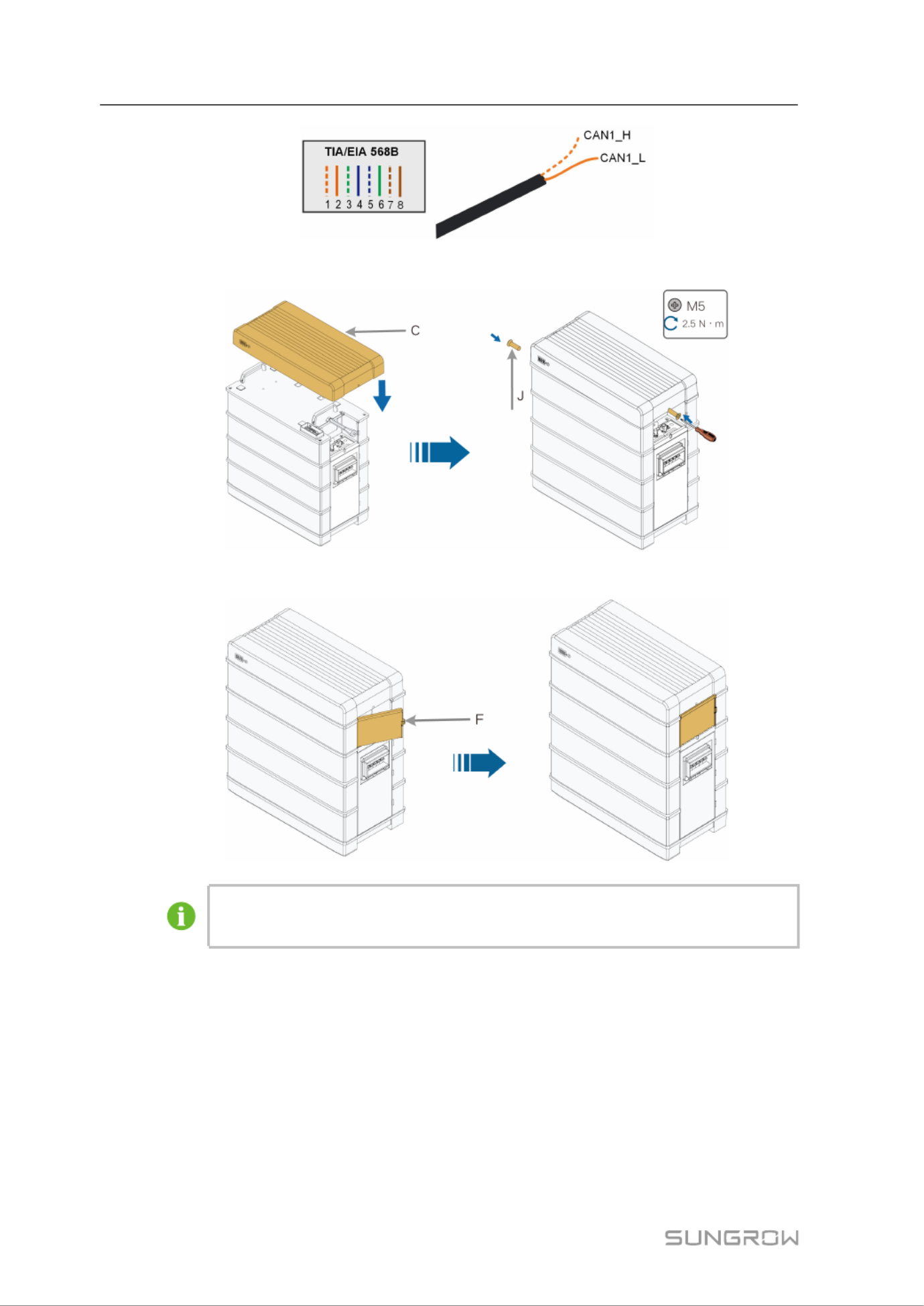

4.6 Installing the Battery ................................................................................... 15
5 Parallel System（Optional） .................................................................. 21
5.1 Scope of Delivery ....................................................................................... 21

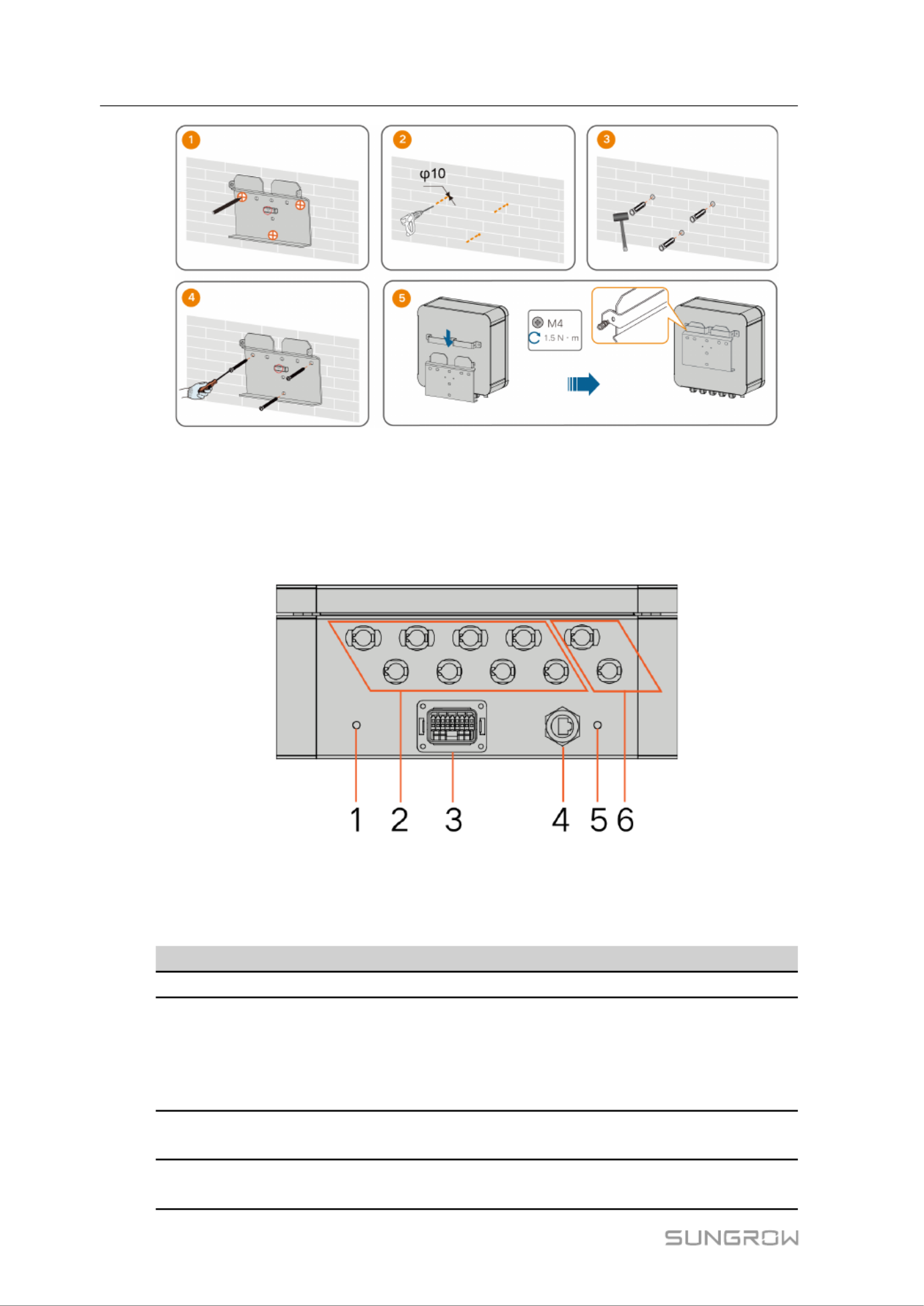

5.2 Mounting the Junction Box ......................................................................... 21
5.3 Terminal Description (Junction Box)............................................................ 22

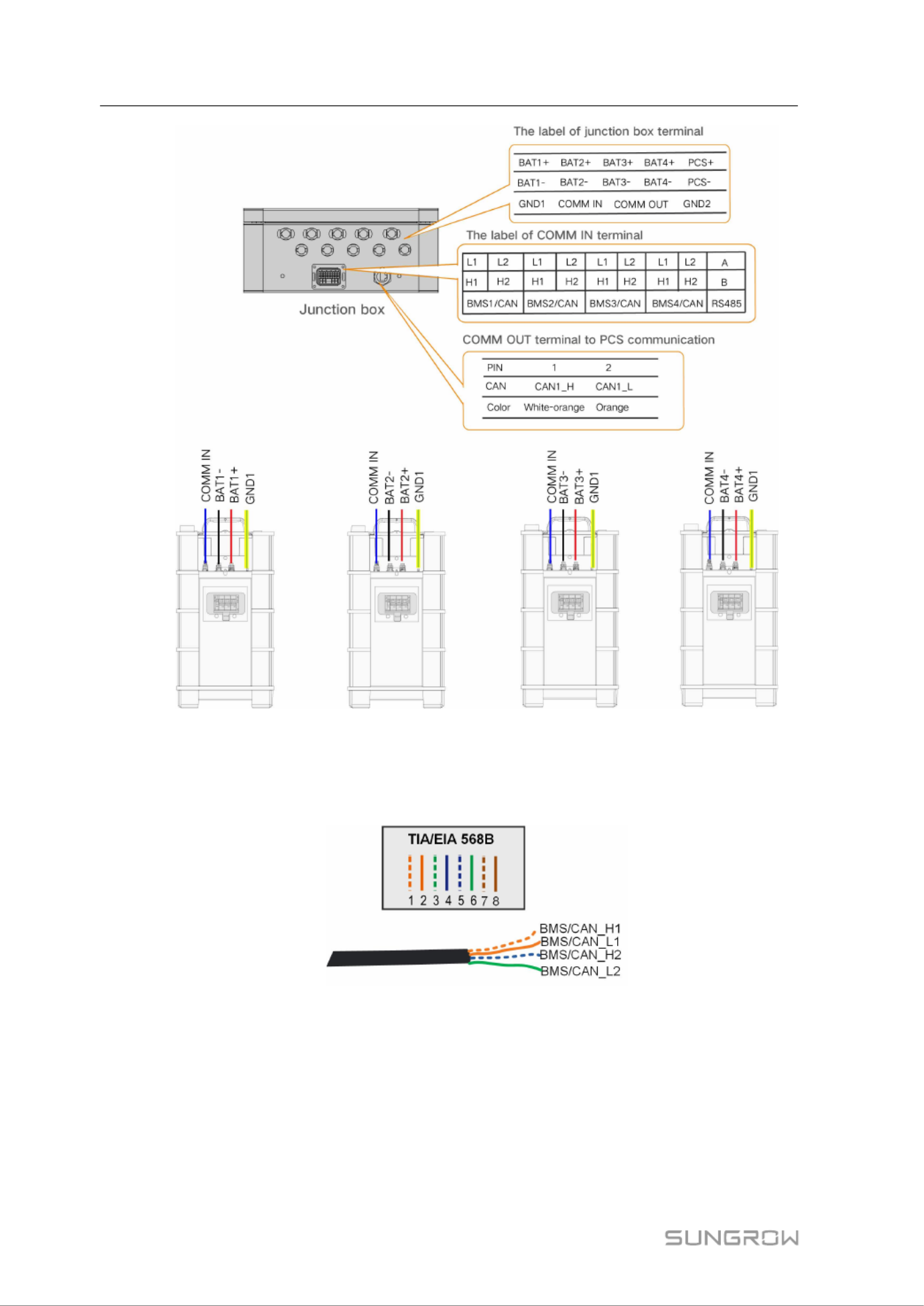

5.4 Connection Diagram in Parallel System ...................................................... 23
VI

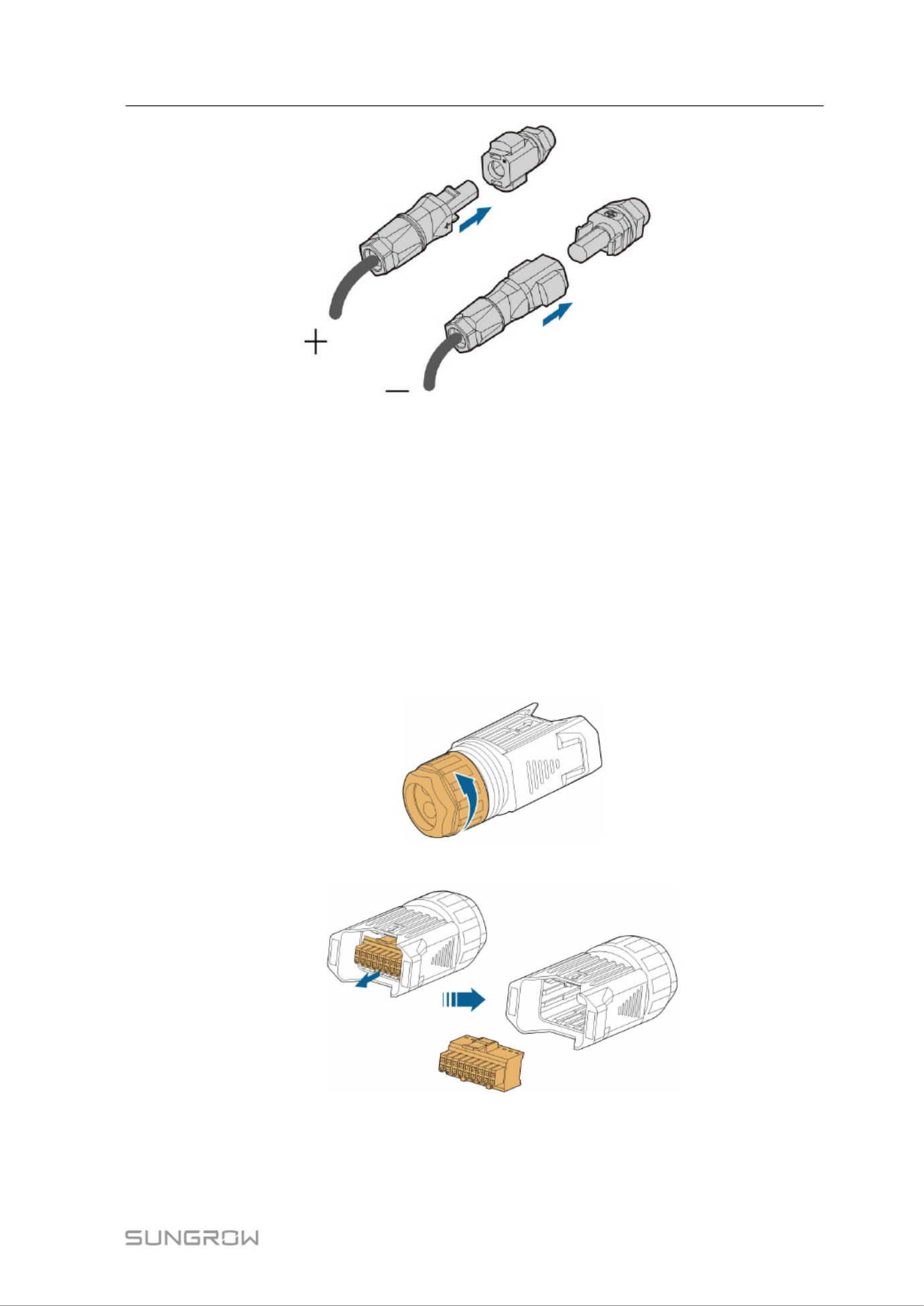

5.5 Installing the SUNCLIX Connector............................................................... 25
5.6 Installing the COMM IN Connector.............................................................. 27
6 Commissioning ........................................................................................... 30
6.1 Inspection before Commissioning............................................................... 30

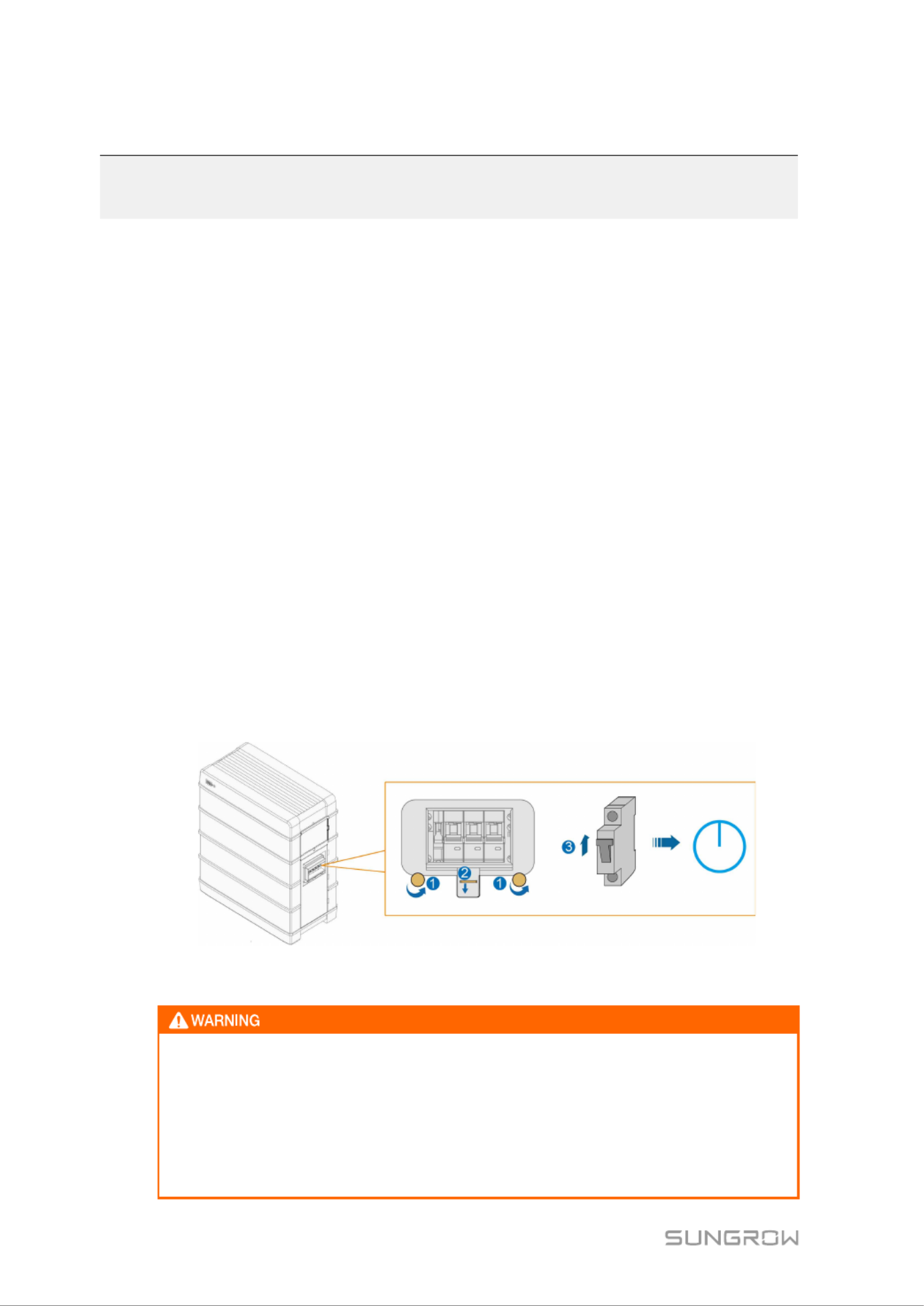

6.2 Commissioning Procedure ......................................................................... 30
7 Decommissioning the Battery ............................................................... 31
8 Troubleshooting and Maintenance ...................................................... 32
8.1 Troubleshooting ......................................................................................... 32
8.2 Maintenance.............................................................................................. 36
9 Appendix ...................................................................................................... 38
9.1 Technical Data ........................................................................................... 38
9.2 Quality Assurance ...................................................................................... 41
9.3 Contact Information ................................................................................... 42
1
1Safety
The device has been designed and tested strictly according to international safety
regulations. Read all safety instructions carefully prior to any work and observe them at
all times when working on or with the device.
Incorrect operation or work may cause:
•Injury or death to the operator or a third party;
•Damage to the device and other properties.
All detailed work-related safety warnings and notes are specified at critical points in this
manual.
The safety instructions in this manual cannot cover all the precautions that
should be followed. Perform operations considering actual onsite conditions.
SUNGROW shall not be held liable for any damage caused by violation of the
safety instructions in this manual.
1.1 Notices for Safe Use
Read all safety instructions carefully prior to any work and observe them at all times
when working on or with the battery. Failure to observe the precautions described in this
section can cause serious injury to persons or damage to property.
Risk of explosion
•Do not subject the battery to any strong force.
•Do not mechanically damage the battery (pierce, deform, strip down, etc.)
•Do not heat the battery or dispose of the battery in a fire.
•Do not install the battery in potentially explosive environments.
2
Risk of fire
•Do not expose the battery to temperatures in excess of 60°C.
•Do not place the battery near a heat source, such as direct sunlight, a
fireplace, a thermally uninsulated wall exposed to sunlight, hot water, or a
heater.
•Keep sources of ignition such as sparks, flames, and smoking materials
away from the battery.
Risk of electric shock
•Do not disassemble the battery.
•Do not handle a wet battery or use wet tools.
•Do not soak the battery in water or expose it to moisture or liquids.
•Keep the battery away from children and animals.
•Wear suitable clothing, guards and gloves to prevent you from direct contact
with the DC voltage.
•Use insulated tools during working with battery.
•Set aside metal jewelry before working on the DC circuit.
1.2 Battery Handling Information
Comply with local standards for use with the battery.
Any man-made damage will void the limited warranty for the battery. Handle the battery
with care to protect it from damage.
•Use the battery only as intended and designed.
•The battery must only be installed at a suitable location.
•Make sure the battery is well connected to ground before use.
•Do not use the battery if it is defective, appears cracked, broken or damaged, or fails
to operate.
•Do not use the battery together with other types of batteries.
•Do not pull, drag or step on the battery.
•Do not leave any foreign objects inside the battery.
1 Safety User Manual
3
•Do not repair or modify the battery. It is not user serviceable.
•Do not pull out any cables when the battery is powered on.
•Do not damage the sheath of cables, wire harness and connectors.
•While the battery is charged, used and stored, keep it away from materials that are
prone to electric discharge, including static discharge.
•Keep the battery away from babies and children to avoid any accidents.
•Cover terminals with insulating tape before proper disposal.
1.3 Emergency Situations
1.3.1 Leaking Batteries
Abuse/misuse/damage of the battery may cause increasing of internal pressure in the
battery cells. It may result in the electrolyte venting. In the event that battery electrolyte is
released:
•Do not enter the room under any circumstance.
•Avoid contact with the leaking liquid or gas.
•Call the Local Emergency number or Fire Brigade if necessary.
If one is exposed to the leaking substance, follow the suggestions below to minimize the
chance of injury:
•Inhalation: Evacuate the contaminated area, and seek medical aid.
•Eye contact: Rinse eyes with copious amounts of water for at least 15 minutes, and
seek medical aid immediately.
•Skin contact: Wash the affected area thoroughly with plenty of water for at least 15
minutes. If possible, remove or saturate contaminated clothing with water. Seek
medical aid if the patient is distressed.
•Ingestion: Induce vomiting, and seek medical aid immediately.
Wipe out the contacted area with a sponge or cloth that is soaked in water until you
obtain medical aid. These materials can damage skin and eyes, causing blindness.
1.3.2 Fire
Fire may occur with the battery despite its careful design. Likewise, a fire near the
battery can cause it to catch fire.
PPrrootteeccttiivvee eeqquuiippmmeenntt
A respirator is not required during normal operations.
In the event of a fire, hazardous fumes including carbon monoxide, carbon dioxide, and/
or various hydrocarbons may be emitted. To comply with the Personal Protective
Equipment Directive (89/686/EEC), use a full-face self-contained breathing apparatus
(SCBA) with full protective gear during fire fighting.
User Manual 1 Safety
4
FFiirree ffiigghhttiinngg
In the event of a fire, only qualified firefighters with appropriate protective
equipment are permitted to enter the room where the battery is located.
Battery fires can take up to 24 hours to fully extinguish. Consider allowing the
system to burn. Smoke indicates that the battery is still burning. Always note
that there is a risk of the battery re-igniting.
Proceed as follows for firefighting.
1 Shut off any connected power system or electronics such as the battery, battery
isolator, PV DC isolator(s), AC isolator, solar supply main switch and normal supply
main switch.
2 Perform an adequate knock down on the fire before entering the incident’s hot
zone.
3 If the battery catches on fire, use firefighting sand or CO2extinguisher to extinguish
fire.
4 If the battery becomes involved in fire or is bent, damaged or breached in any way,
or if you suspect that the battery is heating, use large amounts of water to cool the
battery. Do not try to extinguish the fire with a small amount of water. Always obtain
an additional water supply.
5 If the fire is not from the battery and has not spread to it yet, use an ABC fire
extinguisher to extinguish the fire. Remove batteries and other ignition sources from
the scene of a fire.
1.3.3 Wet Batteries
If the battery is submerged in water, do not let people access it, and then contact
Sungrow or an authorized service partner for technical support.
If a battery is submerged in water or flooded, first, switch off all circuit breakers in the
system to cut off the power supply to the battery. Wait until floodwaters subside and do
not approach near battery. If someone needs to go into the flooded water, wear
insulated full length rubber boots and gloves.
Do not use a flooded battery again.
1.3.4 Damaged Batteries
The battery consists of lithium-ion cells. These are considered dry cell batteries. If the
battery is damaged, only a small amount of battery fluid can leak.
A damaged battery can cause rapid heating of the battery cells. If you notice smoke
coming from the battery area, assume that the battery is burning and take appropriate
action as described in ." "1.3.2 Fire
1 Safety User Manual
5
Damaged batteries are dangerous and must be handled with extreme caution. They are
not fit for use and may pose a danger to people or property. If a battery seems to be
damaged:
1 Pack it in its original container.
2 Store it in a separated room like the installation place.
3 Contact SUNGROW.
A damaged battery may release dangerous material and a flammable gas
mixture. Never try to repair the battery even if you are a qualified electrician.
User Manual 1 Safety
6
2Product Description
2.1 Product Introduction
BBrriieeff IInnttrroodduuccttiioonn
The battery is designed for residential energy storage systems. The inbuilt battery
management system monitors its operation and prevents the battery from operating
beyond the specified limitations.
This product is a high-voltage battery system with an operating voltage range between
168 V ~ 584 V. A battery system consist of 3 to 8 individual battery modules connected
in series.
The battery can be expanded to 4 units in parallel at most. Available in Q3, 2021.
7
ffiigguurree 22--11 Product overview
table 2-1 Design of the product
PPoossiittiioonn DDeessiiggnnaattiioonn
A
LED Indicator
LED indicator include the SOC indicator and the status indicator. The
status indicator is also used as the power button.
LED indicator indicates the SOC value and status of the battery.
B
Nameplate
The nameplate clearly indentifies the product. The nameplate must
remain permanently attached to the product. You will find the following
information on the nameplate:
•SUNGROW logo and product model
•Technical data
•Product symbol
C DC circuit breaker
User Manual 2 Product Description
8

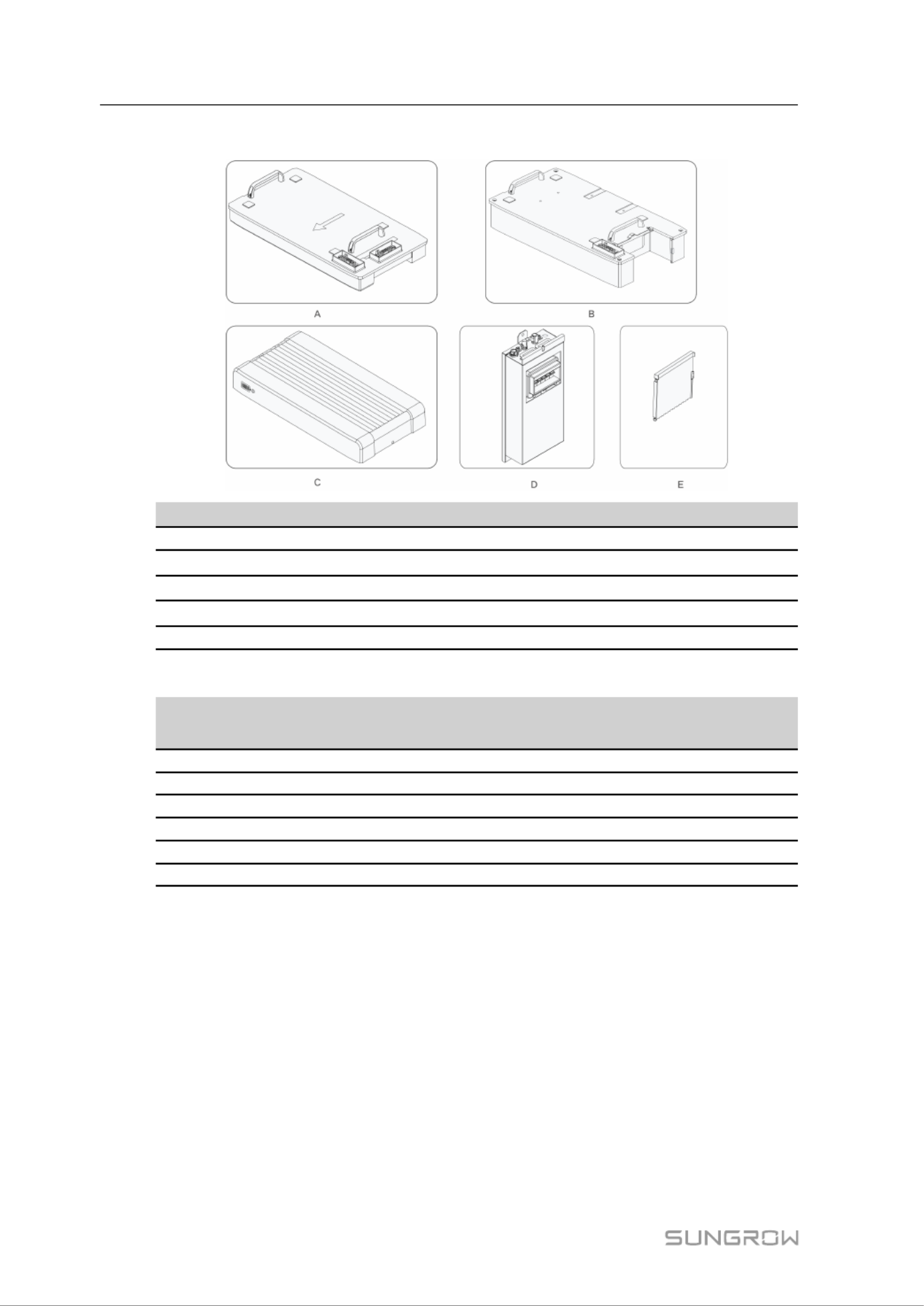

MMaajjoorr CCoommppoonneennttss
NNaammee DDeessiiggnnaattiioonn
A Base
BBattery module
CTop cover
DSwitch gear
E Side cover
CCoonnffiigguurraattiioonn TTaabbllee
NNoo.. MMooddeell BBaassee BBaatttteerryy
mmoodduullee TToopp ccoovveerr SSwwiittcchh
ggeeaarr SSiiddee ccoovveerr
1 SBR096 1 3 1 1 0
2 SBR128 1 4 1 1 1
3 SBR160 1 5 1 1 2
4 SBR192 1 6 1 1 3
5 SBR224 1 7 1 1 4
6 SBR256 1 8 1 1 5
2.2 Terminal Description
All electrical terminals are located at the switch gear.
2 Product Description User Manual
9
NNoo.. LLaabbeell DDeessccrriippttiioonn
1 COMM
•To enable the communication between the inverter
and the battery
•For battery daisy chain
2 P- The system negative terminal, connected to the
inverter negative terminal
3 P+ The system positive terminal, connected to the inverter
positive terminal
4 Grounding terminal, connected to the ground
5DC circuit
breaker
To connect/disconnect the DC circuit, for power-on,
power-off, and short-circuit protection
2.3 Symbols on the Product
SSyymmbblloo EExxppllaannaattiioonn
Pay attention to the danger. Do not operate this product in the live
status!
No open flames
Do not expose to flame, incinerate, puncture, or impact.
Electric shock hazard
Serviced by qualified personnel only. Out of reach from children.
T V mark of conformityÜ
T V mark of conformityÜ
CE mark of conformity
User Manual 2 Product Description
10
SSyymmbblloo EExxppllaannaattiioonn
Do not dispose in trash.
Compacting a lithium ion battery is dangerous as it can explode.
Please recycle this lithium ion battery. Do not discard.
Read the user manual before maintenance!
This is a protective grounding terminal, which should be grounded
securely to protect the safety of operators.
2.4 LED Indicator
LED indicators include the SOC indicator and the status indicator. The status indicator is
also used as the power button.
SSOOCC IInnddiiccaattoorr
The SOC indicator indicates the current SOC value of the battery. One bar indicates the
SOC value of 10%.
SSttaattuuss IInnddiiccaattoorr
The Status indicator indicates the current state of the battery.
LLEEDD ccoolloorr LLEEDD
iinnddiiccaattoorr LLEEDD ssttaattee DDeeffiinniittiioonn
Blue
ON Normal operation (without fault)
Slow blink
Period: 2 s
The battery is at power-on or standby
state (without fault).
Fast blink
Period: 0.5
s
The battery is at firmware update state.
Red
ON A system fault has occured.
Blink The battery is at power-on or standby
state (with primary fault).
The status indicator can be used to power on or off the battery.
OOppeerraattiioonn DDeeffiinniittiioonn
Press and hold for less than 2 seconds To power on the battery
Press and hold for more than 4 seconds To power off the battery
2 Product Description User Manual
11
3Unpacking and Storage
3.1 Unpacking and Inspection
The device is thoroughly tested and strictly inspected before delivery. Nonetheless,
damage may still occur during shipping. For this reason, please conduct a thorough
inspection after receiving the device.
•Check the packing case for any visible damage.
•Check the scope of delivery for completeness according to the packing list.
•Check the inner contents for damage after unpacking.
Contact SUNGROW or the transport company in case of any damage or
incompleteness, and provide photos to facilitate services.
Do not dispose of the original packing case. It is recommended to store the device in the
original packing case when the device is decommissioned.
3.2 Scope of Delivery
IItteemm NNaammee QQuuaannttiittyy
A Base 1
BBattery module 3 ~ 8
CTop cover 1
DSwitch gear 1
E Bracket 1
F Side cover 0 ~ 5
G Harness 1
12
IItteemm NNaammee QQuuaannttiittyy
H Stud 1
IFoot (optional) 4
J M5 screw 8 ~ 18
KExpansion plug set 2
L M5 screw sets 3 ~ 4
M M6 fender washer 2
N Documents 1
3.3 Storage
Proper storage is required if the battery is not installed immediately.
•Store the battery in the original packing case with the desiccant inside.
•Preferably, keep the temperature in the range of 15°C to 25°C. Store the battery
within the temperature range of -10°C to 35°C for no more than 6 months.
•The storage relative humidity must be always between 0 and 95 %, non-condensing.
•Store the battery in a clean and dry place, without exposure to sunlight and rain. The
storage location must be free of harmful gases, flammable/explosive products and
corrosive chemicals. The battery should be prevented from mechanical impact, high
pressure, high-intensity magnetic field and direct exposure to sunlight.
•Pay attention to the harsh environment, such as sudden cooling/heating and collision,
to avoid damage to the battery.
•The number of stacking layers of battery modules with package must not exceed 6.
It is strictly forbidden to directly stack batteries without package.
•Regularly inspect the package for damage and insect bites. If any damage is found,
the product should be replaced immediately.
•The packing should be upright.
•If stored for more than 6 months under the specified conditions, the battery needs to
be charged once, until the system SOC is 50% to 80%. Preferably, use an inverter for
forced charging.
3 Unpacking and Storage User Manual
13
4Mounting
4.1 Safety during Mounting
This product or system must be operated by professionals!
Failure to follow the safety instructions in this manual or operation of this
product or system by non-professionals may cause severe personal injury or
major property damage.
Strictly follow local relevant standards and requirements in the whole process
of installation.
4.2 Location Requirements
Select an optimal mounting location for safe operation, long service life and expected
performance.
The battery with IP55 can be installed both indoors and outdoors.
Install the battery in a place convenient for electrical connection, operation, and
maintenance.
4.3 Installation Environment Requirements
•The installation environment must be free of inflammable or explosive materials.
•The location should be not accessible to children.
•The ambient temperature must be always between 0 ℃ and 45 ℃.
•The relative humidity must be always between 0 and 95 %, non-condensing.
•Avoid direct exposure to sun, rain and snow.
•The battery should be well ventilated. Ensure air circulation.
4.4 Installation Clearance Requirements
•Reserve enough clearance around the battery to ensure sufficient space for heat
dissipation.
14
•In case of multiple batteries, reserve specific clearance between the batteries.
4.5 Installation Tools
Installation tools include but are not limited to the following recommended ones. If
necessary, use other auxiliary tools on site.
table 4-1 Tool specification
Goggles Dust mask Protective gloves Insulated shoes
4 Mounting User Manual
15
Utility knife Marker Rubber mallet Measuring tape
Level Hammer drill
(φ10)
Phillips screwdriver
(M5)
Wrench (16 mm,
17mm)
4.6 Installing the Battery
The SBR128 mounting will be used as an example.
step 1 Align the base with the wall, and keep a distance of 13 mm to 28 mm between the base
and the wall. Mark the hole positions of the mounting bracket with a marker according
to the required layout of holes.
A: Upper surface of the base B: Base
ffiigguurree 44--11 Layout of holes with the base as reference
You can choose not to mount SBR096/128 on the wall.
step 2 Drill the holes according to the marked positions, and install the expansion sleeves.
User Manual 4 Mounting
16
step 3 (Optional) Install the feet of the battery.
step 4 Position the base maintaining the required distance from the wall.
step 5 Place each battery module on top of the base.
4 Mounting User Manual
17
When carrying the battery module, always be aware of its weight of 33 kg.
step 6 Fix the battery modules with the included screws.
step 7 Connect the switch gear to the base.
User Manual 4 Mounting
18

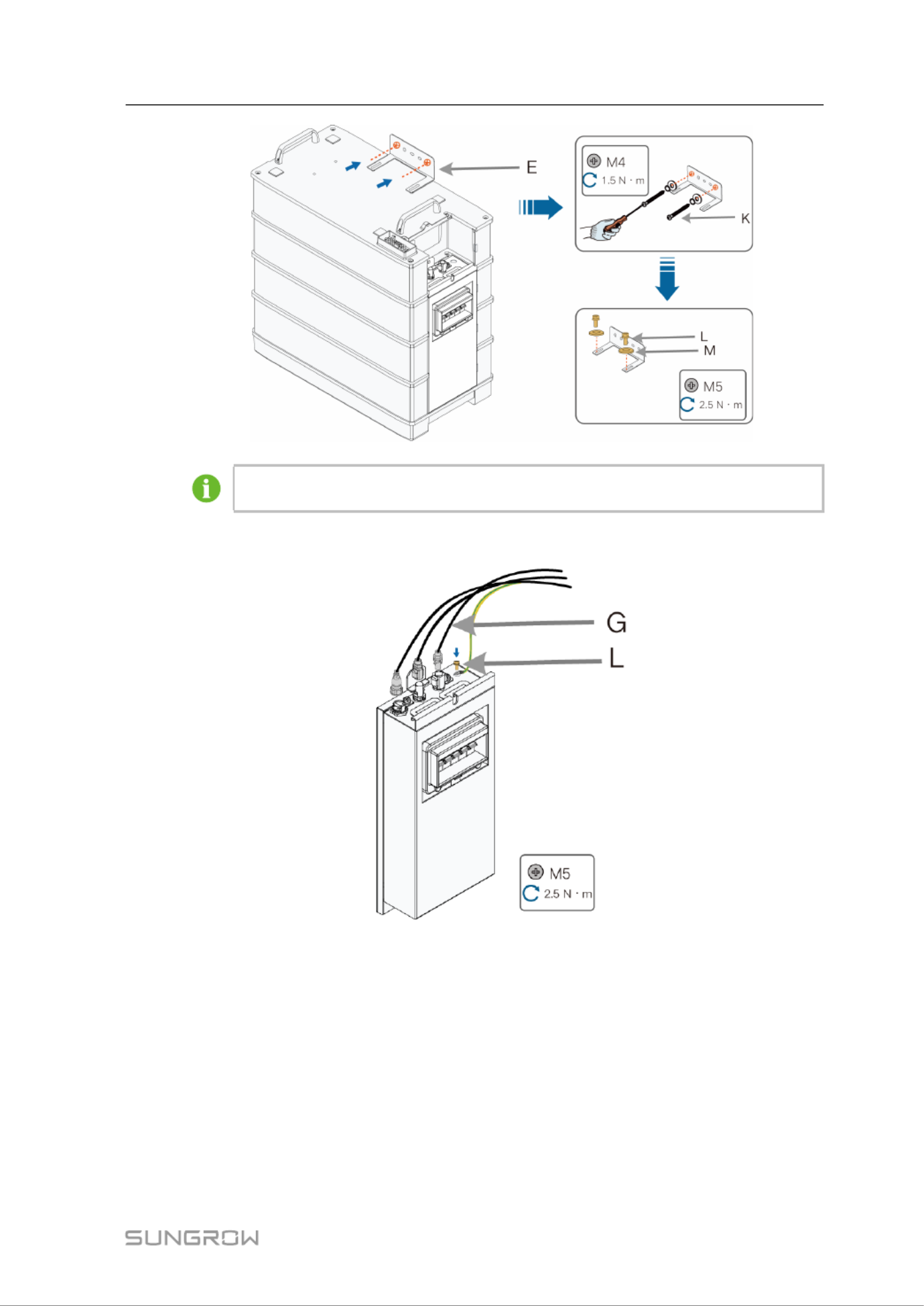

step 8 Fix the switch gear with the provided stud.
When 4 or more than 4 battery modules are installed in one base, M5 screw
set is required to secure the switch gear. The stud is mounted on the top of
battery module.
step 9 Fix the battery to the wall.
4 Mounting User Manual
19
The bracket is mounted on the top battery module.

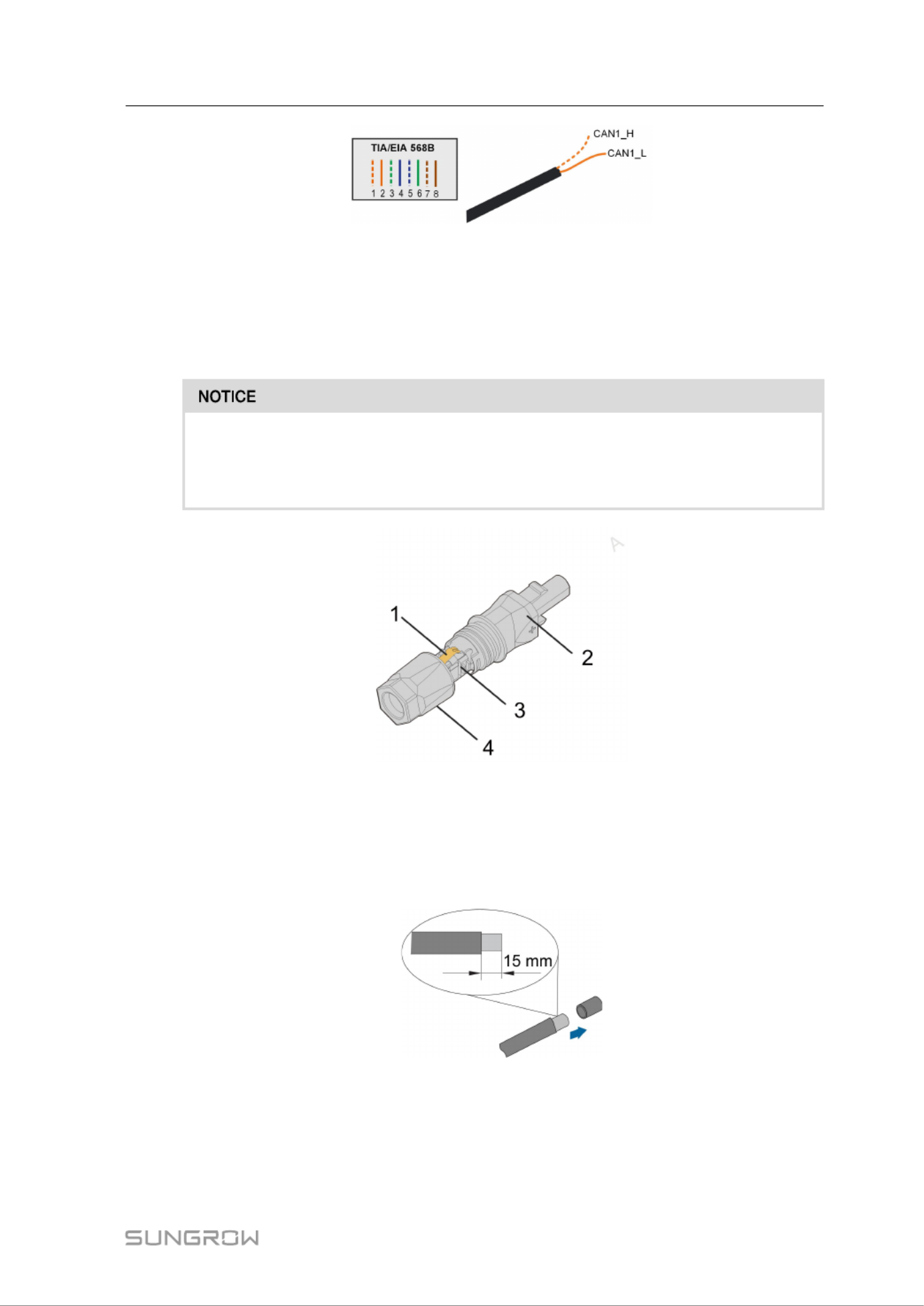

step 10Connect the harness.
For communication between the battery and the inverter. Connect the communication
cable from the “COMM” terminal of the battery to the inverter. Strip the insulation
layer of the communication cable with a wire stripper, and lead the corresponding
CAN1_H/CAN1_L signal cable out. Cut off the redundant signal cable and warp it with a
heat-shrink tubing. Signal cable 1 white and orange cable is used as CAN1_H; and
signal cable 2 orange cable is used as CAN1_L.
User Manual 4 Mounting
20
step 11Place the top cover and fix it with the screw provided.
step 12(Optional) Install the side covers.
When 4 or more than 4 battery modules are installed in one base, side covers
are required.
-- -- EEnndd
4 Mounting User Manual
21
5Parallel System（Optional）
The battery can be expanded to 4 units in parallel at most. Available in Q3, 2021.
5.1 Scope of Delivery
IItteemm NNaammee QQuuaannttiittyy
A Junction box 1
B Bracket 1
CExpansion plug set 3
D M4 screw set 2
E COMM IN connector 1
F SUNCLIX connector 4
GSUNCLIX power cables 1
H COMM OUT communication cable 1
IGrounding cable 1
5.2 Mounting the Junction Box
step 1 Install the wall-mounting bracket and mount the junction box to the bracket.
22
-- -- EEnndd
5.3 Terminal Description (Junction Box)
All electrical terminals are located at the bottom of the junction box.
ffiigguurree 55--11 Terminals at the Bottom of the Junction Box
* The image shown here is for reference only. The actual product received may differ.
table 5-1 The label description of Junction Box terminal
NNoo.. LLaabbeell DDeessccrriippttiioonn
1 GND Connected to the battery grounding terminal
2
BAT1+, BAT1–
BAT2+, BAT2–
BAT3+, BAT3–
BAT4+, BAT4–
BAT+ terminals, connected to the battery P+ terminal
BAT– terminals, connected to the battery P– terminal
3 COMM IN Communication terminal, connected to the battery COMM
terminal
4 COMM OUT Communication terminal, connected to the inverter
communication terminal
5 Parallel System（Optional） User Manual
23
NNoo.. LLaabbeell DDeessccrriippttiioonn
5 GND Connected to the ground
6PCS+, PCS- PCS+ terminal, connected to the inverter positive terminal
PCS– terminal, connected to the inverter negative terminal
table 5-2 The label of COMM IN terminal
L1 L2 L1 L2 L1 L2 L1 L2 A
H1 H2 H1 H2 H1 H2 H1 H2 B
BMS1/CAN BMS2/CAN BMS3/CAN BMS4/CAN RS485
table 5-3 The label description of COM terminal
NNoo.. LLaabbeell DDeessccrriippttiioonn
1
BMS1/CAN (L1, L2, H1, H2)
BMS2/CAN (L1, L2, H1, H2)
BMS3/CAN (L1, L2, H1, H2)
BMS4/CAN (L1, L2, H1, H2)
Connected to the battery COMM terminal.
2RS485 (A, B) Connected to the BMS, functionally
reserved.
5.4 Connection Diagram in Parallel System
Maximum four batteries can be connected in parallel.
User Manual 5 Parallel System（Optional）
24
•The COMM terminal of the battery is connected to the COMM IN terminal of the
junction box.Signal cable 1 white and orange cable is used as BMS/CAN_H1; signal
cable 2 orange cable is used as BMS/CAN_L1; signal cable 5 white and blue cable is
used as BMS/CAN_H2; and signal cable 6 green cable is used as BMS/CAN_L2.
•The grounding terminal of the battery is connected to the grounding terminal on the
left side of the junction box.
•The COMM OUT terminal of the junction box is connected to the inverter.Signal cable
1 white and orange cable is used as CAN1_H; and signal cable 2 orange cable is
used as CAN1_L.
5 Parallel System（Optional） User Manual
25
5.5 Installing the SUNCLIX Connector
This section mainly describes the cable connections on the junction box side. For the
cable connections on the battery side, refer to the section "Installing the battery".
During assembly, be careful not to contaminate, pull out, or shift, the seal in the
cable gland. A contaminated or shifted seal impairs strain relief and leak
tightness.
ffiigguurree 55--22 SUNCLIX Connector Components
1：Spring 2: Sleeve 3: Insert 4: Cable gland
The BAT3+ and BAT3- terminals are used as examples for description.
step 1 Strip the insulation from the cable by 15 mm.
step 2 Pry the connection open and pull the sleeve and the insert apart.
User Manual 5 Parallel System（Optional）
26
step 3 Insert the stripped cable into the cable gland up to the stop. The stranded wire can be
seen inside the spring. Press the spring down until it audibly snaps into place.
step 4 Push the insert into the sleeve and tighten the cable gland (torque 2 N·m).
step 5 Remove the waterproof lid from BBAATT33++ BBAATT33––and the terminal.
step 6 Plug the connectors into BBAATT33++ BBAATT33––and terminals.
5 Parallel System（Optional） User Manual
27
step 7 Ensure that the connectors are securely in place.
-- -- EEnndd
5.6 Installing the COMM IN Connector
This section mainly describes the cable connections on the junction box side. For the
cable connections on the battery side, refer to the section "Installing the battery".
The BMS3/CAN terminal is used as an example for description.
step 1 Unscrew the swivel nut from the connector.
step 2 Take out the terminal block.
step 3 Remove the seal and lead the cable through the cable gland.
User Manual 5 Parallel System（Optional）
28

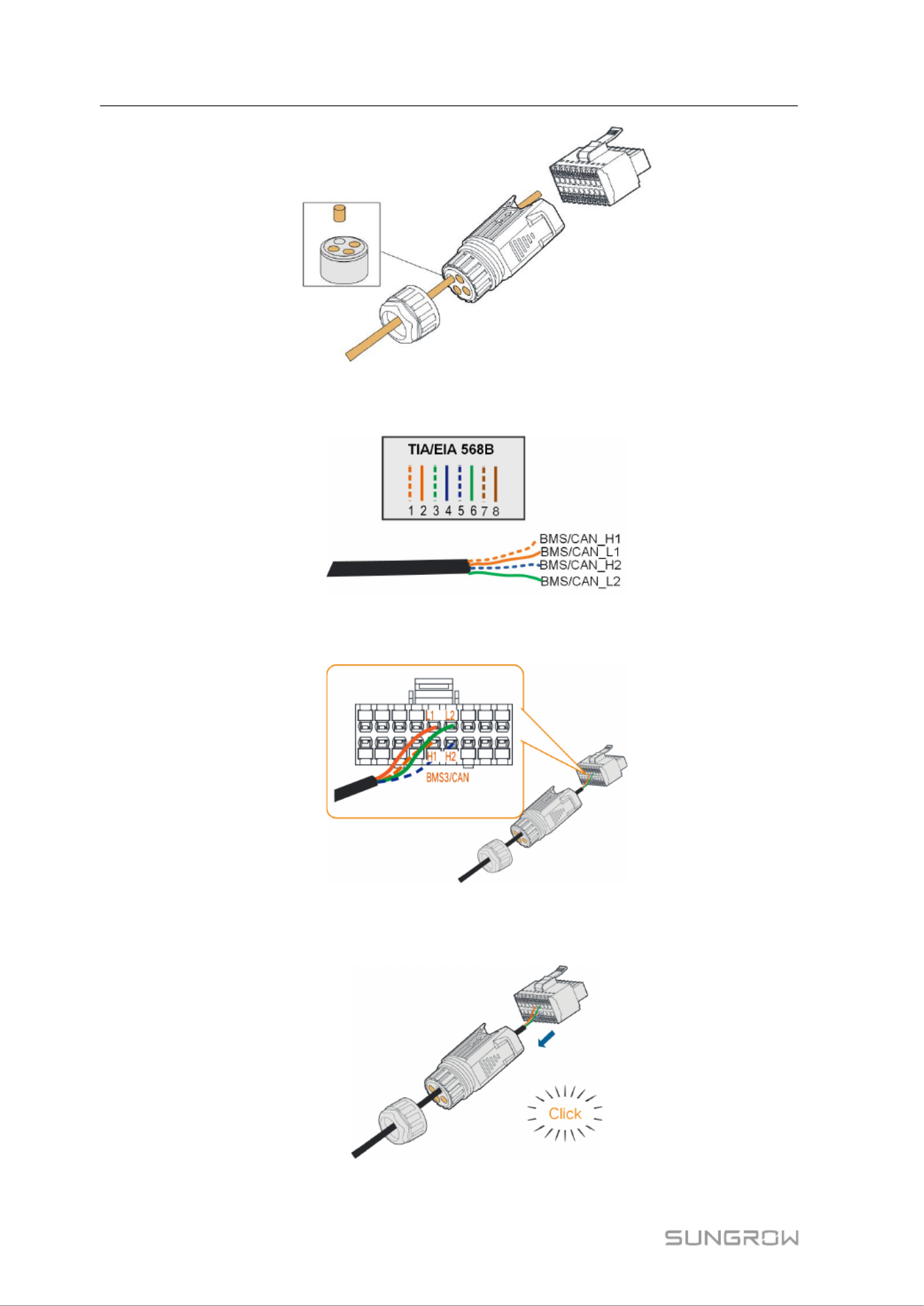

step 4 Remove the cable jacket by 7 mm to 10 mm from the cable that is led out from the
battery.
step 5 Plug the wires into the corresponding terminal according the labels on the bottom of the
device.
step 6 Pull the wires outward to check whether they are firmly installed.
step 7 Insert the terminal block into the connector until it snaps into place with an audible click.
step 8 Fasten the swivel nut.
5 Parallel System（Optional） User Manual
30
6Commissioning
6.1 Inspection before Commissioning
Check the following items before starting the battery:
•Check that the battery system has been installed completely.
•Check that the appearance of the battery system is intact.
•Check that the battery system output wiring harness is correctly connected to the
positive and negative terminals of the battery and inverter to avoid misconnection
and reverse connection.
6.2 Commissioning Procedure
If all of the items mentioned above meet the requirements, proceed as follows to start
up the battery for the first time.
step 1 Connect all the switches on the AC and DC sides of the PCS.
step 2 Manually connect the DC breaker on the right side of the battery so that the BMS enters
the self-test state. The status indicator blinks in blue. Ten seconds later, press and hold
the status indicator for less than 2 seconds. Wait until the indicator is steady on in blue,
which indicates that the battery system is powered on and runs normally.
-- -- EEnndd
During commissioning, if there is a short-circuit fault in the battery system,
disconnect the power cable between the switch gear and the inverter, check
the battery system wiring, and eliminate the short-circuit fault point. Execute
step 2, check whether there is a fault in the battery (the indicator light is red),
and obtain fault information through iSolarCloud to contact SUNGROW to repair
the battery system.
31
7Decommissioning the Battery
Decommission the battery in the system after the inverter is decommissioned. Proceed
as follows to decommission the battery.
step 1 Press and hold the power button for 5 seconds until the DC breaker on the right side of
the battery is disconnected.
step 2 One minute after the DC breaker is disconnected, disconnect all cables between the
battery and other devices.
-- -- EEnndd
Contact SUNGROW to dispose of the battery.
Produkt Specifikationer
| Mærke: | Sungrow |
| Kategori: | Accu |
| Model: | SBR224 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Sungrow SBR224 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Accu Sungrow Manualer
23 August 2024
18 August 2024
14 August 2024
13 August 2024
12 August 2024
11 August 2024
11 August 2024
10 August 2024
Accu Manualer
- Cobra
- Energizer
- Neewer
- PowerDrive
- Black And Decker
- SolarEdge
- Variotek
- Hikoki
- Bosch
- Sennheiser
- Stinger
- Gardena
- Einhell
- Growatt
- E-flite
Nyeste Accu Manualer
20 Februar 2025
20 Februar 2025
31 Januar 2025
9 Januar 2025
2 Januar 2025
31 December 2025
30 December 2025
30 December 2025
29 December 2024
29 December 2024
