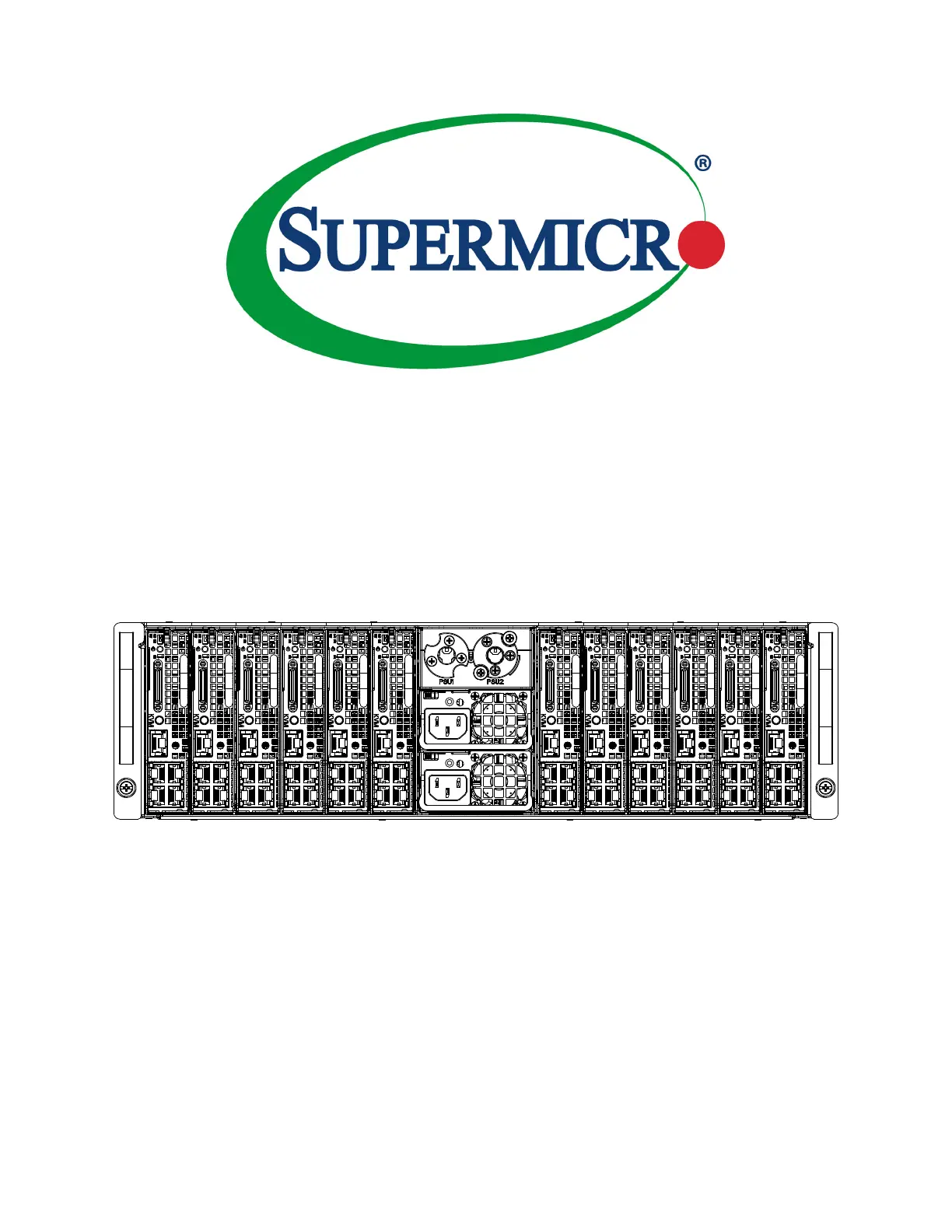

Side 1/105

USER’S MANUAL

Revision 1.0

SuperServer

5038MD-H24TRF

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes

no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update

or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:

For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual

at any time and without notice. This product, including software and documentation, is the property of Supermicro and/

or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except

as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT

OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER

MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED

OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,

INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the

State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution

of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual,

may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only

to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this product may expose you to lead, a

chemical known to the State of California to cause birth defects and other reproductive harm.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,

nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical

systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic

property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products

for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully

indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and

proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0

Release Date: June 17, 2016 mk

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this

document. Information in this document is subject to change without notice. Other products and companies referred

to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Produkt Specifikationer

Mærke:	Supermicro
Kategori:	Server
Model:	SuperServer 5038MD-H24TRF
Bredde:	438 mm
Dybde:	749 mm
Højde:	132 mm
Vægt:	40820 g
Pakkevægt:	54400 g
Pakkedybde:	720 mm
Pakkebredde:	1075 mm
Pakkehøjde:	408 mm
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	8 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Ethernet LAN-porte (RJ-45):	4
Antal USB 2.0-porte:	2
Ethernet LAN:	Ja
Processorkerner:	6
Driftstemperatur (T-T):	10 - 35 °C
Intern hukommelse:	- GB
Certificering:	RoHS
Kabelteknologi:	10/100/1000Base-T(X)
Strømforsyningens indgangsfrekvens:	50 - 60 Hz
Processorfrekvens:	2.2 GHz
Processorserie:	Intel® Xeon® D
Processor boost frekvens:	2.7 GHz
Processortråde:	12
Processor-cache:	9 MB
Processor cache type:	L3
Intern hukommelsestype:	DDR4-SDRAM
Hukommelsesur hastighed:	- MHz
Maksimal intern hukommelse:	128 GB
Samlet lagringskapacitet:	0 GB
On-board grafikkort, model:	Aspeed AST2400
On-board grafikkort:	Ja
Intel® Hyper Threading Teknologi (Intel® HT Technology):	Ja
Intel® Turbo Boost Teknologi:	2.0
Hukommelsesstik:	4
Processorproducent:	Intel
Processormodel:	D-1531
Antal VGA-porte (D-sub):	1
Ethernet-grænsefladetype:	Gigabit Ethernet
Optisk drevtype:	Ingen
Enhanced Intel SpeedStep Teknologi:	Ja
Udfør deaktivering af bit:	Ja
Idle status:	Ja
CPU-konfiguration (maks.):	1
Intel® VT-x with Extended Page Tables (EPT):	Ja
Indlejret tilgængelige muligheder:	Ingen
Intel® 64:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Ja
Intel® Virtualization Technology (VT-x):	Ja
Antal installerede processorer:	1
Kabinettype:	Stativ (3U)
Intel® Trusted Execution Teknologi:	Ja
Intel® Enhanced Halt State:	Ja
Intel® TSX-NI:	Ja
Intel® Secure Key Technology version:	1.00
Intel® TSX-NI-version:	1.00
Konfliktfri processor:	Ja
HDD-størrelse:	- "
Strømforsyning:	1620 W
Processor sokkel:	BGA 1667
Processor litografi:	14 nm
Stepping:	V2
Thermal Design Power (TDP):	45 W
Maksimalt antal PCI Express-kanaler:	32
PCI Express slots version:	2.0, 3.0
PCI Express-konfigurationer:	1x16, 1x4, 1x8
Fejlkorrigerende kode understøttet af processor:	Ja
Systembus-hastighed:	- GT/s
Processor driftstilstande:	64-bit
Processor kodenavn:	Broadwell
Intel® Sikker Nøgle:	Ja
Intel® AES Nye Instruktioner (Intel® AES-NI):	Ja
Intel® OS Guard:	Ja
Termiske overvågningsteknologier:	Ja
UART:	Ja
Processor-pakke størrelse:	37.5 x 37.5 mm
Processor kode:	SR2DG
Processor ARK ID:	91203
Samlet antal SATA-stik:	6
Understøttede instruktionssæt:	AVX 2.0
Maksimal lagerkapacitet:	- TB
Fejlkorrigerende kode:	Ja
Redundant strømforsyning:	Ja
LAN Kontroller:	Intel® I350
Understøttede lagerdrev brugerflader:	Serial ATA III
BIOS-type:	EEPROM
Antal 2.5" bays:	2
Understøttede HDD-størrelser:	2.5 "
Maksimal intern hukommelse understøttet af processor:	128 GB
Hukommelsestyper understøttet af processor:	DDR3-SDRAM, DDR4-SDRAM
Hukommelsesspænding understøttet af processor:	1.2 V
Skalerbarhed:	1S
Hukommelseskanaler understøttet af processor:	Dobbelt
Antal installerede strømforsyninger:	1
