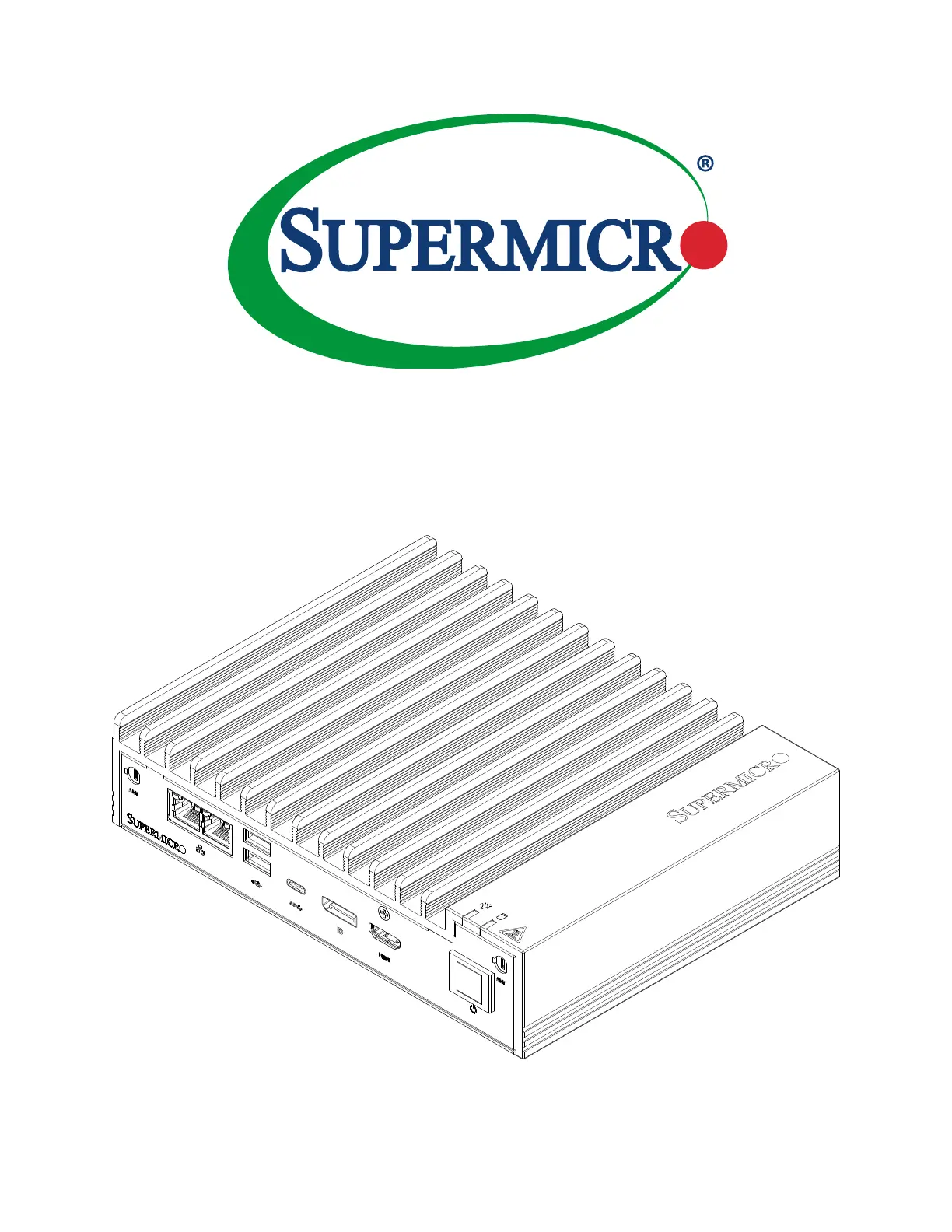

USER’S MANUAL
Revision 1.0c
SuperServer®
E100-9S/-9S-E/-9S-L
The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:
For the most up-to-date version of this manual, please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.
IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in industrial environment for Class A device or in residential
environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See ”.www.dtsc.ca.gov/hazardouswaste/perchlorate
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical
systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic
property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Manual Revision 1.0c
Release Date: August 13, 2021
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this
document. Information in this document is subject to change without notice. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2021 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
3
Preface
Preface
About this Manual
This manual is written for professional system integrators and PC technicians. It provides
information for the installation and use of the SuperServer E100-9S/-9S-E/-9S-L. Installation
and maintenance should be performed by experienced technicians only.
Please refer to the E100-9S/-9S-E/-9S-L server specications page on our website for updates
on supported memory, processors and operating systems (http://www.supermicro.com).
Notes
For your system to work properly, please follow the links below to download all necessary
drivers/utilities and the user’s manual for your server.
• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wdl
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
If you have any questions, please contact our support team at:
support@supermicro.com
This manual may be periodically updated without notice. Please check the Supermicro website
for possible updates to the manual revision level.
Secure Data Deletion
A secure data deletion tool designed to fully erase all data from storage devices can be found
on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/
Log9_Secure_Data_Deletion_Utility/
Warnings
Special attention should be given to the following symbols used in this manual.
Warning! Indicates high voltage may be encountered when performing a procedure.
Warning! Indicates important information given to prevent equipment/property damage
or personal injury.
4
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Contents
Chapter 1 Introduction
1.1 Overview ...............................................................................................................................7
1.2 System Features ..................................................................................................................8
1.3 I/O Features .........................................................................................................................9
Front I/O Features ...............................................................................................................9
Rear I/O Features .............................................................................................................10
1.4 Motherboard Layout ...........................................................................................................11
Quick Reference Table ......................................................................................................12
System Block Diagram ......................................................................................................13
1.5 System Installation .............................................................................................................14
Unpacking the System ......................................................................................................14
Warnings and Precautions ................................................................................................14
Installing Components to your System ............................................................................14
Chapter 2 Maintenance and Component Installation
2.1 Removing Power ................................................................................................................15
2.2 Accessing the System ........................................................................................................16
2.3 Motherboard Components ..................................................................................................17
Processor ..........................................................................................................................17
Memory Support ................................................................................................................17
Installing Memory ..............................................................................................................17
Solid State Storage ..........................................................................................................18
Motherboard Battery .........................................................................................................18
Installing Mounting Brackets .............................................................................................19
Chapter 3 Motherboard Connections
3.1 Ports ...................................................................................................................................20
3.2 LED Indicators ....................................................................................................................21
3.3 Headers and Connectors ...................................................................................................22
Control Panel ....................................................................................................................26
3.4 Jumper Settings .................................................................................................................28
How Jumpers Work ...........................................................................................................28
5
Preface
Chapter 4 Software Installation
4.1 Driver Installation ................................................................................................................30
4.2 SuperDoctor ® 5 ...................................................................................................................31
Chapter 5 BIOS
5.1 Introduction .........................................................................................................................32
Starting the Setup Utility ...................................................................................................32
5.2 Main Page ..........................................................................................................................33
5.3 Advanced Page ..................................................................................................................34
5.4 Security ...............................................................................................................................56
5.5 Boot ....................................................................................................................................61
5.6 Save & Exit .........................................................................................................................64
Appendix A BIOS POST Codes
Appendix B Standardized Warning Statements for AC Systems
Appendix C System Specications
Appendix D Traditional Chinese Version Safety Warnings
Appendix E UEFI BIOS Recovery
6
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: marketing@supermicro.com (General Information)
support@supermicro.com (Technical Support)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: sales@supermicro.nl (General Information)
support@supermicro.nl (Technical Support)
rma@supermicro.nl (Customer Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3992
Email: support@supermicro.com.tw
Website: www.supermicro.com.tw
SuperServer E100-9S/-9S-E/-9S-L User's Manual
7
Chapter 1: Introduction
Chapter 1
Introduction
1.1 Overview
The SuperServer E100-9S/-9S-E/-9S-L is a compact, embedded system comprised of
the CSE-101-01 chassis and the X11SSN-H-WOHS/-E-WOHS/-L-WOHS single processor
motherboard. Refer to our website for information on operating systems that have been
certied for use with the system (www.supermicro.com).
This chapter provides a brief outline of the functions and features. In addition to the motherboard
and chassis, several important parts that are included with the system are listed below.
Main Parts List
Description QuantityPart Number
Power Adapter MCP-250-10134-0N 1
Notes: A Quick Reference Guide can be found on the product page of the Supermicro website.
The following safety models associated with the E100-9S/-9S-E/-9S-L have been certied as
compliant with UL or CSA: E101-60 and E101-A6X11.
8
SuperServer E100-9S/-9S-E/-9S-L User's Manual
1.2 System Features
The following table provides an overview of the main features of the E100-9S/-9S-E/-9S-L.
Refer to Appendix C for additional specications.
System Features
Motherboard
E100-9S: X11SSN-H-WOHS
E100-9S-E: X11SSN-E-WOHS
E100-9S-L: X11SSN-L-WOHS
Chassis
CSE-101-01
CPU
E100-9S: 7th Generation Intel
® Core i7-7600U Processor (System on Chip) Socket FCBGA 1356
E100-9S-E: 7th Generation Intel
® Core i5-7300U Processor (System on Chip) Socket FCBGA 1356
E100-9S-L: 7th Generation Intel® Core i3-7100U Processor (System on Chip) Socket FCBGA 1356
I/O
2 x GLAN, 1 x HDMI 2.0, 1 x Display Port, 2 x USB 3.0, 1 x USB 3.1 Type C, 4 x USB 2.0, 4 x COM, 1 x DIO
Cooling
Fan-less design
Memory
Supports up to 32 GB DDR4 2133 MHz in 2 DIMM Slots
Expansion Slots
One full-size Mini-PCIe slot
One M.2 B-key 2280 (SATA/PCIe or WWAN/GNSS) slot
Power
Lockable 60W Power Adapter for 12V DC
Hard Drives
Supports one M.2 SATA SSD B-Key 2280
Form Factor
3.5" SBC small form factor (4"X5.75")
Dimensions
(WxHxD) 7.68" x 5.94" x 1.73" in. (195 x 151 x 44 mm)
9
Chapter 1: Introduction
1.3 I/O Features
Front I/O Features
See the illustration below for the features included on the front of the chassis.
Figure 1-1. Front I/O Overview
Front I/O Features
Item Features Description
1 Antenna Port Two antenna ports
2 LAN Ports Two 1Gbe LAN ports
3 USB Ports Two USB 3.0 ports
4 USB 3.1c Port A front USB 3.1 Type C port
5 Display Port A front display port
6 HDMI Port A front High-Denition Multimedia Interface port
7 Power Button
The main power switch applies or removes primary power from the power
supply to the server but maintains standby power (Note: To perform most
maintenance tasks, unplug the power cord to completely remove power)
653 71 2 1
4
10
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Rear Chassis Features
Item Features Description
1 Power Input Port Port used for the 40W DC power input
2 DIO Port A rear mounted digital I/O port
3 USB Ports Four rear USB 2.0 ports
4 Grounding Screw Screw used for attaching an electrical grounding wire
5 COM Ports Four communication ports
Rear I/O Features
The illustration below shows the features included on the rear of the chassis.
Figure 1-2. Rear I/O Overview
45
2
13
12
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Quick Reference Table
Jumper Description Jumper Setting
JLCDPWR1 LVDS Panel VCC power source selection
Pin 1-3* (3.3V)
Pin 3-5 (5V)
Pin 3-4 (12V)
JPF1 Force Power On Pin 1-2* (Force Power On)
Pin 2-3 (Power Button On)
JPME2 Manufacturing Mode Pin 1-2* (Normal)
Pin 2-3 (Manufacturing)
JPT1 TPM Enable/Disable Header
(X11SSN-L-WOHS does not support TPM)
Pin 1-2* (Enable)
Pin 2-3 (Disable)
Connector Description
AUDIO FP Front Panel Audio Header (Mic-In/Headphone-Out)
BT1
Battery Connector
(To Clear CMOS, remove the battery, short pins 1-2 for more than 10 seconds and
install the battery.)
DP++ DisplayPort
FAN1 System Fan Header
I-SATA1 SATA 3.0 Port
JCOM1: COM1/COM2
JCOM2: COM3/COM4
COM Headers
(JCOM1 supports two RS232/RS422/RS485, JCOM2 supports two RS232)
JD1 Speaker Header (Pins 1-4)
JF1 Front Control Panel Header (Power/HDD LED, Reset, Power button)
JGP1 8-bit General Purpose I/O Header
JHDMI1 Back Panel HDMI 2.0 Port
JMD1 M.2 Slot B-KEY 2280 (PCIe p12-x2 Gen3, one USB 2.0, one SATA 3.0)ww
JMP1 Full Size Mini PCI-E Slot with mSATA (one PCIe p12-x1 Gen3, one USB 2.0, one SATA 3.0)
JPH1 SATA Power Connector (for one HDD)
JPW1 4-pin 12V R/A Type Power Connector
JSMBUS1 System Management Bus Header
LAN1, LAN2 LAN (RJ45) Ports
LVDS1 Dual Channel 48-bit LVDS Connector
SRW1 - SRW4 M.2 and Mini PCIe Mounting Holes
USB0/1 USB 2.0 x 2 Header
USB2/3 USB 2.0 x 2 Header
USB4/5 Back Panel USB 3.0 Ports
USB6 USB 3.1 Type C Port
USB7 USB 3.0 OTG Header (one USB 3.0, one USB 2.0)
* Default Setting
13
Chapter 1: Introduction
Figure 1-4. System Block Diagram
Note: This is a general block diagram and might not exactly represent the features on your
motherboard. See the System Specications appendix for the actual specications of your
motherboard.
System Block Diagram
M.2 SLOT (B KEY)
DUAL CHANNEL
Non-ECC-SODIMM
DDR4 2133 MHz
MAX. 16G SO-DIMM SUPPORTED per DIMM
HDMI connector
DDI1
COM 1 / 2 (RS232/422/485)
DDI2
FLASH
SPI 256Mb
SPI SPI
SATA
6Gb/s
MUX
USB2.0[9]
LPC
SIO
Port 80 / Debug header
NCT6106D
SATA 6Gb/s
I-SATA0
DP connector
LVDS Connector DP to LVDSBridge
PTN3460
COM 3 / 4 (RS232)
5.0GT/s
PCIe Gen2 x 1
PCIE[9]
2.5GT/s
GBE
GLAN1
INTEL I219
RJ45
PCIE[5]
GLAN2
INTEL I210
RJ45
PCIE[6]
PCIe Gen2 x 1
5.0GT/s
PCIe Gen3 x 2
Mini-PCIe Slot
PCIE[12]/SATA[2]
8.0GT/s
8.0GT/s
PCIe Gen2 x 2
PCIe Gen3 X1 to USB3.1
PCIE[3/4]
ASM1142
TYPE C
480Mb/s
Audio
eDP
High Definition
ALC888S-VD2-GR
REALTEK FRONT AUDIO Header
DIMMA
DIMMB
A
B
PS175
DP to HDMI2.0
Rear USB3.0 connector (USB 0)
Rear USB3.0 connector (USB 1)
5.0Gb/s
5.0Gb/s
480Mb/s
480Mb/s
480Mb/s
Front USB2.0 Header (USB 4)
480Mb/s
Front USB2.0 Header (USB 5)
Rear USB2.0 Header (USB 2)
Rear USB2.0 Header (USB 3)
USB 3.0 [3]
USB 2.0 [3]
USB 2.0 [2]
USB 3.0 [2]
USB 2.0 [5]
USB 2.0 [6]
USB 2.0 [7]
USB 2.0 [8]
USB 2.0 [1]
USB 3.0 [1]
USB3.0 OTG connector (JUSB2)
5.0Gb/s
(GBE)
PCIE[11]
USB2.0[10]
480Mb/s
PCIE[8]/SATA[1]
PCIE[7]/SATA[0]
PCIe Gen3 x 1
or
Intel
USB 3.0
USB 3.0
DP
21
TYPE C
USB 3.1
HDMI
I/O Panel Layout
LAN1 LAN2
14
SuperServer E100-9S/-9S-E/-9S-L User's Manual
1.5 System Installation
This section provides advice and instructions for mounting your system. The system is shipped
with the onboard processor and the motherboard installed in the chassis.
Unpacking the System
Inspect the box in which the system was shipped and note if it was damaged. If the system
itself shows damage, le a damage claim with the carrier.
Warnings and Precautions
Review the electrical and general safety precautions in Appendix B.
Installing Components to your System
• Memory: If your system is not already fully integrated with system memory, refer to Chapter
2 for details on compatible types of memory and the installation procedure.
• Drives and Storage: Refer to Chapter 2 for instructions on installing drives.
• Installing Mounting Brackets: Refer to Chapter 2 for instructions on installing mounting
brackets.
• Input/Output: Refer to Chapter 3 for information about I/O ports.
• Software: Refer to Chapter 4 for software installation information, including drivers and
monitoring programs.
16
SuperServer E100-9S/-9S-E/-9S-L User's Manual
2.2 Accessing the System
The E100-9S/-9S-E/-9S-L features a removable bottom cover to access to the inside of the
chassis.
Removing the Bottom Cover
1. Power down the system as described in section 2.1.
2. Remove the eight screws that hold the cover in place.
3. Lift the cover up and o the chassis.
Caution: Except for short periods of time, do not operate the server without the cover in
place. The chassis cover must be in place to prevent misuse.
Figure 2-1. Removing the Chassis Cover
2
2
2
2
2
2
2
2
3
17
Chapter 2: Maintenance and Component Installation
2.3 Motherboard Components
Processor
The E100-9S/-9S-E/-9S-L features an embedded Intel® processor. E100-9S supports 7th
Generation Intel Core i7-7600U Processor, E100-9S-E supports 7th Generation Intel Core
i5-7300U Processor and E100-9S-L supports 7th Generation Intel Core i3-7100U Processor.
Memory Support
The X11SSN-H-WOHS/-E-WOHS/-L-WOHS series motherboard supports up to 32GB of
DDR4 Non-ECC SODIMM memory with speeds up to 2133 MHz in two memory slots.
Note: Check the Supermicro website for recommended memory modules. ®
Installing Memory
Caution: Exercise extreme care when installing or removing DIMM modules to prevent
damage.
SO-DIMM Installation
1. Position the SODIMM module's bottom key so it aligns with the receptive point on the
slot.
2. Insert the SODIMM module vertically at about a 45 degree angle. Press down until the
module locks into place.
Align
Insert this
end rst Press down until the
module locks into place.
18
SuperServer E100-9S/-9S-E/-9S-L User's Manual
1. The side clips will automatically secure the SODIMM module, locking it into place.
Locking clip
SODIMM Removal
1. Push the side clips at the end of slot to release the SO-DIMM module.
2. Pull the SO-DIMM module up to remove it from the slot.
Solid State Storage
The E100-9S/-9S-E/-9S-L motherboard deploys a B-KEY for SATA/PCIe SSD devices or USB/
PCIe WWAN or GNSS card. The E100-9S/-9S-E/-9S-L deploys a 2280 screw hole location
for an M.2 module.
Installing the M.2 Card
1. Gently insert the M.2 card into the connector.
2. Use a screw to secure the M.2 card to the M2_SRW1 stando.
Figure 2-2. Installing an M.2 Expansion Card
Motherboard Battery
The motherboard uses non-volatile memory to retain system information when system power
is removed. This memory is powered by a lithium battery residing on the motherboard.
19
Chapter 2: Maintenance and Component Installation
Installing Mounting Brackets
The chassis includes mounting brackets that allow it to be mounted in any convenient space.
1. Install the brackets to the chassis with two screws in each bracket.
2. Secure the brackets to the surface where you want the server to be mounted.
Figure 2-3. Installing Mounting Brackets
(Brackets extending out from the chassis)
20
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Chapter 3
Motherboard Connections
This section describes the connections on the motherboard and provides pinout denitions.
Depending on how the system is congured, not all connections are required. The LEDs
on the motherboard are also described here. A motherboard layout indicating component
locations can be found in Chapter 1.
Review the Safety Precautions in Appendix B before installing or removing components.
3.1 Ports
LAN Ports
Two LAN ports (JLAN1 - JLAN2) are located on the I/O back panel. These ports accept RJ45
type cables. Refer to the LED Indicator section for LAN LED information. Refer to the table
below for pin denitions.
LAN Port
Pin Denition
Pin# Pin#Denition Denition
1 TD1+ YEL-11
2 TD1- 12 YEL+
3 TD2+ 13 GRN-/ORG+
4 TD2- 14 GRN+/ORG-
5 CT_VCC 15
6 CT_VCC 16
7 TD3+ 17
8 TD3- 18
9 TD4+ 19
10 TD4- 20
21
Chapter 3: Motherboard Connections
HDMI Port
The HDMI (High-Denition Multimedia Interface) port is used to display both high denition
video and digital sound through an HDMI-capable display, using the same cable.
Universal Serial Bus (USB) Ports
There are two USB 3.0 ports (USB4/5) and one USB 3.0 Type C port (USB6) on the I/O back
panel. The motherboard also has four front access USB 2.0 headers (USB0/1 and USB2/3).
The onboard headers can be used to provide front side USB access with a cable. Two USB
2.0 cables for front panel support are included with the motherboard.
Back Panel USB 3.0
Pin Denitions
Pin# Pin#Denition Denition
A1 VBUS B1 VBUS
A2 D1-N B2 D2-N
A3 D1-P B3 D2-P
A4 GND B4 GND
A5 Stda_SSRX1-N B5 Stda_SSRX2-N
A6 Stda_SSRX1-P B6 Stda_SSRX2-P
A7 GND_DRAIN B7 GND_DRAIN
A8 Stda_SSTX1-N B8 Stda_SSTX2-N
A9 Stda_SSTX1-P B9 Stda_SSTX2-P
Front Panel USB 2.0 Ports 2/3
Header Pin Denitions
Pin# Pin#Denition Denition
1 2P5V_DUAL_F P5V_DUAL_F
3 4USBCON_N4 USBCON_N5
5 6USBCON_P4 USBCON_P5
7 8Ground Ground
9 N/A 10 N/A
DP++
DisplayPort, developed by the VESA consortium, delivers digital display and fast refresh rate.
It can connect to virtually any display device using a DisplayPort adapter for devices such
as VGA, DVI, or HDMI.
3.2 LED Indicators
LAN Port LEDs
There are two LAN ports (JLAN1 and JLAN2) on the I/O back panel of the motherboard. Each
Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED
may be green, amber, or o to indicate the speed of the connection.
LAN1/2 LED
(Connection Speed
Indicator)
LED Color Denition
O 10 Mb/s
Green 100 Mb/s
Amber 1 Gb/s
22
SuperServer E100-9S/-9S-E/-9S-L User's Manual
3.3 Headers and Connectors
SATA Power Connector
The 4-pin SATA power connector JPH1 provides power to onboard HDD devices. Refer to
the table below for pin denitions.
4-pin HDD Power
Pin Denitions
Pin# Denition
1 12V
2-3 Ground
4 5V
12V Vertical Type Power Connector
JPW2 is the 12V DC power source for the X11SSN-H-WOHS/-E-WOHS/-L-WOHS
motherboard.
Required Connection
+12V Vertical Type Power
Pin Denitions
Pin# Denition
1 GND
2 GND
3 +12VSB
4 +12VSB
1
24
3
4-pin 12V R/A Type Power Connector
The R/A type power connector is located at JPW1 on the bottom side of the
X11SSN-H-WOHS/-E-WOHS/-L-WOHS motherboard. Refer to the table below for pin
denitions.
Required Connection
+12V R/A Type Power
Pin Denitions
Pin# Denition
1 GND
2 GND
3 +12VSB
4 +12VSB
1
2 4
3
1
2
3
4
23
Chapter 3: Motherboard Connections
Front Panel Audio Header
A 10-pin front panel audio header located on the motherboard allows you to use the onboard
sound for audio playback. Connect an audio cable to the this header to use this feature. Refer
to the table below for pin denitions.
Audio Header
Pin Denitions
Pin# Pin#Denition Denition
1 2Microphone_Left Audio_Ground
3 4Microphone_Right Audio_Detect
5 6Line_2_Right Ground
7 8Jack_Detect Key
9 Line_2_Left 10 Ground
COM Ports
There are four COM ports (JCOM1: COM1/COM2 supports two RS232/RS422/RS485 and
JCOM2: COM3/COM4 supports two RS232) on the motherboard. Refer to the table below
for pin denitions.
SATA Port
The X11SSN-H-WOHS/-E-WOHS/-L-WOHS has one SATA 3.0 port (I-SATA1).
Battery Connector
BT1 is a two-pin connector for an external CMOS battery. Refer to section 3.4 for battery
installation instructions. This connector is also used to clear the CMOS. To clear the CMOS,
remove the battery, short pins 1-2 for more than 10 seconds and then install the battery.
Serial COM Ports (JCOM2)
Pin Denitions
Pin# Pin#Denition Denition
1 2DCD3 DSR3
3 4RXD3 RTS3
5 6TXD3 CTS3
7 8DTR3 RI3_N
9 GND 10 N/A
11 DCD4 12 DSR4
13 RXD4 14 RTS4
15 TXD4 16 CTS4
17 DTR4 18 RI4_N
19 GND 20 N/A
Serial COM Ports (JCOM1)
Pin Denitions
Pin# Pin#Denition Denition
1
DCD1
or RS-485/422_COM1_TX- (Full Duplex)
or RS-485_COM1_Data- (Half Duplex)
2
DSR1
3
RXD1
or RS-485/422_COM1_TX+ (Full Duplex)
or RS-485_COM1_Data+ (Half Duplex)
4
RTS1
5 6TXD1 or RS-485/422_COM1_RX+ (Full Duplex) CTS1
7 8DTR1 or RS-485/422_COM1_RX- (Full Duplex) RI1_N
9 GND 10 N/A
11
DCD2
or RS-485/422_COM2_TX- (Full Duplex)
or RS-485_COM2_Data- (Half Duplex)
12
DSR2
13
RXD2
or RS-485/422_COM2_TX+ (Full Duplex)
or RS-485_COM2_Data+ (Half Duplex)
14
RTS2
15 16 CTS2TXD2 or RS-485/422_COM2_RX+ (Full Duplex)
17 18 RI_N2DTR2 or RS-485/422_COM2_RX- (Full Duplex)
19 GND 20 N/A
24
SuperServer E100-9S/-9S-E/-9S-L User's Manual
General Purpose I/O Header
The JGP1 (General Purpose Input/Output) header is an 8-bit general purpose I/O expander
on a pin header via the SMBus. Refer to the table below for pin denitions.
GPIO Header
Pin Denitions
Pin# Pin#Denition Denition
1 2P3V3SB GND
3 4GP_P3V3_GP0 GP_P3V3_GP4
5 6GP_P3V3_GP1 GP_P3V3_GP5
7 8GP_P3V3_GP2 GP_P3V3_GP6
9 GP_P3V3_GP3 10 GP_P3V3_GP7
Speaker
Connect a cable to pins 1-4 on the JD1 header to use an external speaker. Refer to the table
below for pin denitions.
Speaker Connector
Pin Denitions
Pin# Signal
1 P5V
2 NC
3 NC
4 R_SPKPIN
M.2 Slot
M.2 is formerly known as Next Generation Form Factor (NGFF) and is located at JMD1 on the
bottom side of the motherboard. The M.2 slot is designed for internal mounting devices. The
X11SSN-H-WOHS/-E-WOHS/-L-WOHS motherboard deploys a B-KEY for SATA/PCIe SSD
devices or USB/PCIe WWAN or GNSS card. The X11SSN-H-WOHS/-E-WOHS/-L-WOHS
deploys a 2280 screw hole location for an M.2 module.
System Management Bus Header
A System Management Bus header for additional slave devices or sensors is located at
JSMBUS1 on the bottom side of the motherboard. Refer to the table below for pin denitions.
SMBus Header
Pin Denitions
Pin# Denition
1 SMB_DATA
2 GND
3 SMB_CLK
4 NC
26
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specically for use
with Supermicro chassis. Refer to the gure below for the descriptions of the front control
panel buttons and LED indicators.
Power Button
1
Reset Button
2
HDD LED
Power DLE
Reset
PWR
3.3V
3.3V Stby
Ground
Ground
7 8
Power Button
The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both
pins will power on/o the system. This button can also be congured to function as a suspend
button with a setting in the BIOS (see Chapter 4). To turn o the power in the suspend mode,
press the button for at least 4 seconds. Refer to the table below for pin denitions.
Power Button
Pin Denition (JF1)
Pin# Denition
1 Power Button
2 GND
27
Chapter 3: Motherboard Connections
Reset Button
The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset
switch on the computer case to reset the system. Refer to the table below for pin denitions.
Reset Button
Pin Denition (JF1)
Pin# Denition
3 Reset
4 Ground
Power LED
The Power LED connection is located on pins 7 and 8 of JF1. Refer to the table below for
pin denitions.
Power LED
Pin Denition (JF1)
Pin# Denition
7 +3.3VSB
8 Power LED LOW
HDD LED
The HDD LED connection is located on pins 5 and 6 of JF1. Attach a cable here to indicate
the status of HDD-related activities, including SATA activities. Refer to the table below for
pin denitions.
HDD LED
Pin Denition (JF1)
Pin# Denition
5 +3.3V
6 HDD Active LOW
28
SuperServer E100-9S/-9S-E/-9S-L User's Manual
3.4 Jumper Settings
How Jumpers Work
To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector.
Pin 1 is identied with a square solder pad on the printed circuit board. See the diagram
below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for
jumper locations.
Note: On two-pin jumpers, Closed means the jumper is on and Open means the
jumper is o the pins.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
JLCDPWR1
Use this jumper to select the power voltage for the LVDS panel. Make sure that the
specications of the cable is compatible with the panel to prevent damage.
Force Power On
Use jumper JPF1 (Pins 1-2) to select the FORCE POWER ON function. The system will boot
up automatically without pressing the power button. See the table below for jumper setting
information.
LVDS Panel Power Source Selection
Jumper Settings
Jumper Setting Denition
Pins 1-3 3.3V (Default)
Pins 3-5 5V
Pins 3-4 12V
Force Power On
Jumper Settings
Jumper Setting Denition
Pins 1-2 Force Power On (Default)
Pins 2-3 PWR BTN Power On
29
Chapter 3: Motherboard Connections
Manufacturing Mode Select
Close JPME2 to bypass SPI ash security and force the system to use the Manufacturing
Mode, which will allow you to ash the system rmware from a host server to modify system
settings. Refer to the table below for jumper settings.
Manufacturing Mode
Jumper Settings
Jumper Setting Denition
Pins 1-2 Normal (Default)
Pins 2-3 Manufacturing Mode
TPM Enable/Disable
Use the JPT1 jumper to enable or disable the TPM feature. Refer to the table below for
jumper settings.
TPM Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enable (Default)
Pins 2-3 Disable
30
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Chapter 4
Software Installation
This section describes the installation of drivers and management programs for the system.
4.1 Driver Installation
The Supermicro site contains drivers and utilities for your system at https://www.supermicro.
com/wdl/driver. Some of these must be installed, such as the chipset driver.
After accessing the site, go into the CDR_Images directory and locate the ISO le for your
motherboard. Download this le to create a DVD of the drivers and utilities it contains. (You
may also use a utility to extract the ISO le if preferred.)
After creating a DVD with the ISO les, insert the disk into the DVD drive on your system
and the display shown in Figure 4-1 should appear.
Another option is to go to the Supermicro website at http://www.supermicro.com/products/.
Find the product page for your motherboard here, where you may download individual drivers
and utilities to your hard drive or a USB ash drive and install from there.
Note: To install the Windows OS, please refer to the instructions posted on our website at
http://www.supermicro.com/support/manuals/.
Figure 4-1. Driver & Tool Installation Screen
31
Chapter 4: Software Installation
Note: Click the icons showing a hand writing on paper to view the readme les for each item.
Click the computer icons to the right of these items to install each item (from top to the bottom)
one at a time. After installing each item, you must re-boot the system before moving on to the
next item on the list. The bottom icon with a CD on it allows you to view the entire contents.
4.2 SuperDoctor ® 5
The Supermicro SuperDoctor 5 is a hardware monitoring program that functions in a
command-line or web-based interface in Windows and Linux operating systems. The program
monitors system health information such as CPU temperature, system voltages, system
power consumption, fan speed, and provides alerts via email or Simple Network Management
Protocol (SNMP).
SuperDoctor 5 comes in local and remote management versions and can be used with
Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server
(SSM Server), you can remotely control power on/o and reset chassis intrusion for multiple
systems with SuperDoctor 5 or IPMI. SD5 Management Server monitors HTTP, FTP, and
SMTP services to optimize the eciency of your operation.
Figure 4-2. SuperDoctor 5 Interface Display Screen (Health Information)
33
Chapter 5: BIOS
5.2 Main Page
When you rst enter the AMI BIOS setup utility, you will enter the Main setup screen. You can
always return to the Main setup screen by selecting the Main tab on the top of the screen.
The Main BIOS setup screen is shown below. The following Main menu items are displayed:
System Date/System Time
Use this option to change the system date and time. Highlight System Date or System Time
using the arrow keys. Enter new values using the keyboard. Press the <Tab> key or the arrow
keys to move between elds. The date must be entered in Day MM/DD/YYYY format. The
time is entered in HH:MM:SS format.
Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.
Supermicro X11SSN-H-WOHS/-E-WOHS/-L-WOHS
BIOS Version; Build Date and Time
Memory Information
Total Memory: This displays the total size of memory available in the system.
Memory Frequency: This displays the memory speed.
34
SuperServer E100-9S/-9S-E/-9S-L User's Manual
5.3 Advanced Page
Use this tab page to set some boot, power, CPU, SATA, server ME, and input/output settings.
Warning: Take caution when changing the Advanced settings. An incorrect value, a very high
DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.
When this occurs, restore the setting to the manufacture default setting.
Boot Feature
Fast Boot
Enable this feature to reduce the time the computer takes to boot up. The computer will boot
with a minimal set of required devices. This feature does not have an eect on BBS boot
options in the Boot tab. The options are Disabled and Enabled.
Quiet Boot
Use this feature to select the screen display between POST messages or the OEM logo at
bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM
logo instead of the normal POST messages. The options are Disabled and Enabled.
Bootup Num-Lock
This feature selects the Power-on state for the Numlock key. The options are O and On.
35
Chapter 5: BIOS
Wait For "F1" If Error
This feature forces the system to wait until the F1 key is pressed if an error occurs. The
options are Disabled and Enabled.
Re-try Boot
If this feature is enabled, the BIOS will automatically reboot the system from a specied boot
device after its initial boot failure. The options are Legacy Boot, and EFI Boot.Disabled,
Watch Dog Function
If this feature is enabled, the Watch Dog timer will allow the system to reboot when it is inactive
for more than ve minutes. The options are Disabled and Enabled.
Power Button Function
This feature controls how the system shuts down when the power button is pressed. Select 4
Seconds Override for the user to power o the system after pressing and holding the power
button for 4 seconds or longer. Select Instant O to instantly power o the system as soon
as the user presses the power button. The options are 4 Seconds Override.Instant O and
AC Loss Policy Depend on
Use this feature to set the power state after a power outage. Select Power O for the system
power to remain o after a power loss. Select Power On for the system power to be turned
on after a power loss. Select Last State to allow the system to resume its last power state
before a power loss. The options are Stay O, Power on, and Last State.
EuP Support
EuP, Energy Using Product, is a European energy-saving specication that sets a standard
on the maximum total power consumption on electrical products. The options are Disabled
and Enabled.
37
Chapter 5: BIOS
Adjacent Cache Line Prefetch
Select Enabled for the CPU to prefetch both cache lines for 128 bytes as comprised. Select
Disable for the CPU to prefetch both cache lines for 64 bytes. The options are Disabled and
Enabled.
Intel® (VMX) Virtualization Technology
Select Enabled to use Intel Virtualization Technology to allow one platform to run multiple
operating systems and applications in independent partitions, creating multiple virtual systems
in one physical computer. The options are Disabled and .Active Processor CoresEnabled
This feature determines how many CPU cores will be activated for each CPU. When All
is selected, all cores in the CPU will be activated. Please refer to Intel's website for more
information. The options are and 1.All
Hyper-Threading
Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance.
The options are Disabled and Enabled.
BIST
Use this feature to enable or disable the built-in self test (BIST) after a reset. The options
are Disabled and Enabled.
AES
Select Enable to use the Intel Advanced Encryption Standard (AES) to ensure data security.
The options are Disabled and Enabled.
MachineCheck
Use this feature to enable or disable Machine Check. The options are Disabled and Enabled.
MonitorMwait
Select Enabled to enable the Monitor/Mwait instructions. The Monitor instructions monitors
a region of memory for writes, and MWait instructions instruct the CPU to stop until the
monitored region begins to write. The options are Disabled and Enabled.
Reset AUX Content
Use this feature to reset the TPM Aux content. Txt may not be functional after a reset. The
options are yes and no.
FCLK Frequency for Early Power On
FCLK stands for F Clock, which controls the data transfer between the CPU and GPU. The
options are Normal (800MHz), , and 400MHz.1GHz
38
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Chipset
Warning: Setting the wrong values in the following sections may cause the system to malfunc-
tion.
System Agent (SA) Conguration
• SA PCIe Code Version
• VT-d
Memory Conguration
• Memory RC Version
• Memory Frequency
• Memory Timings (tCL-tRCD-tRP-tRAS)
• Channel 0 Slot 0
• Size
• Number of Ranks
• Manufacturer
• Channel 1 Slot 0
Maximum Memory Frequency
Use this feature to select the memory frequency. The options are Auto, 1067, 1333, 1600,
1867, 2133, 2400, 2667, 2933, 3200, 3467, 3733, 4000, and 4133.
Graphics Conguration
LVDS Panel Support
Use this feature to select the supported IGFX graphics device ouput to the LVDS panel.
The options are and Enabled.Disabled
*If LVDS Panel Support is enabled, the five features below are available for
conguration:
Panel select
Use this feature to select the panel resolution. The options are , 800x600, 1024x768, Disable
1280x1024, 1366x768, 1680x1050, and 1920x1080.
39
Chapter 5: BIOS
Panel Channel Type
Use this feature to select the Panel Channel Type. The options are Disabled, Odd Channel,
Even Channel, and Both Channel.
Dual LVDS Mode
Use this feature to select a single or dual mode bus for the LVDS display. The options are
Disabled, Single LVDS Bus Mode, and Dual LVDS Bus Mode,
Panel Color Depth
Use this feature to select the panel color depth. The options are Disabled, VESA and
JEIDA18 bpp, VESA 24 bbp, and JEIDA 24 bpp.
Backlight Brightness
Use this feature to select the backlight brightness for the panel display. Select a range
from 1 to 16.
LCD Control
Primary IGFX Boot Display
Use this feature to select the type of device that will be activated during POST. The selec-
tion will have no eect if an external device is present. The options are VBIOS Default,
EFP, LFP, EFP3, EFP2, and EFP4.
LCD Panel Type
Use this feature to select the LCD panel resolution. The options are VBIOS Default,
640x480 LVDS, 800x600 LVDS, 1024x768 LVDS, 1280x1024 LVDS, 1400x1050 LVDS1,
1400x1050 LVDS2, 1600x1200 LVDS, 1280x768 LVDS, 1680x1050 LVDS, 1920x1200
LVDS, 1600x900 LVDS, 1280x800 LVDS, 1280x600 LVDS, 2048x1536 LVDS, and
1366x768 LVDS.
Panel Scaling
Use this feature to select the LCD panel scaling. The options are Auto, O, and Force
Scaling.
Backlight Control
Use this feature to select the type of backlight for the LCD panel. The options are PWM
Inverted and PWM Normal.
Active LFP
Use this feature to select the LFP conguration. The options are No eDP and eDP Port-A.
40
SuperServer E100-9S/-9S-E/-9S-L User's Manual
Panel Color Depth
Use this feature to select the LCD panel color depth. The options are 18 Bit and 24 Bit.
PCH-IO Conguration
PCH-IO Conguration
• USB Module Version
• USB Controllers
• USB Devices
Legacy USB Support
Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support
if there are no legacy USB devices present. Select Disable to have all USB devices available
for EFI applications only. The options are Enabled, Disabled, and Auto.
XHCI Hand-o
This is a work-around solution for operating systems that do not support XHCI (Extensible
Host Controller Interface) hand-o. The XHCI ownership change should be claimed by the
XHCI driver. The settings are and Disabled.Enabled
USB Mass Storage Driver Support
Select Enabled for USB mass storage device support. The options are Disabled and Enabled.
Port 60/64 Emulation
Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete
legacy USB keyboard support for the operating systems that do not support legacy USB
devices. The options are and Enabled.Disabled
USB hardware delays and time-outs:
USB transfer time-out
Use this feature to set the timeout value for Control, Bulk, and Interrupt transfers. The options
are 1 sec, 5 sec, 10 sec, and 20 sec.
Device reset time-out
Use this feature to set the timeout value for a USB mass storage device. The options are 10
sec, 20 sec, 30 sec, and 40 sec.
Device power-up delay
Use this feature to set the maximum time a device takes to report itself to the host controller.
The options are and Manual.Auto
41
Chapter 5: BIOS
Mass Storage Devices:
Sony Storage Media 0100
Enable this feature for mass storage device emulation support. Select Auto to enumerate
devices according to their media format. The options are , Floppy, Forced FDD, Hard Auto
Disk, and CD-ROM.
xDCI Support
Use this feature to enable or disable the Extensible Device Controller Interface. This feature
provides support for USB OTG devices. The options are Disabled and Enabled.
SATA Conguration
SATA Controller(s)
Use this feature to enable or disable the onboard SATA controller supported by the SoC. The
options are and Disabled.Enabled
*If the feature above is enabled, the following features are available for conguration:
SATA Mode Selection
Use this feature to select the mode for the installed SATA drives. The option is AHCI.
SATA Port 0
This feature displays the information detected on the installed SATA drive on the particular
SATA port.
• Model number of drive and capacity
• Software Preserve Support
Port 0
Use this feature to enable or disable the specied SATA port. The options are Disabled and
Enabled.
Hot Plug
Set this feature to Enabled for hot plug support, which will allow the user to replace a SATA
drive without shutting down the system The options are Disabled and Enabled.
Spin Up Device
When the value of an edge detect or the value of an image binary (pixel) of a device is from
0 to 1, select Enabled to allow the PCH to start a COMRESET initialization sequence on this
device. The options are and Enabled.Disabled
SATA Device Type
Use this item to specify if the SATA port specied by the user should be connected to a Solid
State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.
42
SuperServer E100-9S/-9S-E/-9S-L User's Manual
PCIe/PCI/PnP Conguration
Option ROM execution
Video
Use this feature to select which rmware type to be loaded for the add-on card in this slot.
The options are Do not launch, EFI, and Legacy.
Above 4G MMIO BIOS assignment
Use this feature to enable or disable the above 4GB Memory Mapped IO BIOS assignment.
The options are Enabled and Disabled.
PCIe/PCI/PnP Conguration
Mini-PCIe Slot OPROM
Use this feature to select which rmware type to be loaded for the add-on card in this slot.
The options are Disabled, , and EFI.Legacy
M.2 SLOT (B KEY) OPROM
Use this feature to select which rmware type to be loaded for the add-on card in this slot.
The options are Disabled, , and EFI.Legacy
Onboard LAN1 Controller
Use this feature to enable or disable LAN port 1. The options are and Disabled.Enabled
Onboard LAN2 Controller
Use this feature to enable or disable LAN port 2. The options are and Disabled.Enabled
Onboard LAN Option ROM Type
Use this feature to select which rmware type to be loaded for onboard LAN ports. The
options are Legacy and EFI.
Onboard LAN1 Option ROM
Use this feature to select which rmware function to be loaded for LAN port 1 used for system
boot. The options are and PXE.Disabled
Onboard LAN2 Option ROM
Use this feature to select which rmware function to be loaded for LAN port 2 used for system
boot. The options are and PXE.Disabled
Produkt Specifikationer
| Mærke: | Supermicro |
| Kategori: | Server |
| Model: | SuperServer E100-9S-E |
Har du brug for hjælp?
Hvis du har brug for hjælp til Supermicro SuperServer E100-9S-E stil et spørgsmål nedenfor, og andre brugere vil svare dig
Server Supermicro Manualer
30 Januar 2025
30 Januar 2025
11 Januar 2025
11 Januar 2025
11 Januar 2025
8 Januar 2025
28 December 2024
28 December 2024
28 December 2024
28 December 2024
Server Manualer
- Server HP
- Server Mr. Signal
- Server Infortrend
- Server Raritan
- Server Lantronix
- Server ZyXEL
- Server Valcom
- Server Cisco
- Server Freecom
- Server EXSYS
- Server KanexPro
- Server Provision-ISR
- Server Digi
- Server Atlona
- Server Netgear
Nyeste Server Manualer
7 Juni 2025
1 Juni 2025
9 Marts 2025
9 Marts 2025
9 Marts 2025
23 Januar 2025
23 Januar 2025
23 Januar 2025
23 Januar 2025
23 Januar 2025
