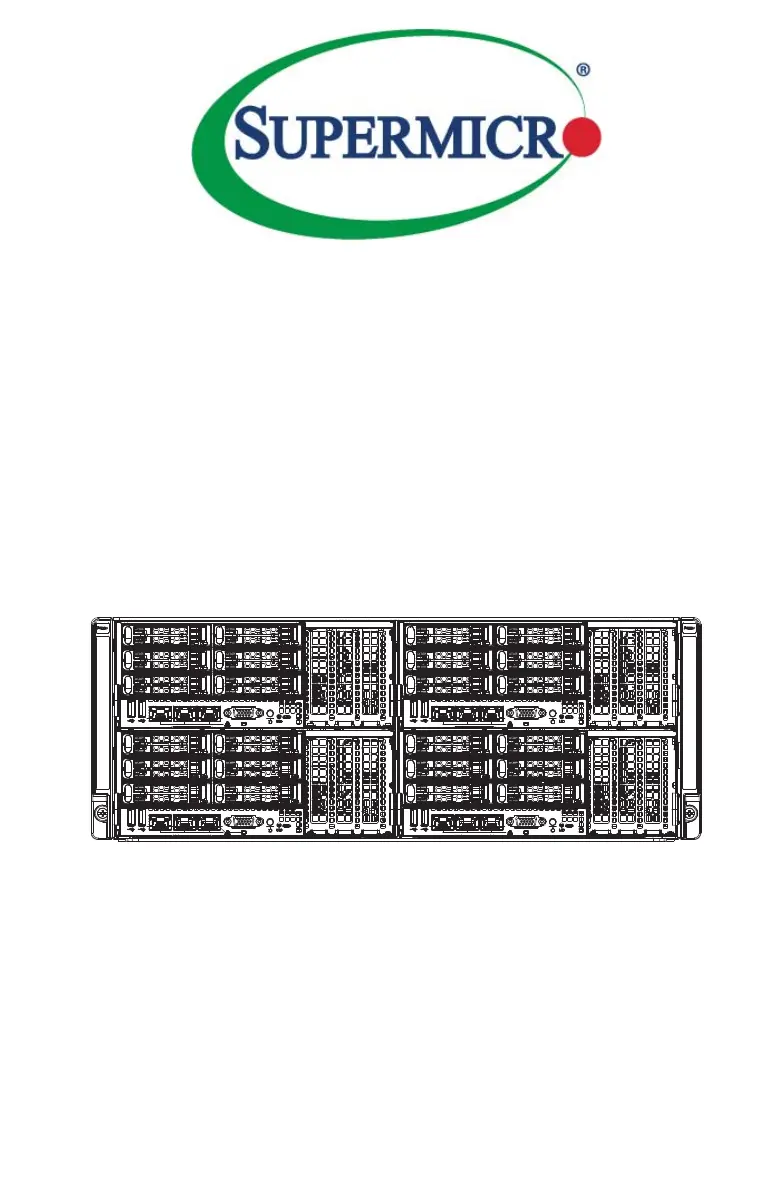

SUPERSERVER®
F628R2-FC0+
F628R2-FC0PT+
USER’S MANUAL
Revision 1.0a
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Revision 1.0a
Release Date: July 18, 2016
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2016 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
iii
Preface
Preface
About This Manual
This manual is written for professional system integrators and PC technicians.
It provides information for the installation and use of the FatTwin™
F628R2-FC0+/FC0PT+. Installation and maintenance should be performed by
experienced technicians only.
The FatTwin F628R2-FC0+/FC0PT+ is a high-end server based on the
F424BF-R1K28BP 4U rackmount chassis and a dual processor X10DRFF-CG/CTG
serverboard. All models have four serverboard nodes, each node with an IPMI
LAN port and six hot-swap 2.5" SAS or SATA Hard Disk Drives (HDD). The only
difference between both the F628R2-FC0+ and F628R2-FC0PT+ servers is that
the F628R2-FC0PT+ uses 10-Gigabit LAN ports, while the F628R2-FC0+ server
only uses Gigabit LAN ports.
Manual Organization
Chapter 1: Introduction
The fi rst chapter provides a checklist of the main components included with
the server system and describes the main features of the X10DRFF-CG/CTG
serverboards and the F424BF-R1K28BP chassis.
Chapter 2: Server Installation
Thi s chapter describes the steps necessary to install the FatTwin
F628R2-FC0+/FC0PT+ into a rack and check out the server confi guration prior to
powering up the system. If your server was ordered without processor and memory
components, this chapter will refer you to the appropriate sections of the manual
for their installation.
Chapter 3: System Interface
Refer here for details on the system interface, which includes the functions and
information provided by the control panel on the chassis as well as other LEDs
located throughout the system.
Chapter 4: Standardized Warning Statements for AC Systems
You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
FatTwin F628R2-FC0+/FC0PT+.
FatTwin F628R2-FC0+/FC0PT+ User's Manual
iv
Chapter 5: Advanced Serverboard Setup
Chapter 5 provides detailed information on the X10DRFF-CG/CTG serverboards,
including the locations and functions of connections, headers and jumpers. Refer
to this chapter when adding or removing processors or main memory and when
reconfi guring the serverboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the F424BF-R1K28BP server chassis.
You should follow the procedures given in this chapter when installing, removing or
reconfi guring SATA or peripheral drives and when replacing system power supply
units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed information
on running the CMOS Setup Utility.
Appendix A: BIOS Error Beep Codes
Appendix B: System Specifi cations
v
FatTwin F628R2-FC0+/FC0PT+ User's Manual
Notes
viii
Chapter 5 Advanced Motherboard Setup
5-1 Handling the Motherboard .............................................................................. 5-1
Precautions ..................................................................................................... 5-1
Unpacking ....................................................................................................... 5-1
5-2 Connecting Cables .......................................................................................... 5-2
Connecting Data Cables ................................................................................. 5-2
5-3 Control Panel Connectors and I/O Ports ........................................................ 5-2
5-4 Processor and Heatsink Installation................................................................ 5-3
Installing a Passive CPU Heatsink ................................................................. 5-7
Removing the Passive Heatsink ..................................................................... 5-8
5-5 Installing Memory ............................................................................................ 5-9
Removing Memory Modules ........................................................................... 5-9
Memory Support ............................................................................................ 5-10
5-6 Motherboard Details ...................................................................................... 5-12
5-7 Connector Defi nitions .................................................................................... 5-15
5-8 Jumper Settings ............................................................................................ 5-19
Explanation of Jumpers ................................................................................ 5-19
5-9 Onboard Indicators ........................................................................................ 5-22
5-10 Serial ATA and SAS Connections ................................................................. 5-24
5-11 Installing Drivers ............................................................................................ 5-25
SuperDoctor 5 ............................................................................................... 5-26
5-12 Serverboard Battery ...................................................................................... 5-28
Chapter 6 Advanced Chassis Setup
6-1 Static-Sensitive Devices .................................................................................. 6-1
Precautions ..................................................................................................... 6-1
Unpacking ....................................................................................................... 6-1
6-2 Control Panel .................................................................................................. 6-2
6-3 Removing the Power Cord .............................................................................. 6-3
6-4 Installing and Removing Hard Drives ............................................................. 6-4
Removing Hard Drives from the Front of the Node ........................................ 6-5
Installing Hard Drives into the Drive Carriers ................................................. 6-6
6-5 Node Confi gurations ....................................................................................... 6-8
6-6 Removing the Node Cover.............................................................................. 6-9
6-7 Removing and Installing the Backplane ........................................................ 6-10
Removing the Backplane .............................................................................. 6-10
Installing the Backplane .................................................................................6-11
6-8 Installing the Motherboard ........................................................................... 6-12
Compatible Motherboards ............................................................................. 6-12
Permanent and Optional Standoffs ............................................................... 6-12
FatTwin F628R2-FC0+/FC0PT+ User's Manual
6-9 Installing Front and Rear Expansion Cards .................................................. 6-14
PCI-E Slot Setup ........................................................................................... 6-14
F424BF PCI-E Slot Confi gurations ............................................................... 6-15
Installing a Front Low-Profi le Expansion Card ............................................. 6-15
6-10 Installing the Air Shroud ................................................................................ 6-16
Air Shrouds ................................................................................................... 6-16
6-11 Checking the Airfl ow ..................................................................................... 6-17
Installation Complete ..................................................................................... 6-17
6-12 Replacing System Fans ................................................................................ 6-18
6-13 Replacing the Power Supply ......................................................................... 6-19
Power Supply Replacement .......................................................................... 6-19
6-14 Power Adapter Board Replacement .............................................................. 6-20
Chapter 7 BIOS
7-1 Introduction ...................................................................................................... 7-1
Starting BIOS Setup Utility .............................................................................. 7-1
How To Change the Confi guration Data ......................................................... 7-1
Starting the Setup Utility ................................................................................. 7-2
7-2 Main Setup ...................................................................................................... 7-2
7-3 Advanced Setup Confi gurations...................................................................... 7-3
7-4 Event Logs .................................................................................................... 7-41
7-5 IPMI ............................................................................................................... 7-43
7-6 Security Settings ........................................................................................... 7-45
7-7 Boot Settings ................................................................................................. 7-46
7-8 Save & Exit ................................................................................................... 7-48
Appendix A BIOS Error Beep Codes
Appendix B System Specifi cations
ix
Table of Contents
x
Notes
FatTwin F628R2-FC0+/FC0PT+ User's Manual
1-2
FatTwin F628R2-FC0+/FC0PT+ User's Manual
1-2 Serverboard Features
At the heart of the FatTwin F628R2-FC0+/FC0PT+ lies the X10DRFF-CG/CTG,
a dual processor serverboard based on the Intel® C612 chipset and designed to
provide maximum performance. Four of these serverboards can be mounted in the
F424BF-R1K28BP chassis.
The sections below cover the main features of the X10DRFF-CG/CTG serverboard
(see Figure 1-1 for a block diagram of the chipset).
Processors
The X10DRFF-CG/CTG supports single or dual Intel® Xeon® E5-2600 v3/v4 series
processors (Socket R3 LGA 2011). Each processor supports four full-width Intel
QuickPath Interconnect (QPI) links, with support of up to 25.6 GT/s per QPI link
and with Data Transfer Rate of up to 9.6 GT/s per direction. Please refer to the
serverboard description pages on our web site for a complete listing of supported
processors (www.supermicro.com).
Memory
Each X10DRFF-CG/CTG serverboard node has sixteen (16) DIMM slots
supporting up to 2 TB of 3DS LRDIMM registered ECC or up to 1 TB
of RDIMM ECC at DDR4-2400/2133/1866/1600 MHz speeds and up to
1 GB, 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB or 128 GB size at 1.2V voltages.
See Chapter 5 for details.
Note: 128 GB size memory is only available with 3DS LRDIMMs.
Note: For the latest CPU/memory updates, please refer to our website at
http://www.supermicro.com/products/motherboard.
Serial ATA
A Serial ATA controller is integrated into the C612 to provide up to ten (10) SATA
3.0 connections, including six (6) SATA 3.0 ports supported by Intel PCH (I-SATA
0-5) and four (4) SATA 3.0 with 4 connections supported by the PCH (S-SATA 0-3) .
These drives support RAID 0, 1 and 10 capability. The SATA drives are hot-
swappable units.
Note: The operating system you use must have RAID support to enable the hot-
swap capability and RAID function of the SATA drives.
Chapter 1: Introduction
1-9
1-6 FatTwin: System Notes
As a FatTwin con guration, the FatTwin F628R2-FC0+/FC0PT+ is a unique server
system. With four system boards incorporated into a single chassis acting as four
separate nodes, there are several points you should keep in mind.
Nodes
Each of the four serverboards act as a separate node in the system. As independent
nodes, each may be powered off and on without affecting the others. In addition,
each node is a hot-swappable unit that may be removed from the front of the chassis.
The nodes are connected to the server backplane by means of an adapter card.
Note: A guide pin is located between the upper and lower nodes on the inner chassis
wall. This guide pin also acts as a “stop” when a node is fully installed. If too much
force is used when inserting a node this pin may break off. Take care to slowly slide
a node in until you hear the “click” of the locking tab seating itself.
System Power
Four 1280 Watt power supplies are used to provide the power for all serverboards.
Each serverboard however, can be shut down independently of the other with the
power button on its own control panel.
SAS/SATA Backplane/Drives
As a system, the FatTwin F628R2-FC0+/FC0PT+ supports the use of twenty-four
(24) 2.5" Hot-swap SAS/SATA drives. Each of the four backplanes in the system
works to apply system-based control for power and fan speed functions, yet at the
same time physically connects a set of six SAS/SATA drives to each backplane/
serverboard. Consequently, RAID setup is limited to a six-drive scheme (RAID
cannot be spread across all drives). See Chapter 6 for the logical hard drive and
node con guration.
2-2
FatTwin F628R2-FC0+/FC0PT+ User's Manual
2-4 Warnings and Precautions
Choosing a Setup Location
• Leave enough clearance in front of the rack to enable you to open the front door
completely (~25 inches) and approximately 30 inches of clearance in the back
of the rack to allow for suf cient air ow and ease in servicing.
• This product is for installation only in a Restricted Access Location (dedicated
equipment rooms, service closets and the like).
• This product is not suitable for use with visual display work place devices
according to §2 of the German Ordinance for Work with Visual Display Units.
Rack Precautions
• Ensure that the leveling jacks on the bottom of the rack are fully extended to
the oor with the full weight of the rack resting on them.
• In single rack installation, stabilizers should be attached to the rack. In multiple
rack installations, the racks should be coupled together.
• Always make sure the rack is stable before extending a component from the
rack.
• You should extend only one component at a time - extending two or more
simultaneously may cause the rack to become unstable.
Server Precautions
• Review the electrical and general safety precautions in Chapter 4.
• Determine the placement of each component in the rack before you install the
rails.
• Install the heaviest server components on the bottom of the rack rst, and then
work up.
• Use a regulating uninterruptible power supply (UPS) to protect the server from
power surges, voltage spikes and to keep your system operating in case of a
power failure.
• Allow any hot plug drives and power supply modules to cool before touching
them.
• Always keep the rack's front door and all panels and components on the servers
closed when not servicing to maintain proper cooling.
FatTwin F628R2-FC0+/FC0PT+ User's Manual
3-2
Control Panel Buttons
• Power: The main power button on each of the four control panels is used to
apply or remove power from the power supply to each of the four systems in
the chassis. Turning off system power with this button removes the main power,
but keeps standby power supplied to the system. Therefore, you must unplug
system before servicing. The power button has a built-in LED which will turn
green when the power is on
• UID: When used with a UID compatible motherboard, the UID button is used
to turn on or off the blue light function of the LED. This is built into the front
side of the UID button and at the rear end of each motherboard node, for those
motherboards which support it. Once the blue light is activated, the unit can be
easily located in very large racks and server banks.
Produkt Specifikationer
| Mærke: | Supermicro |
| Kategori: | Server |
| Model: | SuperServer F628R2-FC0PT+ |
Har du brug for hjælp?
Hvis du har brug for hjælp til Supermicro SuperServer F628R2-FC0PT+ stil et spørgsmål nedenfor, og andre brugere vil svare dig
Server Supermicro Manualer
30 Januar 2025
30 Januar 2025
11 Januar 2025
11 Januar 2025
11 Januar 2025
8 Januar 2025
28 December 2024
28 December 2024
28 December 2024
28 December 2024
Server Manualer
- Server C2G
- Server Western Digital
- Server Geovision
- Server AMX
- Server Vimar
- Server TAIDEN
- Server Hikvision
- Server Raritan
- Server Maxdata
- Server Lenovo
- Server Atlantis Land
- Server Kramer
- Server Sitecom
- Server Hanwha
- Server D-Link
Nyeste Server Manualer
1 Juni 2025
9 Marts 2025
9 Marts 2025
9 Marts 2025
23 Januar 2025
23 Januar 2025
23 Januar 2025
23 Januar 2025
23 Januar 2025
19 Januar 2025
