2021 Coachbuilt Motorhomes
Owners Handbook Addendum
CREATING SMILES FOR LIFE
Find out more at swiftgroup.co.uk
Pages Description
87 Fuse table updated see Fig.1
129 ‘Stays with click’ are no longer fitted in any models
143-144 (in add.) Electric bed operation see Fig.2
147 Motorhome WiFi - reference to Kon-Tiki removed and replaced with ‘where fitted’
164 Recommissioning the water system - reference to Milton removed.`it is advisable,
after a period of non-use, to flush the water system with a sterilising solution suitable
for stainless steel containers and components.’
Please see the updated details for 2021 season below:
Fig. 1 - 12V DC Protection (Fuses)
Fuse Rating Fuse Colour Description
1 25 Amps White Battery Charger
2 7.5 Amps Brown Fridge Electronics / Alarm / Alde Heating
3 10 Amps Red 12V Sockets / TV Amplifier / CV Radio
4 10 Amps Red Extractor Fans / Truma Heating
5 5 Amps Tan Appliances / Hob Ignition / Toilet
6 10 Amps Red Water Pumps / Tank Heaters
7 7.5 Amps Brown Lighting, Main Lights & Dim Channel 1
8 7.5 Amps Brown Lighting, Entry Light & Dim Channel 2
9 10 Amps Red CV Spare / Markers Lights **
10 10 Amps Red Auxiliary / Awning Light / Electric Step
11 15/20 Amps Blue/Yellow Fridge 12V ***
12 15 Amps Blue Towing 12V
13 15/20 Amps Blue/Yellow Fridge D+ ***
** Also includes motorhome en-route sockets and lighting *** Fuses 11 and 13 are 15A for under counter fridges and 20\a for fridge freezers.
Please note: Edge 412, Escape Compact 402, Escape 612, Escape 622, Kon-Tiki Sport 524 and
Kon-Tiki Sport 562 have been discontinued
Part number: 1441961
2020 Coachbuilt Motorhomes addendum.indd 12020 Coachbuilt Motorhomes addendum.indd 1 09/09/2020 16:19:5109/09/2020 16:19:51

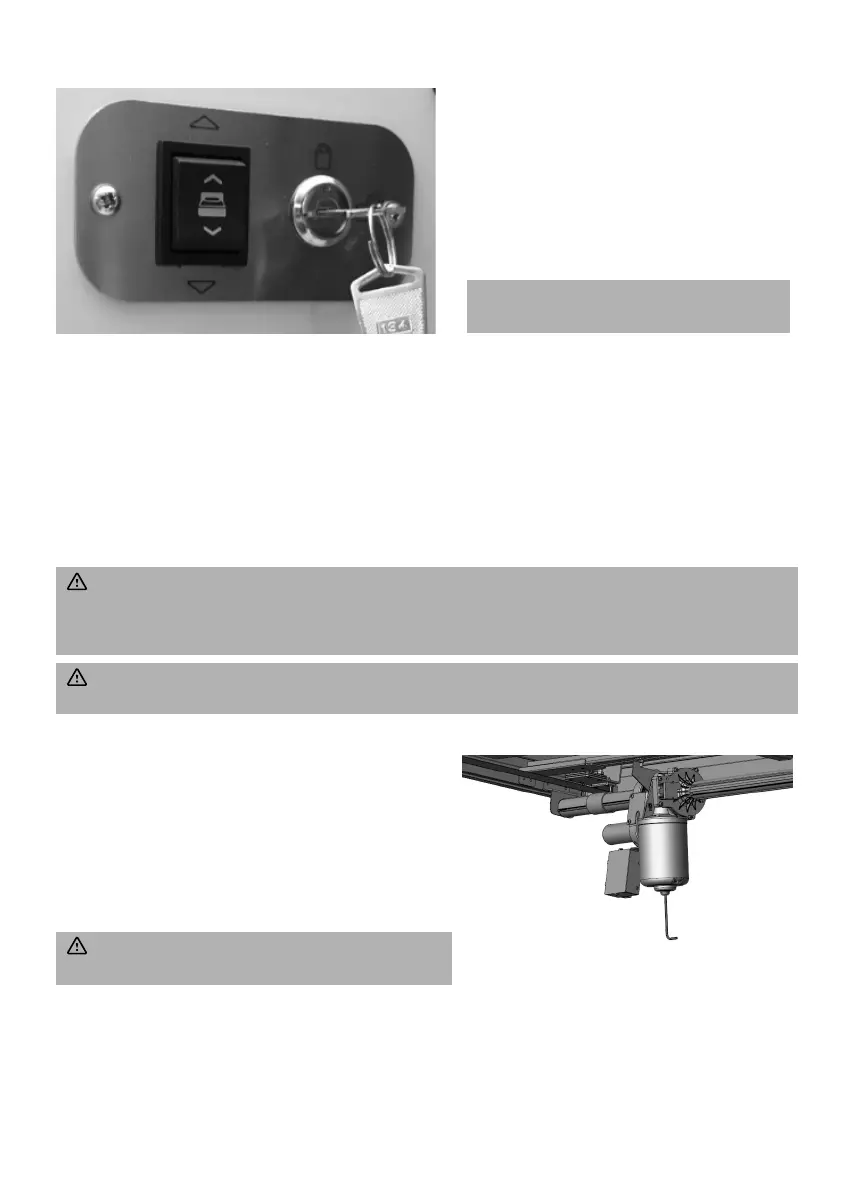

If fitted to your motorhome, the bed control
panel will be positioned next to the main
control panel located above the habitation
entrance door.
Control Panel Operation
Activate the panel by inserting the supplied
key and turning to the ‘ON’ position. To raise
or lower the bed, press the corresponding
arrow; UP (arrow up), DOWN (arrow down).
NOTE: The bed can only be operated when the
engine ignition is turned off.
The bed will continue to move while the switch is being pressed. It will stop either when the button is
released, or the pre-set stop position is reached or the end of the stroke position is reached.
Before lowering, unfasten the safety belts and ensure the bunk net catches have been released.
After raising, fasten the safety belts to secure the bed for transit. Ensure the bed is at the highest position
before fastening the belts. The safety belts must always be fastened when the vehicle is in transit.
When the bed is not in use turn the key to the ‘OFF’ position and remove the key to deactivate the control
panel.
WARNING: The bed operating mechanism should only be operated by a responsible adult. Take care to
ensure that all persons, pets and loose items are clear of the top and underside of the bed before operating
the lifting mechanism. Do not operate the lifting mechanism with a person or heavy object on the bed. Always
remove the key when the bed lifting mechanism is not in use.
WARNING: Do not touch the lifting system while the bed is being operated. Safety straps must always be
fastened when performing maintenance on the lifting system.
Manual Operation
In the event of power failure or an emergency the
bed can be operated manually. To access the motor a
Pozidriv screw driver is required to remove the screws
on the access panel located behind the locker door
under the bed. A 5mm Allen key is also required to
operate the motor. Insert the Allen key into the motor as
indicated in the diagram and turn to lift or lower the bed
as required.
WARNING: Always ensure the power is disconnected
before performing any operation on the bed lifting system.
Care points
Care must be taken to remove obstructions which will restrict the full range of movement of the
motorised drop-down bed, in particular the safety belts and bunk net catches. If an object is left in the
way when the bed is being lowered the motor will continue to run unwinding the belts. If this occurs,
immediately stop the operation and remove the obstruction. Once the obstruction is removed raise the
bed to re-tension the belts. Once the belts have been re-tensioned the bed can be lowered again.
Fig. 2 Powered Bed Mechanism (model specific)
2020 Coachbuilt Motorhomes addendum.indd 22020 Coachbuilt Motorhomes addendum.indd 2 09/09/2020 16:19:5109/09/2020 16:19:51
