Rechargeable Li-ion Battery Pack
Ver:B
Congratulations on your purchase of this product. Please read this user manual carefully.
Keep in mind the following precautions to avoid fire and other safety hazards ！
Warning
Description of appearance
Charging
Discharging
Fully charged battery will discharge naturally and please use it as
soon as it gets charged.
The battery may become warm in use or while being charged.
This is normal.
Never expose the battery to temperature above 60℃.
Keep the battery terminals clean and never short-circuit the
battery terminals.
When stored for a long time, please keep the battery power
between 50% and 90%.
Battery will automatically enter the sleep mode if rest in 10 days,
the output will be shut off. Press the button to restore output.
●
●
●
●
●
●
High performance rechargeable lithium ion battery, no memory
effect.
LCD screen display battery capacity and remaining running time.
Built in multiple control circuit, to protect the battery all-round
regarding temperature, voltage and current.
D-tap DC output, to power the camera and other equipment
simultaneously.
USB 5V/2A output, which can be used to charge mobile phones,
tablets and other portable devices.
6A fast charging (only PB-S220A/S by using SWIT fast charging
charger).
●
●
●
●
●
●
Caution
Features
USER MANUAL
SWIT Electronics Co.,Ltd.
Do not use battery in fire or hot places to prevent overheating,
cracking and other hazards.
Please do not pierce the battery shell or try to open the shell and
decompose the battery.
Do not use battery beyond charge, discharge and storage
environment temperature.
Do not charge the battery in the car or in direct sunlight.
Do not use damaged battery.
●
●
●
●
●
Do not squeeze the battery shell which may cause physical damage.
Make sure the power-consuming equipment(s) meet the battery
specifications.
Use SWIT charger or SWIT recommended charger to charge the battery to
avoid overheating or beak.
Keep out of the reach of children.
●
●
●
●

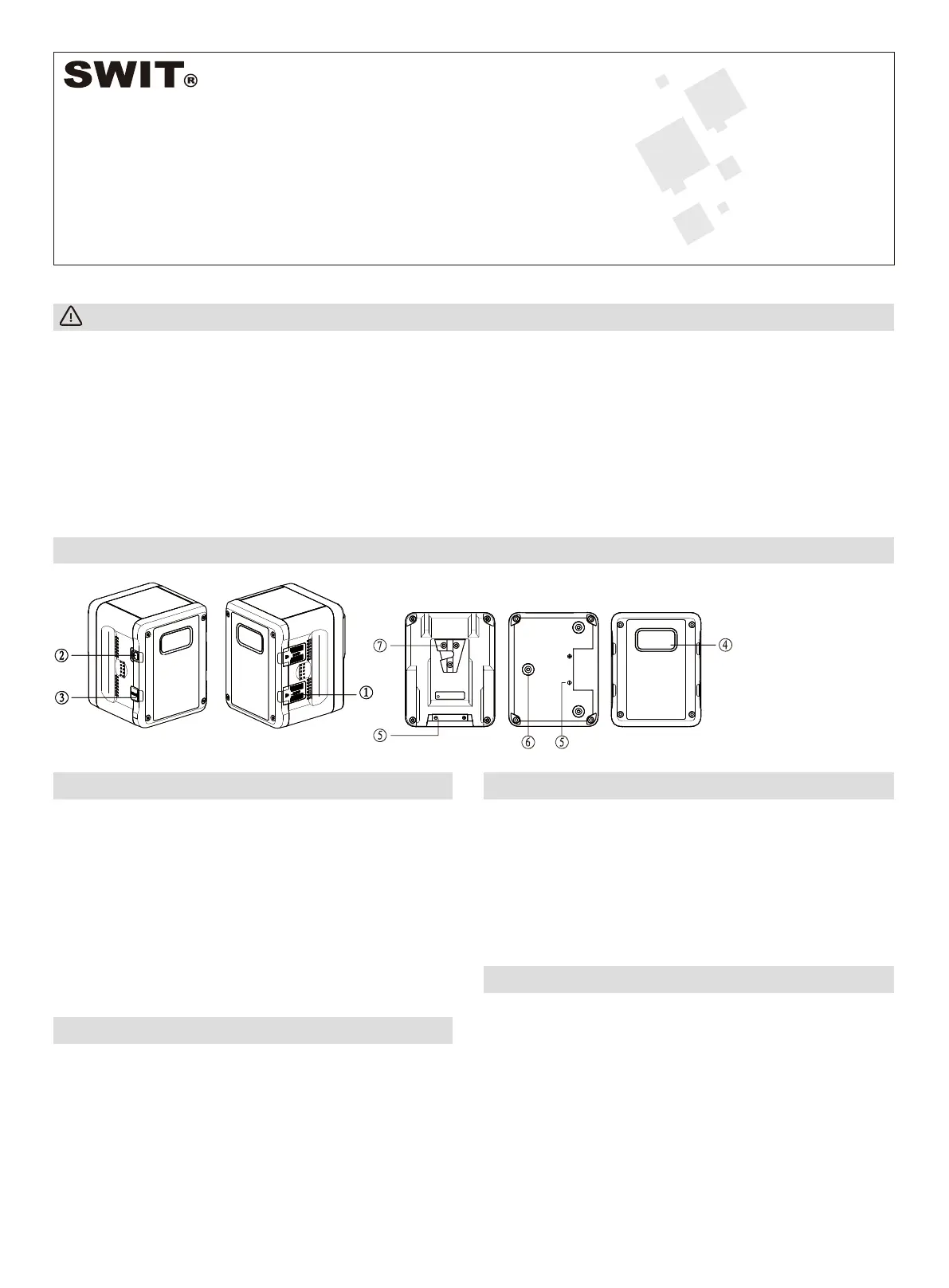

① D-TAP socket
② Button
③ USB socket
④ LCD screen
⑤ Electrode interface
⑥ Gold-mount shape lock
⑦ V-shape lock
●
●
●
After the battery is plugged into the charger, LCD flashes to
indicate the charging state.
The battery can be charged at a temperature range of 0~40℃,
but we recommend charging at a temperature range of 10~30℃
to ensure the best performance of the battery.
During battery charging, press the button to turn on the USB
output.
It is recommended to be used in the temperature range of 0~40℃ to
ensure the best performance of the battery.
During the battery discharge process,press the button to light the
backlight and to activate the USB output, the LCD displays the
battery remaining working time by default,long press 2s to switch
and lock to display the capacity percentage ,long press again to
switch back.
In low temperature, the internal resistance of the battery will
increases, the discharging time will be shortened, and the load may
be automatically cut off when the load is heavier.
The USB output will shut off if the load is too heavy, press the button
to restore.
●
●
●
●
Fig 1: PB-S220S/A

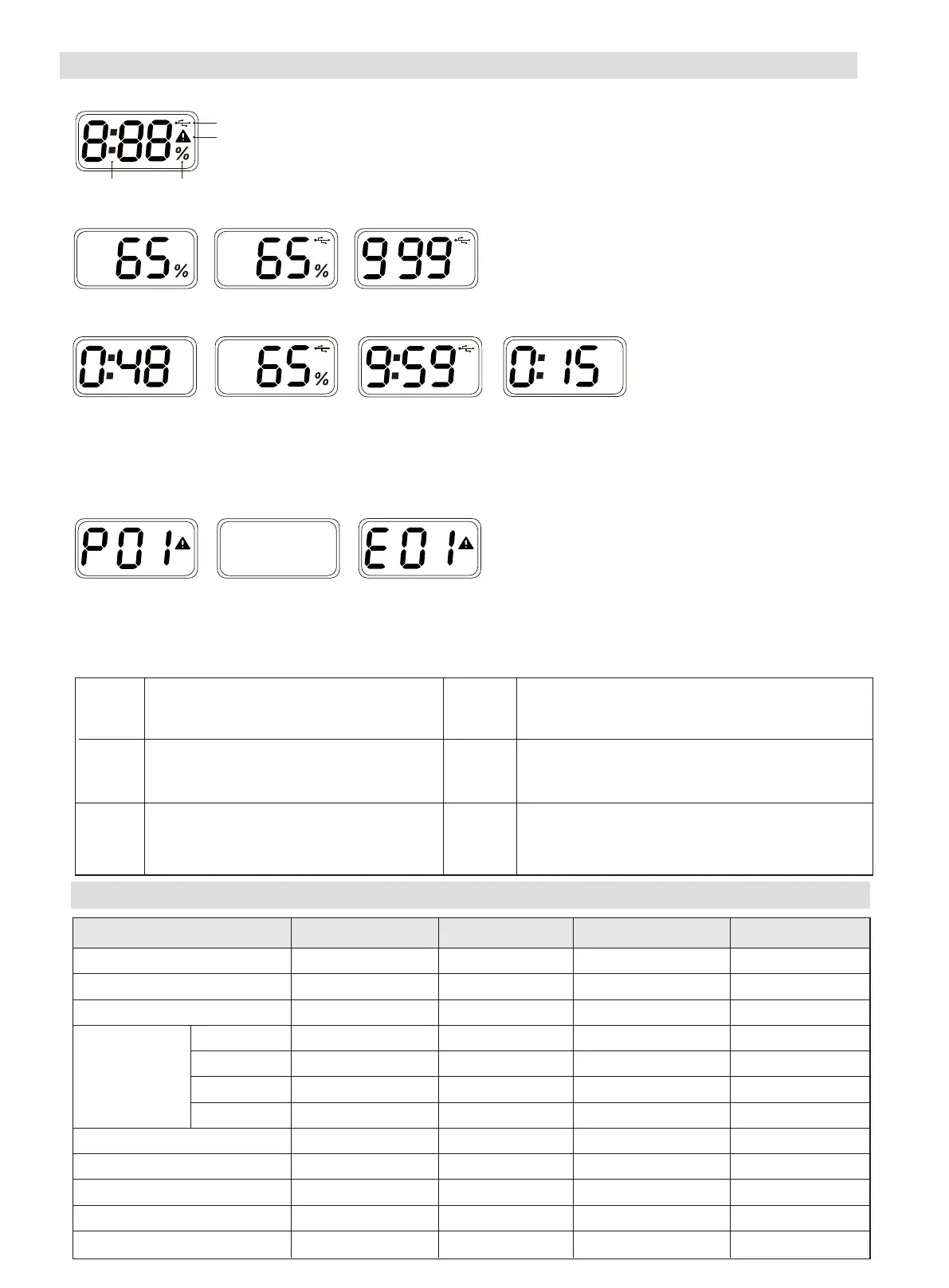

LCD display instruction
1. LCD display area
2. Battery in rest or charging status
3. Battery in discharging status
Specification
Model
Battery plate
Nominal voltage
Capacity
Max output
Dimension
Net weight
Max charging current
D-TAP socket number
USB socket number
PB-S98S
V-mount
14.4V
98Wh,6.8Ah
100W,8A
100W,8A
10W,5V/2A
100W
121×95×59mm
0.809kg
3A
2
1
PB-S98A
Gold-mount
14.4V
98Wh,6.8Ah
100W,8A
100W,8A
10W,5V/2A
100W
121×95×62mm
0.800kg
3A
2
1
PB-S220S
V-mount
14.4V
220Wh,15.3Ah
150W,12A
120W,10A
10W,5V/2A
150W
121×95×96mm
1.44kg
6A
4
1
PB-S220A
Gold-mount
14.4V
220Wh,15.3Ah
150W,12A
120W,10A
10W,5V/2A
150W
121×95×99mm
1.435kg
6A
4
1
Electrodes
D-TAP
USB
In total
P01
P03
P08 ～ P09
P02
P05 ～ P07
P10 ～ P13
Run out of power, please charge the battery
asap.
Over-current when charging, please remove
the battery, and it will restore after 30
seconds’ standing.
Battery short circuit, please make sure that
there is no foreign body between the
electrodes or remove the battery, and it will
restore after 30 seconds’ standing.
Over-voltage when charging, please remove the
battery, discharge the battery to decrease the
battery voltage to restore.
The load is too heavy, please remove the battery,
and it will restore after 30 seconds’ standing.
Temperature protection, please remove the battery
and place at room temperature to recover
① ② ③
① ② ③ ④
① ②
③
④
① Remaining working time
② Capacity percentage
③ USB output
④ Battery alarm
① Display Capacity percentage;
② Press button for 1 second to turn on the USB output,
③ Press button for 5 seconds to display battery cycle time from 0 ～ 999;
① Display remainning working time;
② Press button for 1 second to display the remaining capacity percentage and turn on the USB output;
③ remainning working time display as 0 ～ 9:59, if it is over 10hours, it will also display as 9:59;
④ If the remaining working time is lower than 15minutes, the characters on the LCD will flash to hint and the USB can not be used.
4. LCD alarm code description
① ② ③
① P01 ～ P13: The battery trigger protection function and it can be recovered;
② When the battery rests over 10 days or runs out of power,it will enter sleep mode and the LCD will not display.
③ E01 ～ E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery.
Common battery protection code:
