S-4604 3GSDI 1 to 4 Distributor

USER MANUAL

SWIT Electronics Co., Ltd.

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

E-mail: contact@swit.cc

1. Characteristics

Portable 3G/HD/SD-SDI distributor

1 SDI input, 4 SDI output

Power/Input/Output status indicators

Heavy duty housing

Bottom screw threads for installing

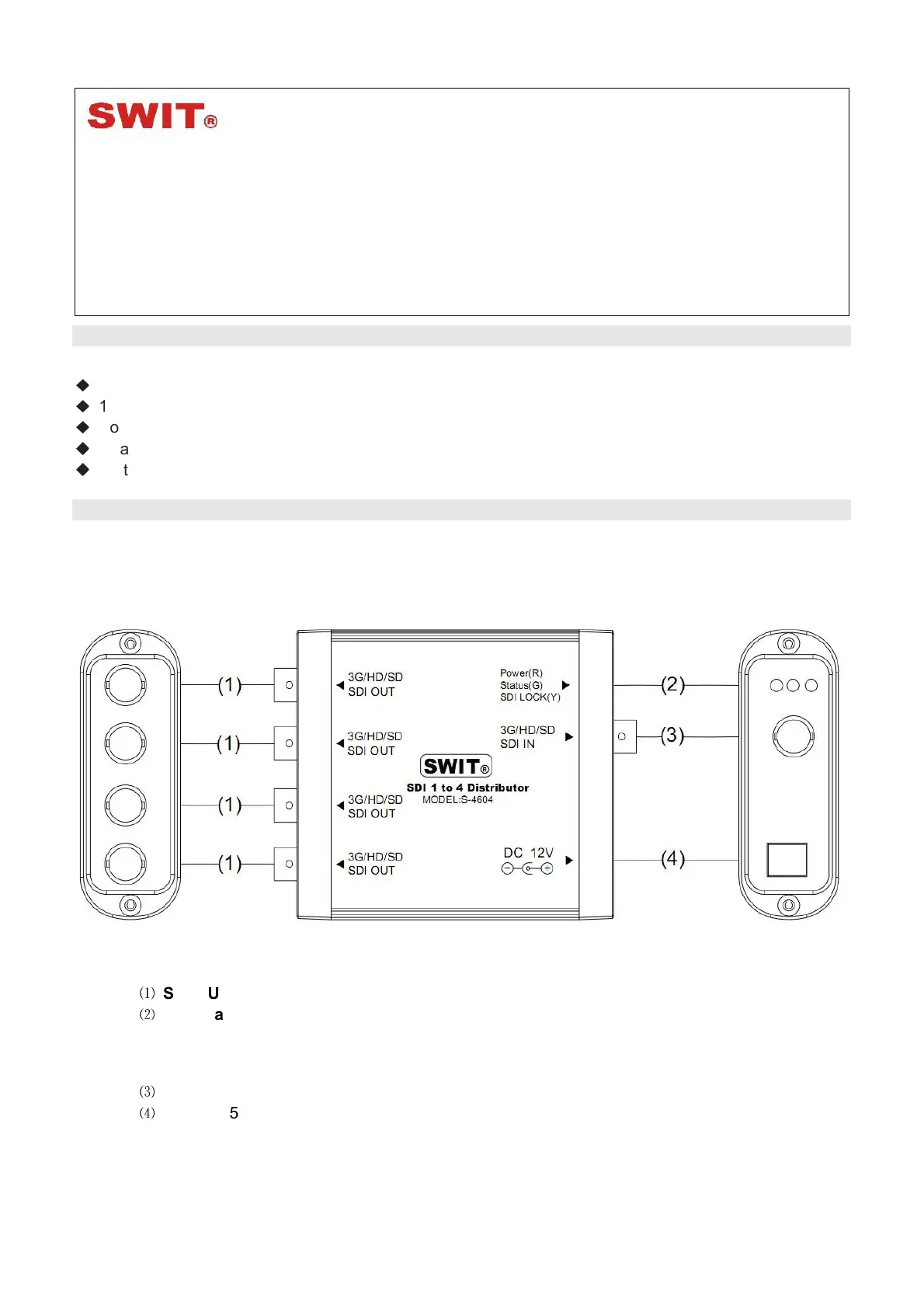

2. Product View

Left side view Front view Right side view

SDI OUT: 3G/HD/SD-SDI output (BNC)

LED status indicator:

Power (Red): Power indicator

Status (Green): Status indictor, lights on when SDI input is recognized

SDI LOCK (Yellow): SDI indicator, lights on when there’s SDI output

3G/HD/SD-SDI input (BNC) SDI IN:

DC 12V: 5.5mm pole DC input

3. Installation Plate

Installation Plate Rear View of S-4604 Installed

Screw hole 3 Screw hole 4

Screw

hole 1

Screw

hole 2

Screw hole 5 Screw hole 6

Match the screw holes 1&2 with the threads 1&2 of S-4604, and fix the installation plate to the S-4604 by the

supplied screws. The screw holes 3, 4, 5, 6 are used to install S-4604 to wall or racks.

4. Specifications

Input 3G/HD/SD-SDI×1

Output 3G/HD/SD-SDI×4

SMPTE-425M 1080p (60 / 59.94 / 50)

1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-274M 1080i (60 / 59.94 / 50)

SMPTE-296M 720p (60 / 59.94 / 50)

ITU-R BT.656 576i (50)

Format SDI

SMPTE-125M 480i (59.94)

Power ≤2W

Working Voltage DC 6-18V

Working Environment Temperature: 0°C-+70°C, Humidity:10%-90%

Dimension 105×84.15×29 mm

Net weight 210g

5. Maintenance

1. Please do not disassemble the product by yourself.

2. Keep the product away from rain or moisture.

3. Please use the provided power adapter and if you use third party power adapter, please make sure the

voltage range, supplied power, and polarity of power lead are fit.

Match thread 1

Match thread 2
