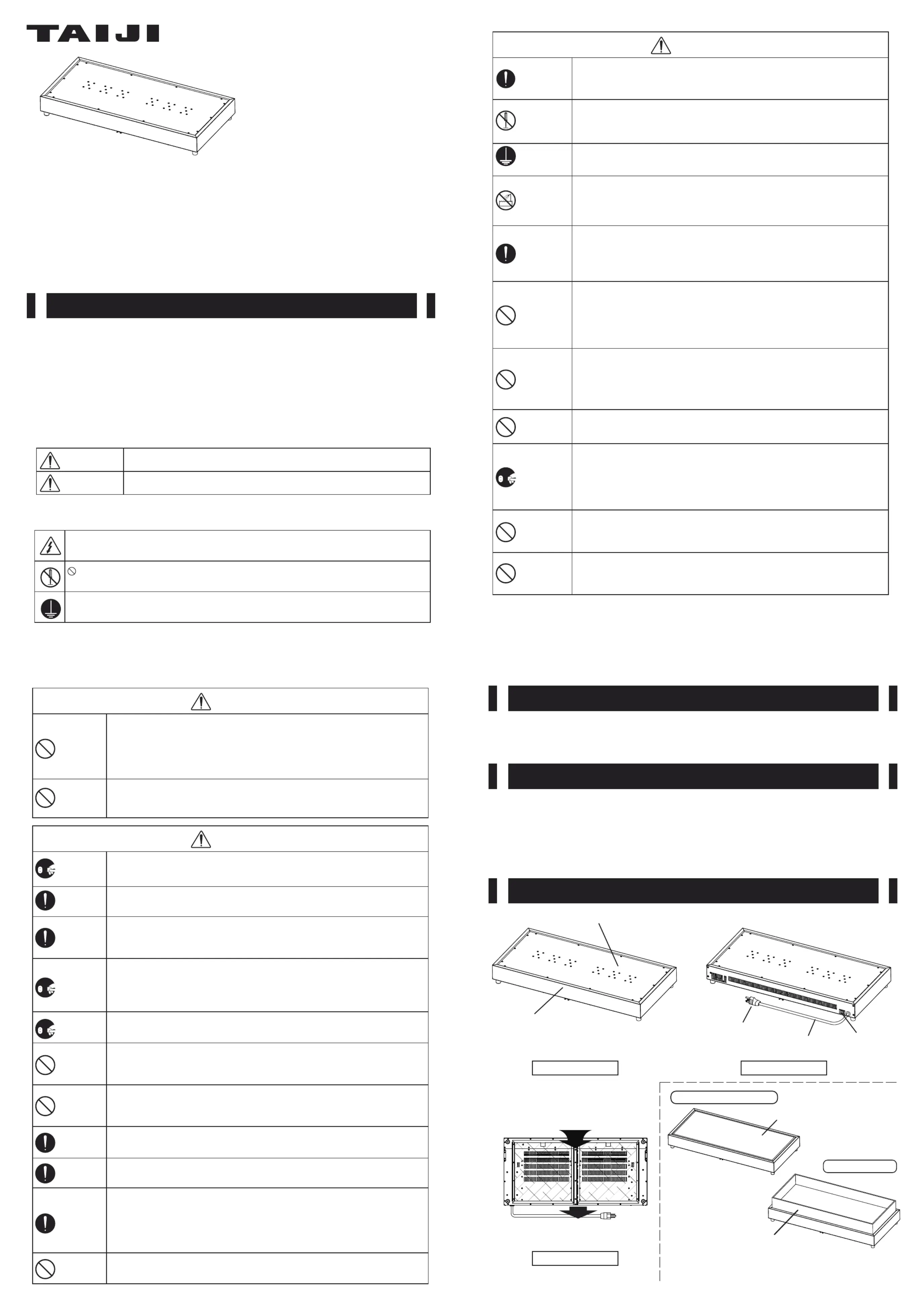

INSTRUCTION MANUAL
Thank you for purchasing the
Taiji cooling plate.
CAUTION:
To use this product safely and
properly, carefully read and fully
understand this instruction
manual before use.
2
■ Please peruse these “Safety Precautions” carefully so that you can use your
product in the proper way.
■ Please keep these “Safety Precautions” handy for future reference after being read.
■ The precautionary measures referred to herein are matters that should be abided by
for safe use and to prevent harm and/or damage being inflicted on yourself or others.
Furthermore, the particulars of the precautionary measures have been classified into
categories of “Warning” and “Caution” so as to express the degree or extent of
conceivable harm and damage that can be assumed to occur from mishandling.
The categories are both of importance as far as safety is concerned and should be
strictly abided by.
WARNING
CAUTION
Assumed to possibly result in death or serious injury
Assumed to possibly result only in bodily injury or physical damage
△ indicates “Warning and caution is urged.”
(The one on the left indicates “Beware of electrical shock.”)
　 indicates “Forbidden.”
(The one on the left indicates that disassembly is forbidden.)
A “●” mark indicates “Instructions,” which should be followed by all means.
(The one on the left indicates that grounding is a requirement.)
■ The precautionary measures that should be abided by are expressed via certain
marks and are explained as follows:
Safety Precautions
COOL PLATE
１
3
Holding the
plug while
removing it
→
CAUTION
Caution
Caution
Eliminating
moisture
When not
in use
→
Removing
the plug
→
Forbidden
Cleaning
the filter
Forbidden
Purpose of Use
This device is a cooling plate for use indoors only, designed for the purpose of
food cold storage and for food display. If you intend to use the product for
purposes other than for cooling food, please consult with us.
Operational Mechanism
Designation of Parts
Keeping
clearance
Forbidden:
Disassembly
Grounding
connection
WARNING
Forbidden:
Dousing
the device
with water
(1) This device is to be set upon a stable and flat location and
not to be moved while the plug is connected to power source.
Otherwise, abnormal performance could result.
(2) This device should never be disassembled, repaired, or modified
by anyone other than a repair technician.
Otherwise, fire or abnormal performance could result.
(3) Ensure a proper ground.
Imperfect grounding could lead to electric shock.
(4) Do not immerse this device in or douse it with water.
Otherwise, electric shock or a short-circuit could occur.
(5) Periodically confirm that the plug contacts are kept clean and
that they are firmly inserted into the power outlet.
Dust accumulation or imperfect contact could be the cause of
an electric shock or fire.
(6) Handle the power cord with care.
In case the power cord is processed, pulled, bundled, or a heavy
item is placed upon or squeezes it, the cord is apt to be damaged
and could cause electric shock or fire. The power cord should
not come into contact with a heat source.
(7) Ensure that the power source is from a dedicated outlet at AC
230V rated for at least 15A. Using branched sockets could be
the cause of abnormal heat, fire, etc.
(8)
Do not intentionally bend plug contacts to prevent the plug from
dropping out of the electric outlet. Imperfect contact could cause fire.
(9) In the event of abnormal odor or sound, the emission of smoke,
or in case water or a foreign substance should happen to enter
the cabinet, switch off the unit immediately and remove the plug
from the electric outlet.
Otherwise, electric shock and outbreak of fire could result.
(10) Do not touch or manipulate electrical parts such as the plug,
power source switch, etc., with wet hands. Otherwise, electric
shock could occur.
(11) Do not use this device outdoors. Using the product where rainfall
is present could cause electric leakage and/or electric shock.
Attention
required
for setting
Inspection
and
cleaning
Forbidden:
Wet hands
Forbidden
Forbidden:
Many loads
on one
electrical
outlet
Forbidden
Removing
the plug
→
Forbidden:
Usage
outdoors
WARNING
Attention
required
for using
Forbidden
Standard plate
Body
4
Front view Rear view
Bottom view * If you use the Acrylic case/DCR frame,
also check the specially prepared leaflet.
Model
CP-940
series
CP-940(GW): with White Glass
CP-940(GK): with Black Glass
CP-940(IB): with Acrylic case/
DCR frame
CP-940: Standard Plate
Plug
Power switch
Power cord
CP-940(GW)(GK)
CP-940(IB)
Glass top plate
Acrylic case/DCR frame
Air inlet
Exhaust outlet
(12) The disposal of this product should be performed by a specialized
contractor, a public agency, or the distributor from where the
product was purchased. (A disposal fee usually applies.) Disposal
at random could result in third-party usage for purposes other
than a food cooler, which could result in an unexpected accident.
(13) Do not allow children to use this device, and do not use it within
reach of children. Otherwise, electric shock or injury could occur.
(1) Hold the plug and not the cord when removing the plug from the
electric outlet. Not doing so could result in electric shock or fire.
(2) Do not drop this product or allow it to sustain severe shock.
Otherwise, device failure or fire may result.
(3) Discard immediately the polyethylene bag that the product was
packed inside. Keep it out of reach of children so as to prevent
incidents of suffocation.
(4) Remove the plug from the electric outlet as soon as thunder is
heard. In the event of a nearby lightning strike, abnormal
current/abnormal voltage could infiltrate through the power
source line, etc., and could possibly damage the product.
(5)
Switch off and remove the plug from the electric outlet when not in
use. Otherwise, electric shock or an electrical fire, etc., could result.
(6) Do not use the device when the power cord or plug is damaged
or when the electric outlet is loose. Usage under such conditions
could cause electric shock, short-circuit, fire, etc.
(7) Do not place heavy items on top of this product or bump
something against it. Otherwise, damage, injury, short-circuit,
electric shock, corrosion, or device failure, etc., may occur.
(8) Keep clearance around the product (100 mm or more).
The heat of the exhaust air can cause damage.
(9)
Clean the filter periodically (about once a month).
Failure to do so can cause insufficient heat release, leading a failure.
(10) Wipe off any moisture within the case as well as the body after
use and remove any foreign substances. Leaving moisture or
substances inside could cause rust and the deterioration of
cooling performance. It will also lead to malfunctioning when
used thereafter.
(11) Do not put any heavy object on the glass plate
(for the glass type only) or bump something against it.
This product cools food by activating the Peltier unit attached to the plate surface
so as to cool the plate surface to approximately 7°C. (This is the temperature at
the center of the plate surface in the condition where the room temperature is
25°C and where there is a sufficient clearance around the product.)
* The Peltier unit is the heat exchange unit that utilizes a Peltier element,
which is a type of semiconductor.
Forbidden:
Disposal
5
7

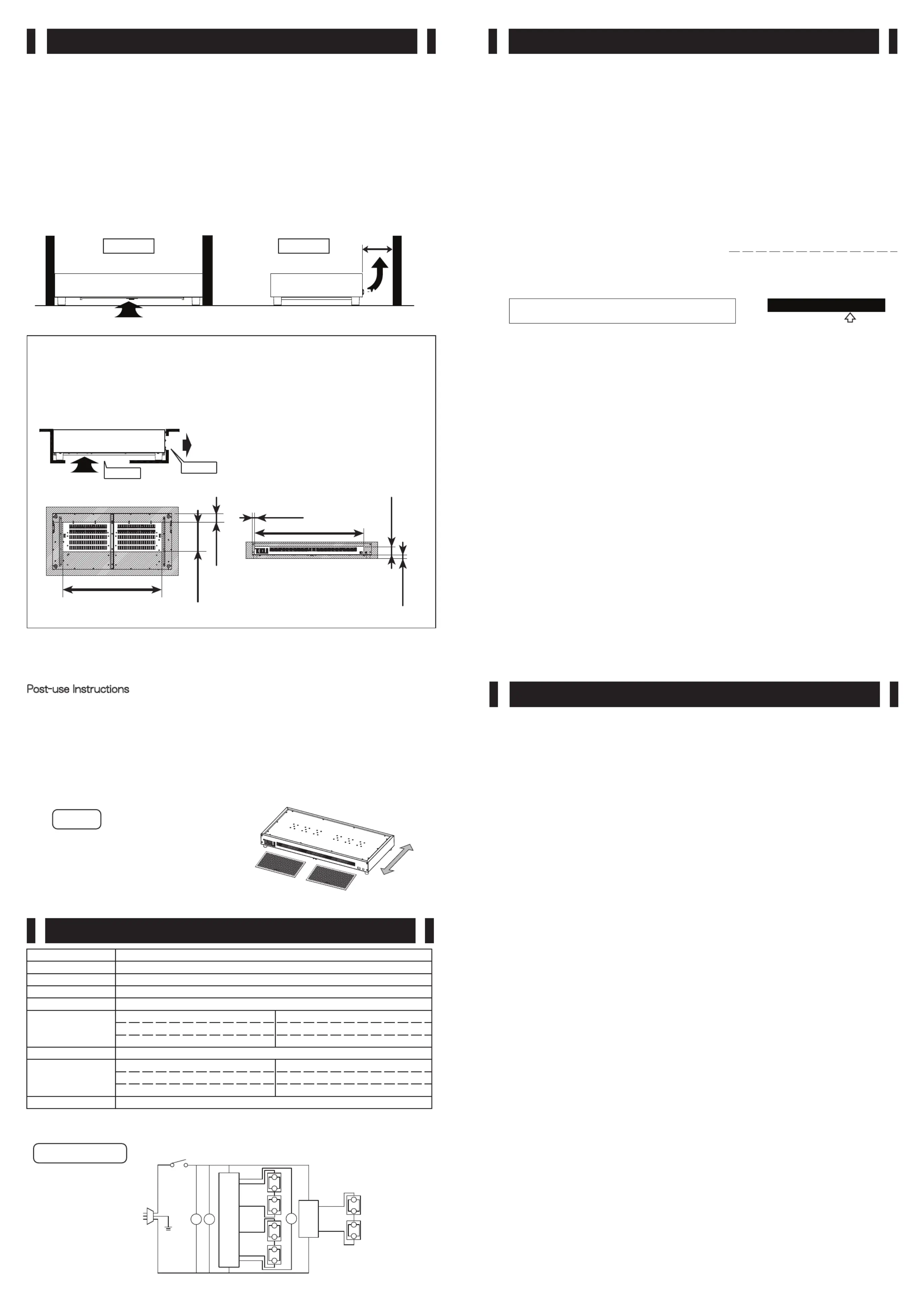

Checking Prior to Use and Setting
1. Rem e the product from the packing carton and make sure that the Instruction ov
Manual and the acc sories are included.es
2. Set up the device as per the following situation:
● At a place where the device can be flat and stable.
●
At a place where the device is not affected by heat; avoid places with direct sunlight and avoid
places near stoves, microwaves, etc. (to be set away from such units by at least 500 mm).
●
Away fro ism mo t places or where the device is susceptible to being splashed with water
● At a place where there i acs sp e all around the device, so as to allow for ventilation.
● Do not block the air inlets on the front and bottom sides of the main unit. Al do not so
block the exhaust outlet on the rear side of the main unit.
● Keep space of 100 mm or more for clearance between the rear side of the main unit
and the wall or obstacles, so as to prevent heat from being accumulated.
* If the temperature around the air inlet rises, the cooling temperature will rise or failure can result.
* Th men one di si s of the clearance shown in the figure are the minimum required fo nstallation.r i
1. As shown in the side view of the dime onnsi s of the opening below, an opening of
780 mm or more in wi h andt d 230 mm or more in depth is n deee d for the bottom side
(which has the air inlet).
Prepare the opening by positioning the side of the opening at 70 mm from the front
side of the main unit.
2. As shown in the rear view of the dime ons nsi
of opening below, an opening of 860 mm or
more in width and 65 mm or more in height is
needed for the rear side (which has the
exhaust outlet).
Prepare the opening by positioning the side of
the opening at 30 mm from the floor.
８
6
Post-u ns uctionsse I tr
1. Switch the device off and remove the plug from electric outlet.
2. Wipe of thf e liquid or dirt attached to the main unit, plate surface, glass plate surface,
or Acrylic case/DCR frame using a dry cloth or a firmly squeezed wet cloth.
* If you use a sponge, use a soft one to prevent scratching.
If you use a detergent, use a ne raut l detergent.
* As the Acrylic case/D framCR e is easy to be damaged, be careful when handling it.
* To provide good performance, the frequent cleaning of the filter is necessary.
Check whether the filter of the air inlet on the bottom side of the main unit is not clogged
with dirt. If it is clogged, remove the filter, and suck in the dirt by using a vacuum cleaner.
(1703Ａ)
Product Specifications and Circuit Diagram
Circuit Diagram
Sequence of Usage
Pull out the filter forward or backward.
* 420 mm or more of c arance from le
the main unit is needed to pull
out the filter.
100ｍm
austh
out et
E austxh
outlet
Air inlet
Front side
(to be open)
Side viewFront view
Model
CP-940
Rated voltage
Single-phase 230V, 50/60Hz
Power consumption
450W
Pe ier elementlt
Plate temperature
Ｗ ｍｍ940 ×Ｄ ｍｍ440 ×H122ｍｍ
Ｗ ｍｍ940 ×Ｄ ｍｍ440 ×H122ｍｍ
Weight
Thermo label seal, plus others (depending on your selection of optional items)
* P ase note that s cifications and appearance are subject to change thout prior notice, le pe wi
for improvement.
For built-in use
CP-940
CP-940(GW)(GK)
CP-940(IB) Ｗ ｍｍ940 ×Ｄ ｍｍ440 ×H213ｍｍ
17ｋｇ
21.5ｋｇ
24.0ｋｇ
7°C ± 5°C (35 to 53°F) (when the am ent temperaturbi e is 25°C)
W900ｍｍ×D400ｍｍ
Plate dimen onssi
CP-940
CP-940(GW)(GK)
CP-940(IB)
Accessories
P
N
P
P
N
N
P
P
N
FAN
Peltier
e mentle
DC
N
P
N
Peltier
e mentle
DC
Peltier
e mentle
DC
Power switch
Fan
AC230V
FAN FAN
Contro boardl
Control
board
The filte c be r an
pulled out either
forward r o backward.
780ｍm or more
230ｍｍ
or more
70ｍｍ
Opening Opening
860ｍm or more
65ｍｍ
or more
30ｍｍ
20ｍｍ
■ Dimensions of opening
on the rear side
■ Dimensions of the opening
on the bottom side
For after sales service, call the store where you have purchased your cool plate,
or nearest TAIJ saleI s representative or TAIJI & CO., LTD. in Japan.
If the supply cord s i damaged it must b, e replaced by th manufacturere , its service
agent similarl or y qualified persons in order to avoid a hazard.
TAIJI & CO., LTD.
8-2, Okawa-cho, Kawasaki-ku, Kawasaki-shi, Kanagawa, 210-0858 Japan
TEL : +81-44-329-6338 FA +81-44, X : -326-5860
E-mail : overseas@taiji.co.jp
UR http://L : www.taiji.co.jp/e
After-Purchase Servicing
1. If fluid or foreign materials remain on the surface of the plate or the glass plate, remove them
with a dry towel, etc.
* If li uiq d, etc., remains, fa uril e or malfunction can result.
2. Turn on the p eow r s tchwi . The Peltier unit is activated and cooling is started.
* The fan is rotated, and exhaust heat is discharged from the rear side of the main unit.
* If you use the Acrylic case/DCR frame, place it in the correct position.
3. Perform a pre mli inary operation with no food for about one hour, check that the plate is cool,
and then operate the product for actual use.
*
This device is used for keeping foods cool. Therefore, as a preliminary operation turn the ,
p eow r ON to cool the plate surface, and then use food that has been cooled in advance.
● The indication of cooling temperature is the temperature at the center of the plate surface
in the condition where the room temperature is 25°C (77°F), the device is operated with
no food on it, and the temperature becomes stable.
* The temperature of the plate surface changes depending on the room temperature or
the u gsa e co ions.ndit
When measuring the temperature of the plate
● Measure the temperature by attaching the supplied thermo label seal to the plate surface.
● The current temperature is indicated in green figures.
Measuring range:
From approx atelim y -6°C (-21°F) to 14°C (57°F)
Digital thermo label
8
D-16
℃
Current temperature
Cooling method
Outer dimensions
Filter

Produkt Specifikationer

Mærke: Taiji
Kategori: Ikke kategoriseret
Model: CP-940

Har du brug for hjælp?

Hvis du har brug for hjælp til Taiji CP-940 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Taiji Manualer

Taiji

Taiji OSL-600 Manual

14 Januar 2025
Taiji

Taiji CP-940 Manual

14 Januar 2025
Taiji

Taiji HC-6 Manual

4 Januar 2025
Taiji

Taiji HC-11UV Pro Manual

4 Januar 2025
Taiji

Taiji HC-38UV Manual

4 Januar 2025
Taiji

Taiji HC-8 Manual

4 Januar 2025
Taiji

Taiji HC-21UV Pro Manual

4 Januar 2025
Taiji

Taiji HC-11LX Pro Manual

4 Januar 2025
Taiji

Taiji CC-8 Manual

4 Januar 2025
Taiji

Taiji HC-21LX Pro Manual

4 Januar 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

ENTES

ENTES GEMO-10-DR-4G Manual

14 Juni 2025
Marshall

Marshall VAC-12SH Manual

14 Juni 2025
Rane

Rane MX 22 Manual

14 Juni 2025
Vulcan

Vulcan VCH88 Manual

14 Juni 2025
Fluke

Fluke SB140 Manual

14 Juni 2025
Blodgett

Blodgett BCT-101G Manual

14 Juni 2025
Rival

Rival 11570 Manual

14 Juni 2025
CDN

CDN MT1 Manual

14 Juni 2025
Savage Bros.

Savage Bros. FireMixer-14 Manual

14 Juni 2025
HMS Premium

HMS Premium STR01 Manual

14 Juni 2025
