TE150 / TE400
Instruction Manual
Digital
Receiving Scale
®
Leading the Way in Accuracy
This scale is engineered to give you years of satisfactory service
if you handle it carefully. Here are a few precautions:
1. Always read instructions thoroughly to ensure that you have
the full benefit of all the unit's features.
2. DO NOT immerse unit in water, as doing so will cause
damage to internal components and void the warranty. If you
spill liquid on it, dry it immediately with a soft, lint-free cloth.
3. DO NOT clean the unit with an abrasive or corrosive
material. This may scratch the plastic parts and corrode the
electronic circuits.
4. DO NOT subject the units to excessive force, shock, dust,
temperature or humidity. This may result in malfunction,
shorter electronic life span, damaged battery and distorted parts.
5. DO NOT tamper with the unit's internal components.
Doing so will invalidate the warranty on the units and may
cause damage. The unit contains no user-serviceable parts.
7. Only use fresh batteries, as old batteries may leak and cause
damage to the unit. Remove the batteries if the scale will not
be used for a long period of time.
8. DO NOT dispose of batteries in fire. Disposing of this
product in fire could cause batteries to explode or leak.
Platform Size: 8-1/16” x 5”
Power: 120V adaptor (included) or six (6) “AA” batteries (not
included)
Dimensions: 12 1/4” x 12” x 2 1/8”
Weight: 9 3/4 lbs / 4.4 kgs
Operating Temperature Range: 40°F to 104°F
Accuracy: +/-1% + 1 division
Capacity: TE150 150 lbs x 0.2 lb
150 lbs x ¼ lb
68 kgs x 0.1 kg
TE400 400 lbs x 0.5 lb
400 lbs x ½ lb
181 kgs x 0.2 kg
Overload:TE150 157.4 lbs / 71.4 kgs
TE400 420 lbs / 190.4 kgs
Platform: TE150 Stainless steel
TE400 Tread painted steel
This product is warranted against defects in materials or
workmanship for one (1) year from date of original purchase.
It does not cover damages or wear resulting from accident,
misuse, abuse, or unauthorized adjustment and/or repair.
Should this product require service (or replacement at our
option) while under warranty, please pack the item carefully
and return it prepaid, along with receipt showing date of
purchase and a note explaining reason for return to:
Taylor Precision Products
2220 Entrada Del Sol, Suite A
Las Cruces, New Mexico 88001
Customer Service Phone: 1-800-225-4834
Customer Service Fax: 1-575-526-4347
www.taylorusa.com
There are no expressed warranties except as listed above. This
warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
©2009 Taylor Precision Products and its affiliated companies, all rights reserved. Taylor®
and Leading the Way in Accuracy® are registered trademarks of Taylor Precision Products
and its affiliated companies. All rights reserved.
Made to our exact specifications in China.
NOT LEGAL FOR TRADE
TE150/TE400 11.09
Precautions
Specifications
One Year Limited Warranty
OVERLOAD
The scale can be overloaded by a maximum of 5% above the
scale's capacity, as follows:
Max Load
TE150 157.4 lb / 71.4 kg
TE400 420 lb / 190.4 kg
POWER OFF
To turn the scale off, press the “OFF” button.
Occasionally the scale's accuracy should be verified by
measuring a known weight of the scale's approximate capacity.
Tare the scale by pressing ZERO, place the weight on the
platform and note the reading. Calibrate the scale if necessary.
Calibration Procedure
You must use a CALIBRATED weight ONLY to properly
recalibrate the scale.
• For the TE150, use a 150 lb calibrated weight (or 60 kg if
operating in kilos).
• For the TE400, use a 400 lb calibrated weight (or 150 kg if
operating in kilos).
1. While the scale is off, press and hold down the
“TARE/HOLD” and “lb/kg” buttons. While holding down
both these buttons, press the “ON” button to turn the scale
on. When the display shows “8888” > “CAL”, the scale is in
calibration mode.
2. Release the buttons. The display will show “CX” with a
number (CX150 for the TE150; CX400 for the TE400).
Next the display will show a number (the zero count)
between 4700 and 6000. (Note: if operating the scale in
kilograms, the scale will instead show “C60” for the TE150
or “C150” for the TE400. If the zero count is outside the
range, please contact customer service.)
3. Press the “TARE/HOLD” button. The display will show
“XXX0”.
4. Place a calibrated weight on the scale platform.
• For the TE150, use a 150lb (or 60 kg) calibrated weight.
• For the TE400, use a 400 lb (or 150 kg) calibrated weight.
The display will show a number between 1800 and 2300 (the
span count). Note: the span count must be stable on the
display before proceeding to step 5. If the span count is
outside this range, please contact customer service
5. Press the “TARE/HOLD” button. The following will appear
on the display:
• For the TE150, the display will show “C150”> “End”>
“150.0”
(or “C60”> “End”> “60.0” if operating in kilograms).
• For the TE400, the display will show “C400”> “End”>
“400.0”
(or “C120”> “End”> “120.0” if operating in kilograms).
6. The calibration is complete. Remove the weight from the
scale.
General Operation (cont.)
Calibration Function
LCD Shows
Low Battery ••••••••••••••••••• bAtt
Load is greater than
Maximum Overload ••••••••••••• oooo
Display Signals
Thank you for purchasing a Taylor® Digital Receiving Scale.
Your scale is an example of superior design and craftsmanship.
In order to optimize its function, be sure the read this
instruction manual carefully before use. Keep instructions
handy for future reference.
• LCD Screen
1.0” digits display weight.
• Tare/Hold Button
When pressed once, the scale will tare (zero out) the weight
on the platform. When presses and held for 3 seconds, the
weight will continue to display, even after the weight is
removed.
• lb/kg Button
When pressed, the weight display converts from
pounds to kilograms.
• On Button
When pressed, turns the scale .“ON”
• Off Button
When pressed, turns the scale .“OFF”
• Auto Shut Off
Powers off after 2 minutes of non-use.
• Low Battery Indicator
Appears on LCD screen when battery is low.
• Cord
6' coiled cord.
• Control Panel
Can be stationary or mounted to a wall.
• Platform
Model TE150 has a stainless steel finish.
Model TE400 has a tread painted steel finish.
1. Remove the scale from its box, along with the control panel
and the 120V adaptor.
2. If using the 120V adaptor, plug one end into the receptacle
(connector) at the rear of the scale. Insert the other end (the
transformer) into a 120V outlet.
To disable the 2 minute auto-shut off feature:
1. While the scale is off, press and hold “ ”, then press lb/kg
“ ”. ON
2. 8888 A_oFThe LCD shows “ ”, then “ ”. Release the buttons.
The scale shows will show “ ”. The auto-off is disabled. 0.0
3. To enable the auto-off feature, repeat Steps 1 and 2. The
LCD shows “ ”, then “ ”, then “ ”. The auto off 8888 A_on 0.0
is enabled.
The Digital Receiving Scale operates with 6 “AA” batteries, not
included (alkaline recommended).
1. Place the scale upright
on a flat surface. Lift
the platform cover
from the top of the scale.
2. Remove the battery
compartment door and
insert batteries into the
compartment.
3. Replace the
compartment door.
Replace the platform
cover on the scale.
POWER
To turn the scale on, press the button marked “ON”. The
display will first show “8888” followed by “0.0”. The scale is
ready for use.
WEIGHING
When the display shows “0.0”, the scale is ready to weigh an
object. If the object exceeds the capacity of the scale by more
than 5%, the display will show “oooo” (for overload). Until the
overload condition is reached, additional objects may be placed
on the platform. The display will show the sum of the weights
of all the objects. When one of multiple objects is removed
from the platform, the weight of the remaining objects will
display.
TARE OPERATION
To tare (zero out) a load on the platform (example: the weight
of a container), press the “TARE/HOLD” button. The display
will show the value “0.0”. During the “TARE” mode, a new
item can be added to the platform. The display will show the
sum of the weights of the added items. Another item may be
added, if desired. The display will show the sum of all
additional item weights above and beyond the tared out load.
TARE CAPABILITY
A load of up to the capacity of the scale can be tared (zeroed
out), while still allowing the weighing of an additional object,
up to the full capacity of the scale.
Example: Model TE150 has a capacity of 150 lbs. If an item
weighing 20 pounds is on the scale, and the weight is tared
(zeroed out), and additional load or loads of up to 130 lbs can
be weighed. (On a 10 pound scale (TE10), a load of 5 lbs
(50%) can be tared out.
MINUS WEIGHT
If a weight is tared (zeroed out) and is then removed from the
platform, the display will show a minus value.
For example, if a load of 50 lbs is placed on the platform and
the “TARE/HOLD” button is pressed, the display will show
“0.0”. If the weight is then removed from the platform, the
display will show “-50.0”. If the minus value exceeds -99.9 lbs,
the display will show “----“.
To reset the minus weight to zero, press the “TARE/HOLD”
button.
HOLD OPERATION
The “HOLD” function may be used to lock the weight on the
display, even after the load is removed from the platform.
To use the hold function, press and hold the “HOLD” button
for 3 seconds. The display will show “ ”, indicating the H-on
hold feature is on.
To cancel the hold function, press and hold the “HOLD”
button for 3 seconds. The display will show “ ”, indicating H-oF
the hold feature is off.
When the Hold function is on, the weight will continue to
display, even after the item has been removed from the
platform.
UNIT CONVERSION
Press the “lb/kg” button on the front panel to switch between
pound and kilogram units of measurement. A small triangle
appears in the upper left corner of the display for kg mode, or
on the lower left corner for lb mode.
1. Mount the bracket to a wall using 2 screws (not included)
that are appropriate anchors for the mounting surface.
2. Lower the control panel into the mounted bracket. Insert the
flat tip of the included screws through the round holes in the
mounting bracket. Drive the screws into the existing
threaded hold in the lower half of the control panel to
secure the control panel to the bracket.
Description of Parts
Main Features
Before You Begin
Auto Shut-Off Feature
Battery Installation General Operation
Mounting the Scale
Display and Function
YOUR SCALE IS NOW READY FOR USE

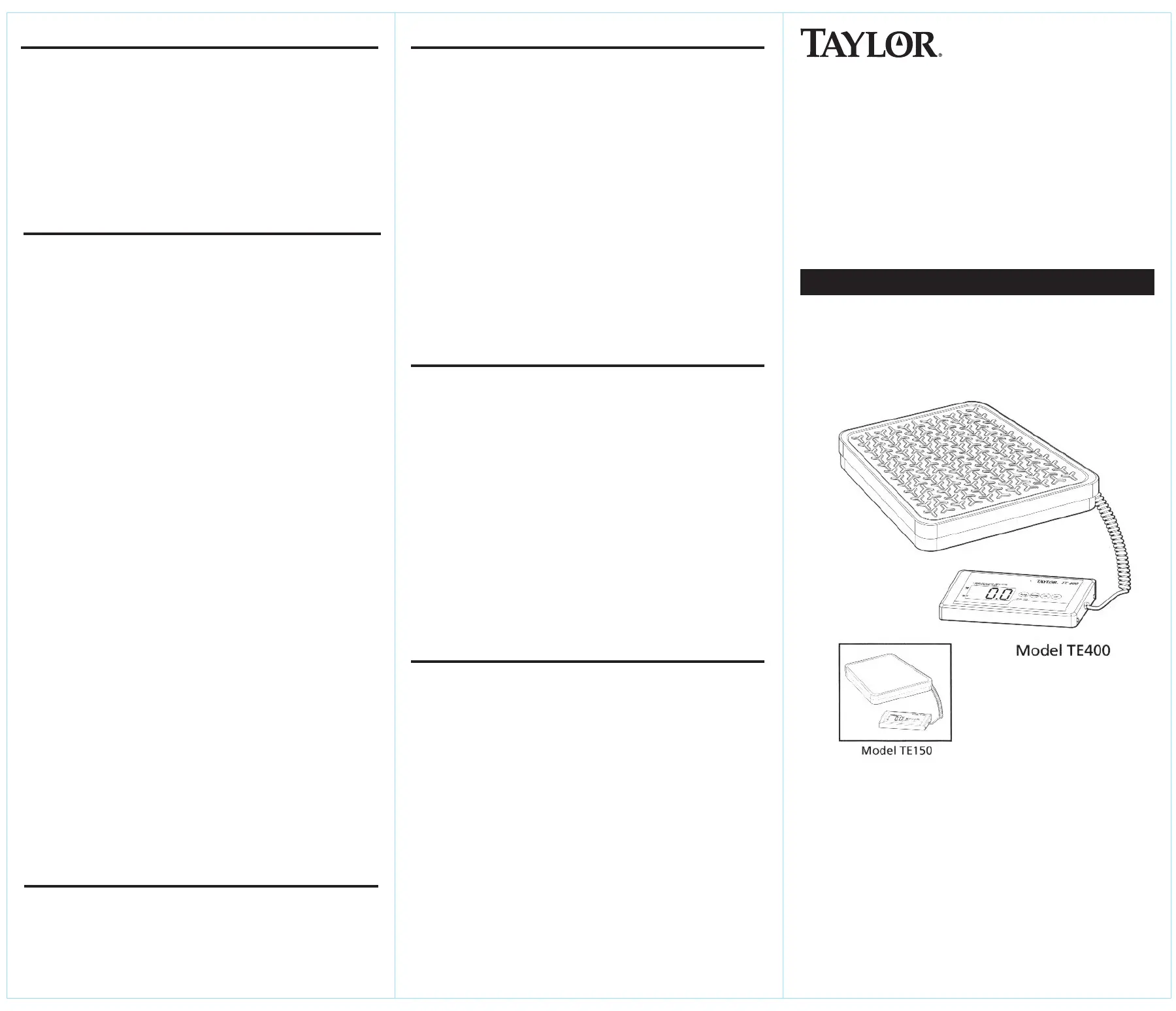

Model TE400 Shown

Produkt Specifikationer

Mærke: Taylor
Kategori: Vægten
Model: TE150

Har du brug for hjælp?

Hvis du har brug for hjælp til Taylor TE150 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Vægten Taylor Manualer

Taylor

Taylor 5282544 Manual

9 September 2024
Taylor

Taylor 5302876 Manual

9 September 2024
Taylor

Taylor 5283423 Manual

9 September 2024
Taylor

Taylor 5301388 Manual

9 September 2024
Taylor

Taylor 5308597 Manual

9 September 2024
Taylor

Taylor 755841933B Manual

25 August 2024
Taylor

Taylor 755841933SB Manual

25 August 2024
Taylor

Taylor 578040733FW Manual

25 August 2024
Taylor

Taylor 73404072 Manual

25 August 2024
Taylor

Taylor 74054102 Manual

25 August 2024

Vægten Manualer

Nyeste Vægten Manualer

Kern

Kern PCD 300-3 Manual

1 April 2025
Kern

Kern FCE 3K-3A Manual

30 Marts 2025
Kern

Kern TEFS 500-2-A Manual

30 Marts 2025
Kern

Kern MPL 200K-1P Manual

30 Marts 2025
Kern

Kern TGC 500-1S05 Manual

29 Marts 2025
PCE Instruments

PCE Instruments PCE-BSK 5100 Manual

28 Marts 2025
PCE Instruments

PCE Instruments PCE-PB 150N Manual

14 Marts 2025
PCE Instruments

PCE Instruments PCE-BSH 10000 Manual

14 Marts 2025
PCE Instruments

PCE Instruments PCE-MA 202 Manual

14 Marts 2025
PCE Instruments

PCE Instruments PCE-PCS 6 Manual

14 Marts 2025
