This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
V1/2021
OSLO SERIES
ELEGANCE SERIES
COPENHAGEN SERIES
USER MANUAL
Wine Coolers
--CONTENTS--
01 ENERGY SAVING AND ECOLOGICAL PROTECTION
02 IMPORTANT SAFETY INFORMATION
05 SCRAPPING OLD APPLIANCES
05 Conformity
05 Energy Saving
06 Service
06 DESCRIPTION OF APPLIANCE & INSTALLATION
06 OZ45SB / OZ45SX / OZ45SW
08 OZ45SBTOP
09 OZ60SB / OZ60DB / OZ60DW / OZ60DX
10 OZ90SB / OZ90DB / OZ90DW / OZ90DX
12 OZ124SB / OZ124DB / OZ124DW / OZ124DX
14 OX15SRB
14 OX30DRB / OX30DRW / OX30DX
15 CPROX60SRB / CPROX60SX
16 OX60DRB / OX60DRW / OX60DX
16 EX60DRB / EX60DRW / EX60DX
17 CPRO1800SRB / CPRO1800SX
18 E1000DRB / E1000DRW /E1000DX
19 ACCESSORY INSTALLATION BEFORE OPERATING
19 UNPACKING AND CLEANING THE WINE COOLER
19 Adjusting the height and levelling o your wine cabinet
20 Installing The Handle
21 LOCK & UNLOCK THE DOOR (FOR OPTION)
21 OPERATING THE WINE COOLER
21 WORKING CLIMATE
21 WINE STORAGE

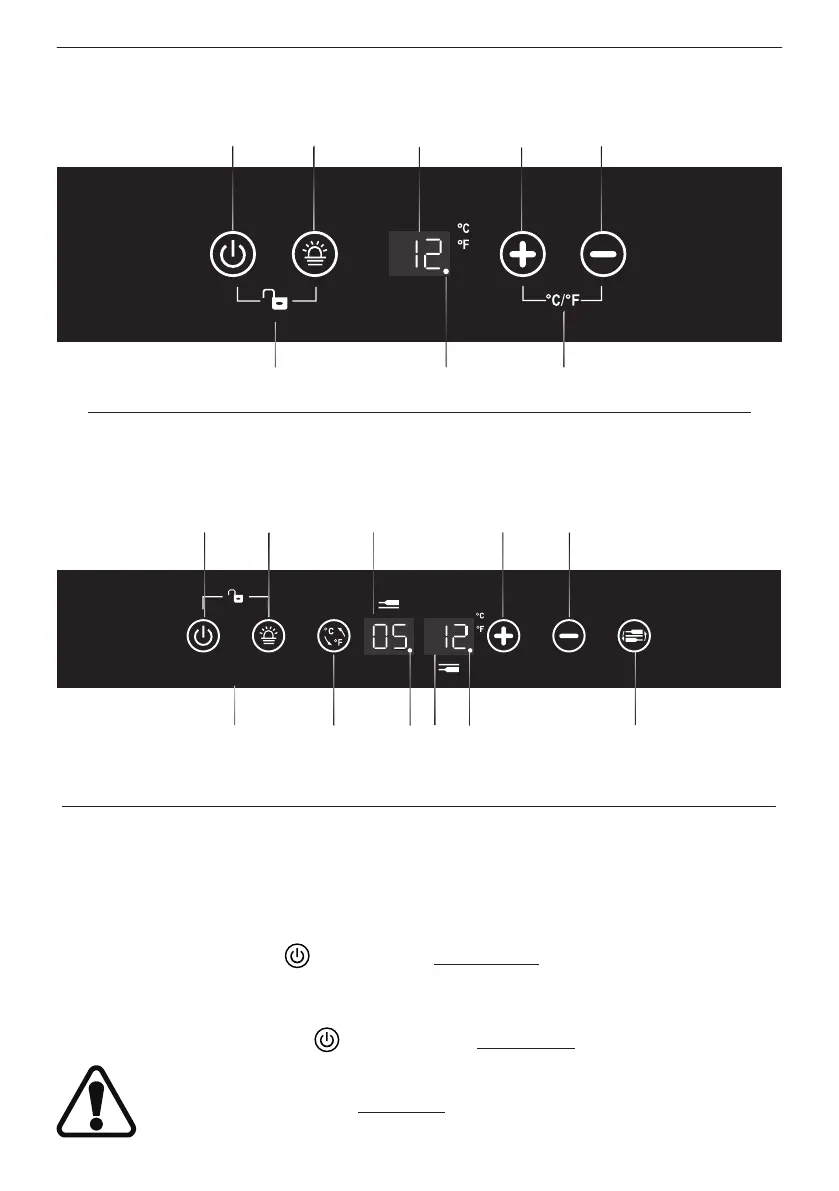

23 CONTROL PANEL (Fixed Speed Compressor Control In Cabinet)
23 POWER ON/OFF CONTROL
24 UNLOCKING THE CONTROL PANEL
24 INTERIOR LIGHTING ON/OFF CONTROL
24 TEMPERATURE DISPLAY WINDOW
24 TEMPERATURE SETTING
25 SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
25 FUNCTION INDICATING LIGHT
26 CONTROL PANEL ( Inverter Compressor Control In Cabinet)
26 POWER ON/OFF CONTROL
27 UNLOCKING THE CONTROL PANEL
27 INTERIOR LIGHTING ON/OFF CONTROL
27 RGB LIGHTING CONTROL
28 TEMPERATURE DISPLAY WINDOW
28 TEMPERATURE SETTING
28 SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
29 SELECTING SET TEMPERATURE & ACTUAL TEMPERATURE
29 SELECTING ENERGY SAVING MODE
29 FUNCTION INDICATING LIGHT
31 POWER ON/OFF CONTROL
31 INTERIOR LIGHTING ON/OFF CONTROL
31 UNLOCKING THE CONTROL PANEL
31 SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
32 TEMPERATURE SETTING
32 TEMPERATURE DISPLAY WINDOW
33 CARE AND MAINTENANCE
33 CLEANING THE WINE COOLER
34 REMOVING THE SHELVES
34 Carbon Filter Change (Option)
35 Defrosting
35 Moving Your Wine Cooler
35 Power Failure
36 Vacation Time
36 Disconnecting From Power
37 TROUBLESHOOTING
38 REVERSE THE DOOR SWING
38 For Built In Series (Except OZ45SBTOP)
40 For Built Under Series (Control in Cabinet)
45 CPRO1800SRB / CPR01800SX
49 INSTALL REMOVABLE FRONT GRILLE
51 DOWNLOAD OTHER LANGUAGE USER MANUAL
.01.
Please removed all packaging, stickers and films from the products surface and clean the
product’s surfaces with a damp cloth and mild deturgent before using for the first time.
Let the appliance stand upright for approximately
24
hours before connecting it to the
power source, which helps to reduce the possibility of a cooling-system malfunction from
handling during transportation.
Before using your Wine Coolers, please carefully read this instruction manual
in order to maximize its performance. Store all documentation for subsequent
use or for other owners.This product is intended solely for household use or similar
applications such as:
--the kitchen area for personnel in shops, oces and other working environments
--on farms, by clientele of hotels, motels and other environments of a residential type
--at bed and breakfasts (B & B)
--for catering services and similar applications not for retail sale.
This appliance is intended to be used exclusively for the storage of wine or beverage,
any other use is considered dangerous and the manufacturer will not be responsible for
any omissions. Also, it is recommended that you take note of the warranty conditions.
ENERGY SAVING AND ECOLOGICAL PROTECTION
Please pay attention to the following special instructions for saving energy
and ecological protection:
(a) The most energy-saving configuration requires shelves to be
positioned in the appliance, please refer to the corresponding pictures in
the manual.
(b) Please follow all the instructions in this manual on where and how
to store wines in a the appliance for best preservation over the longest
period, to avoid food waste;
(c) Please follow all the instructions in this manual on the recommended
setting of temperatures in each compartment for optimum food
preservation.
(d) An estimation of the impact of temperature settings on food waste: for
the best storage time of wines, please consult your wine labels; the best
storage time may reduce under other un-recommended temperature
settings.
(e) The appliance has no special modes and features that can affect
temperatures.
(f) This appliance is intended to be used exclusively for the storage of
.02.
INSTRUCTION MANUAL
wine
(g) Please follow all the instructions in this manual for the correct
installation and end-user maintenance, including cleaning, of the
refrigerating appliance;
(h) FOR a free standing appliance: this refrigerating appliance is not
intended to be used as a built-in appliance.
(i) This refrigerating appliance is not suitable for freezing foodstuffs.
(j) Access to professional repair: https://service.temptech.no/
(k) Ordering spare parts: Please send emails to Service@temptech.no
(l) The minimum period during which spare parts, necessary for the repair
of the appliance, are available:
Thermostats, temperature sensors, printed circuit boards and light sources
are available for a minimum period of seven years after placing the last
unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of
seven years and door gaskets for a minimum period of 10 year, after
placing the last unit of the model on the market
(m) The minimum duration of the guarantee of the refrigerating appliance
offered by the manufacturer, importer or authorised representative:
Minimum guarantee is: 5 years for Norway, Sweden, Finland and Denmark.
(n) For appliances with climate class :
- Extended temperate: ‘this refrigerating appliance is intended to be used
at ambient temperatures ranging from 10 °C to 32 °C’;
- Temperate: ‘this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 32 °C’;
- Subtropical: ‘this refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 38 °C’;
- Tropical: ‘this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 43 °C’;
(o) How to nd the model information in the product database: Please visit
our website https://temptech.no/ to nd the instruction about how to nd
production information in EU database.
IMPORTANT SAFETY INFORMATION
The Wine Coolers contains a refrigerant gas (R600a: isobutane) and
insulating gas (cyclopentane), with high compatibility with the environment,
that are, however, in
ammable.
.05.
SCRAPPING OLD APPLIANCES
This appliance is marked according to the European directive 2012/19/EU
on Waste Electrical and Electronic Equipment (WEEE).
WEEE contains both polluting substances (which can cause negative
consequences for the environment) and basic components (which can
be re-used). It is important to have WEEE subjected to specic treatments,
in order to remove and dispose properly all pollutants, and recover and
recycle all materials.
Individuals can play an important role in ensuring that WEEE does not
become an environmental issue; it is essential to follow some basic rules:
--WEEE should not be treated as household waste;
--WEEE should be handed over to the relevant collection points managed
by the municipality or by registered companies. In many countries, for
large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be
returned to the retailer who has to collect it free of charge on a one-to-one
basis, as long as the equipment is of equivalent type and has the same
functions as the supplied equipment.
Conformity
By placing the marking on this product, we declare, on our own responsibility,
compliance to all of European safety ,health and environmental requirements stated in
the legislation for this product.
Energy Saving
--Always ensure good ventilation. Do not cover ventilation opening or grille.
--Always keep fan louvers clear.
--Do not place appliance in areas of direct sunlight or close to a stove,
heather or similar object.
--Open or keep the doors open as little as possible
--Remove dust present on the rear of the appliance
.06.
INSTRUCTION MANUAL
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Customer Care Department
DESCRIPTION OF APPLIANCE & INSTALLATION

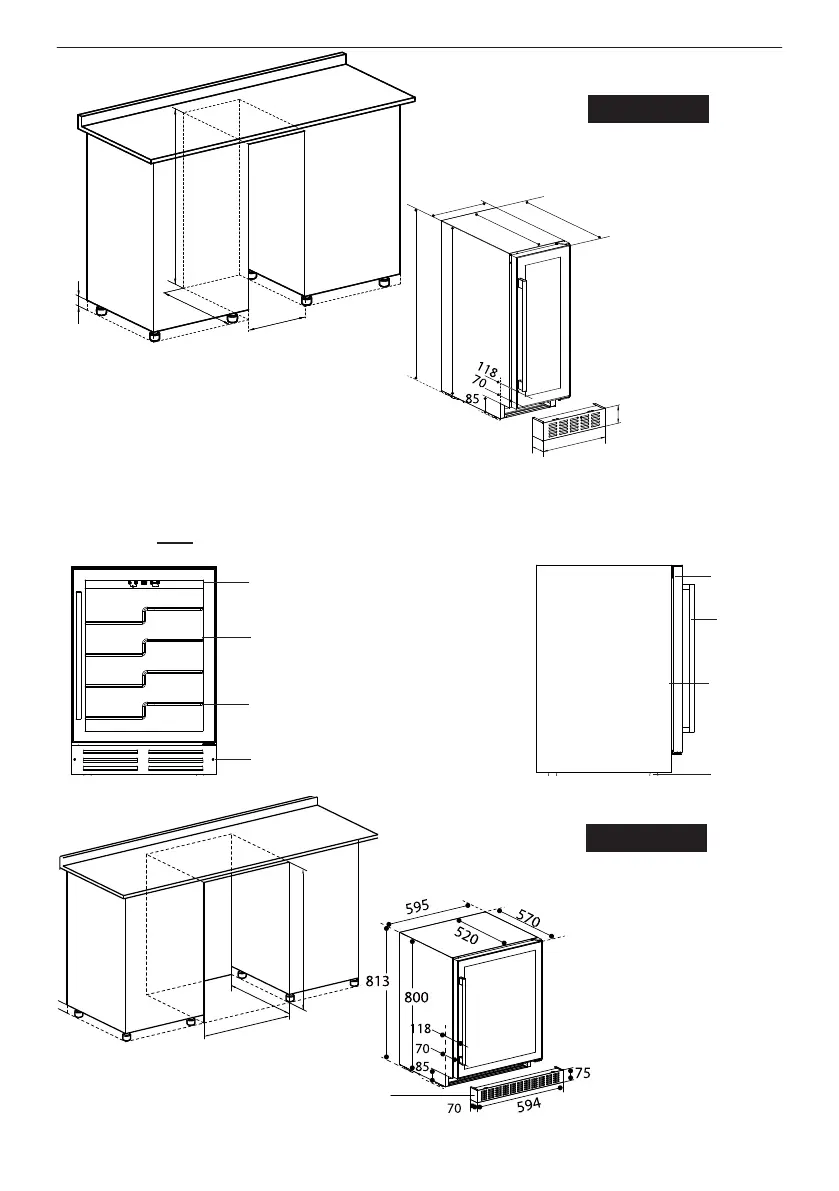

The following pictures only show description of appliance. The dimension and shelf
quantity may dier among the models of the same series.

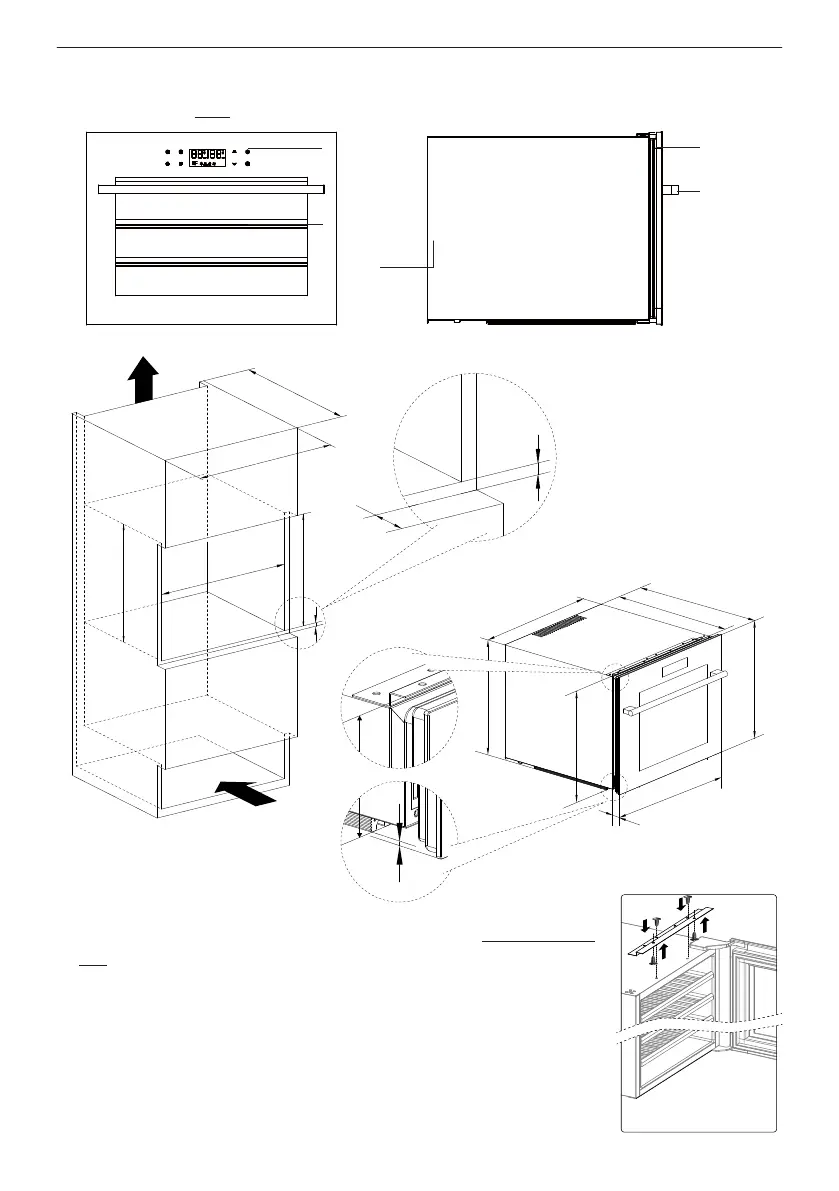

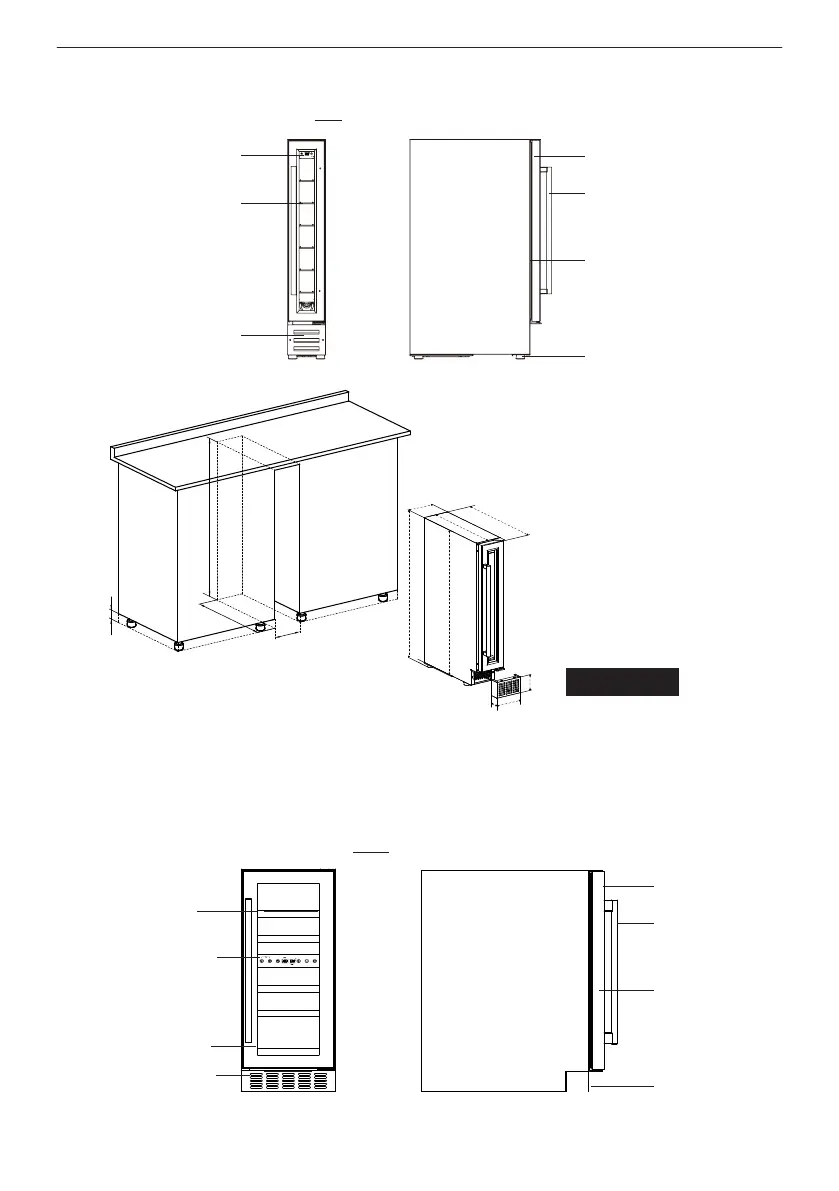

OZ45SB / OZ45SX / OZ45SW
A.
C.
B.
D.
E.
Control Panel
Glass Door
Beech Shelves
Handle
Gasket
A
D
B
C
B
E
Single Zone
18
Bottles
.07.
560~564
600~615
>560
200cm² Min.
200cm² Min.
452
465
555
555
590
455
450
2mm
7
20

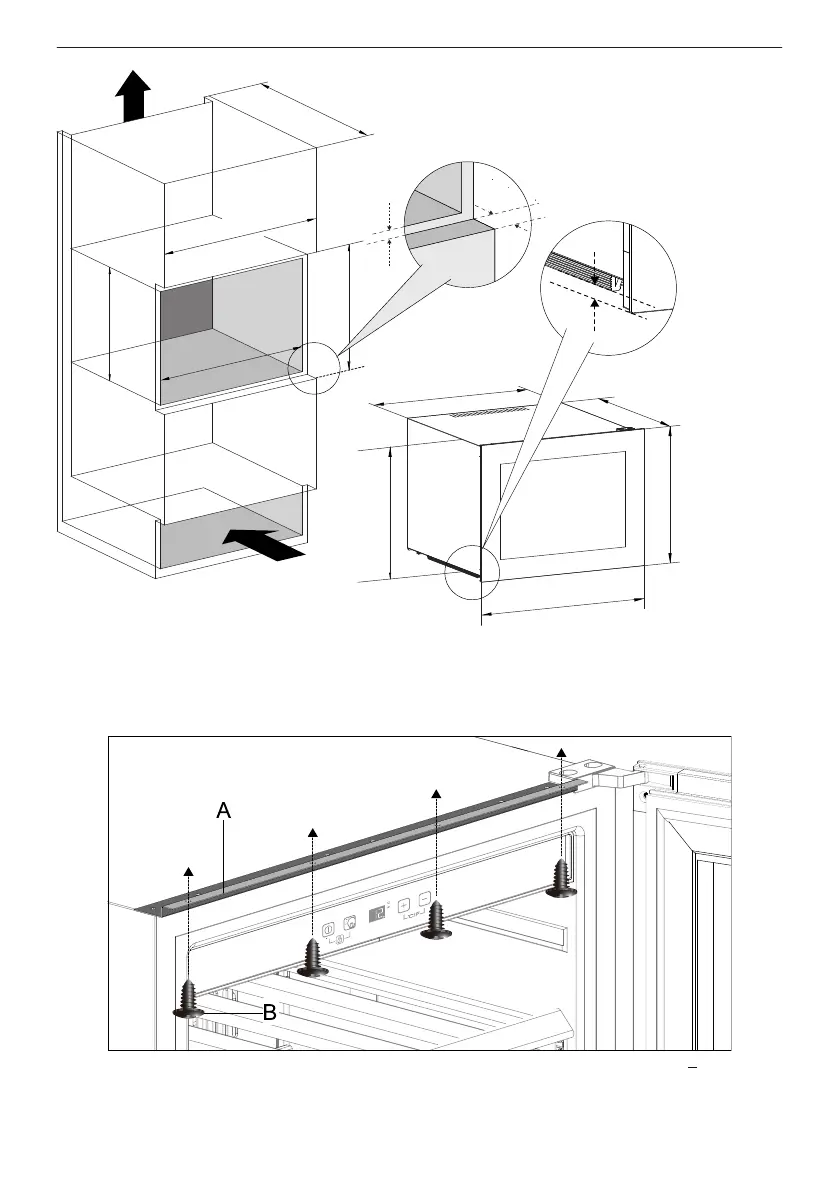

To fix the appliance with Cabinet, pls. screw the 4 screws (ST4.2*12mm)
through the Top Bracket. The Top Bracket is pre-installed on top of
appliance.
A Top Bracket B Screws ST*mm
.08.
INSTRUCTION MANUAL

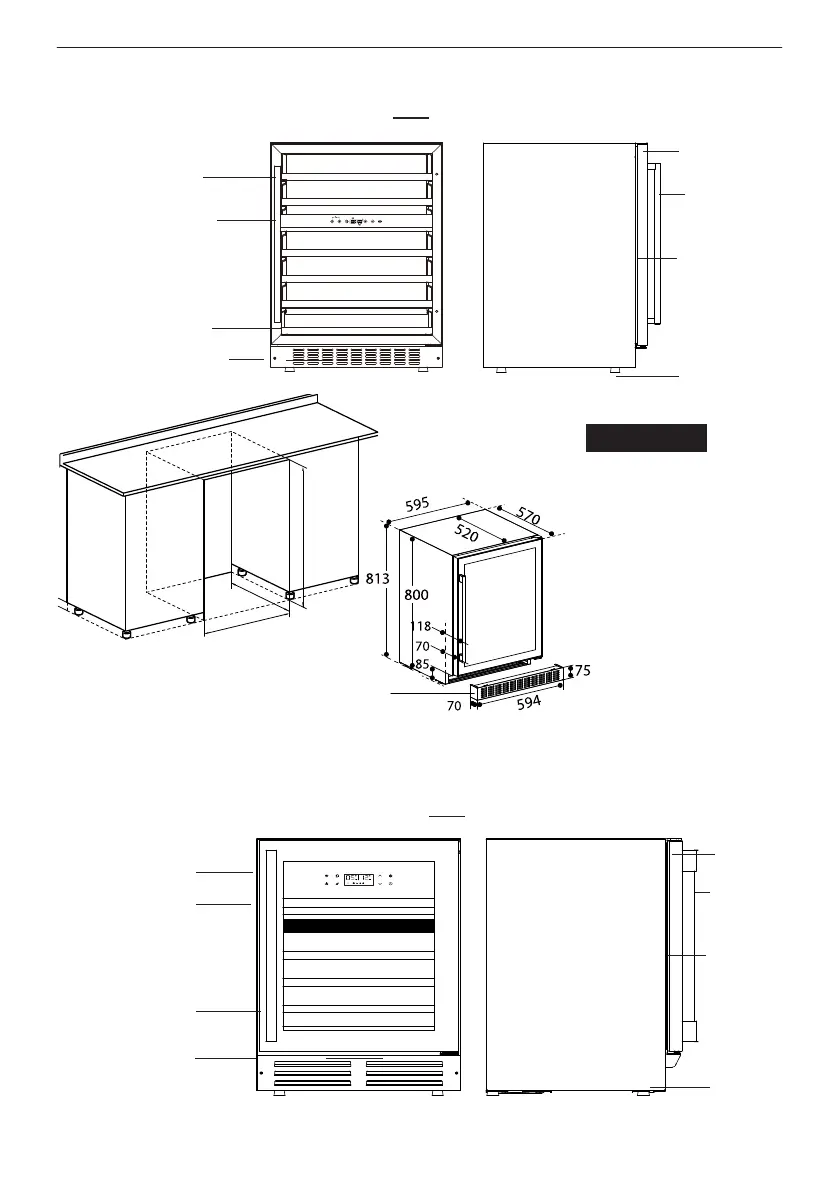

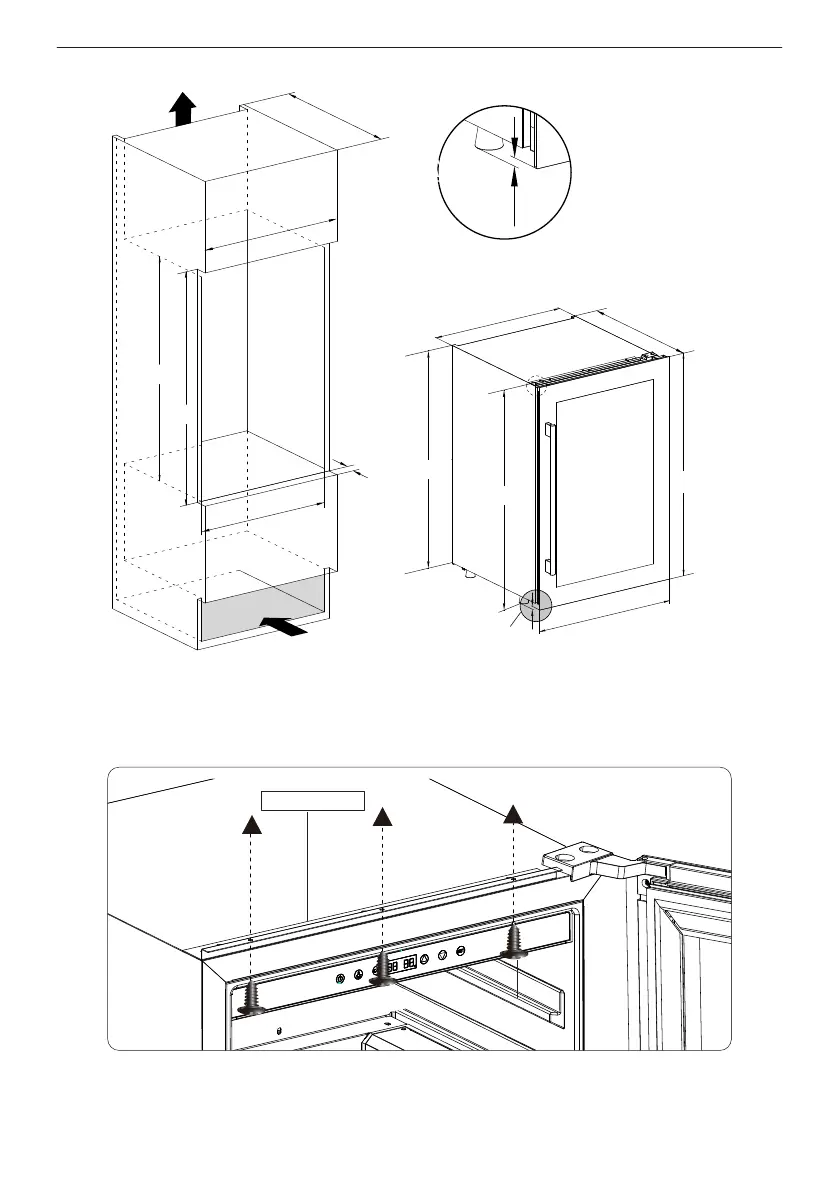

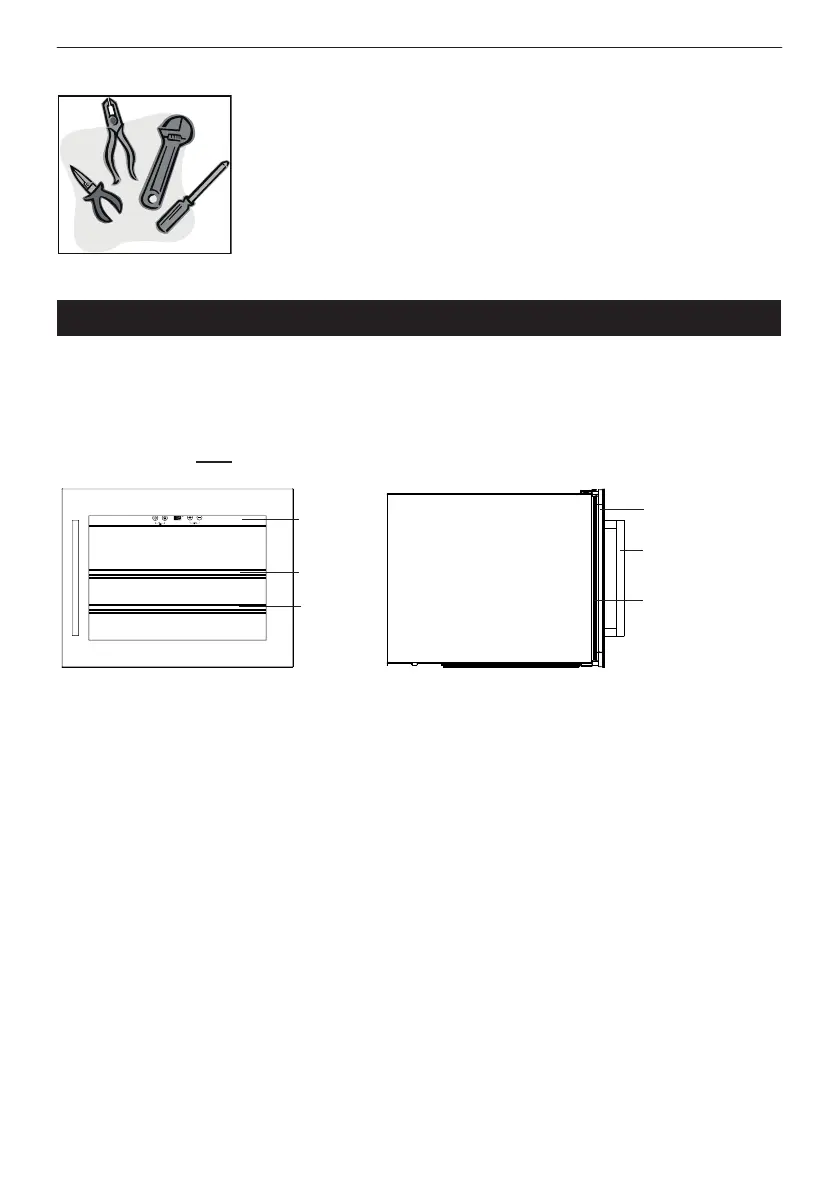

OZ45SBTOP
Control Panel
Handle
Long Shelf
Gasket
Door
Outside Cabinet
Condenser
Single Zone
24
Bottles
8
45
600
460
560-564
460
555
566
520
440
448
588
458
600
45
8
200cm² Min.
4

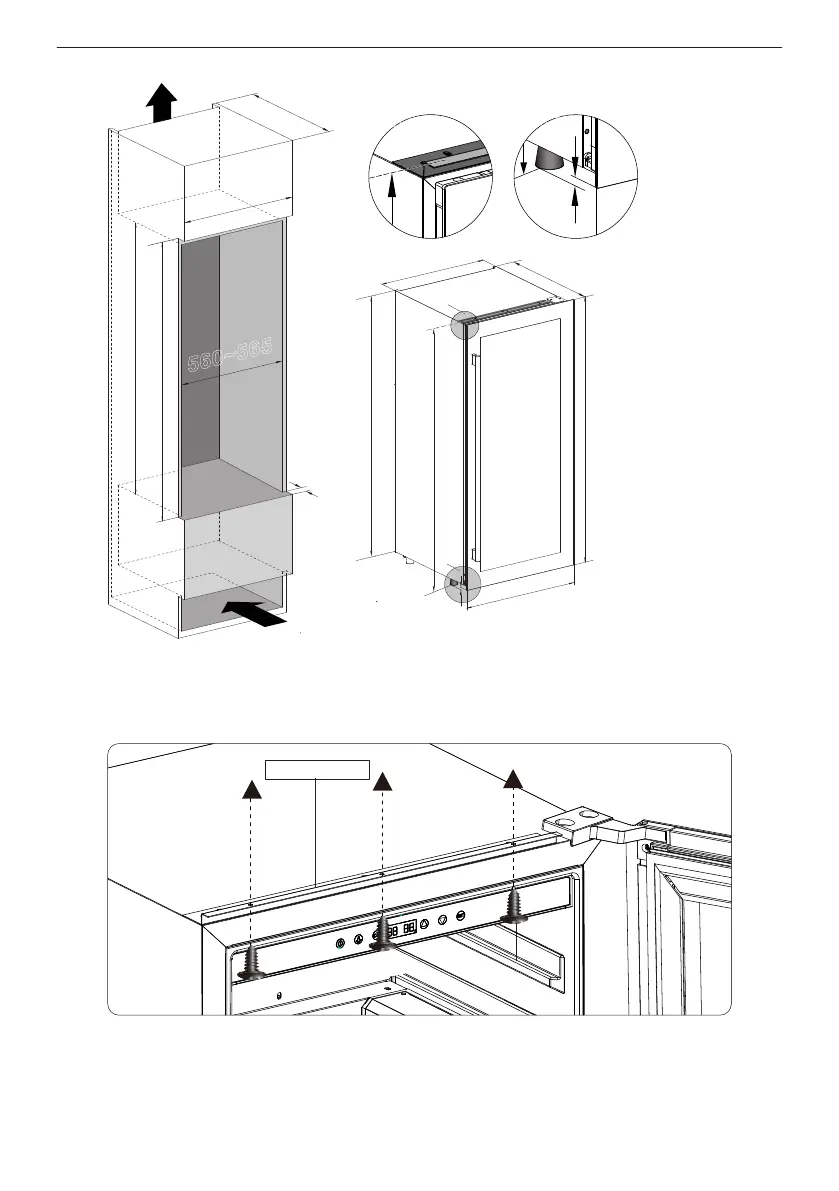

For a rmly xing of the unit, you can install an extra Top Mounting
Bar (which is an accessory packed with the unit) onto the topside of
the unit, and screw it with the kitchen cabinet. See right drawing.


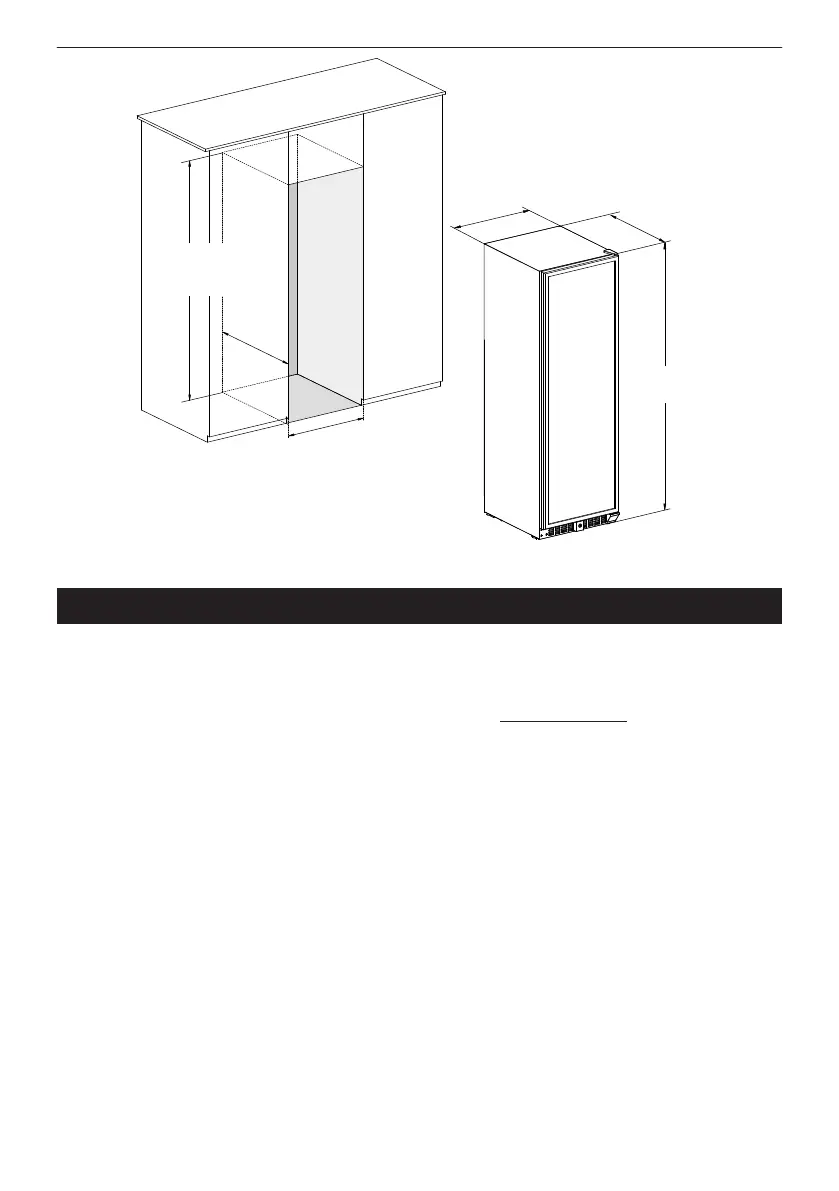

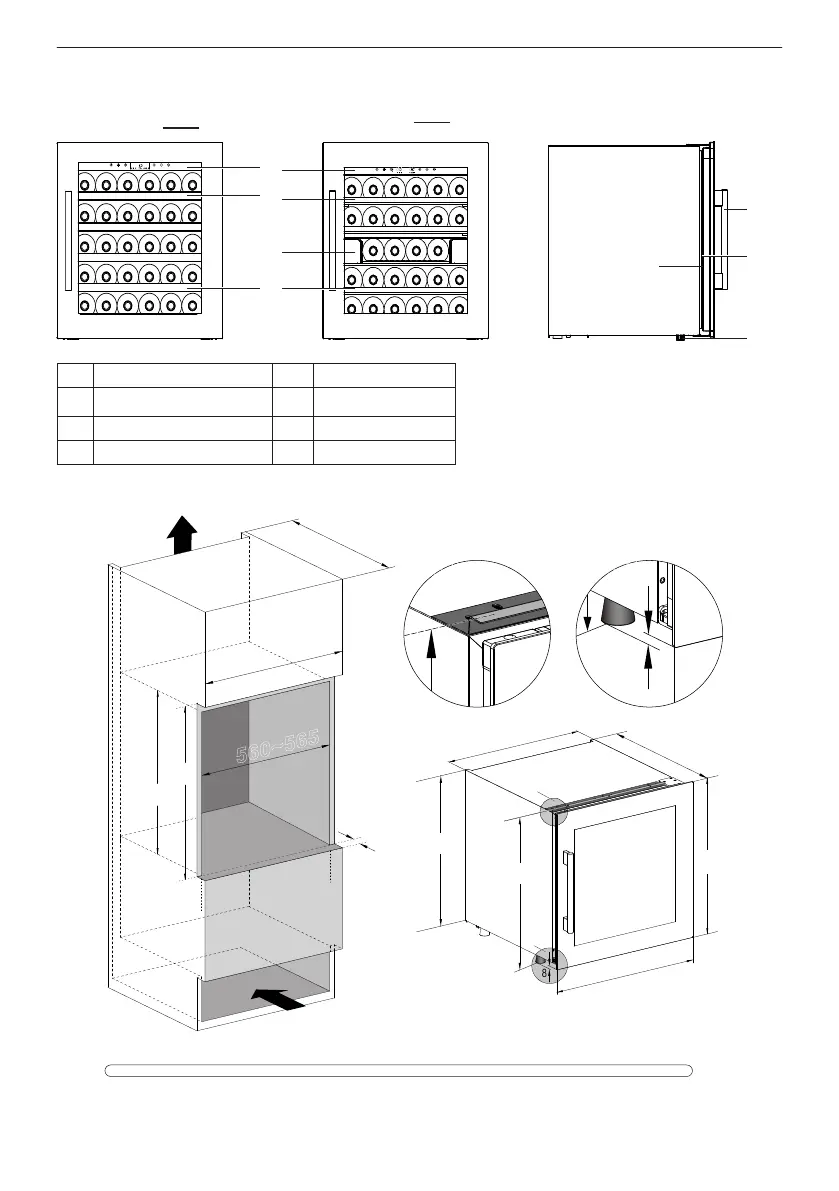

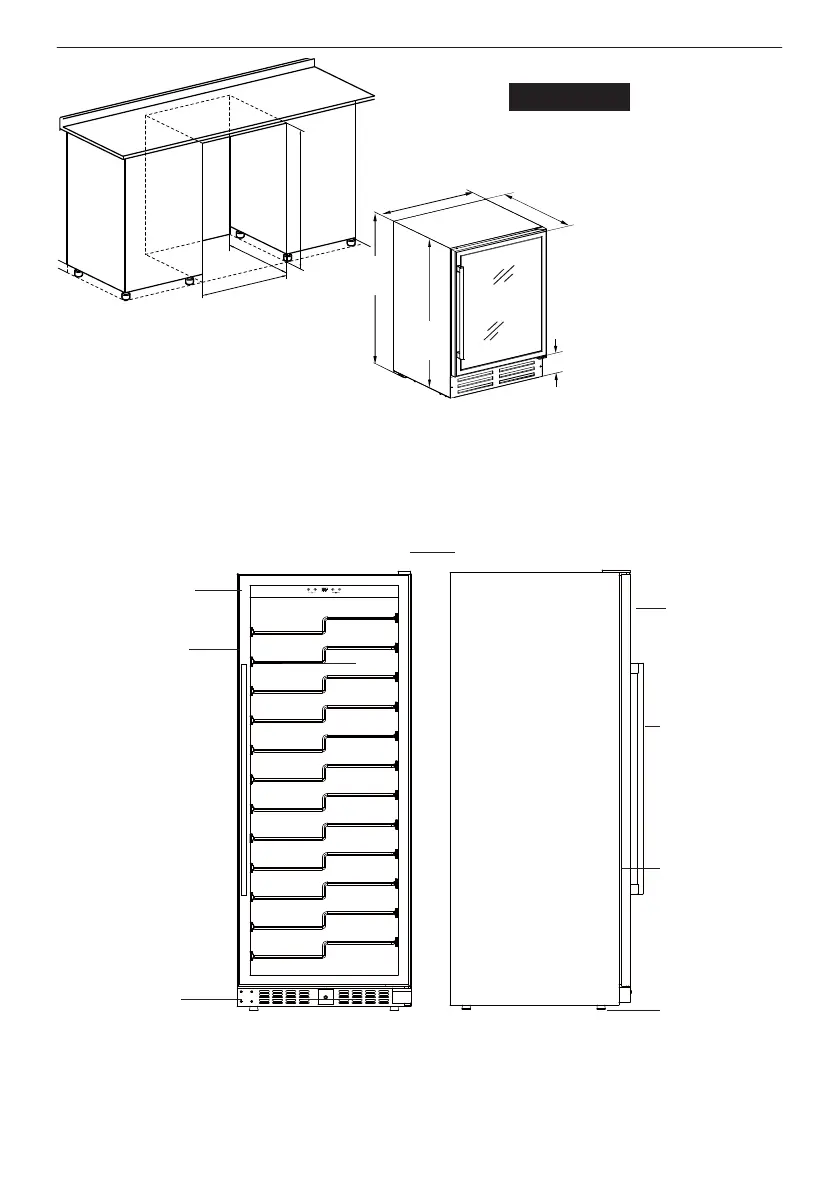

OZ60SB / OZ60DB / OZ60DW / OZ60DX
1 Control Panel 5 Glass Door
2 Beech Shelves (Long) 6 Handle
3 Separator (Dual Zone) 7 Gasket
4 Beech Shelves (Short) 8 Feet
Single Zone
Dual Zone
30
Bottles
28
Bottles
Single & Dual Zone
1
3
2
4
5
6
8
7
>580
570
20
560~565
605
200cm² Min.
(Hot Air Outlet)
200cm² Min.
(Cool Air Inlet)
8
B
8
590
555
590
567
594
A
B
602
>595
594
A
.11.
To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm)
through the Top Bracket. The Top Bracket is pre-installed on top of appliance.
≥570
20
600~605
560~565
200cm² Min.
(Hot Air Outlet)
200cm² Min.
(Cool Air Inlet)
897
>890
8
A
8
570
590
555
885
862
889
A
Top Bracket
Screws
(ST4.2*12mm)

INSTRUCTION MANUAL

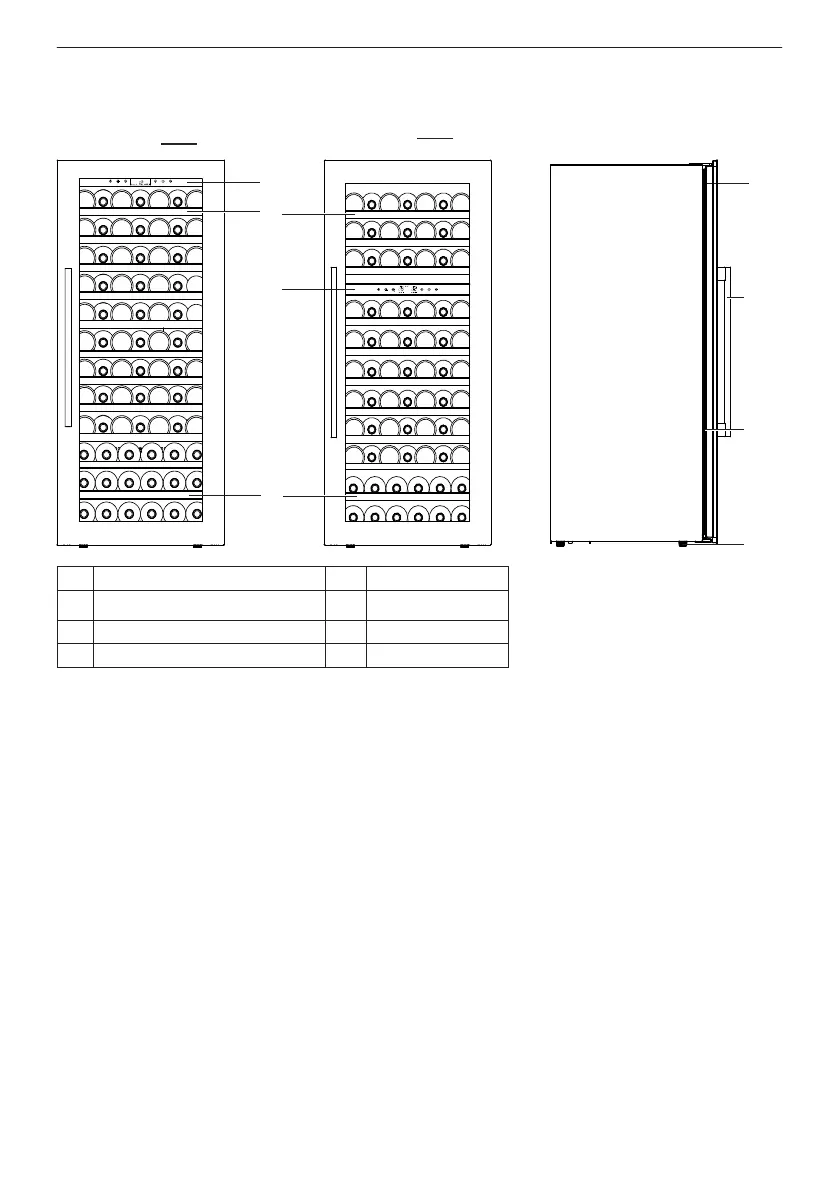

OZ124SB / OZ124DB / OZ124DW / OZ124DX
1
3
2
4
5
6
8
7

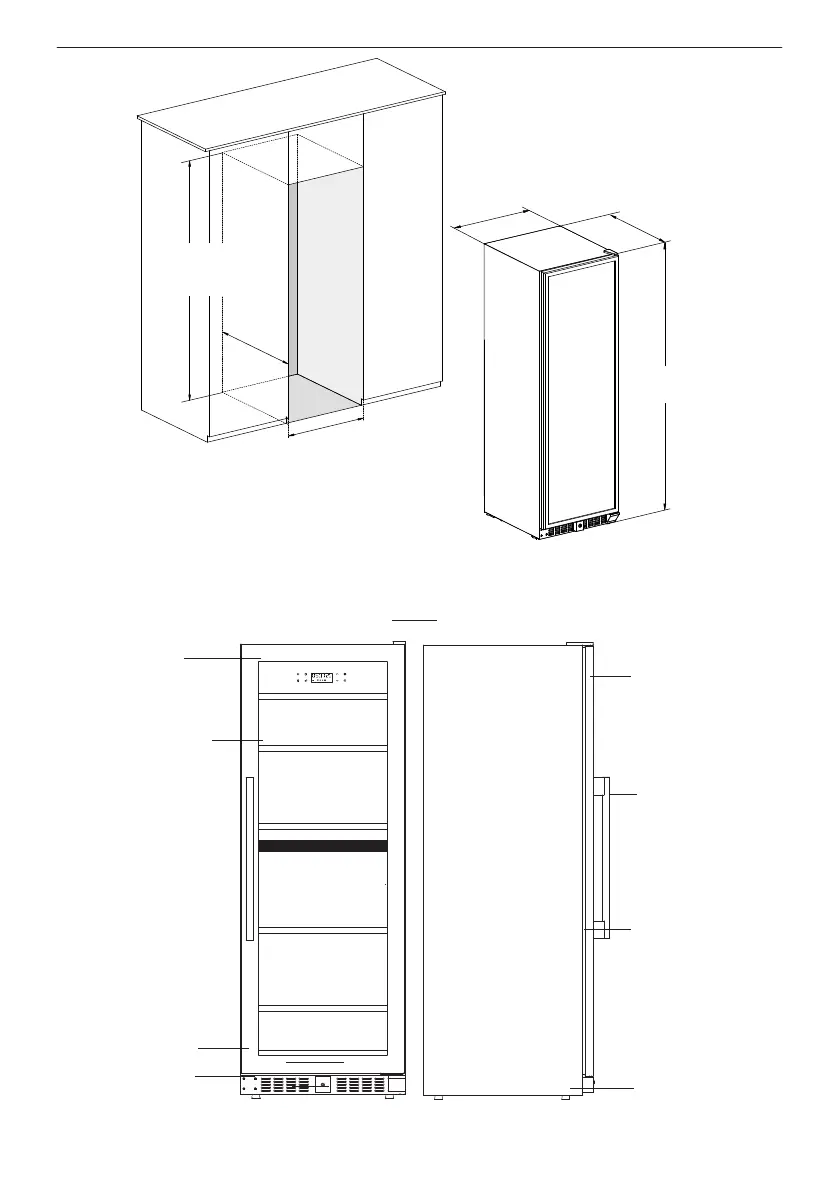

1 Control Panel (Single Zone) 5 Glass Door
2 Beech Shelves (Long) 6 Handle
3 Control Panel (Dual Zone) 7 Gasket
4 Beech Shelves (Short) 8 Feet
Single Zone
Dual Zone
81
Bottles
74
Bottles
Single & Dual Zone
.13.
To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm)
through the Top Bracket. The Top Bracket is pre-installed on top of
appliance.
20
>580
570
25
605
200cm² Min.
(Hot Air Outlet)
200cm² Min.
(Cool Air Inlet)
8
B
594
A
590
555
1210
1237
1233
1245
>1238
A
B
8
560~565
Top Bracket
Screws
(ST4.2*12mm)

INSTRUCTION MANUAL
OX15SRB
Control Panel
Chrome Shelf
Front Louver
Adjustable Foot
Outside Canbinet
Handle
Door
Gasket
Single Zone
6
Bottles
50
820
800
148
475
525
148
88
150
>525
Min 40mm
>813
Height Adjustable:
813-863mm
OX30DRB / OX30DRW / OX30DX
Control Panel
Long Shelf
Short Shelf
Front Louver
Adjustable Foot
Outside Cabinet
Handle
Door
Gasket
17
Bottles
Dual Zone
.15.
295
570
520
800
813
75
294
70
305
>570
>813
Min 40mm
Height Adjustable:
813-845mm
CPROX60SRB / CPROX60SX
Control Panel
Single Zone
40
Bottles
Single Zone
Long Shelf
Short Shelf
Front Louver
Outside Canbinet
Handle
Door
Gasket
Foot
Adjustable
>600
>813
>570
Min 40mm
A
Height Adjustable:
813-845mm

INSTRUCTION MANUAL
OX60DRB / OX60DRW / OX60DX
Control Panel
Dual Zone
46
Bottles
Long Shelf
Short Shelf
Front Louver
Outside Canbinet
Handle
Door
Gasket
Foot
Adjustable
>600
>813
>570
Min 40mm
A
Height Adjustable:
813-845mm
EX60DRB / EX60DRW / EX60DX
Control Panel
Dual Zone
46
Bottles
Long Shelf
(W/ 3-fold Rail)
Short Shelf
(W/ 2-fold Rail)
Front Louver
Outside Canbinet
Handle
Door
Gasket
Foot
Adjustable

>600
>863
>570
Min 40mm
570
850
863
150
Height Adjustable:
863-883mm
CPRO1800SRB / CPRO1800SX
SingleZone
143
Bottles
Control Panel
Vintage
Shelf
Front Louver
Handle
Door
Gasket
Foot
Adjustable
Outside Canbinet

INSTRUCTION MANUAL
1835mm
(72 ¼”)
695mm
(27 ¼”)
1835mm
(72 ¼”)
655mm
(25 ¾”)
730mm
(28 ¾”)
680mm
26 ¾”
E1000DRB / E1000DRW /E1000DX
Control Panel
Dual Zone
181
Bottles
Long Shelf
Short Shelf
Front Louver
Outside Canbinet
Handle
Door
Gasket
Foot
Adjustable
.19.
1835mm
(72 ¼”)
695mm
(27 ¼”)
1835mm
(72 ¼”)
655mm
(25 ¾”)
730mm
(28 ¾”)
680mm
26 ¾”
ACCESSORY INSTALLATION BEFORE OPERATING
UNPACKING AND CLEANING THE WINE COOLER
Remove the exterior and interior packing materials.
Let the appliance stand upright for approximately
24 hours
before connecting
it to the power source, which helps to reduce the possibility of a cooling-system
malfunction from handling during transportation.
Use a soft cloth to clean the interior surface with lukewarm water.
For all models except OZ45SB, OZ45SW, OZ45SX, OZ45SBTOP,
OZ60SB, OZ60DB, OZ60DX, OZ60DW, OZ90DB, OZ90DX, OZ90DW,
OZ124SB, OZ124DB
IMPORTANT: The front louver at the base of the appliance is for ventilation. Nothing
should be placed in front of this front louver; otherwise your Wine Cooler may not
operate properly.
o A decorative plinth can be tted to the front of the base vent, a cut-out
should be made in the plinth with bigger size than the front louver. The
cut out is required whether the front louver is removed or not.
Adjusting the height and levelling o your wine cabinet
For all models except OZ45SB, OZ45SW, OZ45SX, OZ45SBTOP,
OZ60SB, OZ60DB, OZ60DX, OZ60DW, OZ90DB, OZ90DX, OZ90DW,
.20.
INSTRUCTION MANUAL
OZ124SB, OZ124DB
o The appliance is equipped with adjustable feet, so that the height may
be adjusted to level the cabinet on uneven oor surfaces.
o We recommend that two people carry out this procedure.
o The height must be adjusted prior to building the appliance into the
housing unit and it should be set at such a height that the top panel of
the appliance ts exactly below the kitchen worktop.
o Tilt the appliance approximately 60° to allow access
to the adjustable feet.
o Take care to ensure the cabinet is supported at all
times.
o Twist the foot into a suitable position to level the
cabinet.
o Repeat these steps for the other adjustable feet.
IMPORTANT: If the appliance is not level, then the door and door seal may be
aected.
IMPORTANT: Do not move the appliance when the feet are adjusted high.

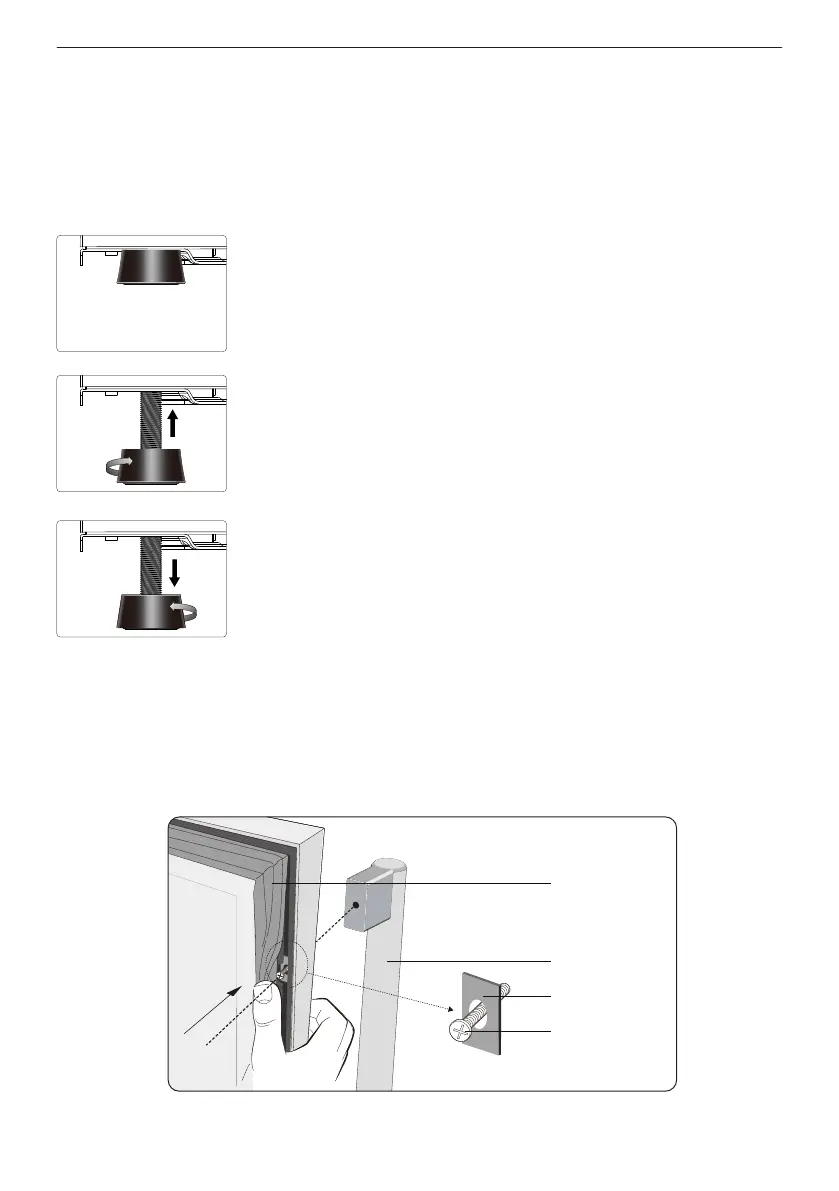

Installing The Handle
Gasket
Washer
Handle Screws
Handle
Remove the door Gasket slightly to expose the two screw holes.
.21.
Fix the Handle by screwing the two Handle Screws tightly, the Handle Screws with
Washers are pre-installed inside the screw holes, pls.do not unscrew the Handle
Screws too much in case the Washers fell o.
Replace the Gasket.
LOCK & UNLOCK THE DOOR (FOR OPTION)
Lock is an optional function. If your Wine Cooler has such function, a key should be
attached inside the packing of this Manual.
Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock
it, please turn clockwise. Please save the key well.
OPERATING THE WINE COOLER
WORKING CLIMATE
The appliance is designed for operating from SN to N climate (see below climate class
chart). It is recommended to maintain the ambient around 22-25°C which helps the
appliance working with low power consumption.
Klimaklasse Romtemperatur
SN 10 - 32 °C (50
ºF-90ºF)
N 16 - 32 °C (61
ºF-90ºF)
ST 16 - 38 °C (61
ºF-100ºF)
T 16 - 43 °C (61
ºF-109ºF)
If the ambient temperature is above or below the designed climate range, the
performance of the unit may be affected. For example, the appliance operating in
extreme cold or hot conditions may cause interior temperatures to uctuate, and the
temperature set 5-20°C may not be reached sometimes.
WINE STORAGE
The standard shelves are designed perfectly for Bordeaux bottle storage. The
maximum loaded bottles may vary subject to the different size or dimension wine
bottles you store.

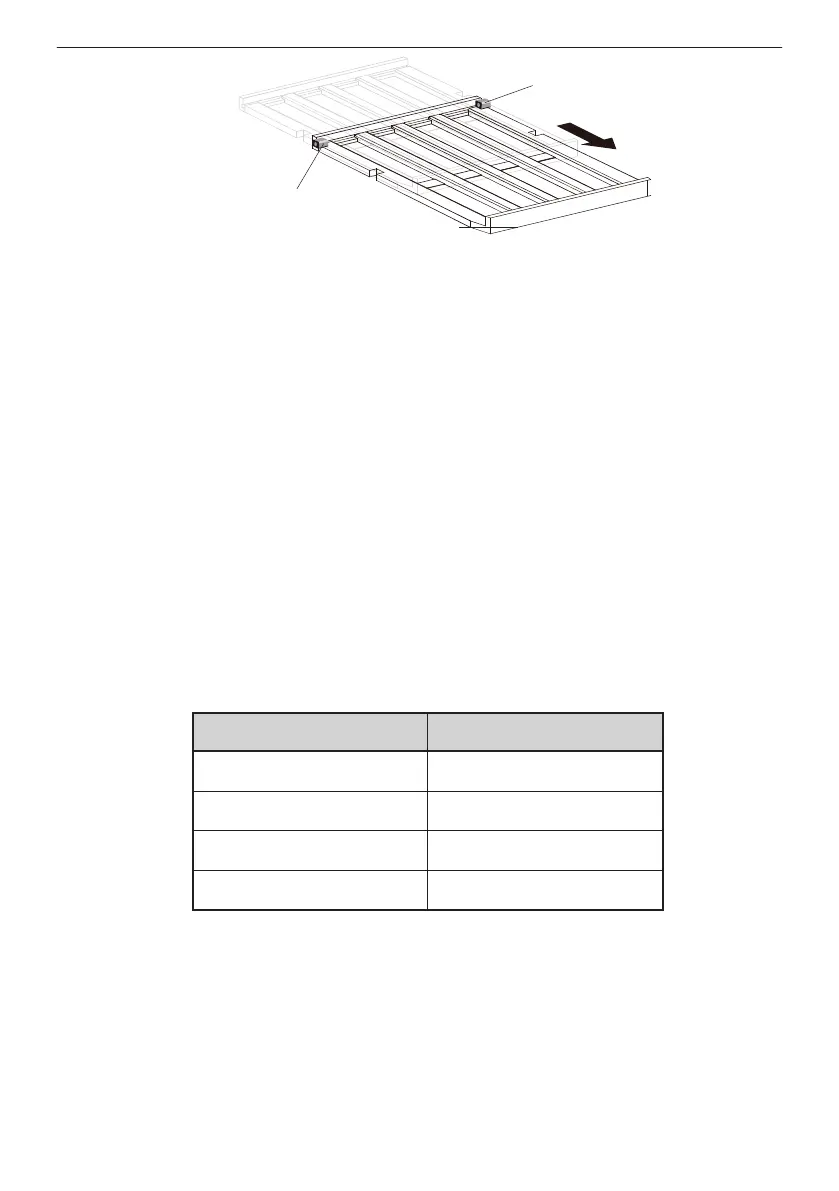

The shelves is allowed to be pulled out by about 1/3 length of it for easy access to the
wine storage.
.22.
INSTRUCTION MANUAL
Stopper
Stopper
To prevent damaging the door gasket, make sure to have the door opened fully all
the way before pulling the shelves out.
Please store wine in sealed bottles.
Do not cover the shelves with aluminum foil or any other shelf material which may
prevent air circulation.
Should the wine cooler be left empty for long periods it is suggested that the
appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to
circulate inside the cabinet in order to avoid possible condensation, mold or odours
forming.
If the wine cooler is left empty for long periods, switch o, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
Pay attention to the recommended/preferable storage time of the wines you bought
Opening the door for long periods can cause a signicant increase of the temperature
in the compartments of the appliance. The recommended temperatures for chilling
storing your wines is as below, please choose zones and temperatures accordingly..
Recommended temperatures for chilling/storing your wines.
Wine Type Recommender Temp.
Red Wines 15 - 18ºC (59ºF-64ºF)
Dry⁄White Wines 9 - 14ºC (48ºF-57ºF)
Rose Wines 10 - 11ºC (50ºF-52ºF)
Sparkling Wines 5 - 8ºC (41ºF-46ºF)

CONTROL PANEL (Fixed Speed Compressor Control In Cabinet)
Single Zone OX15SRB
A. Power B. Lighting C. Display Window D. Temp. Plus E. Temp.Minus
F. Lock / Unlock G. Function Indicator H.
ºC/ºF
Switch
A B
D
C E
F
G H
Dual Zone OX30DRB / OX30DRW / OX30DX
A. Power B. Lighting C.
Upper Zone
Display Window
D. Temp. Plus E. Temp.Minus
F.
Lock/
Unlock
G.
ºC/ºF
Switch
H.
Function
Indicator 1
I.
Lower Zone
Display Window
J.
Function
Indicator 2
K. Zone Select
A B DC E
F
G H I J K
POWER ON/OFF CONTROL
When the appliance is plugged in to a power outlet, it powers on automatically.
Touch the power mark and hold for 10 seconds to turn off (or turn on) the
appliance.
No matter it is under a locked or unlocked condition, you can turn o the appliance
by touching the power mark and holding for 10 seconds.
Warning: To avoid damaging the compressor, please do not turn on the
appliance again within 5 minutes after you turn it o.
.24.
INSTRUCTION MANUAL
UNLOCKING THE CONTROL PANEL
To unlock the control panel, touch the power mark and lighting mark
with 2 ngers at the same time and hold for 3 seconds . When unlocked a buzz sound
will be heard.
The control panel will be automatically locked with a buzz sound heard after 10
seconds without being touched.
Under the locked condition, the control panel will not react to any touching order for
Lighting On/O and Temperature Setting.
INTERIOR LIGHTING ON/OFF CONTROL
Under the unlocked condition, touch the lighting mark to turn on (or turn o) the
interior cool LED lighting.
The lighting will stay on unstil it is manually turned o.
TEMPERATURE DISPLAY WINDOW
The temperature is displayed in digital which is the best way to be read out. The
digital is shown as the set temperature when you are setting the temperature.
When the temperature probe is out of order, the display window will show with HH
or “LL instead of a digital gure while continuous buzz sound will be heard. In case
of this happens, this appliance is considerately designed to keep periodical running
of compressor and fans which helps to keep the coldness of the inside cabinet to
protect your stored wines.
Warning: To avoid destroying your stored wines, it is strongly recommended
to have the appliance repaired immediately, as the spare periodical running
can not ensure the appliance to achieve the temperature you have set.

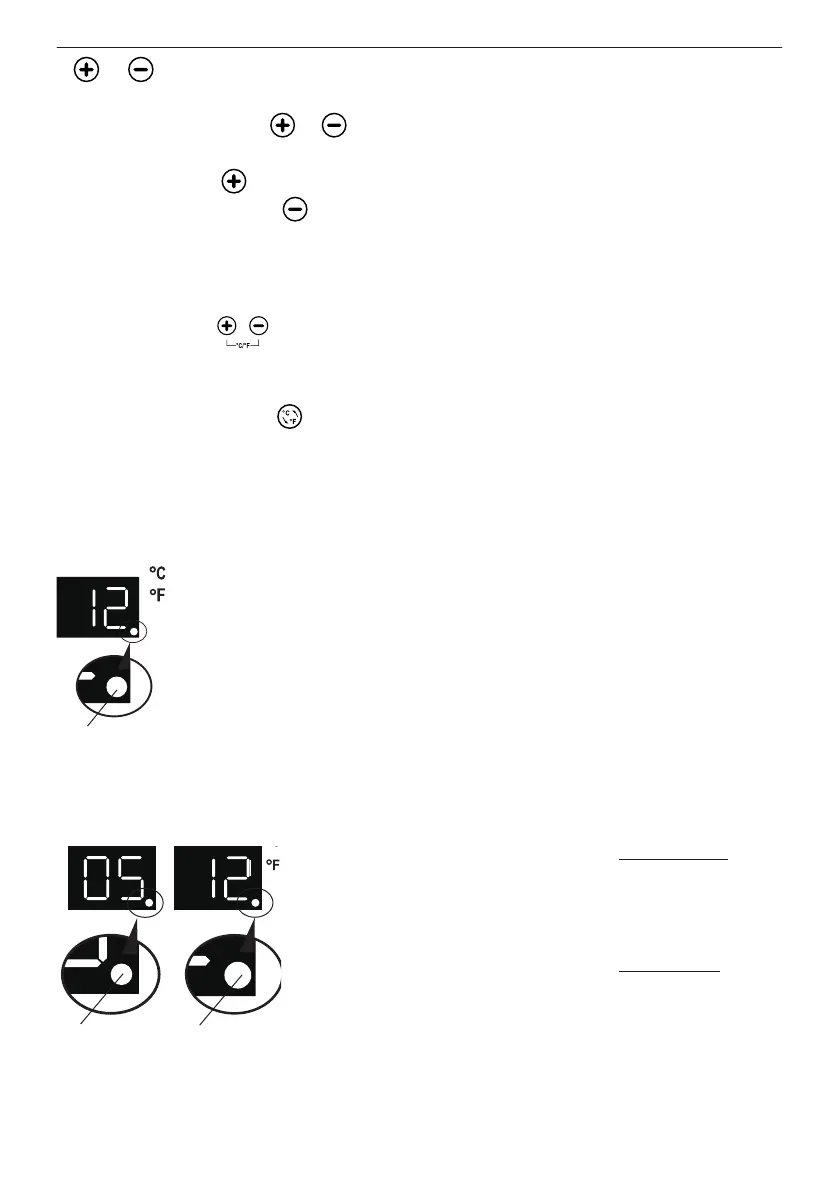

TEMPERATURE SETTING
For Single Zone
The default temperature setting range is : 5-20
ºC
(41-68
ºF
).
Directly touch the or mark to set the wine cooler temperature as you want.
The rst touch on or mark will recall the previous set temperature displayed.
Touch the mark to increase the set temperature by 1
ºC (or by 1ºF)
. On the
contrary, touch the mark to decrease the set temperature by 1
ºC (or by 1ºF)
.
For Dual Zone
The default temperature setting ranges are : 5-12
ºC
(41-54
ºF
) for the upper zone
and 12-20
ºC
(54-68
ºF
) for the bottom zone.
You need to select the set zone by touching the mark before touching the mark
.25.
or to set the desired temperature. The zone temperature will ash when it is
ready to be set.
The rst touch on mark or will recall the previous set temperature displayed
in the digital window.
Touch the mark to increase the set temperature by 1
ºC (or by 1ºF)
. On the
contrary, touch the mark to decrease the set temperature by 1
ºC
(or by 1ºF).
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
For Single Zone
Touch the marks with 2 ngers at the same time and hold for 5 seconds, you
can interchange the Fahrenheit and Celsius display.
For Dual Zone
Directly touch the mark , you can interchange the Fahrenheit and Celsius display
for both zones at the same time.
FUNCTION INDICATING LIGHT
For Single Zone
Function
Indicator
o When the compressor starts to work, the Indicator will stay
on;
o In other conditions, the Indicator will be off.
For Dual Zone
Function
Indicator
2
Function
Indicator
1
o The Indicator 1 will ash every 2 seconds when
the unit is plugged in;
o The Indicator 1 will stay on when the compressor
starts to work;
o The Indicator 2 will ash every 3 seconds when
the heating function of lower zone starts to work;
o The Indicator 2 will stay on when the cooling
function of lower zone starts to work.

INSTRUCTION MANUAL

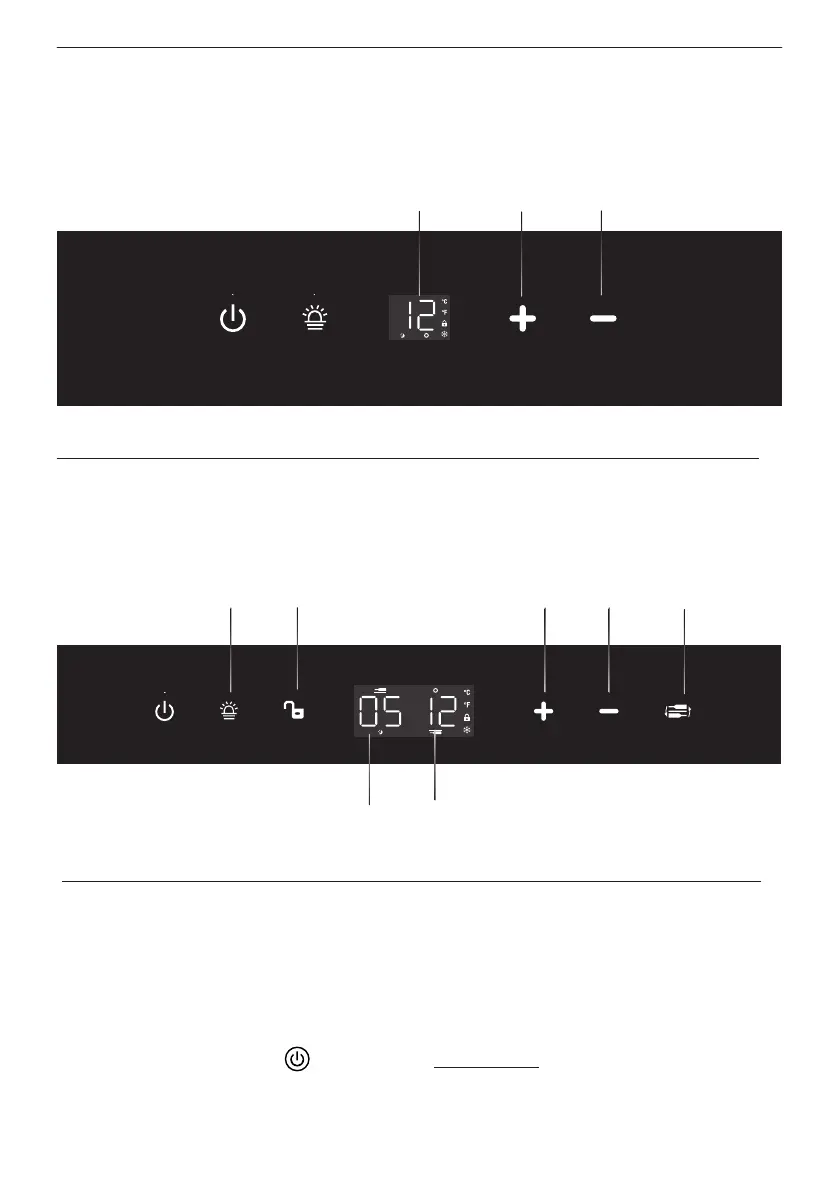

CONTROL PANEL ( Inverter Compressor Control In Cabinet)
For Single Zone
includes: OZ45SB / OZ45SW / OZ45SX / CPROX60SRB / CPROX60SX /
CPRO1800SRB / CPRO1800SX
A B DC E
A. Power B. Lighting C. Display Window D. Temp. Plus
E. Temp.Minus A+B. Lock / Unlock D+E.
ºC/ºF
Switch
For Dual Zone
includes: OX60DRB / OX60DRW / OX60DX
A. Power B. Lighting C. Lock / Unlock D. Temp. Plus E. Temp.Minus
F. Zone Select G. Upper Zone H. Lower Zone D+E.
ºC/ºF
Switch
A B DC E
G H
POWER ON/OFF CONTROL
When the appliance is plugged in to a power outlet, it powers on automatically.
Touch the power mark and hold for 10 seconds to turn off (or turn on) the
appliance.
No matter it is under a locked or unlocked condition, you can turn o the appliance
F

by touching the power mark and holding for 10 seconds.
Warning: To avoid damaging the compressor, please do not turn on the
appliance again within 5 minutes after you turn it o.
UNLOCKING THE CONTROL PANEL
For single zone, touch the power mark and lighting mark with 2 ngers at the
same time and hold for 3 seconds . When unlocked a buzz sound will be heard.
For dual zone, touch the lock mark and hold for 3 seconds . When unlocked a buzz
sound will be heard.
Under the locked condition, the control panel will not react to any touching order for
Lighting On/O and Temperature Setting.
INTERIOR LIGHTING ON/OFF CONTROL
Under the unlocked condition, touch the lighting mark to turn on (or turn o) the
interior cool LED lighting.
The lighting will stay on unstil it is manually turned o.
The illumination of the appliance employs a two-stage loop control. The illumination
will be 100% bright when you touch the lightning mark for the first time. The
brightness will switch to 50% when you touch the mark for the second time. And
the illumination lamps will all go out for the third time when you touch the key. The
control is in loop for the subsequent operation.
RGB LIGHTING CONTROL
Light
Your wine cellar comes equipped with 4 dierent lighting options: White,
Warm White, Blue, or a 3 color cycle where the color changes every
10 seconds. Press the light button once and the lights will run on a
10-second cycle, alternating between White & Warm White & Blue. Press
the light button again and the color will change to only White. Press
the light button again and the color will change to Warm White. Press
the light button again, the color will change to Blue. Finally, pressing a
button a 5th time will turn o the lights.
White
Warm White
Blue
3 color cycle
OFF
.29.
SELECTING SET TEMPERATURE & ACTUAL TEMPERATURE
For Single Zone
When locked condition, press the marks + with 2 ngers at the same time
and hold for 5 seconds, you'll enter the selecting when you heard a BI sound.
Press the mark to choose '01' or '02 ' mode as you desired.
If the display window will ash '01', which means the display mode is showing actual
temperature.
If the display window will flash '02', which means the display mode is showing set
temperature.
Leave the display windows ashing for 5 seconds with a sound of beep to conrm
the setting.
SELECTING ENERGY SAVING MODE
Display screen mode setting: When system is in locked-state, steadily press the
mark for 3 seconds, with a sound of buzzer beeping, the indicator LED8 will light
up, indicating that system has changed to screen-off mode. In the same way, the
indicator LED8 will be extinguished with a sound of buzzer beeping when system has
been switched into screen-always-on mode.
When you touch the power key in the condition of screen-o mode, the backlight
lamps of the keys and the digital display screen will all go out.
When you touch the power key in the condition of screen-always-on mode, all the
backlight lamps of the keys will go out, the digital display screen will keep lighting.
When system is in screen-o mode, touching any key will light the display screen.

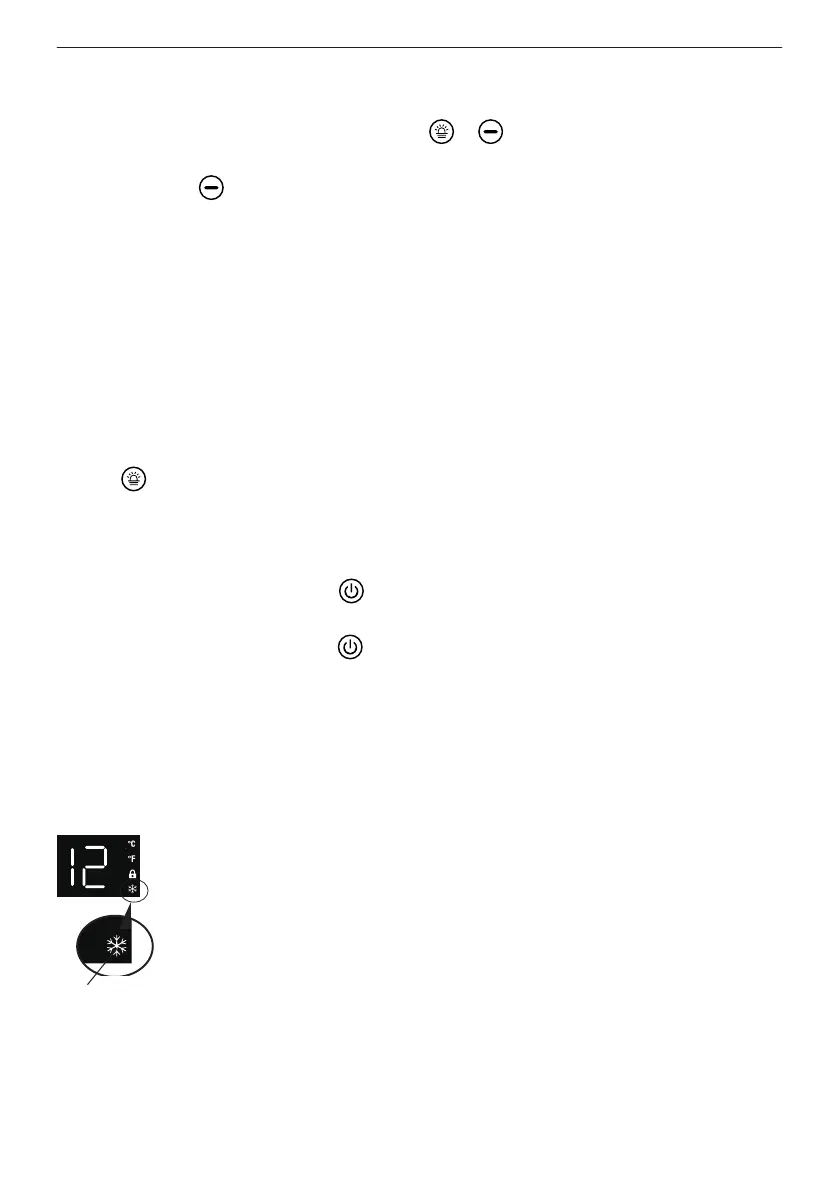

FUNCTION INDICATING LIGHT
For Single Zone
Function
Indicator
o When the compressor starts to work, the Indicator will stay
on;
o In other conditions, the Indicator will be off.

INSTRUCTION MANUAL

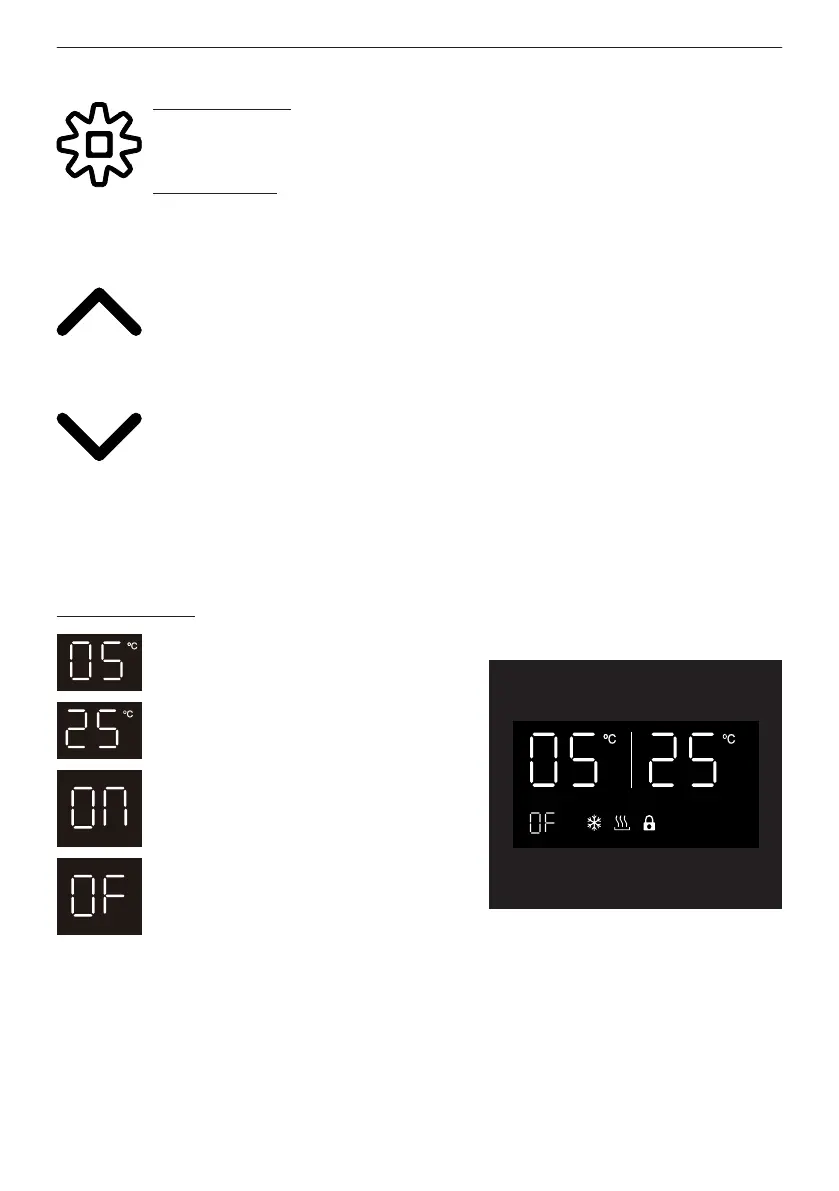

TEMPERATURE SETTING
Set
For Single Zone
Press to set temperature. The digital ashes to inform the accessibility to
adjust setting.
For Dual Zone
Press to select Upper/Lower zone for setting temperature. The digital
display ashes to inform the accessibility to adjust setting.
Temp.Up
Press to increase setting temperature by 1
o
.
Temp.
Down
Press to decrease setting temperature by 1
o
.
TEMPERATURE DISPLAY WINDOW
For Single Zone
Display Window is on.
Display Window is O
Actual temperature of the wine cellar.
Set temperature of the wine cellar.
The temperature display will show the set temperature when the Wine Cooler control
panel is unlocked and selected to be reset, and show the actual temperature when the
control panel is locked.


Produkt Specifikationer

Mærke: Temptech
Kategori: Vinskab
Model: Oslo OZ45SBTOP

Har du brug for hjælp?

Hvis du har brug for hjælp til Temptech Oslo OZ45SBTOP stil et spørgsmål nedenfor, og andre brugere vil svare dig
