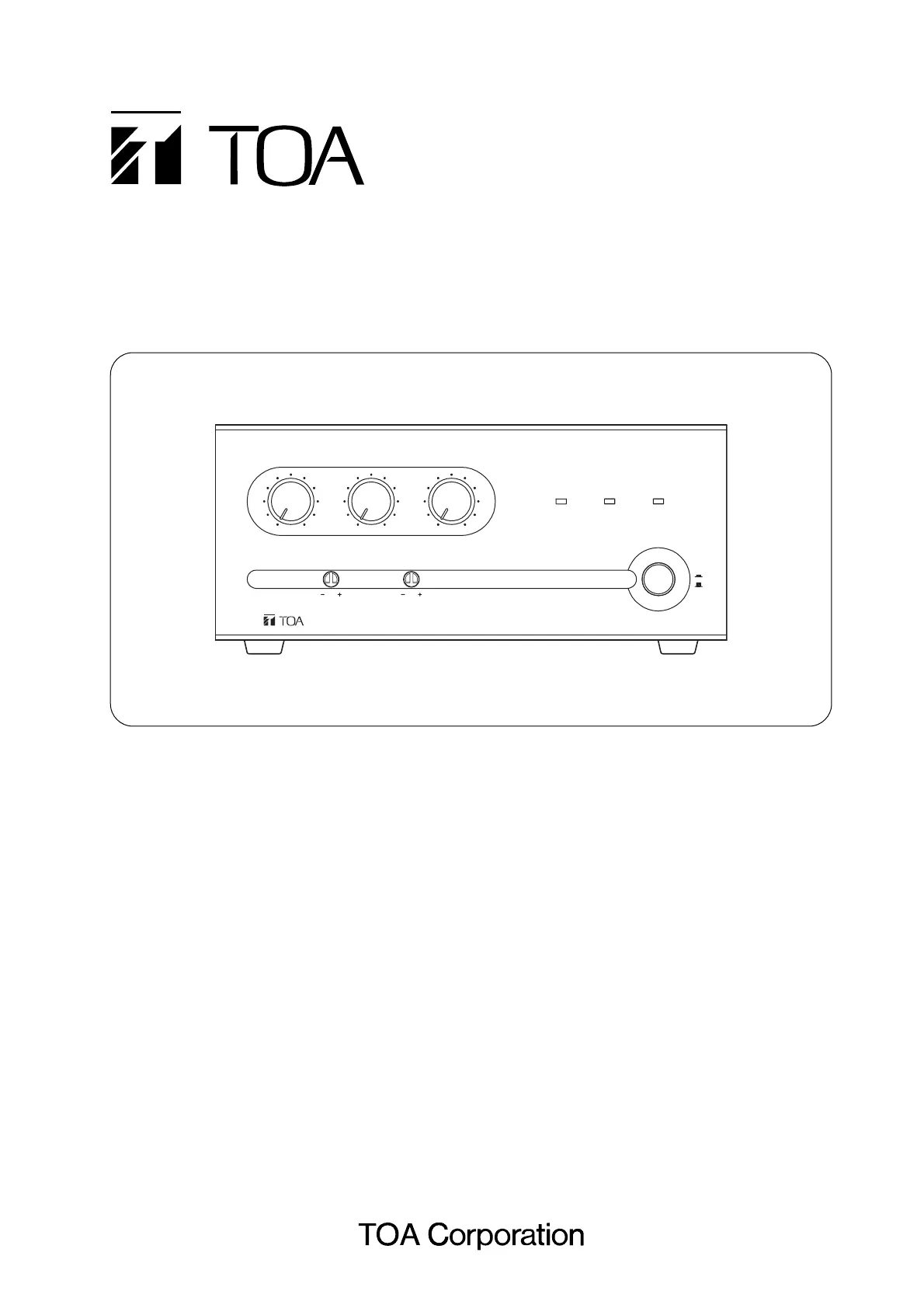

OPERATING INSTRUCTIONS

MIXER AMPLIFIERS BG-220

BG-235

1. IMPORTANT SAFETY INSTRUCTIONS .... 2

2. SAFETY PRECAUTIONS ........................... 3

3. GENERAL DESCRIPTION ......................... 5

4. FEATURES ................................................. 5

5. NOMENCLATURE AND FUNCTIONS

Front ............................................................ 5

Rear ............................................................. 6

6. CONNECTIONS

6.1. Removable Terminal Plug

Connection ........................................... 8

6.2. Input Connections ................................ 8

6.3. Output Connections .............................. 9

6.4. Manual Mute Terminal Connection ...... 9

7. MUTING FUNCTION

7.1. Manual Mute ....................................... 10

7.2. Automatic Mute .................................. 10

8. MOH OUTPUT ASSIGNMENT ................. 11

9. 2-CHANNEL BROADCAST ...................... 11

10. OPERATION ............................................. 12

11. INSTALLATION PRECAUTIONS ............. 12

12. RACK MOUNTING BRACKET

ATTACHMENT ......................................... 12

13. VOLUME SETTING .................................. 13

14. VOLUME CONTROL COVER .................. 13

15. BLOCK DIAGRAM ................................... 14

16. DIMENSIONAL DIAGRAM ....................... 15

17. SPECIFICATIONS .................................... 16

Accessories ............................................... 16

Optional products ...................................... 16

MIC/LINE 1

MIXER AMPLIFIER BG-235

BASS

0 10 0 10 0 10

TREBLE

LINE 2 LINE 3

SIGNAL PEAK POWER

OFF

Thank you for purchasing TOA's Mixer Amplifiers.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.
