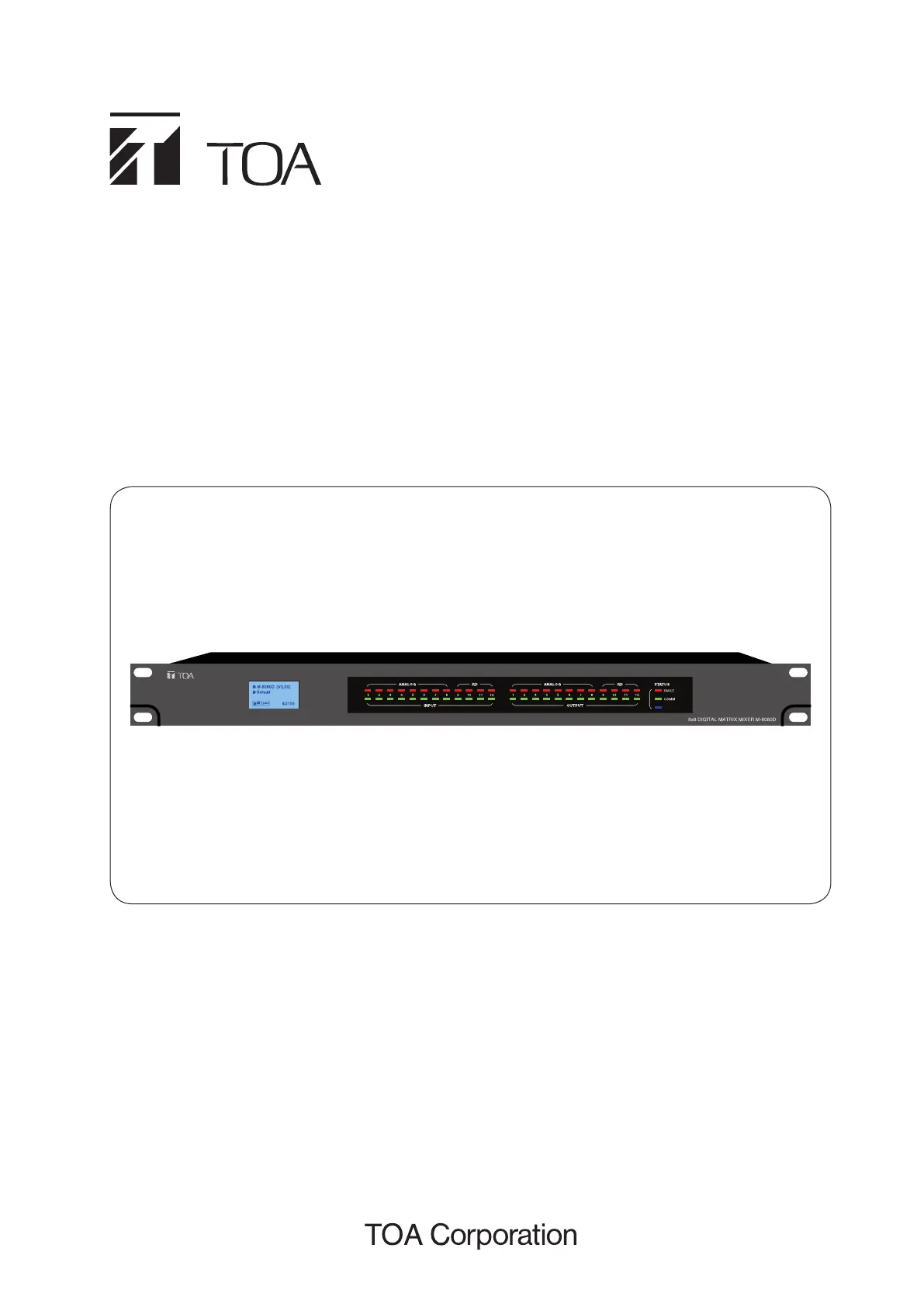

Side 1/53

DIGITAL MATRIX MIXER SYSTEM

M-8080D SERIES

OPERATING INSTRUCTIONS

Thank you for purchasing TOA's Digital Matrix Mixer System.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

PEAK

SIGNAL

POWER

TABLE OF CONTENT

1. IMPORTANT SAFETY INSTRUCTIONS .................................................................... 3

2. INTRODUCTION ......................................................................................................... 6

3. MAIN FEATURES

3.1. DIGITAL MATRIX.................................................................................................. 6

3.2. DSP FUNCTIONS................................................................................................. 7

3.3. NETWORKS.......................................................................................................... 7

3.4. DANTE NETWORKS............................................................................................. 8

4. FRONT PANEL DESCRIPTION.................................................................................. 9

5. REAR PANEL DESCRIPTION................................................................................... 10

6. M-8080D CONNECTION ........................................................................................... 12

7. DANTE INPUT CONFIGURE..................................................................................... 16

8. SOFTWARE EDITOR

8.1. INPUT DSP CHANNEL ...................................................................................... 17

8.2. OUTPUT DSP CHANNEL .................................................................................. 19

8.3. MATRIX .............................................................................................................. 20

8.4. DUCKER ............................................................................................................ 21

8.5. FBC (FEEDBACK COMPRESSION) ................................................................. 22

8.6. AUTO MIXER ..................................................................................................... 24

8.7. SAVE / LOAD / COPY ........................................................................................ 25

8.8. SYSTEM ............................................................................................................. 27

9. REMOTE DEVICES

9.1. M-800RM ............................................................................................................ 31

9.2. M-800RC ............................................................................................................ 33

9.3. M-802RC ............................................................................................................ 35

9.4. M-822IO .............................................................................................................. 37

9.5. M-800RCT .......................................................................................................... 38

9.6. M-804EX ............................................................................................................. 42

9.7. M-800DT ............................................................................................................. 42

10. APPLICATION EXAMPLES ..................................................................................... 43

11. APPENDIX ................................................................................................................ 47

12. SPECIFICATIONS

12.1. 8x8 DIGITAL MATRIX MIXER M-8080D........................................................... 48

12.2. REMOTE MICROPHONE M-800RM................................................................. 49

12.3. REMOTE AUDIO CONTROL PANEL M-800RC............................................... 50

12.4. REMOTE AUDIO CONTROL PANEL WITH AUDIO OUT M-802RC................ 50

12.5. REMOTE AUDIO INPUT OUTPUT PANEL M-822IO....................................... 51

12.6. REMOTE AUDIO CONTROL PANEL WITH TOUCH DISPLAY M-800RCT..... 51

12.7. EXTENSION MODULE 4 PORTS M-804EX..................................................... 52

12.8. DANTE MODULE M-800DT.............................................................................. 52
