Side 1/4

Thank you for purchasing TOA's Wall Mount Speaker.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

BS-680F

BS-680FC

WALL MOUNT SPEAKERS

INSTALLATION MANUAL

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

WARNING

CAUTION

WARNING

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read

all the instructions in this section for correct and

safe operation.

• Be sure to follow all the precautionary instructions

in this section, which contain important warnings

and/or cautions regarding safety.

• After reading, keep this manual handy for future

reference.

• Install the unit only in a location that can

structurally support the weight of the unit and the

mounting bracket. Doing otherwise may result in

the unit falling down and causing personal injury

and/or property damage.

• Do not use other methods than specified to mount

the bracket. Extreme force is applied to the unit

and the unit could fall off, possibly resulting in

personal injuries.

• Tighten all screws securely. If any is loosely fixed,

this may cause the speaker cabinet or baffle to fall,

resulting in personal injury.

• To avoid electric shocks, be sure to switch off the

amplifier's power when connecting speakers.

• Do not operate the unit for an extended period of

time with the sound distorting. This is an indication

of a malfunction, which in turn can cause heat to

generate and result in a fire.

• Do not stand or sit on, nor hang down from the unit

as this may cause it to fall down or drop, resulting

in personal injury and/or property damage.

CAUTION

• Constructed with metal cabinet, the speakers are

ideal for use in a voice evacuation system.

• Can be surface- or flush- mounted to the wall.

• Either concealed in-wall wiring or exposed wiring

can be used for speaker cable connection.

• The speaker structure of direct wall-mounting with

screws prevents the speaker from falling easily

even if an outward force is applied to.

• The input impedance can be easily changed by

changing the tap position of the transformer.

• A 16 cm (6") double cone speaker unit ensures

high quality sound.

• Two steatite screw terminal blocks (1 cable to 1

connection type) make bridge connection easier.

(BS-680FC)

• The push-in type input connector makes cable

connections easy and allows bridge wiring. (BS-

680F)

• The BS-680FC complies with British Standard

5839 part 8.

2. FEATURES

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany

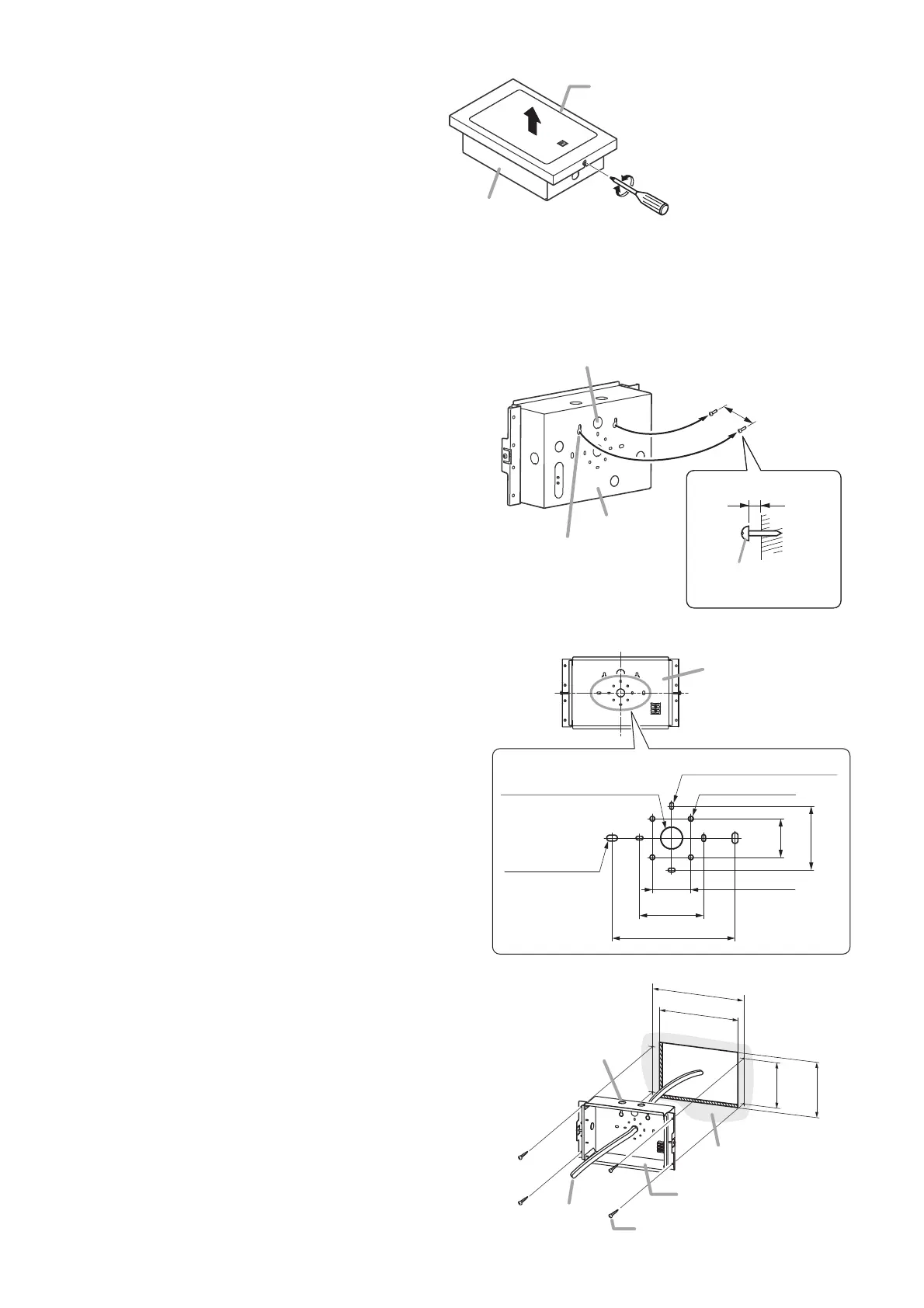

3. INSTALLATION

Step 1. Loosen one each of the screws on both

sides of the speaker, then remove the

baffle.

You can remove the baffle by loosening

the screw without taking it out.

Step 2. Install the cabinet on the wall.

The cabinet has knockout holes (ø20.5 mm or ø0.81") for cable routing.

Remove the desired knockout hole depending on the wiring method, and route cables.

2-1. When installing the cabinet on the wall using the hanging holes:

(1) Fix 2 supplied screws (tapping screws 4 x 16)

to the wall leaving about 5 mm (0.2") space

from the wall surface.

(2) Remove the cabinet's knockout, then run the

cables routed from the wall through this hole.

In the case of exposed wiring, fit the supplied

rubber grommet into the knockout hole.

Note: Cut a hole in the grommet's thin

membrane to match the cable size.

(3) Hook the cabinet onto the stick-out screws,

then tighten the screws.

Tip: The shape of cabinet's hanging hole is

so designed to prevent the cabinet from

falling easily even if an outward force is

applied to.

2-2. When installing the cabinet on the wall using other holes:

(1) Remove the cabinet's knockout, then run

the cables routed from the wall through this

hole.

In the case of exposed wiring, fit the supplied

rubber grommet into the knockout hole.

Note: Cut a hole in the grommet's thin

membrane to match the cable size.

(2) Install the cabinet on the wall using the

mounting holes [a], [b] or [c] shown at right.

Note: Since no mounting screws are

supplied with the speaker, separately

prepare them appropriate for the

construction of wall and its thickness.

2-3. When mounting the cabinet into the wall:

(1) Make a mounting hole of 260 x 175 mm

(10.24" x 6.89") in the wall.

(2) Remove the cabinet's knockout hole, run

the cables through this hole, then install

the cabinet using 4 supplied screws

(tapping screw 4 x 16).

Fit the supplied rubber grommet into the

knockout hole.

Note: Cut a hole in the grommet's thin

membrane to match the cable size.

Loosen

Tighten

Baffle

Cabinet

Note: To remove, pull in the arrow

direction after loosening screws.

Cabinet

83.5 mm (3.29")

About 5 mm (0.2")

Hanging hole

Wall

Tapping screw 4 x 16

(accessory)

Knockout hole (ø20.5mm or ø0.81")

Cabinet

Knockout hole: ø20.5 (0.81)

36 (1.42)

(1.42)

60 (2.36)

115 (4.53)

4-3.5 x 6.5 (0.14 x 0.26) [a]

2-5.5 x 10

(0.22 x 0.39) [c]

4-ø4.5 (0.18) [b]

Unit: mm (in)

The figure shows BS-680F.

Cabinet

Knockout hole: ø20.5 (0.81)

Sides: 4 holes

Bottom: 2 holes

wall

286 (11.26)

260±3

(10.24±0.12)

175±3

(6.89±0.12)

150

(5.91)

Speaker

cable

Tapping screw 4 x 16 (accessory)

Unit: mm (in)

Produkt Specifikationer

Mærke:	TOA
Kategori:	Højttaler
Model:	BS-680FC
Bredde:	310 mm
Dybde:	90 mm
Højde:	190 mm
Vægt:	2600 g
Produktfarve:	Hvid
Udgangseffekt (RMS):	6 W
Husmateriale:	Stål
Anbefalet brug:	Universel
Frekvensområde:	150 - 20000 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Højttaler, placering:	Kan monteres på væggen
Antal drivere:	2
Driver diameter:	160 mm
Sensitivitet:	94 dB
Klemskrue:	Ja
