Side 1/4

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

WARNING

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

CAUTION

1. SAFETY PRECAUTIONS

•

Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in

this section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future

reference.

• As a force of approx. 18 kg (39.68 lb) is applied to the

speaker receptacle at the time of speaker installation,

attach it in a location durable enough to withstand the

force. Doing otherwise may result in the unit falling

down, causing personal injury.

• Do not use other methods than specified to mount the

bracket. Extreme force is applied to the unit and the

unit could fall off, possibly resulting in personal injuries.

• Use nuts and bolts that are appropriate for the wall's

structure and composition. Failure to do so may cause

the speaker to fall, resulting in material damage and

possible personal injury.

• Ensure that all screws are securely tightened. If they

are loose after installation, the unit could fall down,

possibly resulting in personal injury.

• To avoid electric shocks, be sure to switch off the

amplifier's power when connecting speakers.

• Do not operate the unit for an extended period of time

with the sound distorting. This is an indication of a

malfunction, which in turn can cause heat to generate

and result in a fire.

• Do not stand or sit on, nor hang down from the unit as

this may cause it to fall down or drop, resulting in

personal injury and/or property damage.

• Thin type wall mount speaker with 5" cone speaker unit

• Two-way speaker system employing a balanced dome

tweeter and elliptical horn for high-frequency sound

reproduction in combination with a 5" cone speaker

unit ensures high-quality sound. (BS-1034 and BS-

1034S)

• The speaker's smoothly curved surface in combination

with its straight lines permits it to blend in with virtually

all modern buildings.

• Equipped with a speaker receptacle, providing speaker

cable connection and installation ease.

• Equipped with a lock mechanism, preventing the

speaker from being detached easily after installation.

• In-wall wiring, exposed wiring, or bridge wiring

available for speaker cable connection

• The input power (impedance) can be easily changed

by the rear-mounted rotary switch. (BS-1034 and BS-

1034S)

• The BS-634T has a built-in attenuator and can be

connected to a 3-wire and 2-wire systems.

2. FEATURES

INSTALLATION MANUAL

WALL MOUNT SPEAKERS

BS-634

BS-634T

BS-1034

BS-1034S

Thank you for purchasing TOA's Wall Mount Speaker.

Please carefully follow the instructions in this manual to

ensure long, trouble-free use of your equipment.

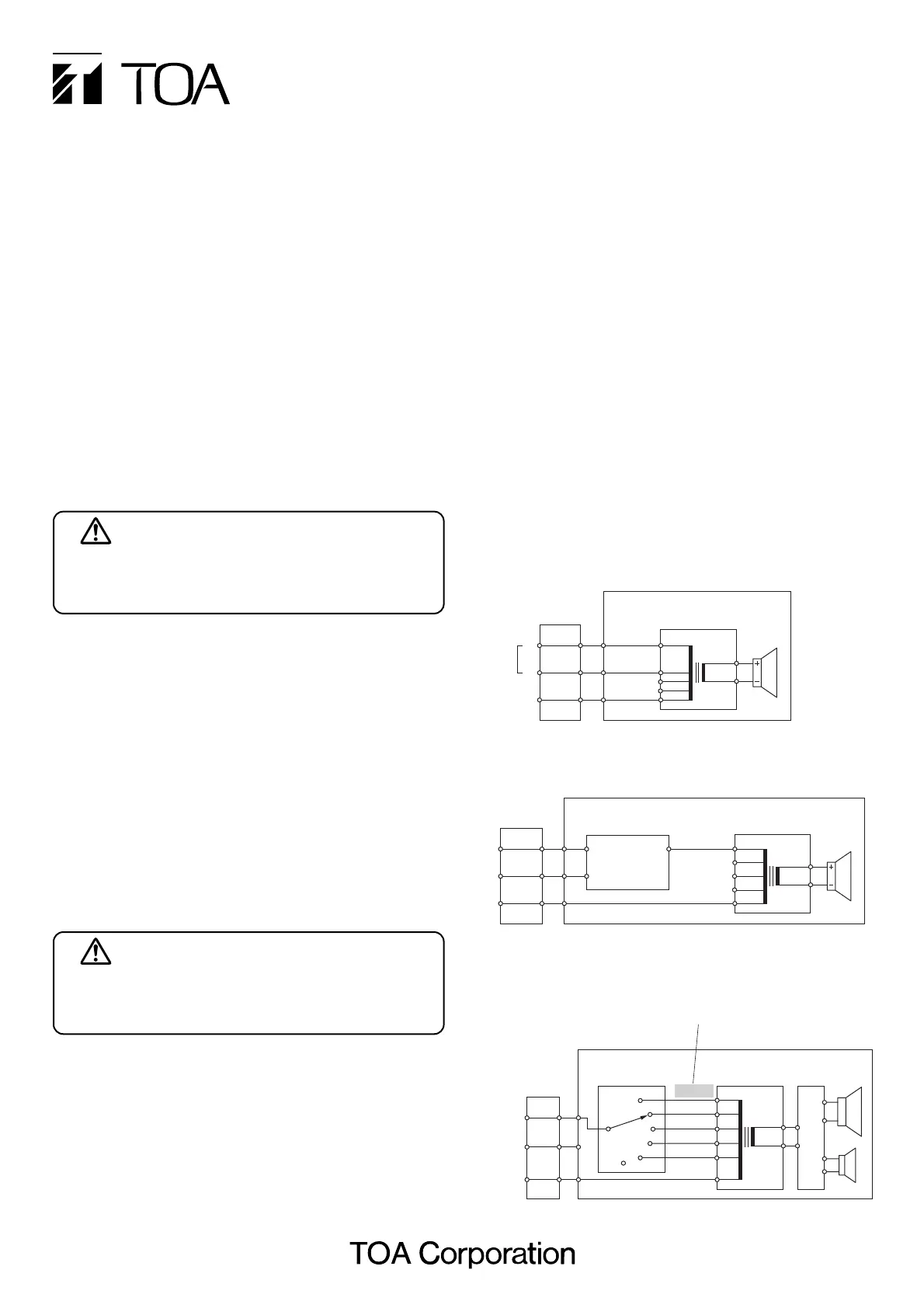

3. WIRING DIAGRAMS

3.1. BS-634

8 Ω

1.7 kΩ

3.3 kΩ

HOT

COM

Matching

transformer

Speaker

receptacle

COM

3.2. BS-634T

Attenuator

8 Ω

1.7 kΩ

Matching

transformer

Speaker

receptacle

COM

3.3. BS-1034 and BS-1034S

8 Ω

1 kΩ

2 kΩ

3.3 kΩ

10 kΩ

COM

–

HOT

Matching

transformer

Network

circuit

Speaker

receptacle

COM

Rotary switch

(Factory pre-set)

500 Ω

Note

Never make 500 Ω connection in a 100 V line system.

N-terminal R-terminal

Impedance 1.7 kΩ 3.3 kΩ

100 V line 6 W 3 W

70 V line 3 W 1.5 W

4. CONNECTION

4.1. BS-634 connection

5. INSTALLATION

Connect the speaker cable to the supplied speaker

receptacle. Connections differ depending on the speaker

to be installed. Read the descriptions of the

corresponding model.

The input power is set to 6 W (100 V line) by connecting

the Hot line to the N-terminal, and 3 W (100 V line) by

connecting it to the R-terminal.

(HOT)

TERMINAL

(COM)

HOT (R/N)

COM (C)

3.3 kΩ (3 W for 100 V line,

1.5 W for 70 V line)

Speaker receptacle (Rear)

1.7 kΩ (6 W for 100 V line,

3 W for 70 V line)

The figure shows 1.7 kΩ

connection example.

4.2. BS-634T connection

(HOT)

TERMINAL

(COM)

(HOT)

TERMINAL

(COM)

Speaker receptacle (Rear)

Short between C

and R terminals.

[3-wire system] [2-wire system]

Normal (N)

Emergency (R)

Common (C)

HOT (N)

COM (C-R)

4.3. BS-1034 and BS-1034S connections

TERMINAL

(HOT)

(COM)

HOT (N)

COM (C)

Speaker receptacle

(Rear)

Step 1. Attach the speaker receptacle to a wall.

[Notes on horizontal speaker mounting]

• Even if the speaker receptacle is attached horizontally,

the speaker may be tilted due to its weight unbalance

when attached to the receptacle.

• Be sure to attach the speaker so that its volume control

is positioned downward. (BS-634T only)

• When changing the logo direction, peel off the logo

carefully as it is affixed using double-faced tape. Then,

re-affix it in the right orientation.

[Exposed wiring]

Notch the top of the speaker receptacle using long-nose

pliers, then make connections.

Obstacle

Wall

170 mm (6.69") or more

250 mm (9.84") or more

Tapping screw 4 x 35

(accessory)

Notes on speaker receptacle mounting

70 (2.76")

"UP" mark

120 (4.72")

66.7

(2.63")

83.5

(3.29")

If the supplied tapping screws are not appropriate for the

construction of wall, separately prepare the appropriate

screws.

Install the speaker receptacle referring to its "UP" mark.

Position the receptacle at the specified distance away from

any object above and below it for vertical speaker mounting.

Keep the same distance to the right and left of the receptacle

(positioned sideways) for horizontal speaker mounting.

•

Speaker cable

Split the speaker cable into 2 branches just before it

enters the speaker receptacle so that it can be routed in

the cable-guide groove on the rear side of the speaker.

Speaker receptacle

Speaker (Rear)

Notch the top of the

speaker receptacle

using long-nose pliers.

Produkt Specifikationer

Mærke:	TOA
Kategori:	Højttaler
Model:	BS-634T
Bredde:	210 mm
Dybde:	80 mm
Højde:	330 mm
Vægt:	1300 g
Produktfarve:	Hvid
Udgangseffekt (RMS):	6 W
Husmateriale:	Resin, Steel
Anbefalet brug:	Universel
Frekvensområde:	120 - 18000 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Højttaler, placering:	Kan monteres på væggen
Antal drivere:	1
Driver diameter:	120 mm
Sensitivitet:	9 dB
Klemskrue:	Ja
