EC-380-EB

CHIME MICROPHONE

INSTRUCTION MANUAL

3. GENERAL DESCRIPTION

4. FEATURES

1. Microphone

2. Mic Lamp

3. Power Lamp

7. Selector Switch

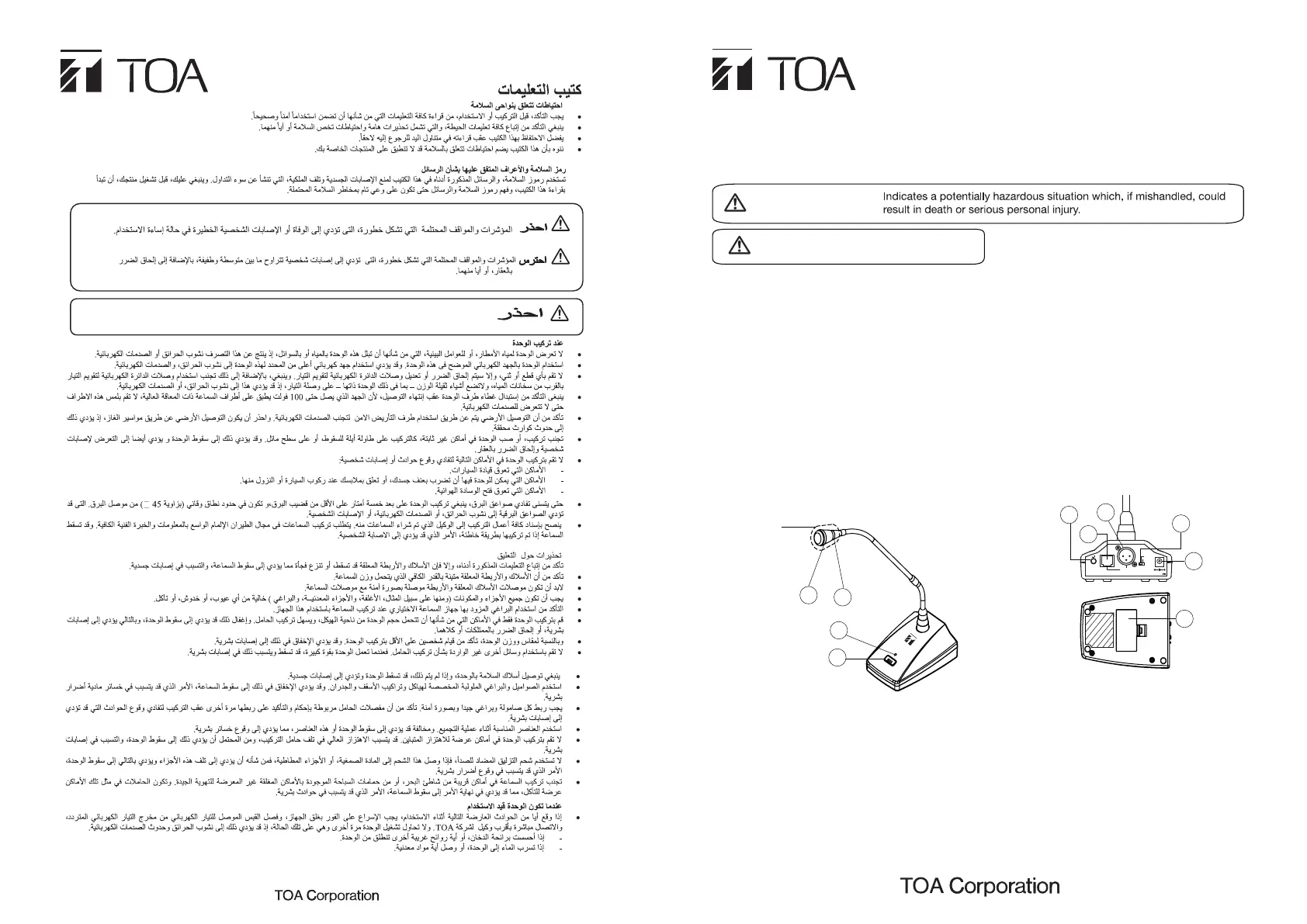

5. NOMENCLATURE AND FUNCTIONS

TOA's EC-380-EB Chime Microphone is a unique shape and high quality condenser microphone designed for paging

applications. It has 2 tones, chime up and chime down at the beginning and end of speech. This product is equipped

with an optional power that is selectable between battery or DC power. Beside that, power can be supplied from RJ45.

p&RVJQQFEXJUIUPOFTVQBOEEPXOQSFBOOPVODFNFOUDIJNF

p.JDSPQIPOFPQFSBUJPOCZTFMFDUJOHUIFCBUUFSZ%$QPXFSTXJUDIPOUIFSFBSPGUIFVOJU

p

Uses 4 pcs of "AA" size batteries.

[Rear]

[Bottom]

The blue light blinks when 4-tones chime is play, then

stay on when the microphone is turn on and it will

turn off after chime down finish.

Same as mic lamp, the blue light blinks when 4-tone

chime is play, stay on when the microphone is turn

on and turn off after chime down finish.

Selecting this switch to use battery or DC power as

the power supply for this unit.

Close-talk type cardioid electret condenser micro-

phone. The mic shaft facilitates positioning of the

microphone for the optimum acoustic effect.

MIC OUT

CHIME

9 ~ 24 V

BATTERY

DC INPUT

5. Chime Volume Control [CHIME VOL.]

Turning the control clockwise to increase the chime

volume.

6. DC Power

Using DC power 9 - 24V as replacement of battery

supply.

Note : If battery is low, the mic lamp will be turn off,

but the microphone and power lamp still can be

operated. Recommended to change the batteries

when this happen.

4. Microphone ON/OFF Button

Pressing this key sounds a 4-tone chime and turns

POPGGUIFNJDSPQIPOF

1. SAFETY PRECAUTION

Before installation or use, be sure to carefully read and

follow all the precautionary instructions in this

section

ensure long, trouble-free use of your equipment

WARNING

Be sure to act on the instructions as safety precaution

to prevent bodily injury and property damage.

Use the appropriate battery. Pay attention with the

batteries polarity when insert the batteries to unit.

Avoid directly to sunlight, high temperature

or high humidity when come to storage of

batteries.

If the unit is not in used for more than 10 days.

Remove all 4 batteries, to prevent battery

leakage.

Do not expose the unit to rain or an environment where it may be splashed by water or other liquid, high

temperature and high humidity.

Do not open the cover to modification of unit. For service, contact the nearest TOA dealer.

Do not drop the unit to hard object and use dry cloth to clean the unit. Do not use gasoline, thinner, etc.

2. SAFETY MAINTENANCE

VOLUME

1 8

Windscreen

(Accessory)

0/0''

CHIME MICROPHONE

133-04-00031-00

7. CONNECTION

8. OPERATION

9. USING THE SWITCH SELECTOR MODE

Step 1. Set the amplifier's microphone volume control to the minimum position.

Step 2. Using the supplied cable or STP cable of straight type to connect with other equipment ( amplifier, mixer, PA

system, etc ). For using STP cable, recommended to use STP cable with shield for reducing the noise.

After announcement is completed, press the microphone ON/OFF button and microphone turn off.

Selector switch have 2 modes. There are battery mode and DC power mode. If using battery as power input, select the

switch to battery position and if using DC input as power input, select to DC power position.

Note : For using RJ45 as mic out and power input, set the switch to DC input position, but if just as mic out, can use one

of the switch selector mode. The unit is not applicable to phantom power as power input.

Manufacturer : Authorized representative :

PT. TOA GALVA INDUSTRIES TOA Electronic Europe GmbH

Jl. Raya Bogor km 34-35, Tapos Suederstrasse 282, 20537 Hamburg,

Depok 16958, Indonesia Germany

Caution : To release the batteries, pull the remaining ribbon carefully from the battery compartment.

6.2. Battery Insertion

Step 3. Put back the battery cover to product.

8. XLR Balance Output

10. Battery Compartment

Output impedance of the microphone is 600 ohms. Use the

supplied cable to connect with an amplifier.

Place AA batteries ( 4 pieces ) .

9. RJ45 Balance Output

Use STP cable of straight type to connect with other equipment.

Pin configuration : Pin 1, 2: contact output;

Pin 3: NC

(Not Connected); Pin 4: Audio Output (H);

Pin 5: Audio Output (C); Pin 6: NC; Pin 7: 24

VDC; Pin 8: Ground.

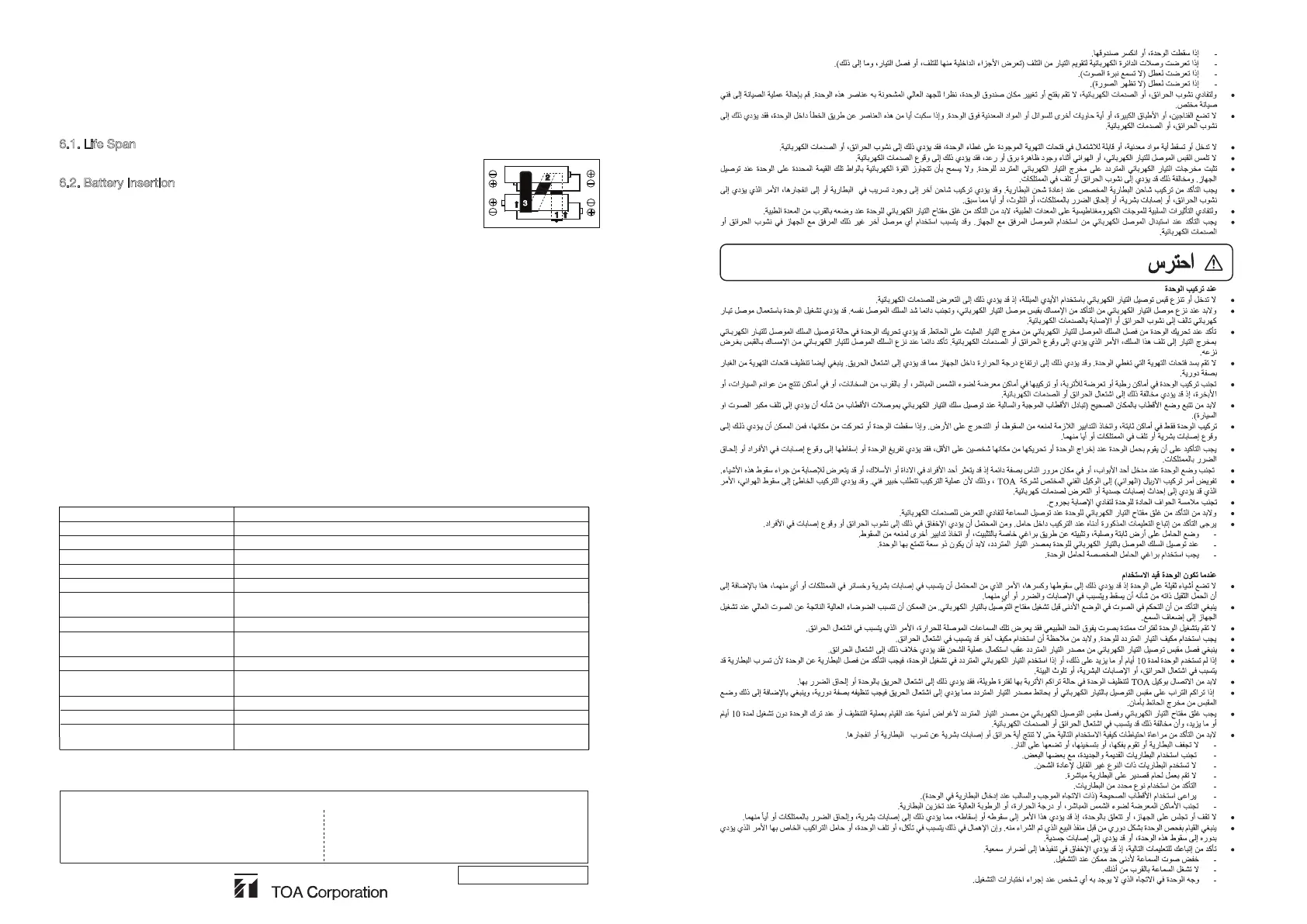

6. BATTERY

6.1. Life Span

Application and use battery for paging be assumed 150 times/day and unit can use

until 20 months or 90 thousand calls.

Step 1. Open the battery cover. Insert the battery according to battery polarity and ribbon

position (see the right picture)

Step 1.

Press the microphone ON/OFF button. The mic lamp and power lamp's blue light blinking and turning on the

microphone.

Step 2.

Keep your mouth 5 – 10cm away from the microphone and speak normally for the best possible sound repro-

duction. Adjust the microphone orientation for the best position by turning its mic shaft. If distance of mouth is

too near, it cause voice distortion. Adjust the microphone by pulling away or lowering it. Because the high sensi-

tivity’s microphone.

Step 3.

Note : Be sure to press the ON/OFF button after announcement completion. Failure to do this, shortening the battery

life. Be sure to turn off the phantom power on other equipment if use chime microphone for durability of unit.

10. SPECIFICATION

Microphone Element Condenser Microphone

Polar Pattern Cardioid

Impedance 600 ohm, Balanced

Sensitivity Microphone : -41 ± 3 dB ( 1 kHz 0 dB = 1 V / Pa )

Chime : -31 ± 3 dB ( maximum position )

Power Source

6 VDC ( 4 x "AA" batteries ) or DC power ( 9 - 24 V )

Frequency Response Microphone

Finish Stand = ABS Resin, Black, Paint

Weight

558 g ( exclude batteries )

Accessories

50 - 18,000 Hz

Operating Temperature 0 °C to +40 °C ( 32 °F to 104 °F )

Shaft = Copper alloy, Black, Paint

Windscreen ..... 1

XLR Cable Stereo Phone Plug ( 7.5 m ) ....1

Dimensions 110 ( w ) x 145 ( d ) x 532 ( h ) mm

Option adapter can use AD-246 AC adapter.

Current Consumption 13 mA when chime operate and 6 mA when microphone operate

Chime Tones 4 - Tones chime ( UP / DOWN )

Connector Output XLR 3 - 32 Equivalent

RJ45 : Audio output, power supply and contact output

Batteries and AC adapter are not supplied with the unit. Please purchase separately.

Note: The design and specifications are subject to change without notice for improvement.

Traceability Information for Europe

URL: https://www.toa.eu
