S16A22951G

TOA Canada Corporation

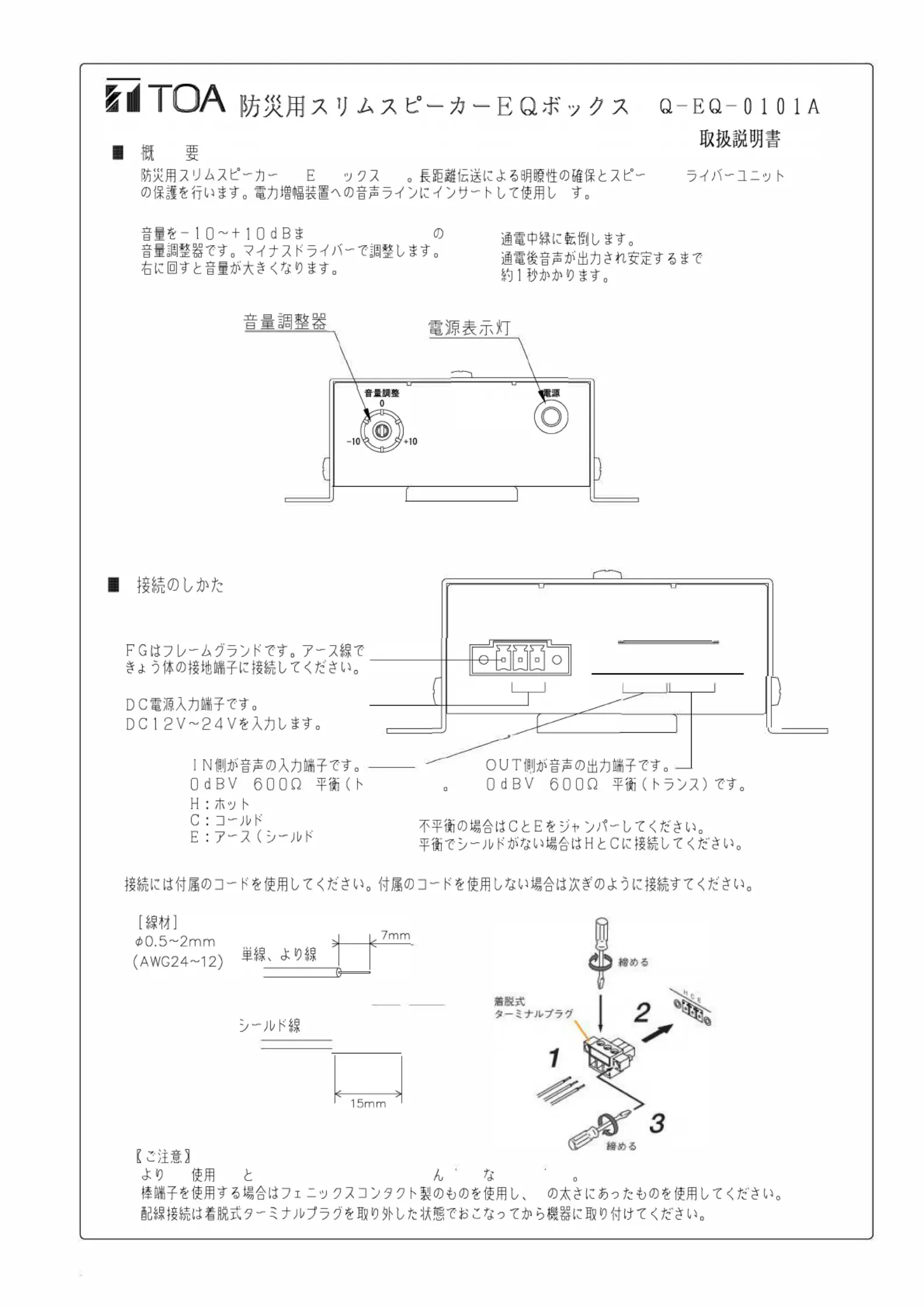

LONG RANGE SLIM ARRAY SPEAKER EQ BOX

INSTRUCTION MANUAL

DESCRIPTION

The EQ box exclusive used for the long range slim speaker. This product ensures clarity by long distance

transmission and protect the speaker driver unit. To use this product, please insert it to power amplier on

audio line.

This is semi-xed type volume controller that

can adjust the volume from -10 to +10 dB.

Adjust by minus screwdriver. To increasing the

volume, please turn it to the right.

The power led light turns to green when

power is ON.

After power is ON, it takes about 1 second

untill the sound is outputted and stabilized.

Volume controller

Power indicator light

HOW TO CONNECT

FG stands for frame gound. Using

earth wire to connect FG to the ground

terminal of enclosure

DC power input terminal.

Input DC voltage 12V~24V.

0dBV 600 balance (transformer)Ω　

"IN" side is audio input terminal.

H : hot

C : cold

E : earth (shield)

0dBV 600 balance (transformer)Ω　

"OUT" side is audio output terminal.

In case of imbalance, please jumper C and E.

If there is no shield at balance, please connect to H and C.

When connecting, please use associated cable cord. If do not use associated cable cord, please connect

as below.

Wire

φ0.5~2mm

(AWG24~12)

Single wire,

twisted wire

Shield wire

Tighten

Removable

terminal plug

When using twisted wire, please do not pre-soldering in uncovered part.

If using bar terminal, please use one that manufactured by Phoenix Contact and matches the thickness of wire .

Please do wiring connection after removing the removable terminal plug.

* Remark:
