TOA's HY-CN1 series brackets are used to join 2 HX-5 series speaker systems, typically for the purpose of achieving

better speaker directivity control in lower frequencies. Such directivity control helps achieve clearer and longer-range

sound reproduction in locations where sound efficiency may be hampered by conditions like long reverberation time or a

high level of background noise.

HY-CN1B, HY-CN1W,

HY-CN1B-WP, HY-CN1W-WP

SPEAKER EXTENSION BRACKETS

INSTALLATION MANUAL

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this

section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future

reference.

• Install the unit only in a location that can structurally

support the weight of the unit and the speaker. Doing

otherwise may result in the speaker falling down and

causing personal injury and/or property damage.

• (HY-CN1B and HY-CN1W only)

Since the unit is designed for indoor use, do not install it

outdoors. If installed outdoors, the aging of parts causes

the unit to fall off, resulting in personal injury.

• Do not use other methods than specified to mount the

unit. Extreme force is applied to the unit and the speaker

could fall off, possibly resulting in personal injuries.

• Tighten each nut and bolt securely. Ensure that the unit

has no loose joints after installation to prevent accidents

that could result in personal injury.

• Use the specified speaker in combination. Doing

otherwise may cause the speaker to fall off, resulting in

personal injury.

• Do not mount the unit in locations exposed to constant

vibration. The unit can be damaged by excessive

vibration, potentially causing the speaker to fall, which

could result in personal injury.

• Avoid installing the speaker in locations close to the

seashore or in indoor swimming facilities that are not well

ventilated. In such locations the unit may be vulnerable to

corrosion, eventually allowing the speaker to fall resulting

in personal injury.

2. PRECAUTIONS WHEN INSTALLING

THE HY-CN1B-WP AND HY-CN1W-WP

Only the HY-CN1B-WP and HY-CN1W-WP can be

installed outdoors.

• Only the HX-5B-WP and HX-5W-WP speaker systems

can be installed outdoors.

• Install the speaker so that all speaker modules face

downward from the horizontal axis.

Doing otherwise could adversely affect the speaker's

weather resistance and possibly lead to malfunction or

failure.

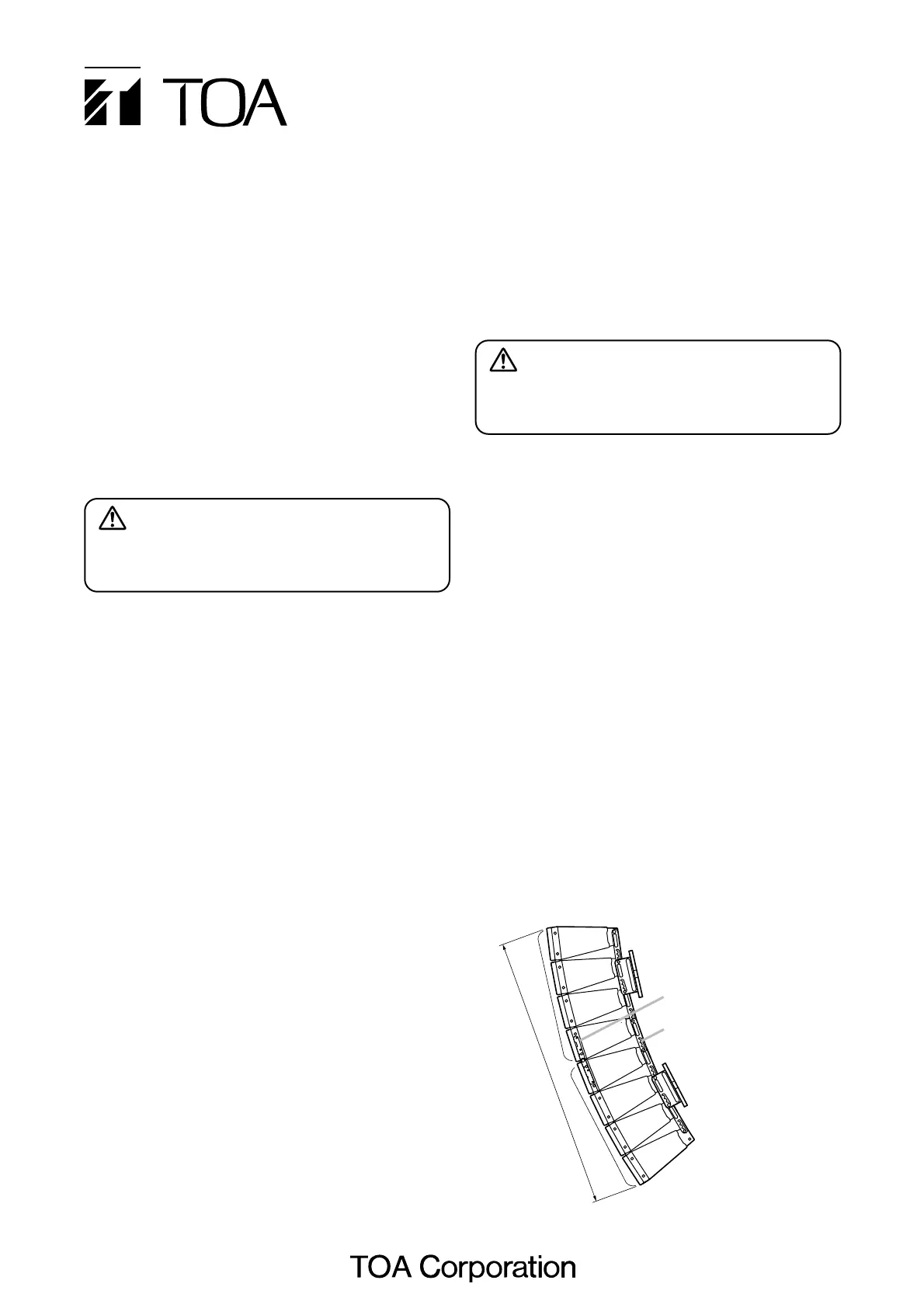

3. FINISHED ASSEMBLY DIAGRAM

Unit: mm (inches)

Indicates a potentially hazardous situation which, if

mishandled, could result in death or serious personal

injury.

WARNING

Indicates a potentially hazardous situation which, if

mishandled, could result in moderate or minor personal injury,

and/or property damage.

CAUTION

• Avoid touching the unit's sharp metal edge to prevent

injury.

• Have the unit checked periodically by the shop from

where it was purchased. Failure to do so may result in

corrosion or damage to the unit that could cause the unit

to fall, possibly causing personal injury.

Front bar bracket

(component of HY-CN1 series)

Rear bar bracket

(component of HY-CN1 series)

HX-5series

HX-5 series

(When set to the 60° mode) (When set to the 15° mode)

1090 (42

) – 1104 (43

)

4. SPEAKER EXTENSION

[Before joining HX-5 series...]

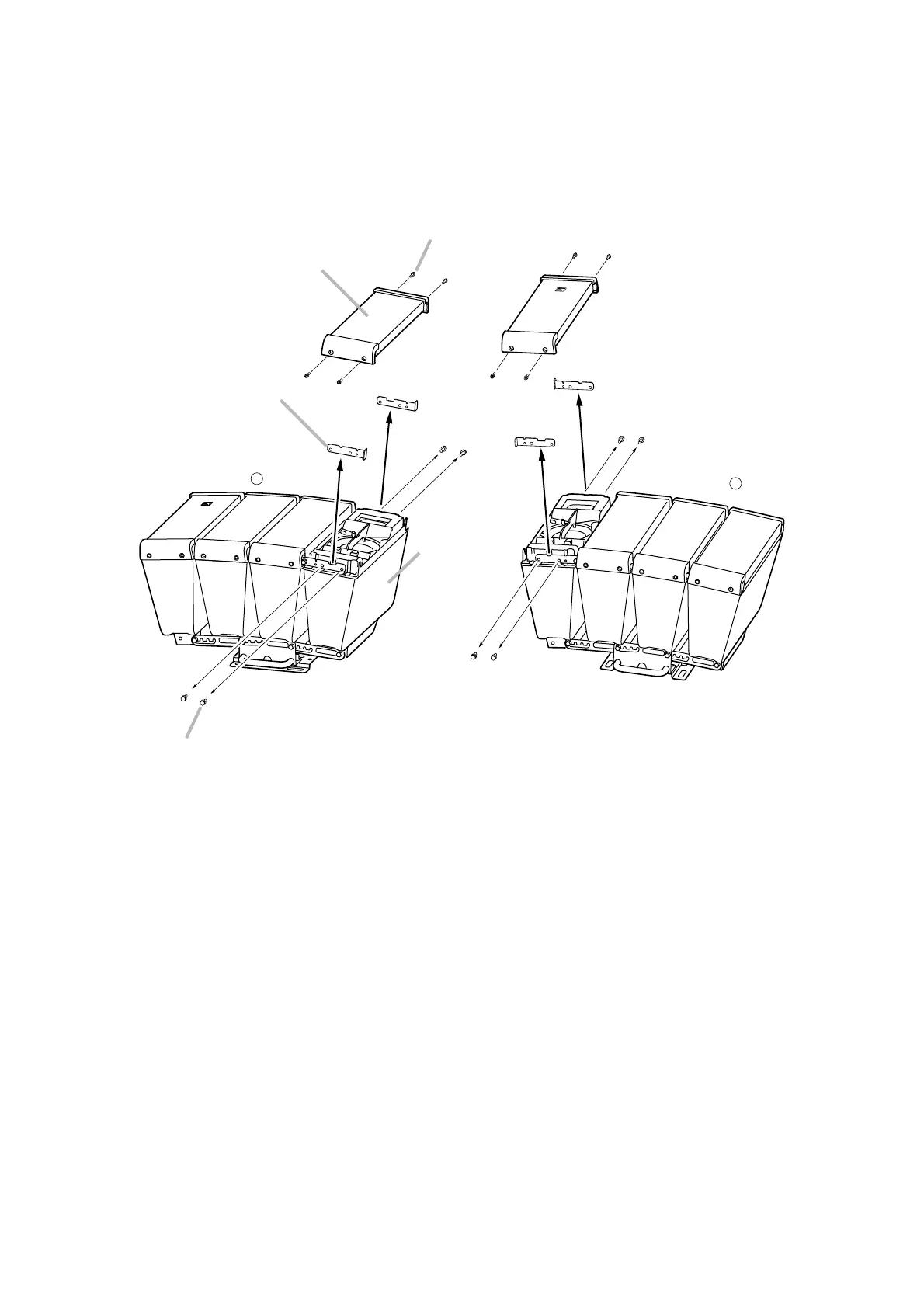

Step 1. Remove the front grill from the speaker module of each HX-5 series by unscrewing 4 bolts with the supplied hex

head wrench.

Step 2. Remove the front end bars from each module by unscrewing 4 bolts.

Front grill

Speaker module

Note: Use these bolts in step 4.

Note: Use these bolts in step 3.

Front end bar

HX-5 series
