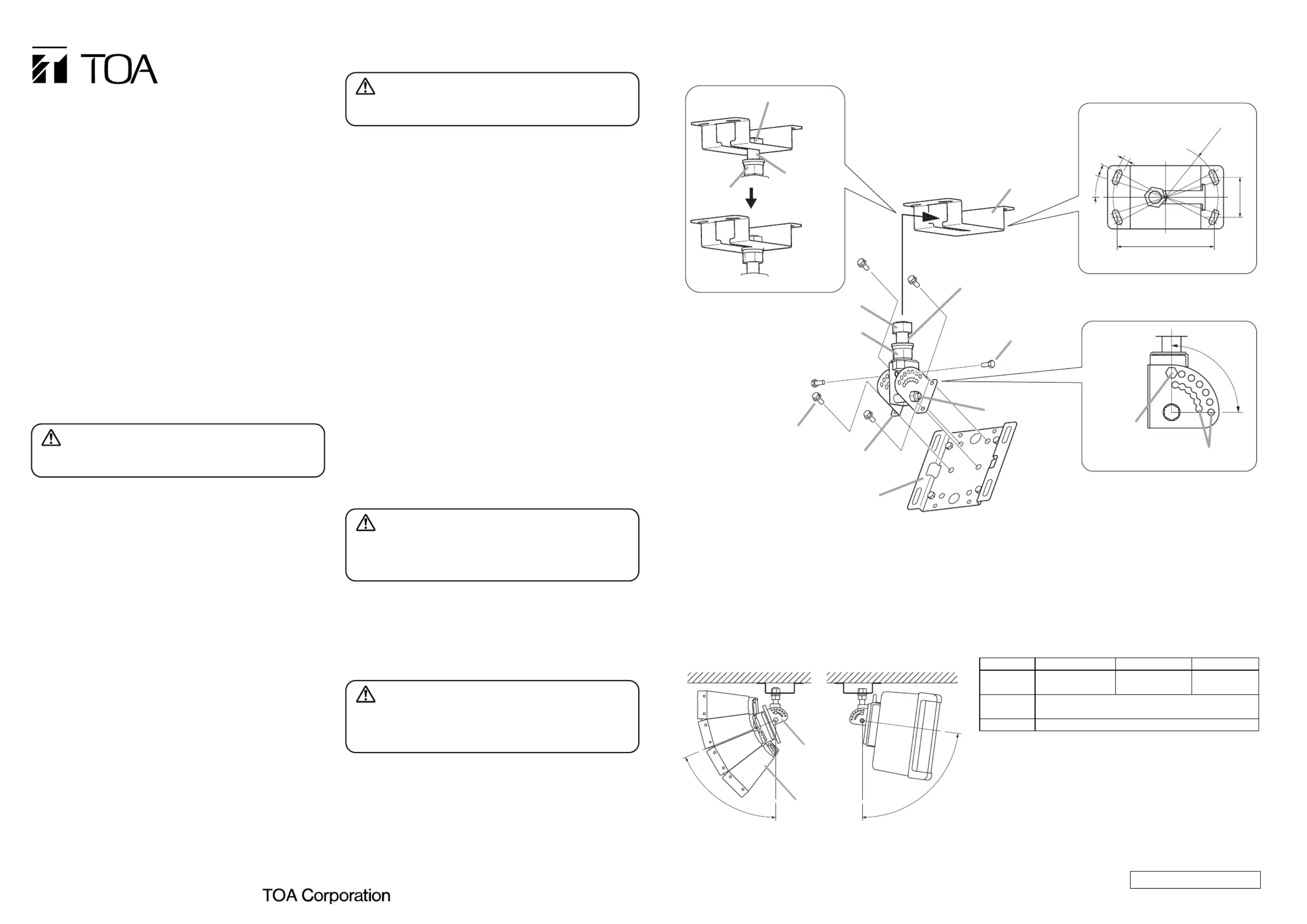

INSTALLATION MANUAL

SPEAKER MOUNTING BRACKETS

HY-CW1B

HY-CW1W

HY-CW1WP

TOA's HY-CW1B, HY-CW1W and HY-CW1WP are designed to be

used exclusively to mount the HX-5 series speaker system to a

ceiling.

Both the HY-CW1B and the HY-CW1W are designed for indoor

use, while the HY-CW1WP is designed for outdoor use.

The speaker can be rotated 360° horizontally. It can also be tilted

vertically up to 82.5° when suspended horizontally, and depending

on the speaker directivity mode, up to 67.5° (for 60° mode) or 75°

(for 15°, 30° or 45° mode) when suspended vertically.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

•Be sure to follow all the precautionary instructions in this section,

which contain important warnings and/or cautions regarding

safety.

•After reading, keep this manual handy for future reference.

5. SPECIFICATIONS

• Accessories

Hexagon head bolt M8 x 15

(with washer)

........ 4

Note: The design and specifications are subject to change without

notice for improvement.

• Install the unit only in a location that can structurally support the

weight of the unit and the speaker. Doing otherwise may result in

the speaker falling down and causing personal injury and/or

property damage.

• (HY-CW1B and HY-CW1W only)

Since the unit is designed for indoor use, do not install it

outdoors. If installed outdoors, the aging of parts causes the unit

to fall off, resulting in personal injury.

• Owing to the speaker's size and weight, be sure that at least two

persons are available to install the speaker. Failure to do so

could result in personal injury.

• Do not use other methods than specified to mount the bracket.

Extreme force is applied to the unit and the speaker could fall off,

possibly resulting in personal injuries.

• Use nuts and bolts that are appropriate for the ceiling structure

and composition. Failure to do so may cause the speaker to fall,

resulting in material damage and possible personal injury.

• Tighten each nut and bolt securely. Ensure that the bracket has

no loose joints after installation to prevent accidents that could

result in personal injury.

• Use the specified speaker in combination. Doing otherwise may

cause the speaker to fall off, resulting in personal injury.

• Do not mount the unit in locations exposed to constant vibration.

The mounting bracket can be damaged by excessive vibration,

potentially causing the speaker to fall, which could result in

personal injury.

• Avoid installing the speaker in locations close to the seashore or

in indoor swimming facilities that are not well ventilated. In such

locations the bracket may be vulnerable to corrosion, eventually

allowing the speaker to fall resulting in personal injury.

Indicates a potentially hazardous situation which, if mishandled,

could result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

•Avoid touching the unit's sharp metal edge to prevent injury.

•Do not hang down from the unit as this may cause it to fall down

or drop, resulting in personal injury and/or property damage.

•Have the unit checked periodically by the shop from where it was

purchased. Failure to do so may result in corrosion or damage to

the unit that could cause the unit to fall, possibly causing

personal injury.

日本語の取扱説明書は裏面をご覧ください。

Step 4. Use the hex head bolts to attach the speaker bracket to

the HX-5 series' rear plate.

Step 5. Lift the speaker and insert the speaker bracket bolt

through the slot in the ceiling bracket.

Step 6. Fix the HX-5 series in the desired horizontal orientation

and tighten nuts A and B.

Only loosen the axis bolt and axis nut; do not remove them as

doing so may cause the speaker to fall, resulting in personal

injury.

WARNING

Only the HY-CW1WP can be installed outdoors.

•Only the HX-5B-WP and HX-5W-WP speakers can be installed

outdoors.

•Install the speaker so that all speaker modules face downward

from the horizontal axis. Doing otherwise could adversely affect

the speaker's weather resistance and possibly lead to

malfunction or failure.

2. PRECAUTIONS WHEN INSTALLING THE

HY-CW1WP

Step 1. Mount the ceiling bracket to a ceiling.

Note

Anchor bolts, nuts, and washers required for mounting

are not supplied with the bracket.

Step 2. Turn nut A fully to the root of the speaker bracket bolt.

Step 3. Remove the vertical angle adjustment bolts (one each for

left and right) and loosen the axis bolt and axis nut.

3. INSTALLATION

Step 7. With the HX-5 series' vertical orientation set to the

desired position, fix the vertical angle adjustment bolts

(one each for left and right) to the speaker bracket.

Step 8. Retighten the axis bolt and axis nut.

Tighten nut B so that the bolt head projects at least 3 mm

(

/8") from the nut. Doing otherwise could allow the speaker to

fall, resulting in personal injury.

WARNING

4. FINISHED ASSEMBLY DIAGRAM

HX-5 series

[When suspended vertically] [When suspended horizontally]

HY-CW1

series

82.5°

67.5°

HY-CW1B HY-CW1W HY-CW1WP

Steel plate, black, Steel plate, white, Stainless steel

semi-gloss, paint semi-gloss, paint (SUS304)

120 (w) x 200 (h) x 220 (d) mm

(w) x 7

(h) x 8

(d) inches

2 kg

Model No.

Finish

Dimensions

Weight

533-06-119-6A
